How to adjust the mode of a solar wall light

The solar wall light's adjustment mode is primarily controlled via physical buttons on the body or a dedicated remote, with some basic models featuring automatic operation through light control and motion sensing, eliminating the need for manual adjustment. Different brands and models vary in operation logic, typically switching between constant-on, sensing, and dim modes via short presses, long presses, or combination key inputs. ‌‌

There are two main modes for adjusting solar wall lights: button/toggle switch and remote control.

Body button adjustment

Button position: The switch or mode button is usually located on the front, side, or inside of the lamp body, and some are designed as hidden buttons. ‌‌

Operation logic:

Short press switch: Press the button to cycle through different modes, such as white light, color light, sensing mode, etc. ‌‌

Long press function: Some models support long pressing the switch for 5 seconds to turn off the sensing mode, switch to a constant atmosphere light, or achieve power on/off. ‌‌

Touch operation: The new intelligent wall lamp may support fingertip tapping of the lamp body to switch brightness or mode, with sensitive response and no fingerprint residue. ‌‌

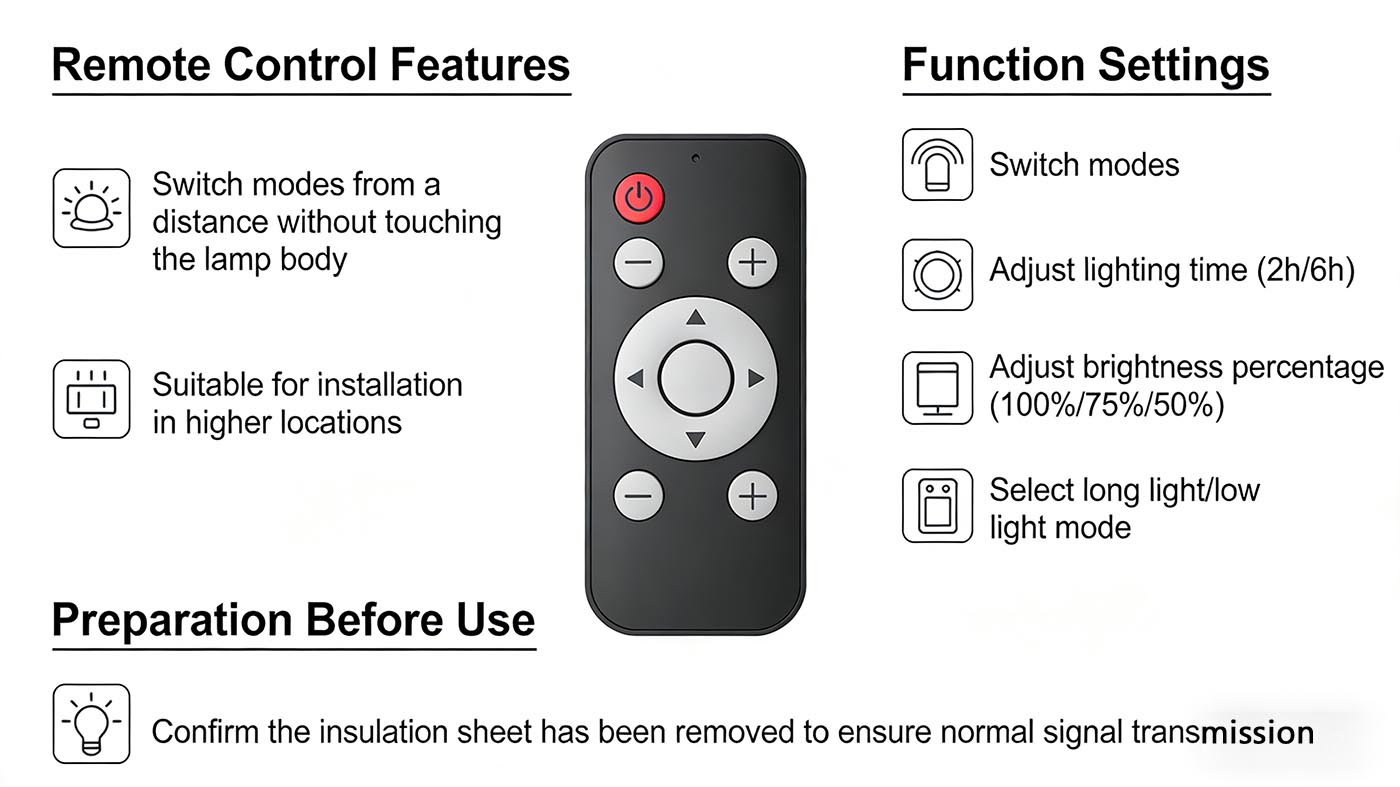

Remote control adjustment

Remote control: Models equipped with remote controls can switch modes from a distance without touching the lamp body, making them suitable for installation in higher locations. ‌‌

Function settings: Through the remote control, not only can the mode be switched, but also the lighting time (such as 2 hours or 6 hours), brightness percentage (such as 100%, 75%, 50%), and the selection of long light or low light mode can be adjusted. ‌‌

Preparation before use: Before using the remote control, it is necessary to confirm that the insulation sheet has been removed to ensure that the signal is transmitted normally. ‌‌

Analysis of Typical Working Modes

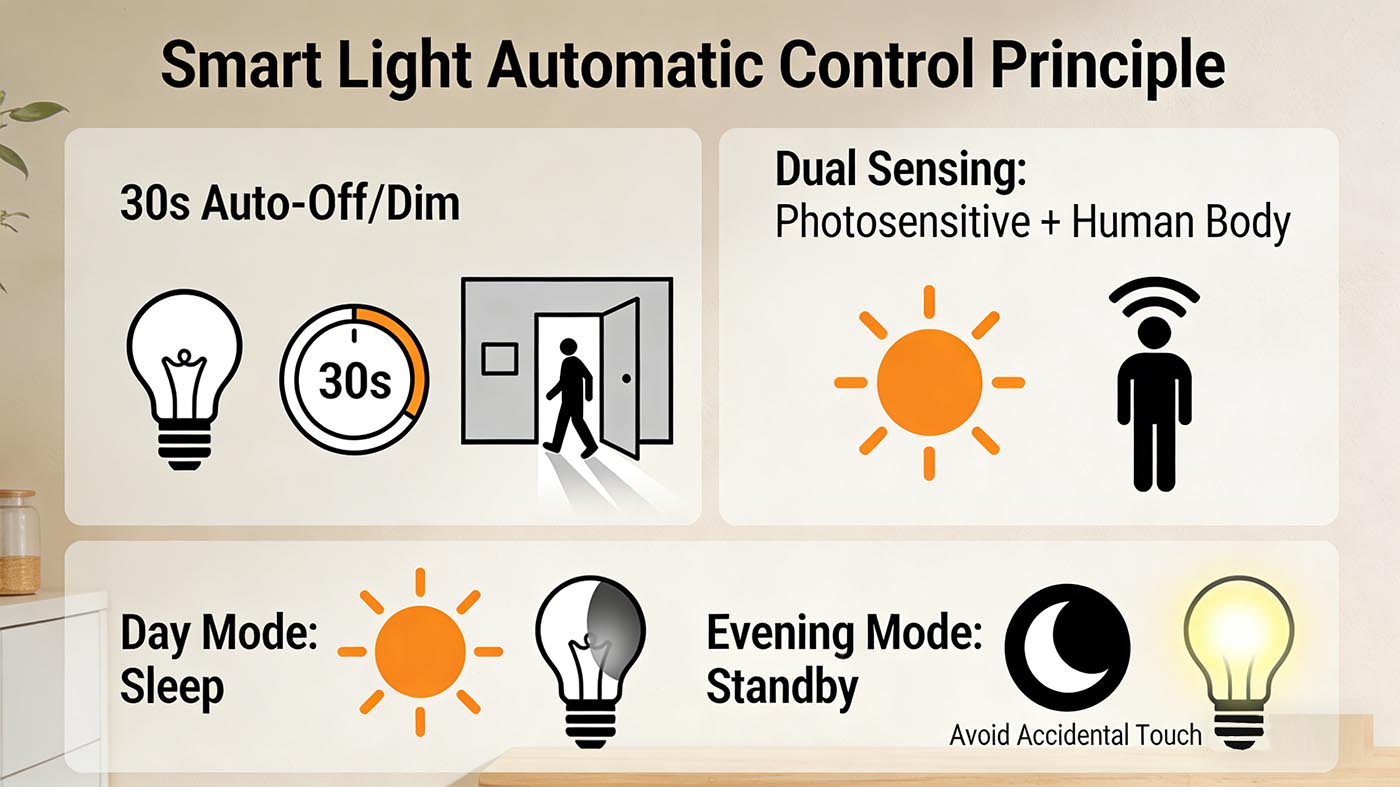

Intelligent sensing mode

When the human body enters the sensing range (usually 3-12 meters) in a dark environment, the light fixture automatically turns on the strong light mode. ‌‌

When people leave, the lights usually automatically turn off or slightly turn on within about 30 seconds to save electricity. ‌‌

Dual mode integration: Some high-end models adopt photosensitive and human body dual sensing, which automatically sleep during the day and standby in the evening to avoid accidental touch. ‌‌

Constant brightness and slight brightness modes

Always on: The lamp maintains high brightness throughout the night, suitable for courtyards or passages that require continuous lighting. ‌‌

Micro brightness standby: The lamp maintains low brightness throughout the night (such as 30% brightness), and instantly brightens when someone passes by, balancing lighting and battery life. ‌‌

Color light decoration: Some wall lights support RGB color light cycling slow flashing or flash flashing, suitable for holiday decoration or atmosphere creation. ‌‌

Precautions for use

Charging and battery life

Lighting requirements: Ensure that the solar panel is free from dust and exposed to direct sunlight, avoiding charging through glass to ensure sufficient power. ‌‌

Battery life impact: Mode selection directly affects battery life. Constant light mode consumes power faster, while induction mode can significantly extend the usage days. ‌‌

Low battery protection: When the battery voltage is too low, the lamp may automatically stop working and can only be restored after daytime charging activation. ‌‌

Installation and Induction

Sensing angle: When installing, it is necessary to balance the angle of sunlight exposure with the angle of human body sensing. The infrared sensor has the best sensing effect in front, and the sensing distance on the side will be shortened. ‌‌

Avoidance of obstruction: There should be no obstruction between the infrared sensor and the human body, including glass doors, otherwise the induction light may not be triggered. ‌‌

Waterproof protection: It is recommended to choose lighting fixtures with IP44 or above waterproof rating for outdoor use to ensure safe operation in rainy weather. ‌‌
