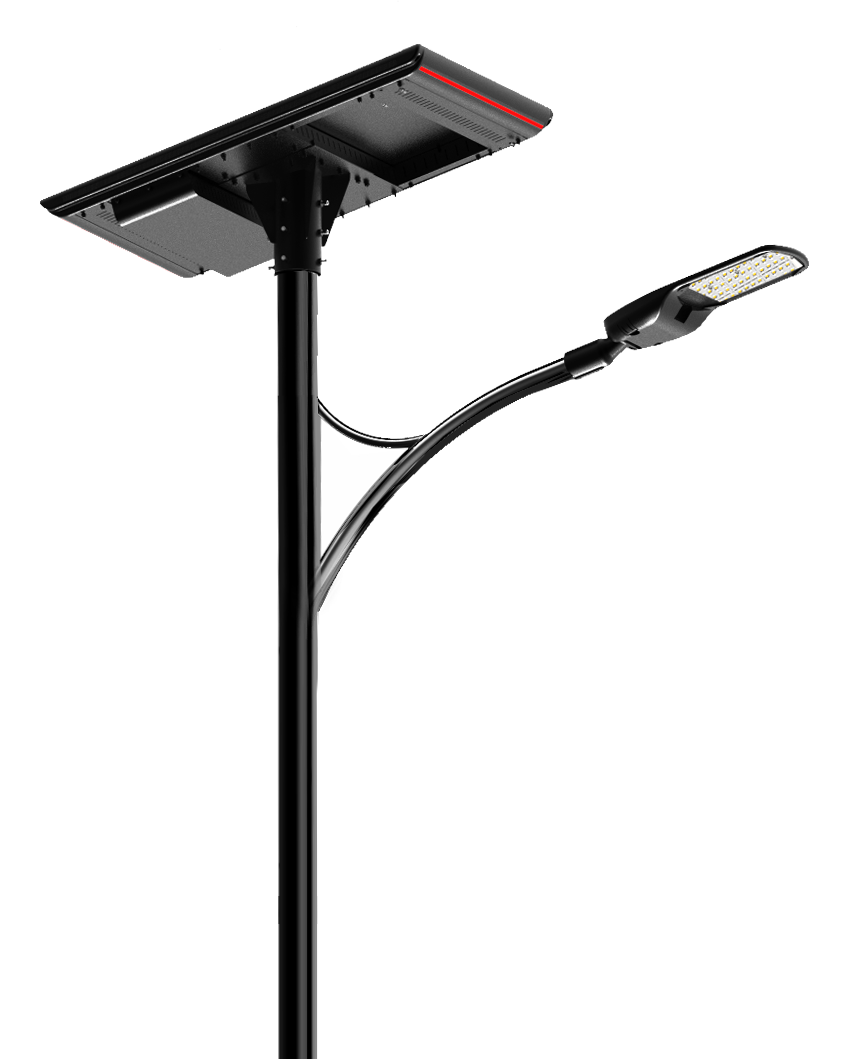

LBA series semi-split solar street light is a street lamp system integrating high conversion rate solar panel, ultra-long life LiFePO4 battery pack, efficient intelligent controller and die-cast aluminum alloy LED street lamp.
It is not only the most cost-effective solution to build a new solar street lamp system, but also the best solution to update and replace the existing old solar street lamp system.

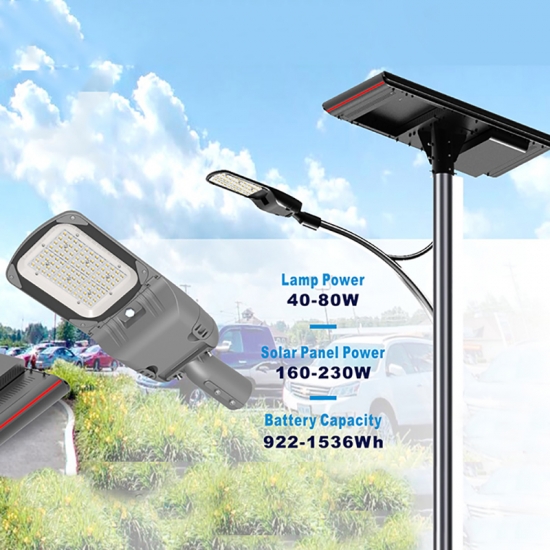

Lamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh
|
|
130lm/w, 150lm/w, 160lm/w available
|
|
|
|
|
|

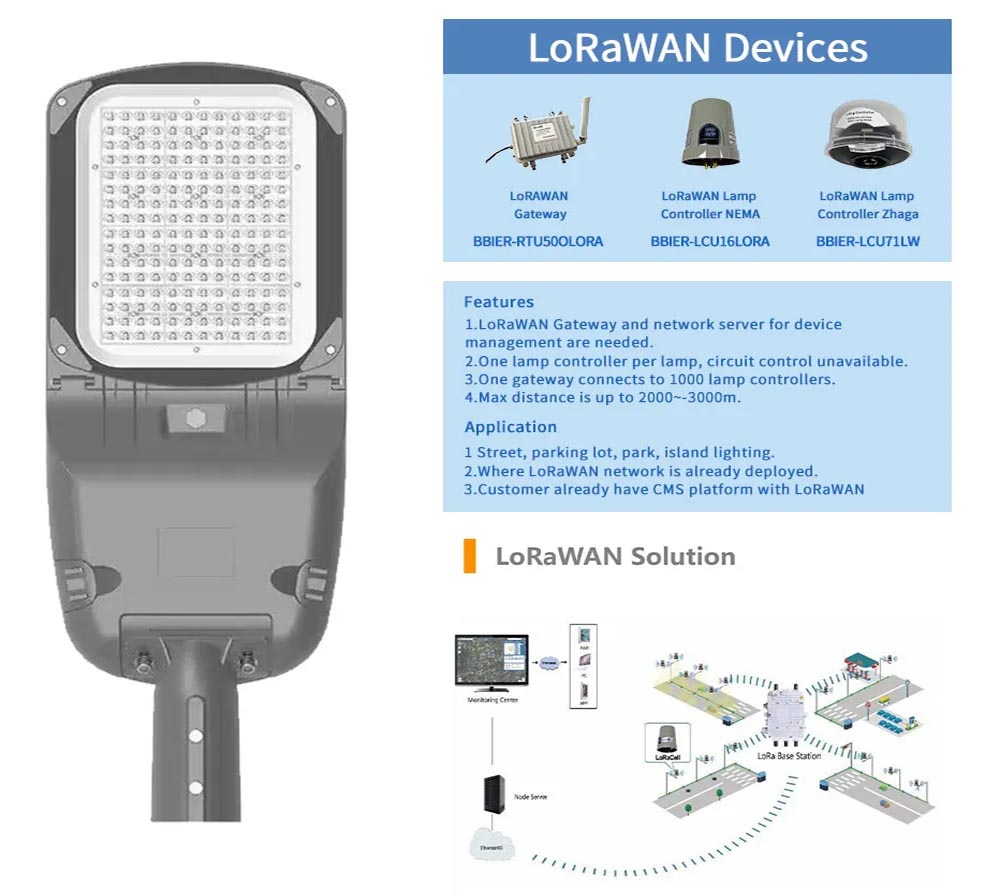

Timer control, motion sensor, photoelectric sensor, three-in-one dimming, Wifi Zigbee connection, photoelectric + timer control,
3-step dimming, GPRS, 3G/4G, Bluetooth, PLC and smart motion sensors. microwave sensor
|
|
|
The brightness is 100%, the microwave sensitivity is 75%, and the holding time is 5 minutes. Start illumination
50LUX, continuous brightness 30%, duration 30 minutes.
|
|
|
|
|
|
560x200x98mm/610x245x98mm/660x245x98mm/714x340x98mm
|
|
|

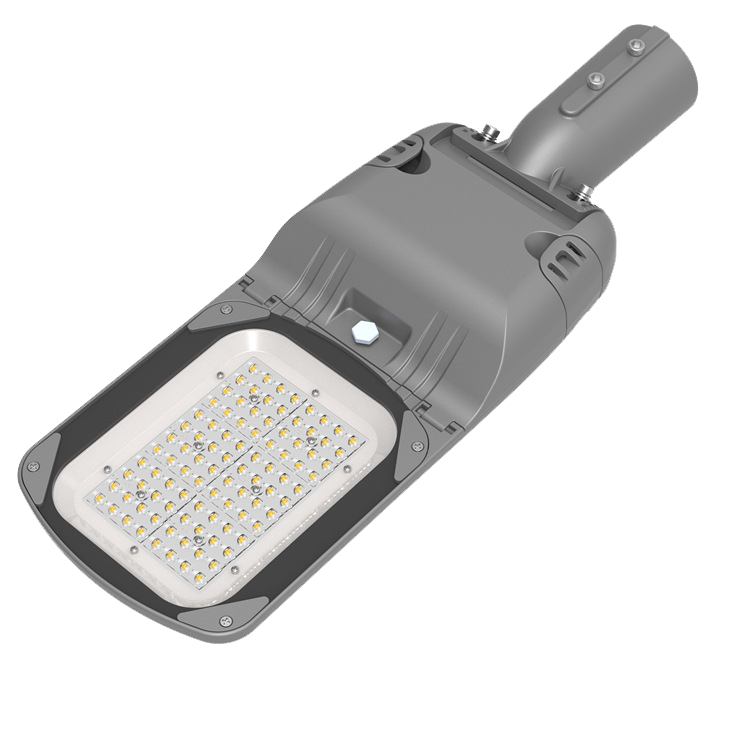

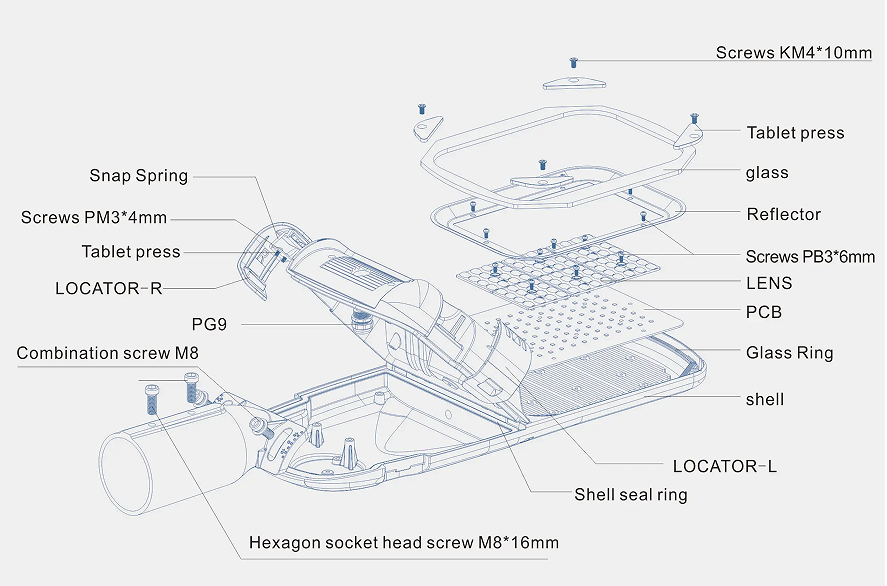

Die-cast aluminum + tempered glass + 316 stainless steel screws
|

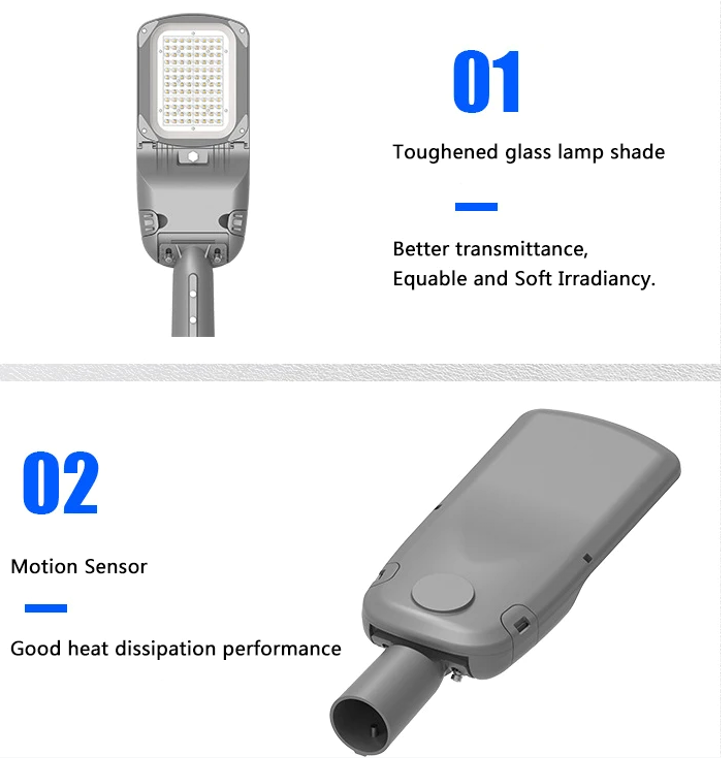

High-Quality Materials and Durability: This LED street light is made from a durable aluminum alloy and tempered glass, ensuring a long lifespan of up to 50,000 hours at 25°C, and a wide operating temperature range of -40 to 50°C.

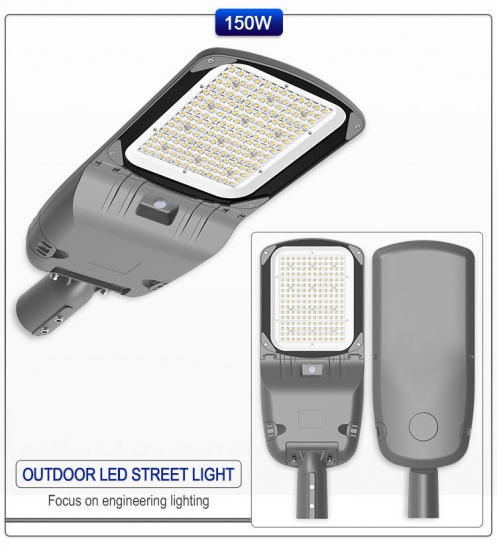

Energy Efficiency and Versatility: Available in various wattages (30W, 50W, 80W, 100W, 150W, 200W, 320W), this smart outdoor lighting solution offers adjustable beam angles (T2M, T3M, T4M, T5M) and dimming capabilities to suit various user needs.
Certified and Reliable: This product is certified by ROHS, ENEC, CE, CB, and IP, ensuring compliance with international safety standards and regulations.
Long-Lasting Performance: With a lifespan of up to 50,000 hours at 25°C, this LED street light provides reliable performance for years to come, reducing maintenance and replacement costs for the user.
Customization and Support: The product offers various lighting solutions services, including lighting and circuitry design, onsite metering, and project installation, ensuring a tailored solution for the user's specific needs.
Model
|

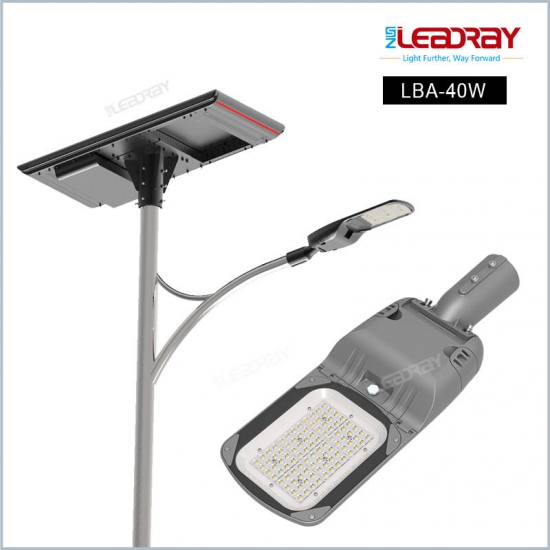

LBA-40W
|
LBA-60W
|
LBA-80W
|
Physical Parameters
|
LED Brand
|
PHILIPS
|
PHILIPS
|
PHILIPS
|
LED Qty(pcs)
|
96
|
144
|
144
|
Power of PV Module(W)
|
36V 160W
|
36V 180W
|
36V 230W
|
LIFEPO4 Battery Capacity(Ah)
|
25.6V 922Wh
|
25.6V 1229Wh
|
25.6V 1536Wh
|
Light Mode
|
Time Control
|
Time Control
|
Time Control
|
|
Product Dimension(mm)
|
1099*761*65
|
1319*761*65
|
1619*761*65
|
Product N.W.(kg)
|
38
|
40
|
45
|
Package #1
Dimension(mm)& G.W.
(1 Lamp/CTN)
|
1160*825*225
(25KG)
|
1380*825*225
(30KG)
|
1680*825*225
(35KG)
|
Package #2
Dimension(mm)& G.W.
(1 Lamp/CTN)
|
395*405*310
(7KG)
|
Package #3
Dimension(mm)& G.W.
(1 Bracket/CTN)
|
645*275*160
(15KG)
|
Light Parameters
|
Light Power(W)
|
40W
|
60W
|
80W
|
|
Typical Liminous Flux(Lm)
|
6400
|
9600
|
12800
|
LED Light Effect(Lm/W)
|
210Lm/W
|
Color Temperature(K)
|
2700-6500
|
|
Beam Angle(°)
|
90° / 75°x 150°
|
Rainy Days(D)
|
3~5
|
3~5
|
3~5
|
|
Environment Parameters
|
Charging
Temperature(℃)
|
0 ℃ to +60 ℃
|
Discharging
Temperature(℃)
|
-20 ℃ to +60 ℃
|
Storage
Temperature(℃)
|
-20 ℃ to +45 ℃
|
Installation
|
Dia. of Top Pole (mm)
|
89~105
|
89~105
|
89~105
|
Installation Height(m)
|
6~8
|
7~9
|
10~12
|
|
Installation Distance (m)
|
35~40
|
35~40
|
40~45
|
|
|
Die-cast aluminum + tempered glass + 316 stainless steel screws
|
|
|
|
|
|
2700K/3000K/4100K/5000K/6500K
|
|
|
|
|
|
|

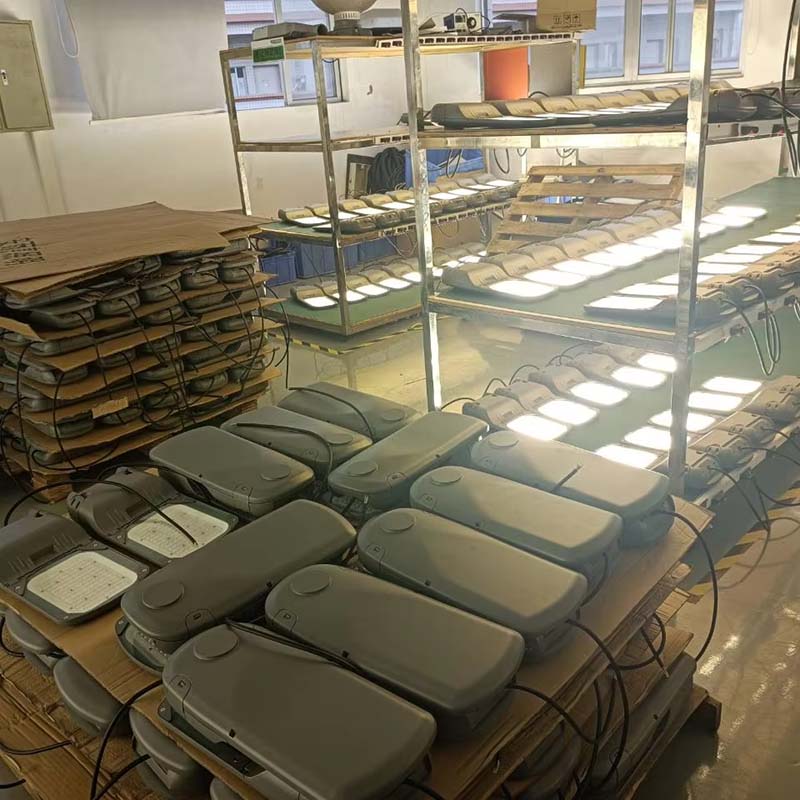

18 Years Production Experience In The Industry
High brightness: The lighting range of LED lamp beads is about 100-500㎡. Built-in large capacity battery. After fully charged for 6-8 hours, it can provide stable and bright lighting within 12-24 hours. No flash frequency.
One light two mode function key (remote control switch): Mode one (new charging indicator light) will automatically turn on the dim mode at dark, all people come on, and people leave dim light, and the lights will automatically turn off at dawn. Mode two (remote control always on + timing + light control) with memory function, automatic light on at dark (100% full light) automatic light off at dawn without human body induction.
Multiple control: the remote control distance can reach 40 feet. You can set the automatic mode, 9 levels of brightness, 3/5/8 hours timing mode. Easy to use.

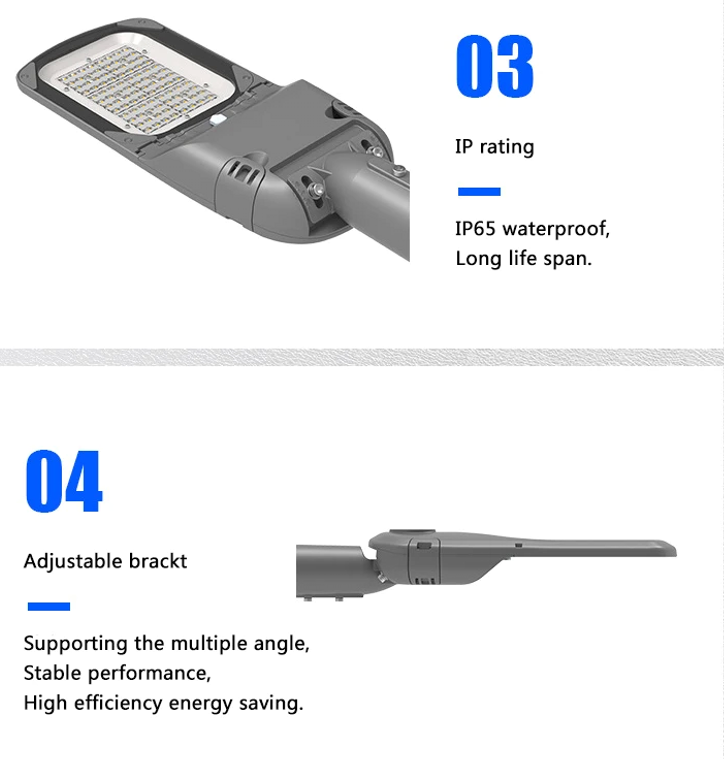

No charge: Solar street lights use solar power. It not only saves energy, but also saves money. IP65 can work normally even in rainy days.
Application: No wiring is required, so you can install solar street lights anywhere. Ideal for streets and paths, courtyards, parks, squares, private gardens, courtyards, etc.
