Waterproof Outdoor Integrated All in One Led Solar Street Light
60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light 60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light 60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light 60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light 60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light

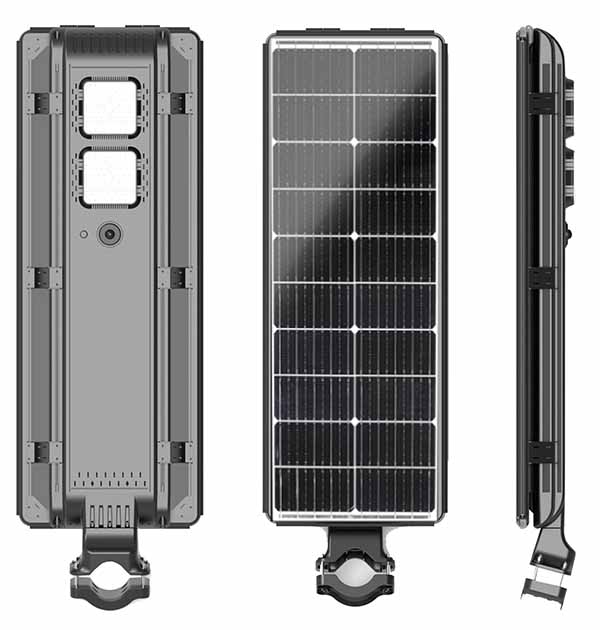

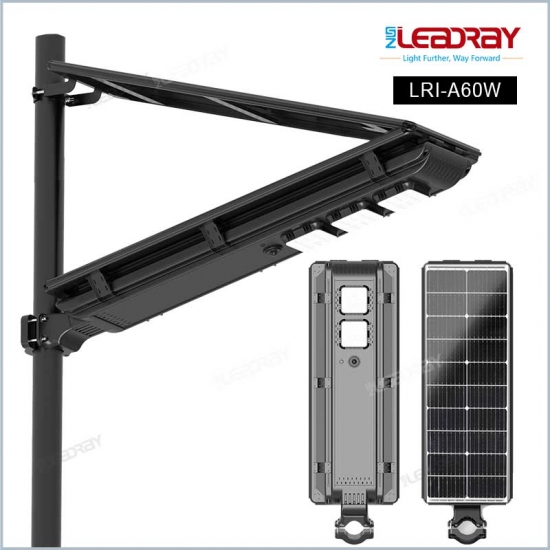

60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light

  • Model No. :

    LRI-A

  • LED brand :

    LEADRAY

  • LED Power :

    60W

  • Solar Panel Power :

    90w

  • Battery Type :

    LiFePO4 Battery Capacity 42Ah

  • Infrared senor :

    YES
Contact Us
description

LEADRAY LRI-A series adopts mono crystalline solar panel with 22% conversion rate, high luminous efficiency Philips chips, ultra-long-life lithium battery pack, high-efficiency smart controller and intelligent sensor technology. With its integrated design concept,  it is convenient for installation and maintenance; Solar panel and lighting direction can be adjusted lexibly, providing an ideal solution for the harsh lighting needs of complex roads especially bad weather condition.


*Patented design, the world's first
*LED modular heat dissipation design

*Innovative battery protection system

*Typhoon resistant

All-in-one Solar Street Light


Model LRI-A60W LRI-A80W LRI-A100W
Physical Parameters
Power of PV Module (W) 90 120 140
LIFEPO4 Battery Capacity(AH) 42 50 54
LED Brand PHILIPS PHILIPS PHILIPS
LED Qty(pcs) 100 100 150
Light Mode PIR/Time Control Time Control Time Control
Remote control function / / /
Rainy Days(D) Min.7-10 Min.7-10 Min.7-10
Light Parameters
Light Power(W) 60 80 100
Typical Liminous Flux(Lm) 6900 9600 12000
Color Temperature(K) 2700-6500 2700-6500 2700-6500
Light Distribution Type T3 T3 T3
Beam Angle(°) 70°x140°
Min.Working Hours(H) Full Light Mode 13 12 12
Energy-saving Mode(30%) 38 36 35
Light Control Threshold(Lux) 30 30 30

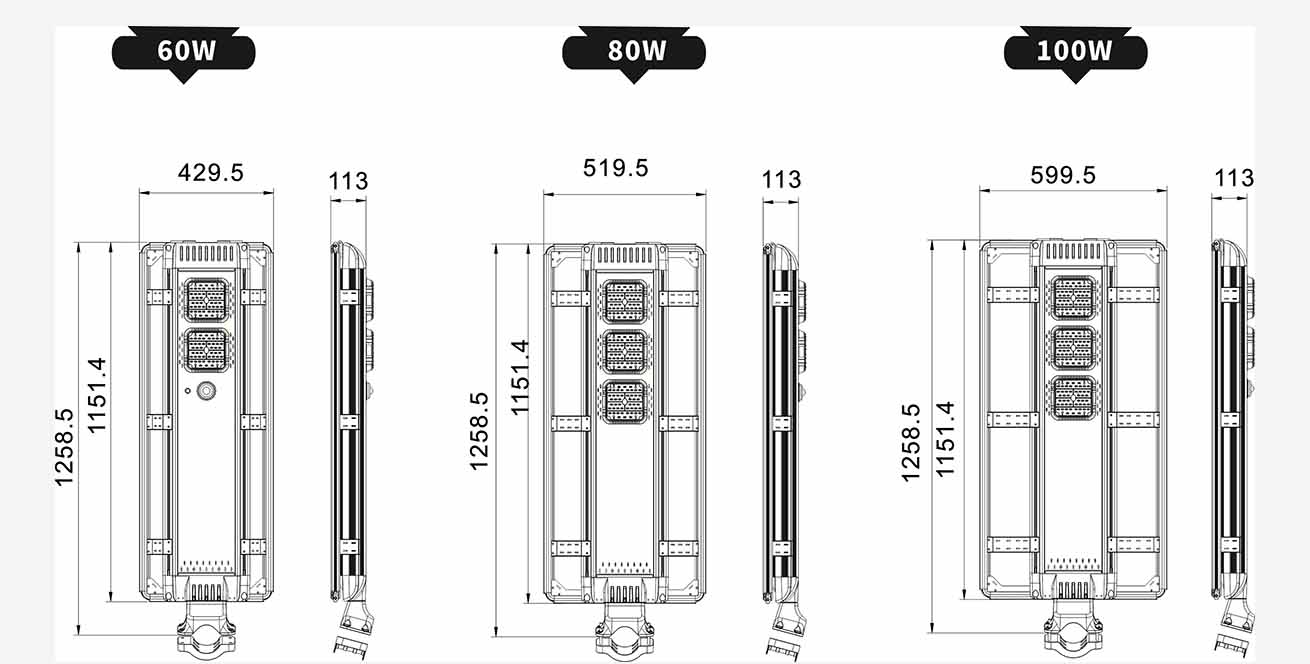

Packing Parameters

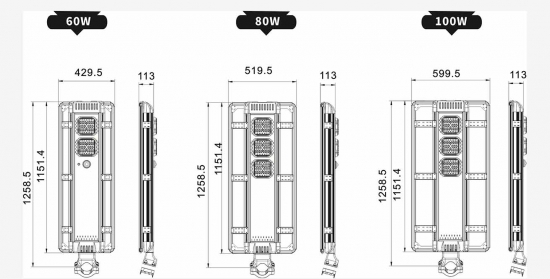

Product Size
Net Weight 		1258.5*429.5*113/23KG 1258.5*519.5*113/23KG 1258.5*599.5*113/33KG
Package Size
Gross Weight 		1360*490*220/29KG 1360*580*220/35KG 1360*660*220/42KG
Environment Parameters
Charging Temperature(℃) 0 ℃ to +60 ℃
Discharging Temperature(℃) -20 ℃ to +60 ℃
Storage Temperature(℃) -20 ℃ to +45 ℃
Installation
Effective Projected Area(ft2) 6.9 8.5 9.8
Wind Strength (mph) 110 110 110
Recommended Diameter of Top pole(mm） 76 or 89（def） 76 or 89（def） 76 or 89（def）
Recommended Installation Height (M) 5-7 8-10 10-12
Recommended Installation Distance(M) 20-30 25-35 30-40

All-in-one Solar Street Light

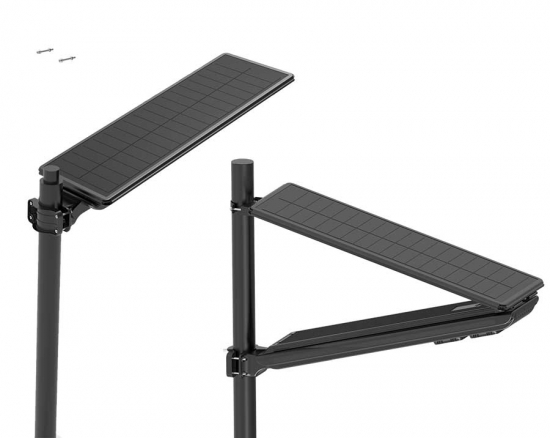

All-in-one solar street light with built-in lithium iron phosphate battery, solar panel and MPPT charge controller. Made of die-cast aluminum, it is strong and durable. Specially designed pole mounting bracket supports tilting at different angles, side mounting and pole top mounting. Adjustable LED module to achieve better light distribution as needed.


All-in-one Solar Street Light


Simpleinstallation, easy maintenance.
Each part is imaginative, all materials are carefully selected.
Protected against all weathers.



All-in-one Solar Street Light


Philips GreenVision All-in-one Solar Street Light

30m sensing range
Remote control and infrared sensor
When a person or vehicle passes by, the sensor will detect the motion and the light efficiency will be 100%. When the person or vehicle leaves, the light brightness will gradually decrease to 30%.



All-in-one Solar Street Light

All-in-one Solar Street Light

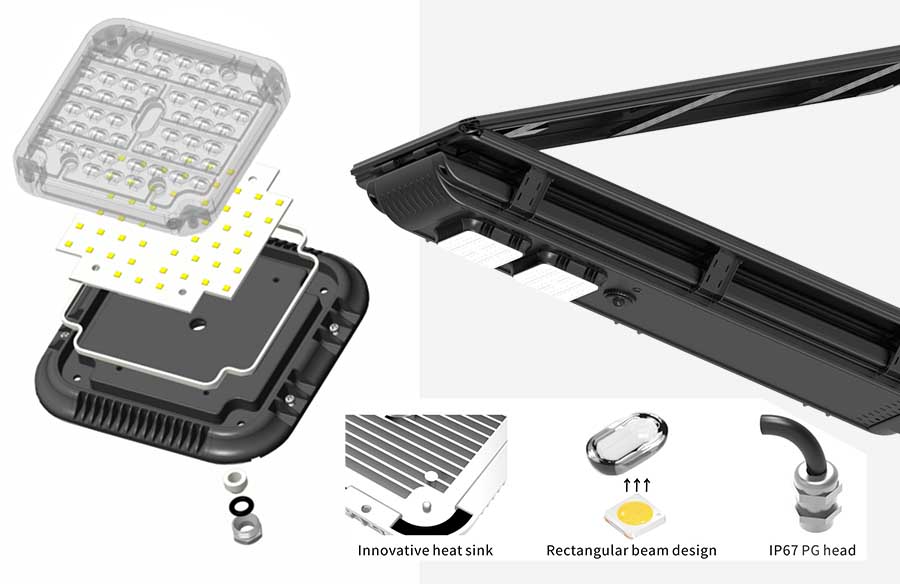

*Using original Philips LED chips, the single lumen is up to 210lm/W.
*One-piece aluminum base and sealed lens, excellent heat dissipation and waterproof performance.
*The optical lens has a light transmittance of up to 93%, and the light distribution is optimized, making the lighting more uniform and the lighting range wider.

All-in-one Solar Street Light

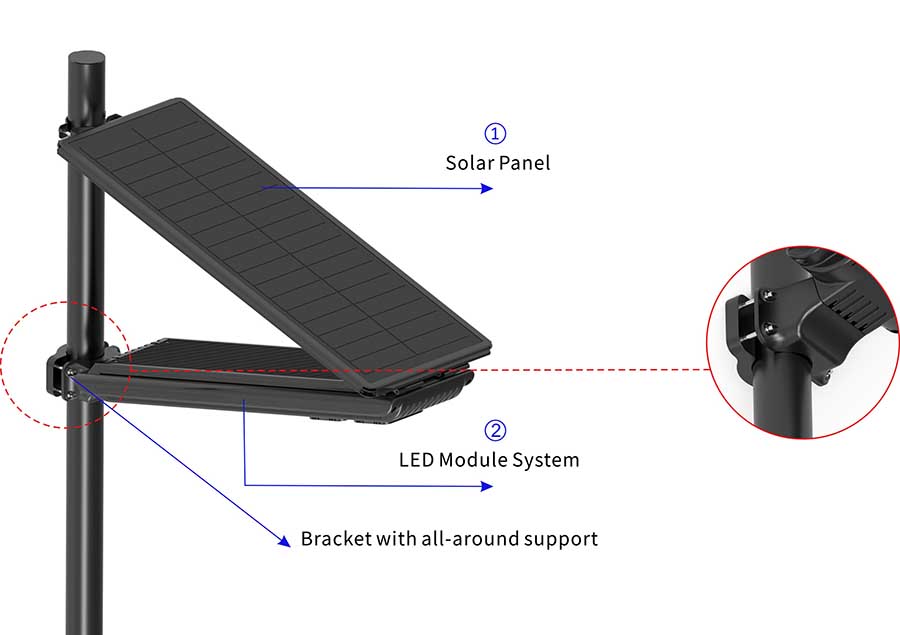

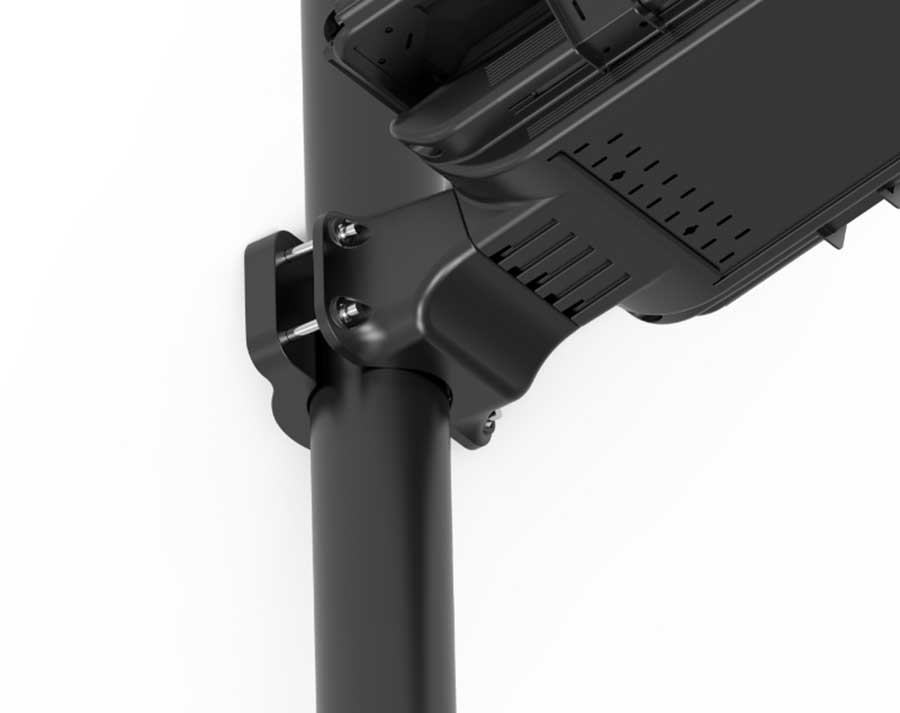

* It is easy to use, just fix it on the column with screws.

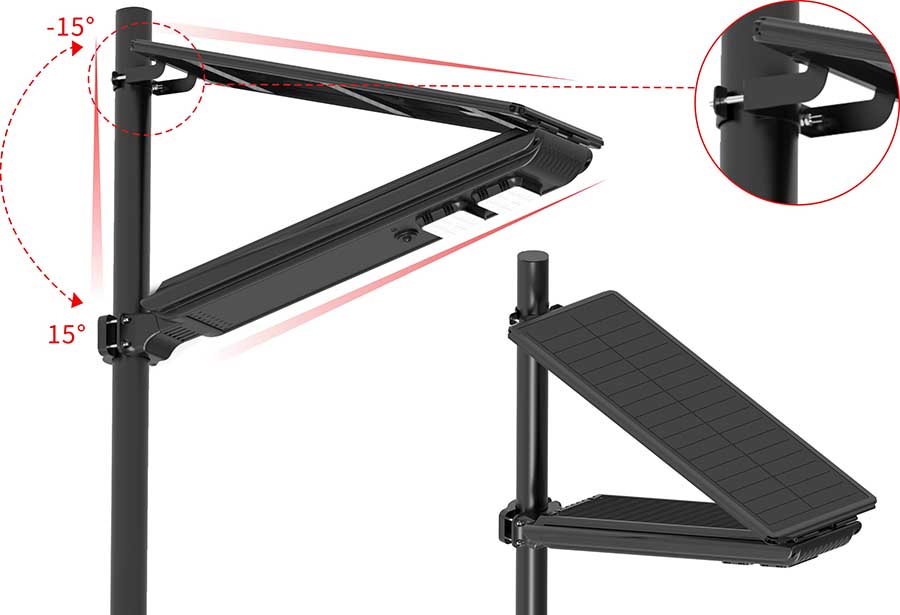

* Adjust the direction of the lamp and solar panel according to the local lighting area and sunshine conditions.
* Unique triangular large-size structure, uniform overall force, high stability and strong wind resistance.

* Patent hooping design with multi-point contact areas, safety increased by 30%.


All-in-one Solar Street Light


Lighting solutions service: Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation.



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: No. It's all PHILIPS logo.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
