HI!Welcome to view

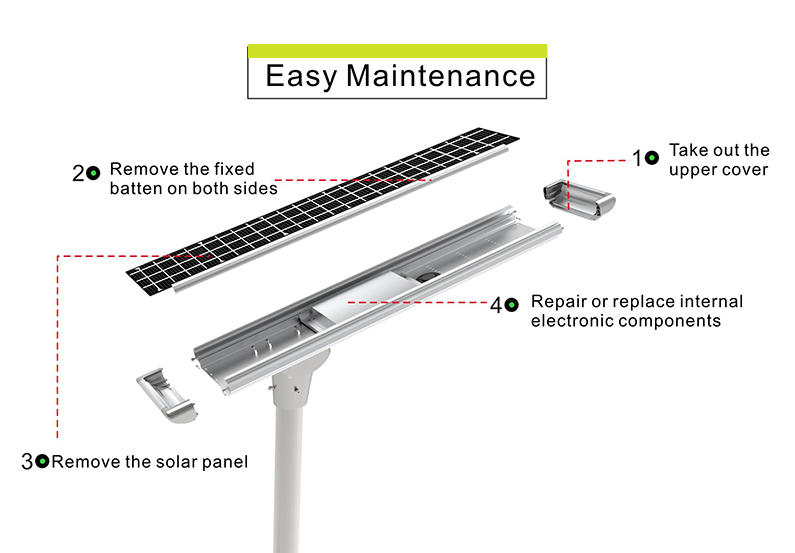

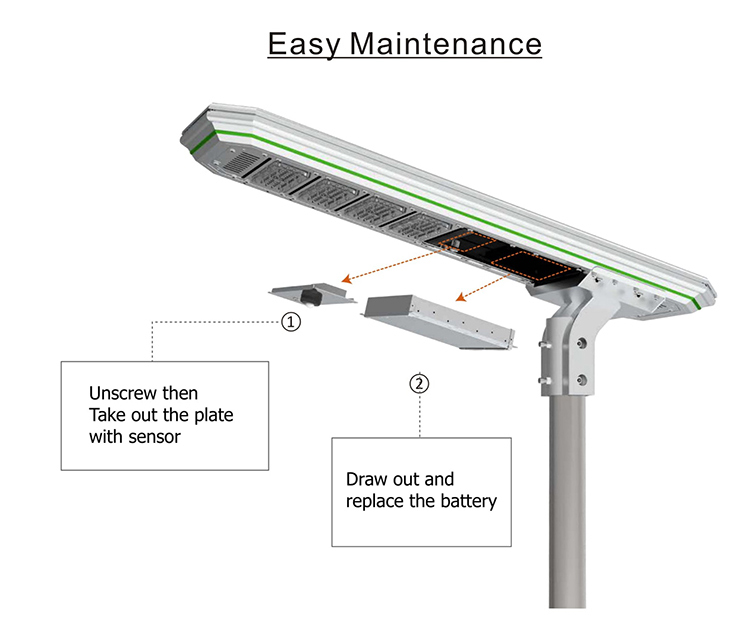

When you promote our solar street light and you want to show the inside of the fixture to your customers and here we would like to show you how to disassemble the solar street light.

1.First of all, Place the fixture on a flat table, pay attention on the solar panel and handle with care .

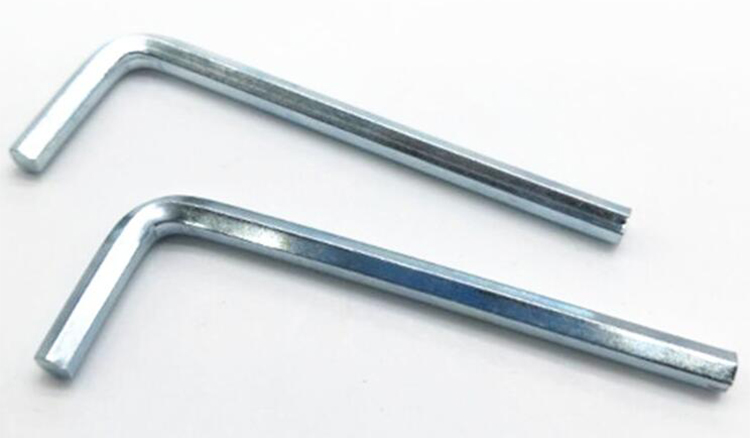

2.Then have the tool ready: M4 & M5 Inner Hexagonal Socket Wrench.

3.Unscrew the screws on the fixing base and bracket support with the M5 Wrench.

4.Unscrew the screws on the Upper Aluminum housing on the top of the lamp with M4 Wrench, take out the upper aluminum housing with hands carefully.

5.Take out the surface plate at a quarter position, loosen the male and female connectors of the wires of the solar panel and battery and switch. Take out the surface plate completely. And now it is all done.
