What Diameter Of Poles That Match Our Solar Lights

2018-05-14 09:44:14

Thank you for choosing our Leadray Solar Lighting Products, you may want to know what diameter of poles that match our All in one solar street light and integrated solar garden light.

Please check out below data of the poles’ diameter:

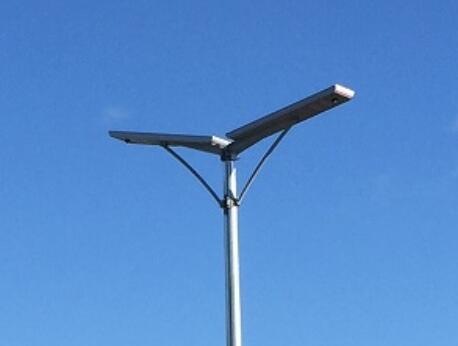

Two Solar street lights installed in one pole

LRC05W: Diameter of top pole area: φ20-30mm
LRC08W: Diameter of top pole area: φ45-90mm
LRC12W: Diameter of top pole area: φ45-90mm
LRC15W: Diameter of top pole area: φ60-110mm
LRC20W: Diameter of top pole area: φ60-110mm
LRC25W: Diameter of top pole area: φ76-110mm
LRC30W: Diameter of top pole area: φ76-110mm
LRC40W: Diameter of top pole area: φ76-110mm
LRC50W: Diameter of top pole area: φ76-110mm
LRC60W: Diameter of top pole area: φ76-110mm
LRC80W: Diameter of top pole area: φ80-85mm
LRC100W: Diameter of top pole area: φ80-85mm

（80W/100W All in one solar street light installed）

LRC-F15: Diameter of top pole area: φ60-110mm
LRC-F20: Diameter of top pole area: φ60-110mm
LRC-F30: Diameter of top pole area: φ60-110mm
LRC-F40: Diameter of top pole area: φ60-110mm
LRC-F50: Diameter of top pole area: φ76-110mm
LRC-F60: Diameter of top pole area: φ76-110mm

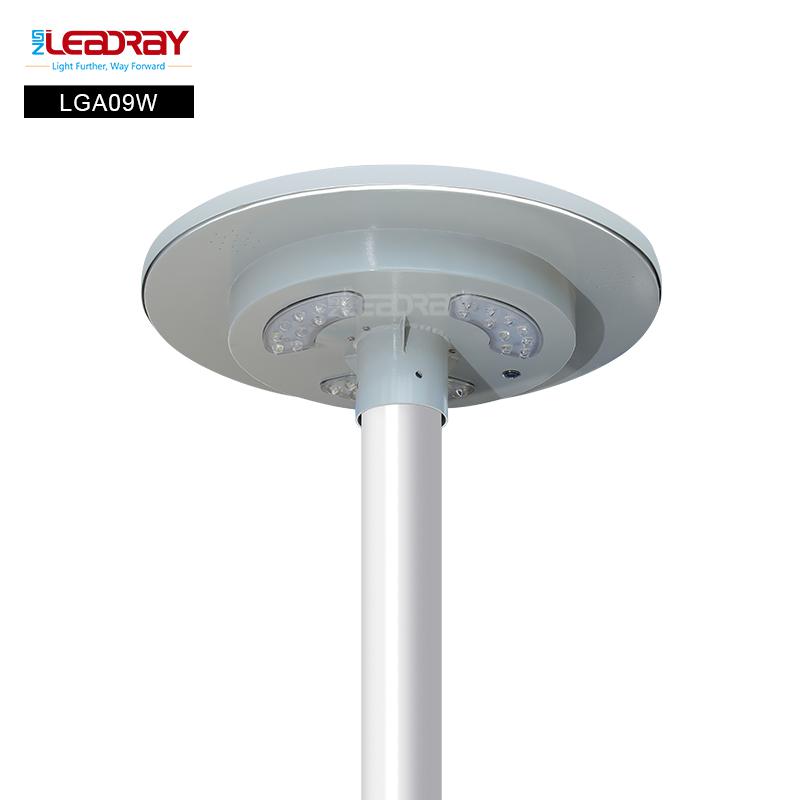

LGA09W: Diameter of top pole area: φ70-80mm
LGA15W: Diameter of top pole area: φ70-80mm
LGA30W: Diameter of top pole area: φ76-80mm

(9W Solar Garden Light)
