60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light100LED Super Bright Lighting 6900LM Solar Sensor Light IP65 Waterproof Outdoor Smart All in One Solar Led Street Light Radar Sensor LiFePO4 Battery 4 Rainy Days Working Solar Road Lights
-
IP65 Waterproof Luminous Flux 10800Lm 30W-120W Outdoor Solar Street Light SystemAll In One Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
-
IP65 Waterproof High Lumen 300W-600W Aluminum Integrated LED Solar Street Light for Road Outdoor All in One Solar LightAll in One Solar Street LED Solar Lights with Lifepo4 Lithium Battery
-
High lumen Integrated remote control ip65 outdoor waterproof 20w 40w 60w all in one led solar street lightElegant Integrated Design,High class Aluminum alloy case Easy maintenance, battery replacement can be completed on the lamp pole

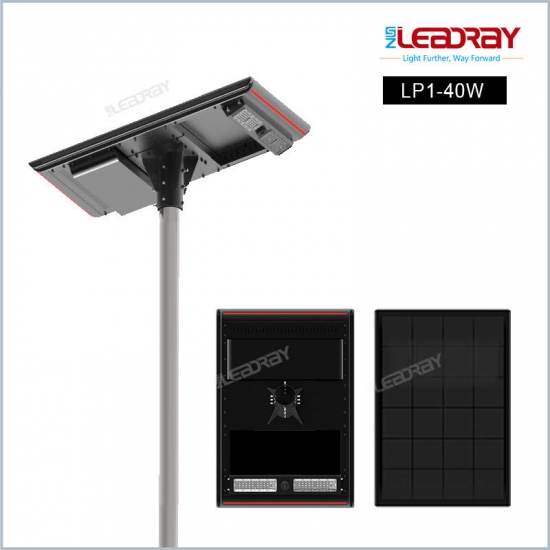

Model No. :
LP1-40WLED brand :
LEADRAYLED Power :
40WSolar Panel Power :
36V 160WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
not availableColor :
BlackPort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk
Lamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh

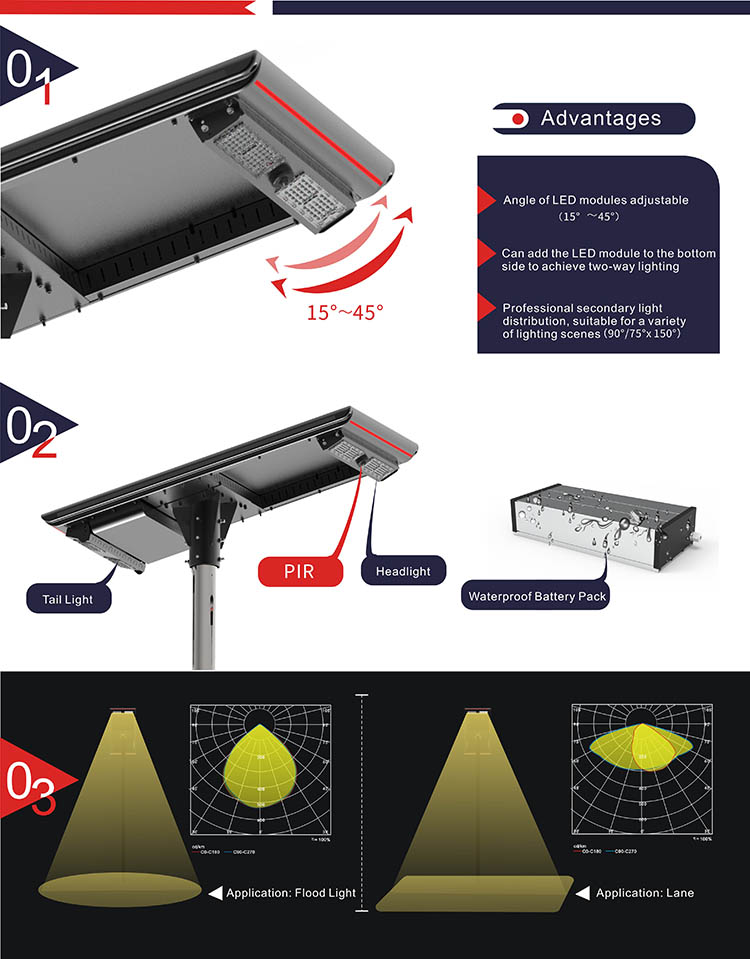

Angle of LED modules adjustable: (15°～ 45°）
1.Professional secondary light
2.distribution, suitable for a variety of lighting scenes:（90°/75°x 150°）
3.Can add the LED module to the bottom side to achieve two-way lighting

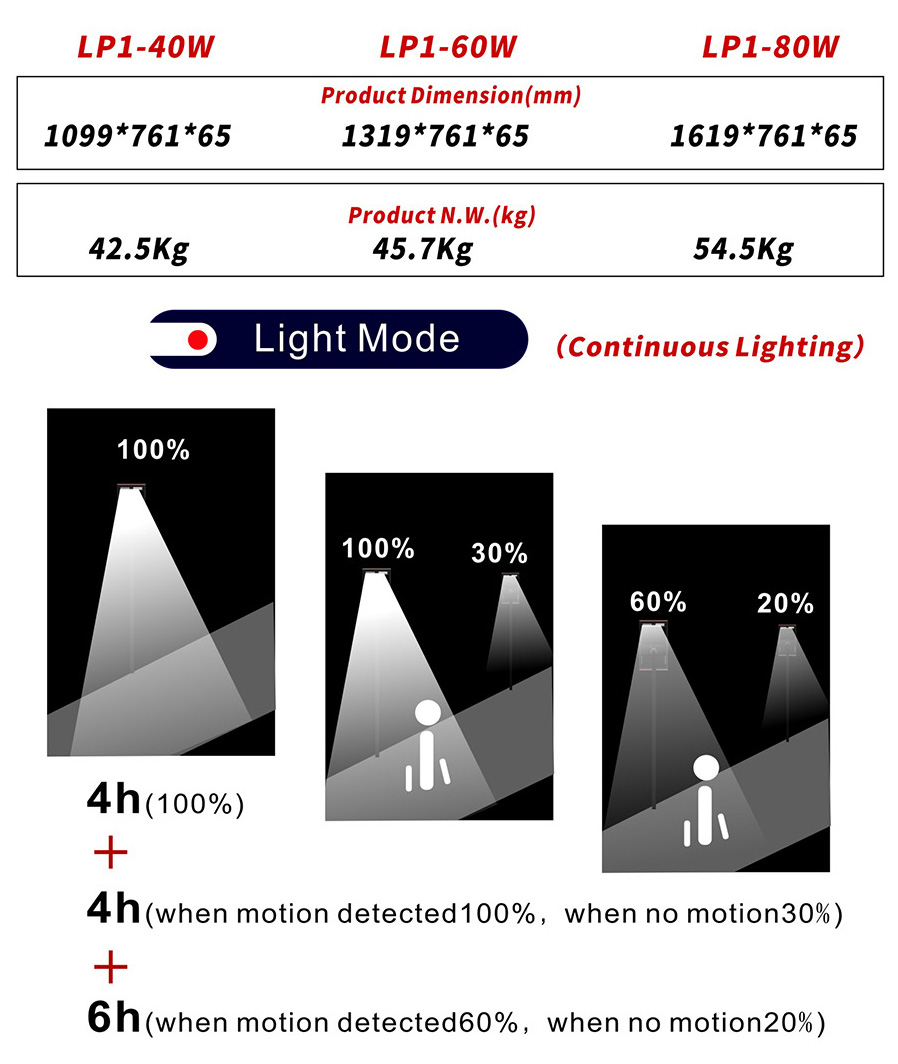

4.4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)
|

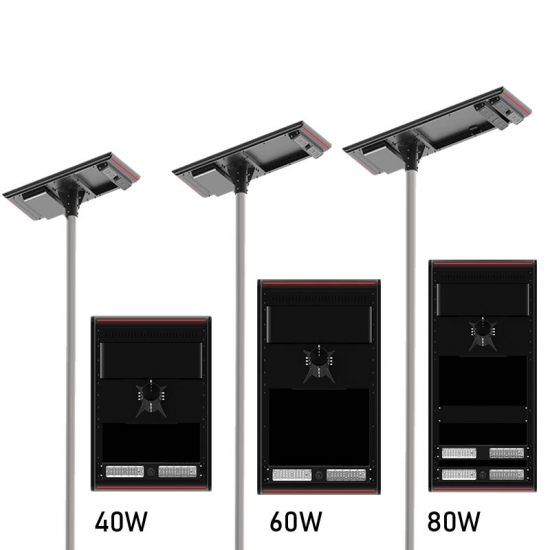

Model |
LP1-40W |
LP1-60W |
LP1-80W |
| Physical Parameters | |||
|
LED Brand |
PHILIPS |
PHILIPS |
PHILIPS |
|
LED Qty(pcs) |
128 | 128 | 256 |
|
Power of PV Module(W) |
36V 160W |
36V 180W |
36V 230W |
|
LIFEPO4 Battery Capacity(Ah) |
25.6V 922Wh |
25.6V 1229Wh |
25.6V 1536Wh |
|
Light Mode |
PIR/Time Control |
PIR/Time Control |
PIR/Time Control |
|

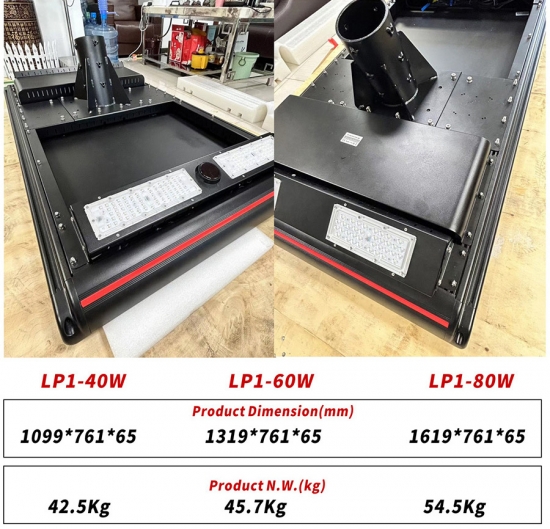

Product Dimension(mm) |
1099*761*65 |
1319*761*65 |
1619*761*65 |
|
Package #1 Dimension(mm)& G.W. (1 Lamp/CTN) |
1160*825*225
(18KG) |
1380*825*225 (26KG) |
1680*825*225 (32KG) |
|
Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
395*405*310 (15KG) |
||
|
Light Parameters |
|||
|
Light Power(W) |
40W | 60W | 80W |
|
Typical Liminous Flux(Lm) |
6400 | 9600 | 12800 |
|
LED Light Effect(Lm/W) |
210Lm/W | ||
|
Color Temperature(K) |
2700-6500 | ||
|
Beam Angle(°) |
90° / 75°x 150° |
||
|
Rainy Days(D) |
3~5 |
3~5 |
3~5 |
|
Environment Parameters |
|||
|
Charging Temperature(℃) |
0 ℃ to +60 ℃ |
||
|
Discharging Temperature(℃) |
-20 ℃ to +60 ℃ |
||
|
Storage Temperature(℃) |
-20 ℃ to +45 ℃ |
||
|
Installation |
|||
| Dia. of Top Pole (mm) | 89~105 |
89~105 |
89~105 |
|
Installation Height(m) |
6~8 |
7~10 |
10~812 |
|
Installation Distance (m) |
35~40 |
35~40 |
40~405 |
|
|
|
|
|

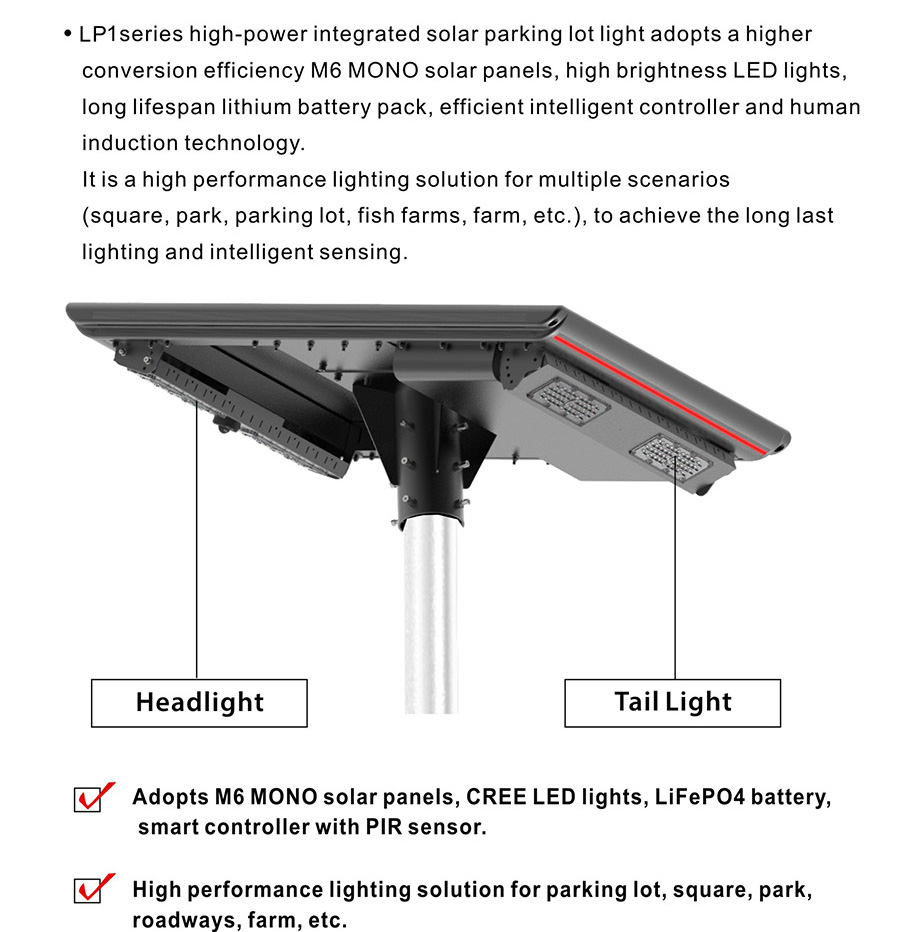

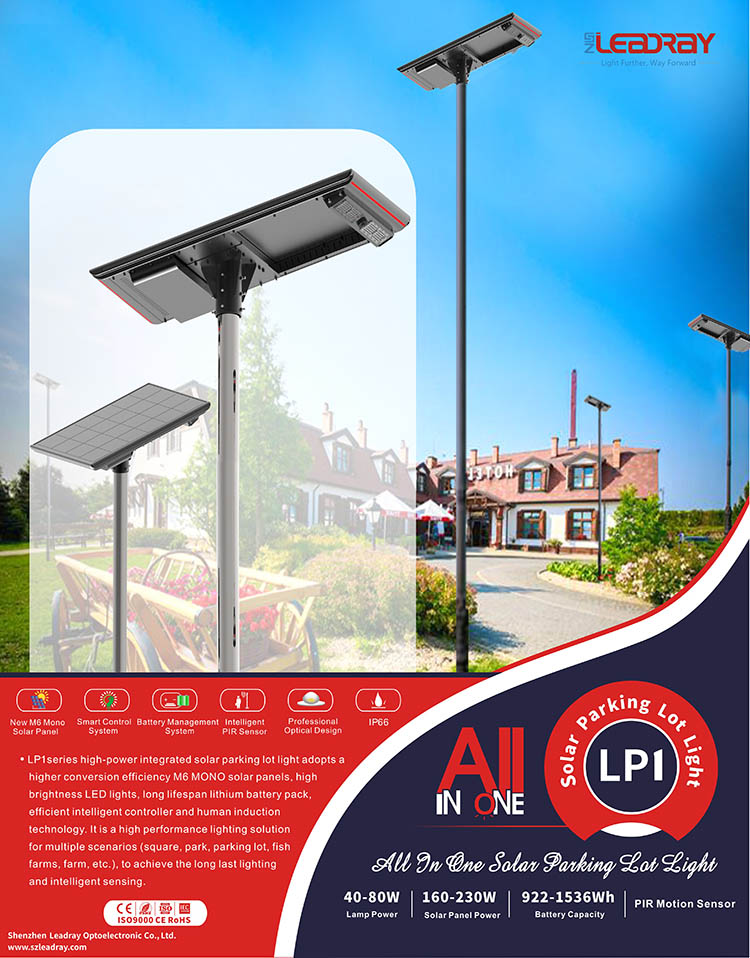

LP1 Series Solar Parking Lot Light Features:
-
60W Solar Parking Lot Light Aluminum Garden Park Landscape Lighting
Lamp Power:40-80W Solar Panel Power:160-230W Battery Capacity:922-1536Wh Angle of LED modules adjustable: (15°～ 45°） 1.Professional secondary light 2.distribution, suitable for a variety of lighting scenes:（90°/75°x 150°） 3.Can add the LED module to the bottom side to achieve two-way lighting 4.4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)
-
80W Solar Parking Lot Light outdoor light fixtures solar LED pillar light
Lamp Power:40-80W Solar Panel Power:160-230W Battery Capacity:922-1536Wh Angle of LED modules adjustable: (15°～ 45°） 1.Professional secondary light 2.distribution, suitable for a variety of lighting scenes:（90°/75°x 150°） 3.Can add the LED module to the bottom side to achieve two-way lighting 4.4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)
-
200W Factory Direct Sale High Lumen Outdoor Ip65 Aluminum Solar Power Solar Street Lights
Lamp Power：150-200W Solar Panel Power：180-260W Battery Capacity：1075-1536Wh PIR Motion Sensor Original Integrated concept, Double arc streamline Element Design; Innovative Battery Protection System； LED Modular Thermal Design； Typhoon Resistant CREE LED without gold wire packaging, creates a first-class light source; Rectangular beam design, with bat wing light distribution; 170Lm/W, 30% brighter than other similar products; Longer working hours, 15% longer than other similar products. The well optimized light distribution, made for a more uniform and wider lighting area; Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan; Original thermal system design, innovative heat sink with IP67 PG head.
-
