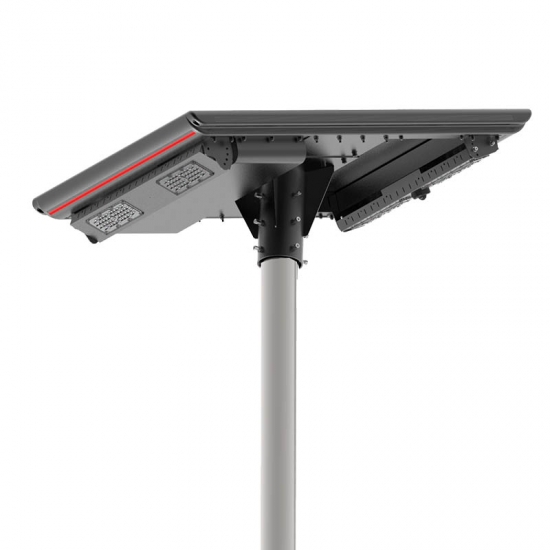

80W Solar Parking Lot Light outdoor light fixtures solar LED pillar light

80W Solar Parking Lot Light outdoor light fixtures solar LED pillar light

80W Solar - Powered Parking Lot Lights: It has a power range of 40W - 80W, is equipped with a microwave motion sensor and a lithium battery, and uses a monocrystalline silicon solar panel.

The luminous flux can reach 6250lm, and the lighting control options are diverse.


Inquiry now

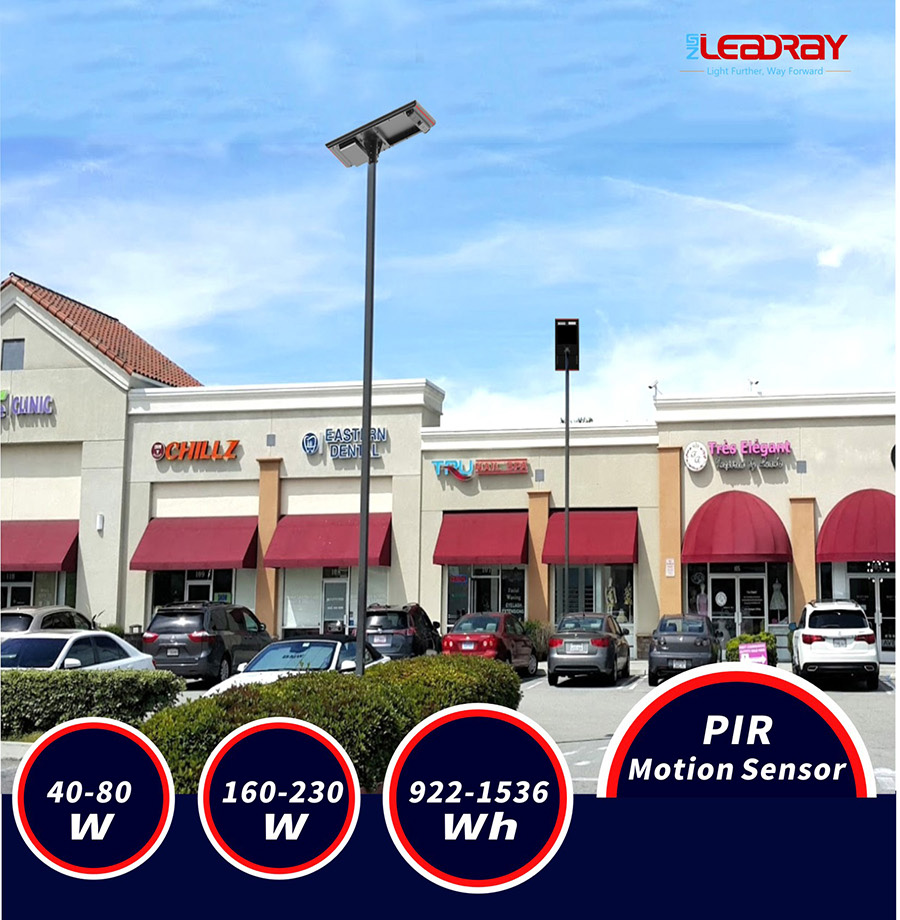

Solar parking lot lights are widely used in various parking lots, including large commercial parking lots, remote parking lots, park parking lots, community parking lots, shopping mall parking lots, etc.



They can not only provide sufficient lighting for parking lots, ensuring the safety of vehicles and pedestrians, but also meet the requirements of energy conservation and environmental protection.



With a polycrystalline silicon solar panel, it can convert 25% of solar energy into electricity, and the battery capacity is 40000mah. It can be charged for 4 - 6 hours during the day and work for 15 - 24 hours at night. It has three working modes and can be controlled by remote control.





Functional Lighting: It mainly meets the basic safety needs of nighttime walking, such as path lights and square lights. These lights are simply and practically designed, with soft and wide - ranging light to ensure that visitors can safely enjoy the garden landscape at night. For example, the bollard lights along the park paths, which are usually of moderate height and provide uniform illumination.





Used to illuminate park paths, typically at a height of about 0.8-1.5 meters, the soft, non-glaring light ensures pedestrian safety at night. Available in a variety of styles, such as solar path lights, these are energy-efficient, environmentally friendly, and easy to install.

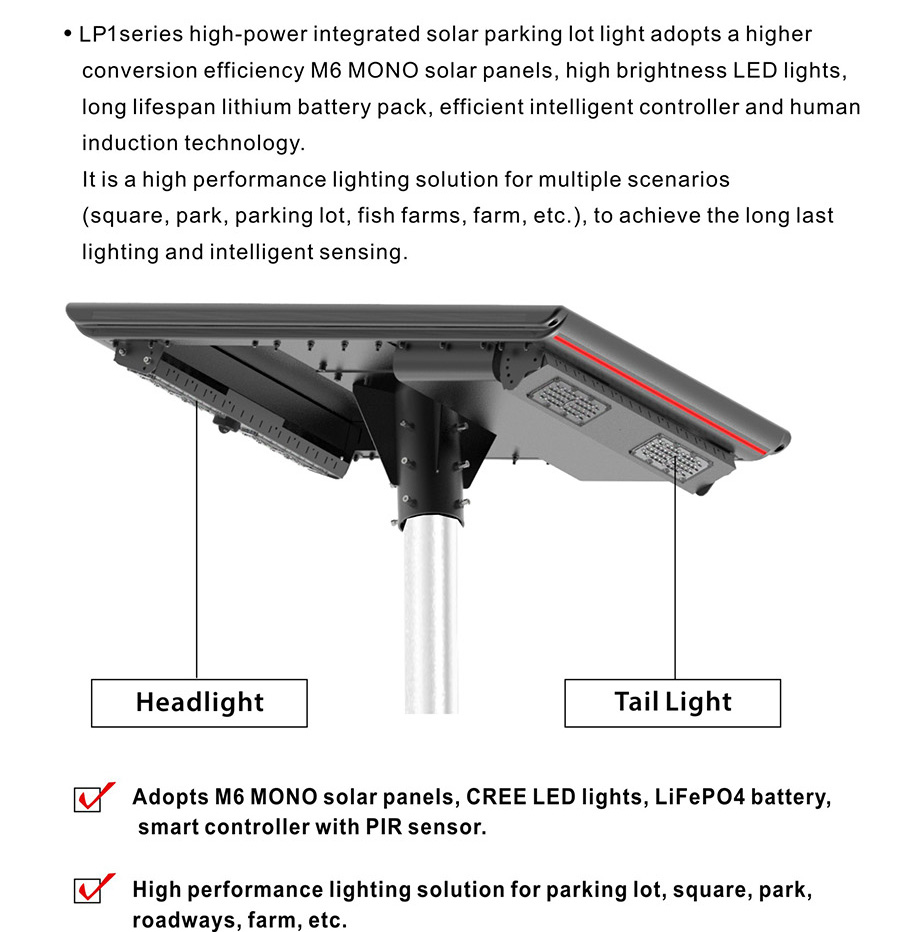

Adopts M6 MONO solar panels, CREE LED lights, LiFePO4 battery,smart controller with PlR sensor.



High performance lighting solution for parking lot, square, park,roadways, farm, etc.

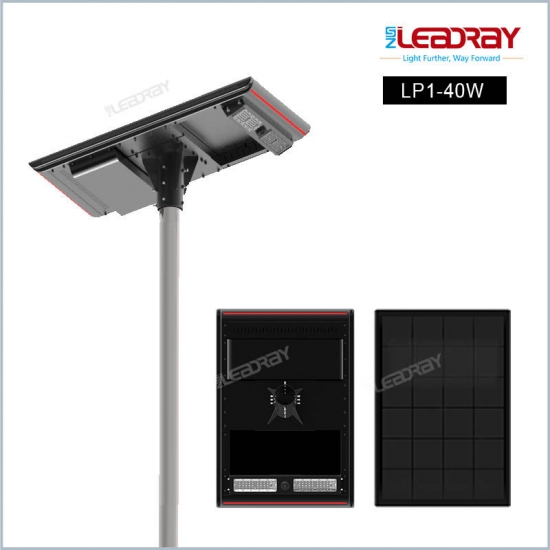

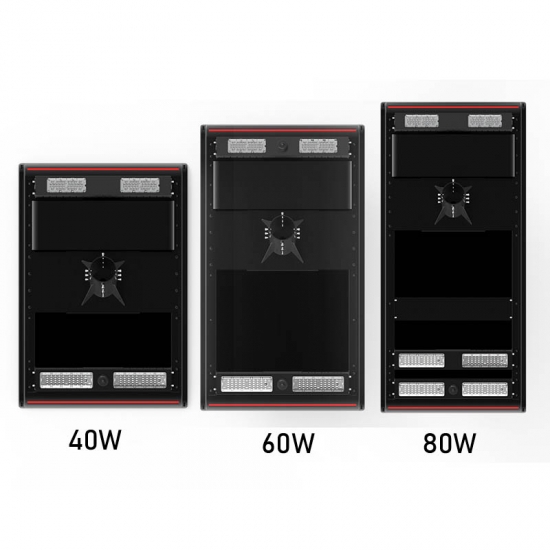

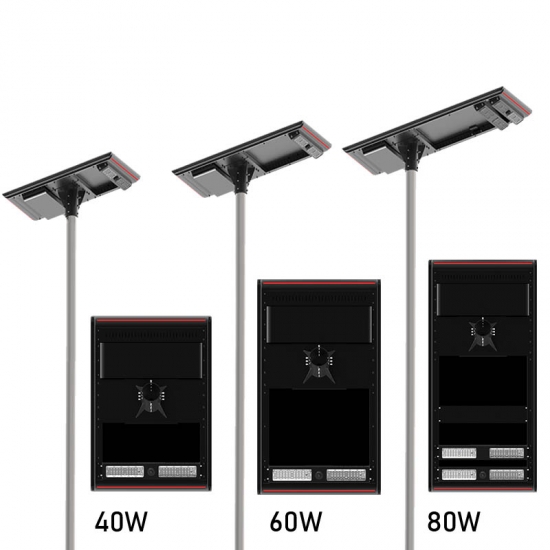

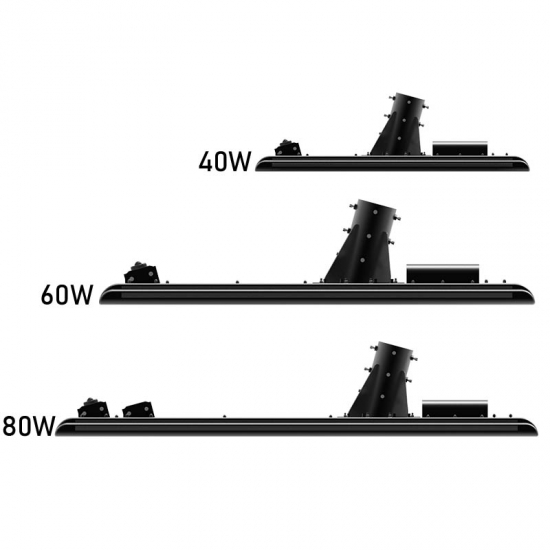

Model LP1-40W LP1-60W LP1-80W
Physical Parameters
LED Brand PHILIPS PHILIPS PHILIPS
LED Qty(pcs) 128 128 256
Power of PV Module(W) 36V 160W 36V 180W 36V 230W
LIFEPO4
Battery Capacity(Ah)
25.6V 922Wh 25.6V 1229Wh 25.6V 1536Wh
Light Mode PIR/Time Control PIR/Time Control PIR/Time Control

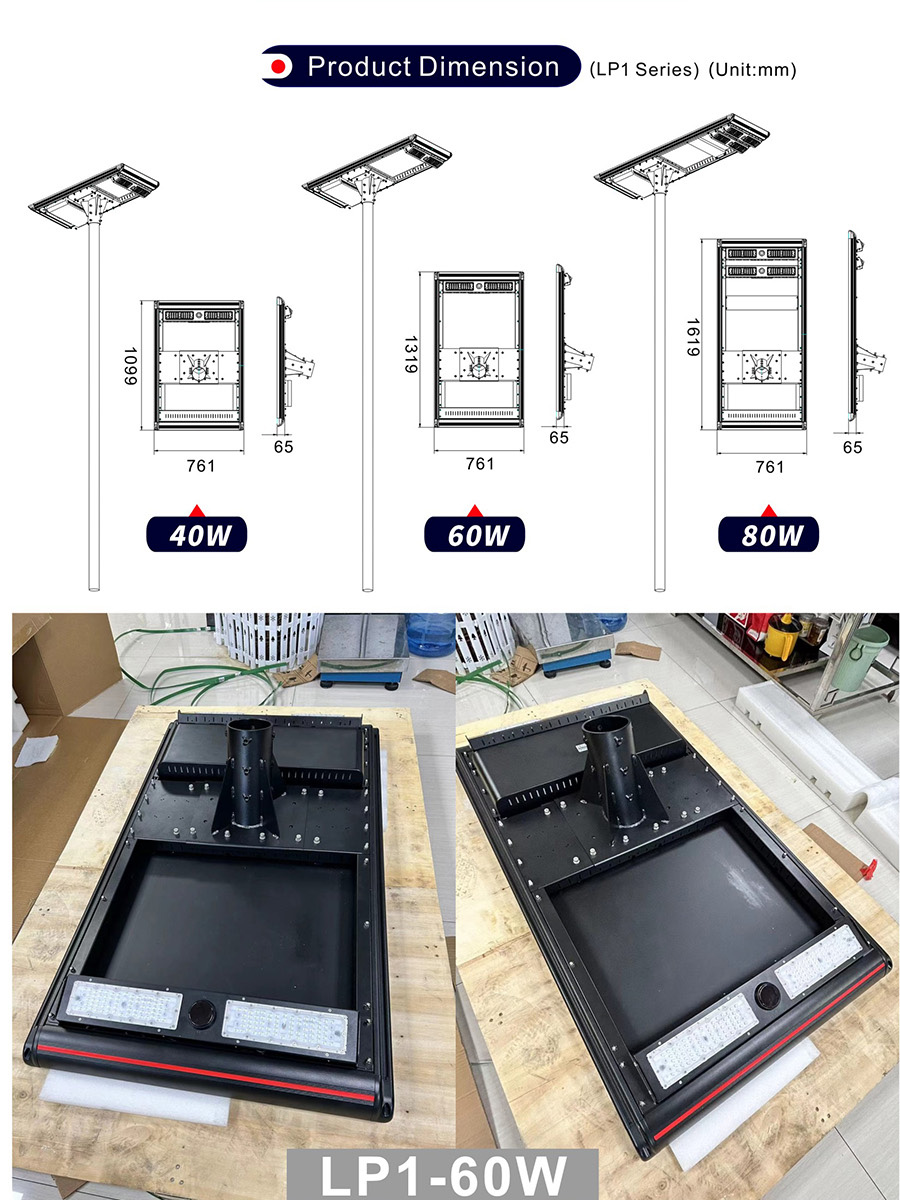

Product Dimension(mm) 1099*761*65 1319*761*65 1619*761*65
Package #1
Dimension(mm)& G.W.
(1 Lamp/CTN)

1160*825*22 5

(18KG)

1380*825*225

(26KG)

1680*825*225

(32KG)

Package #2
Dimension(mm)& G.W.
(1 Bracket/CTN)

395*405*310

(15KG)

Light Parameters
Light Power(W) 40W 60W 80W
Typical Liminous Flux(Lm) 6400 9600 12800
LED Light Effect(Lm/W) 210Lm/W
Color Temperature(K) 2700-6500

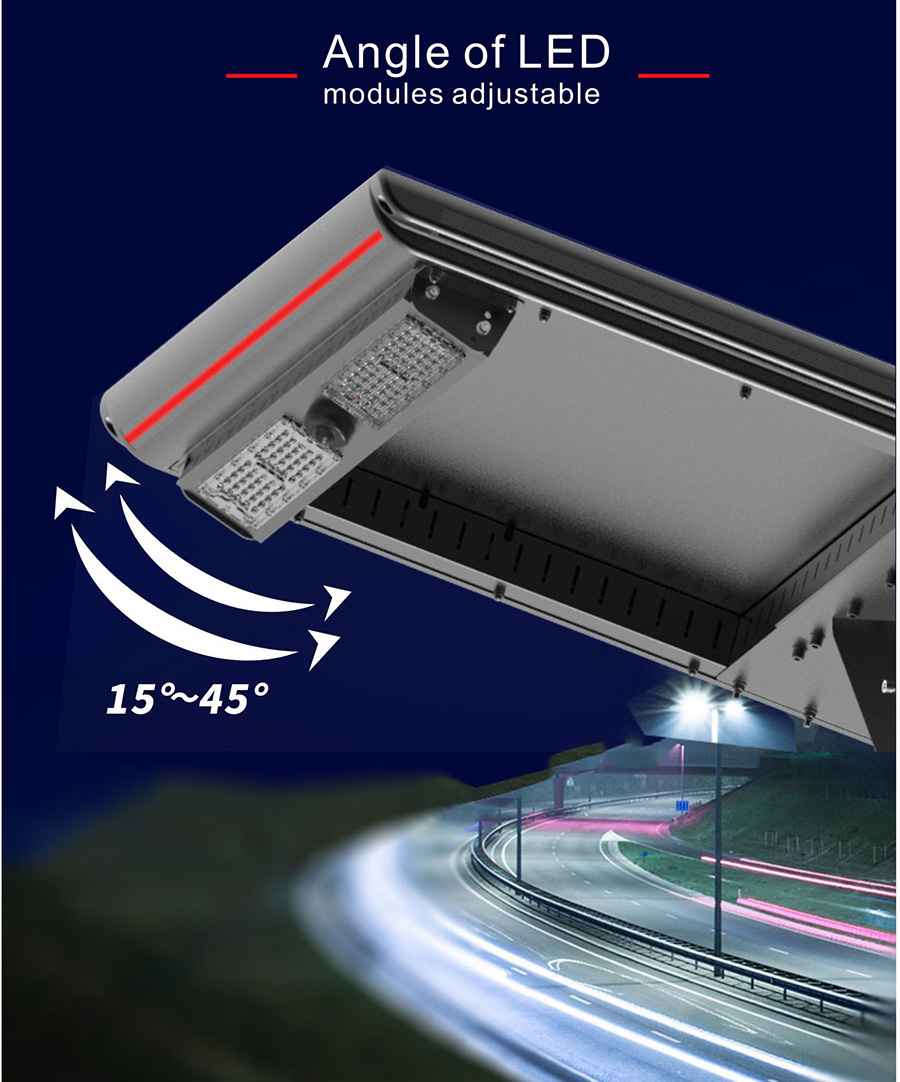

Beam Angle(°) 90° / 75°x 150°
Rainy Days(D) 3~5 3~5 3~5
Environment Parameters
Charging
Temperature(℃)
0 ℃ to +60 ℃
Discharging
Temperature(℃)
-20 ℃ to +60 ℃

Storage
Temperature(℃)
-20 ℃ to +45 ℃
Installation
Dia. of Top Pole (mm) 89~105 89~105 89~105
Installation Height(m) 6~8 7~10 10~12
Installation Distance (m) 35~40 35~40 40~45






Solar parking lot lights are widely used in various parking lots, including large commercial parking lots, remote parking lots, park parking lots, community parking lots, shopping mall parking lots, etc. They can not only provide sufficient lighting for parking lots, ensuring the safety of vehicles and pedestrians, but also meet the requirements of energy conservation and environmental protection.
