80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street 80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street 80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street 80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street 80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street 80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street
80W Energy Saving Outdoor 30W 40W 60W 100W 120W All In One Solar Power Led Street
  • Model No. :

    LRC-H80W
  • LED brand :

    LEADRAY
  • LED Power :

    80W
  • Solar Panel Power :

    18V 110W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    Available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Westunion, Paypal, Credit Card
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

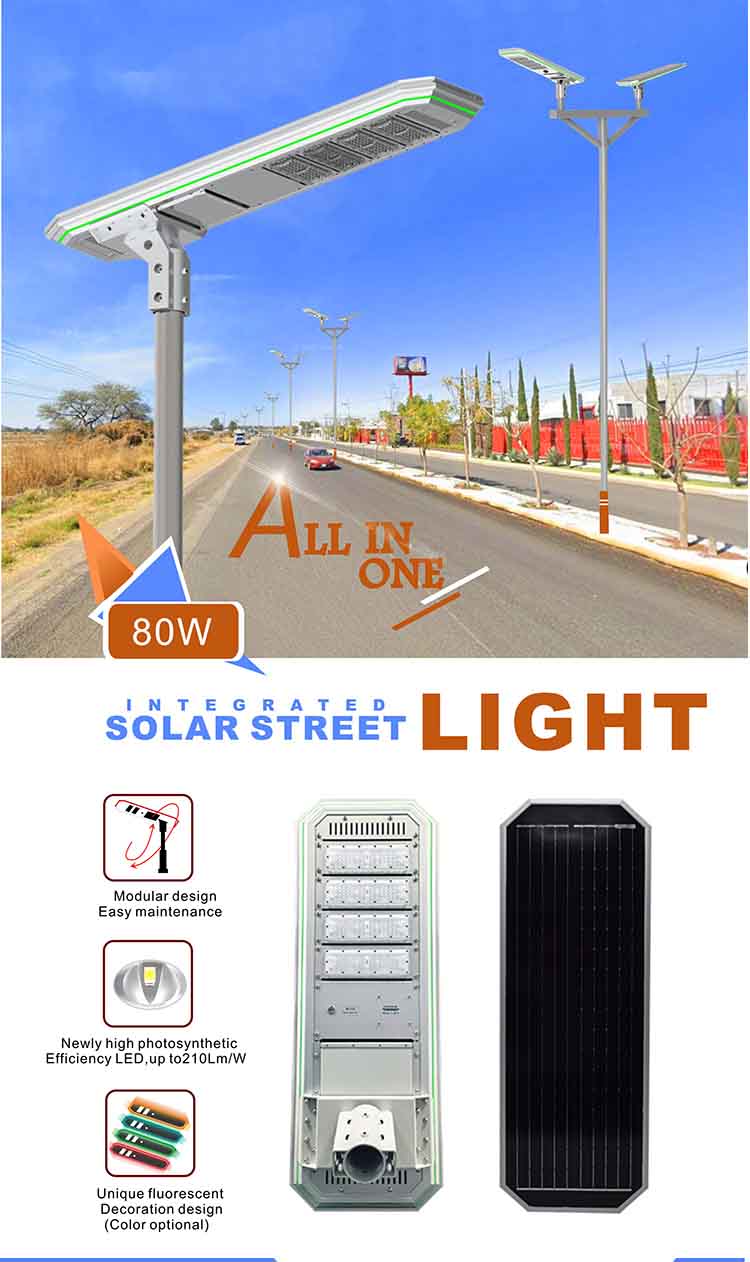

Leadray All In One Ip65 Outdoor Solar Energy System 80w Solar Street Light With PIR Motion Sensor/Timer Control

All In One Solar Street Light: Integrated design/Free maintenance/Easy installation/Environmental Friendly
Model No: LRC-H80W
Solar Panel Power: 18V 110W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: PHILIPS
LED Power: 80W
Luminous Flux: 12000Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 6-8m
Suggested Distance Between Lights: 25-30m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

street lights history

street lights history

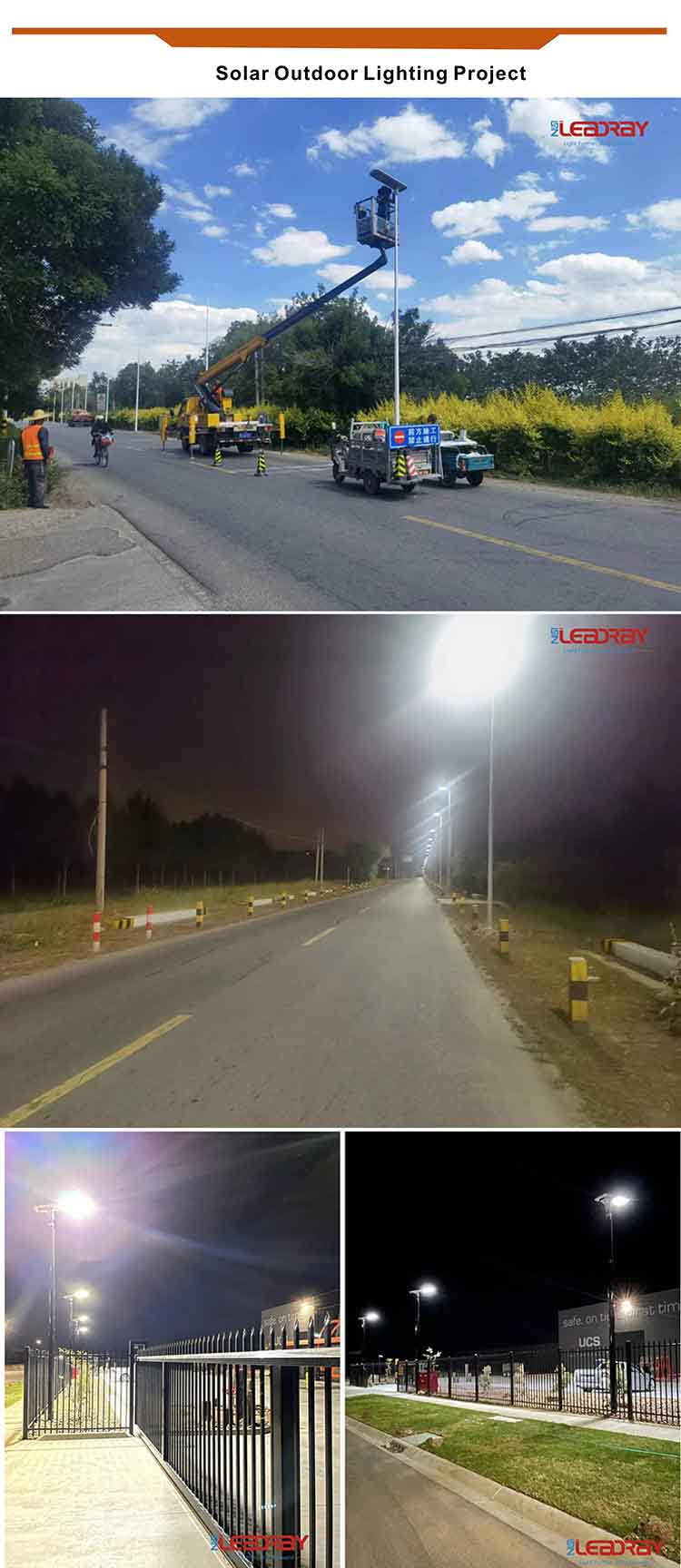

Application:street/roadway/parking lot/community/Industry park/playground

Leadray 80W Energy Saving Outdoor Lamp Waterproof Ip65 30W 40W 60W 100W 120W All In One Solar Power Led Street Lighting

Model LRC-H30W LRC-H40W LRC-H60W LRC-H80W LRC-H100W LRC-H120W
Physical Parameter
LED Brand PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS
LED Qty(pcs) 72 108 144 256 256 384
Power of PV Module(W) 18V 60W 18V 70W 18V 90W 18V 110W 36V 120W 36V 160W
LiFePO4
Battery Capacity
12.8V 307.2Wh 12.8V 384Wh 12.8V 460.8Wh 12.8V 537.6Wh 25.6V 768Wh 25.6V 921.6Wh
Light Mode PIR/Time Control PIR/Time Control PIR/Time Control Time Control Time Control Time Control
Product Dimension(mm) 753*373*60 893*373*60 1123*373*60 1173*423*60 1413*423*60 1713*423*60
Product N.W.(kg) 12 14 17 22 24 32.8
Package #1 Dimension(mm)& G.W. (2 Lamps/CTN) 820*260*460 (20.7KG) 960*260*460 (24.2KG) 1190*260*460 (29.5KG) 1240*260*510 (37.5KG) 1480*330*510 (46.1KG) 1780*330*510 (50.85KG)
Package #2 Dimension(mm)& G.W. (2 Bases/CTN) 380*380*190 (7KG) 380*380*190 (7KG) 380*380*320 (10.93KG) 430*380*320 (10.93KG) 510*430*450 (20.85KG) 510*430*450 (20.85KG)
Light Parameter
Light Power(W) 30W 40W 60W 80W 100W 120W
Tyical Liminous
Flux(Lm)
5400 7200 10800 14400 18000 21600
LED Light Eect(Lm/W) 200Lm/W
Color Temperature(K) 2700-6500
Beam Angle(°) 150°x 80°
Rainy Days(D) 3~5
Environment Parameter
Charging
Temperaure()
0~ +60
Discharging
Temperature()
-20  to +60
Storage
Temperature()
-20  to +45
Installations
Dia. of Top Pole (mm) 50~60 50~60 70~80 70~80 90~100 90~100
Installation Height(m) 4~6 5~7 6~8 8~10 9~11 10~12
Installation
Distance (m)
15~25 20~30 25~35 30~40 35~45 40~50

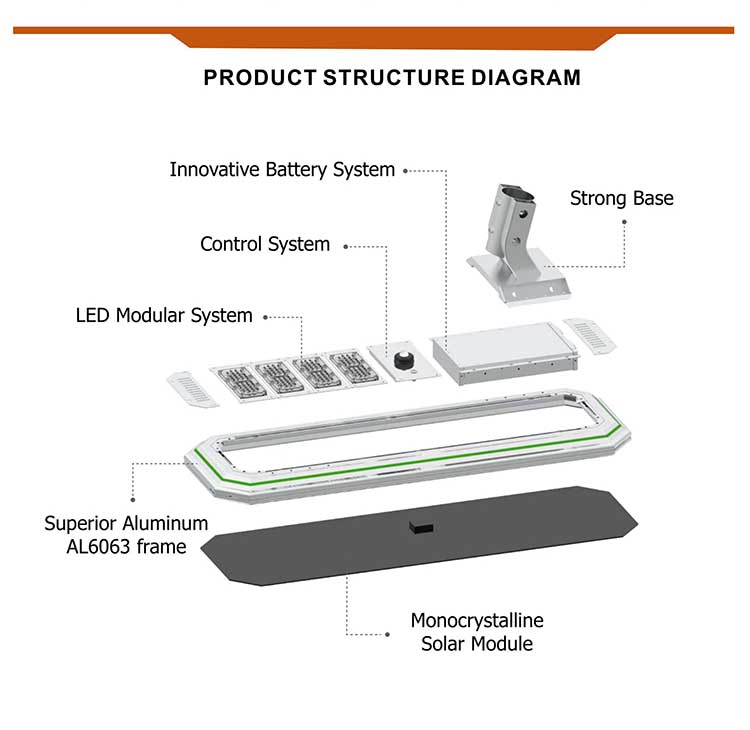

LRC-H Series LED Solar Street Light Features:

PRODUCT OVERVIEW
1.Up-to-day LED Technology with LED Modular Thermal Design.
2.Smart Battery Protection System, More stablequality and longer lifespan.
3.Modular Design,Battery can be drawn out easily .

4.Unique fluorescent decoration design (Color optional):Green / Red / Blue / Orange.

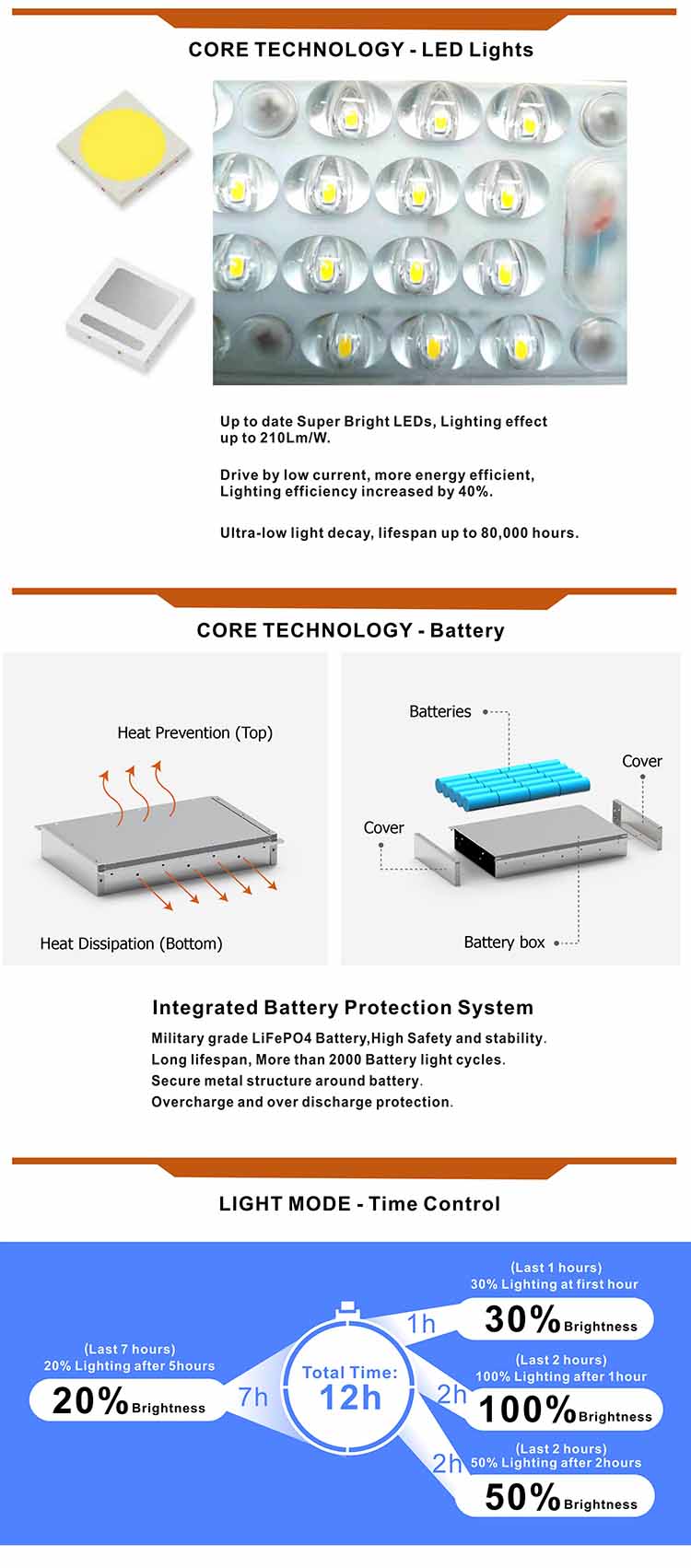

Integrated Battery Protection System
Military grade LiFePO4 Battery,High Safety and stability
Long lifespan, More than 2000 Battery light cycles
Secure metal structure around battery

Overcharge and over discharge protection


Super Bright LEDS
1.Up to date Super Bright LEDs, Lighting effect up to 210Lm/W.
2.Drive by low current, more energy efficient, Lighting efficiency increased by 40%.
3.Ultra-low light decay, lifespan up to 80,000 hours.

LED Modular System Design


1.Rectangular bat wing light distribution for road lighting Optimized light distribution for a more uniform and wider lighting area.
2.Integrated optical lens design, Light transmittance up to 93%.
3.Customized heat sink, better heat dissipation and waterproof ability.

Time Control


1.The lamp will stay on according to above metioned hours and lighting percentage (12H).
2.It will shift and turn on/off automactically.


street lights history




Features & Specification
Solar Panel
Max Power
18V 110W
Type
Monocrystalline
Lifespan
25 years
Battery
Type
Lithium LiFePO4 battery
Capacity
12.8V 537.6Wh
Lifespan
8-10 years
Charge Time
By Strong Sunshine
6-8 hours
Lighting Time
Full Power
12-14hours
30% saving mode
39 hours (3~5 rainy days)
Lighting Mode
Timer Control: 1hrs 30% lighting + 2hrs 100% lighting + 2hrs 50% lighting + 7hrs 20% lighting =12hours
Environment Parameter
Discharing temperature
-20 ℃ to +60 ℃
Charging Temperature
0 ℃ to +60 ℃
Storage temperature
-20 ℃ to +45 ℃
Installation
Mounting Height
8-10m
Top pole diameter
70-80mm
Space Between Lights
30-40m
Material
Superior aviation aluminum AL6063-T5

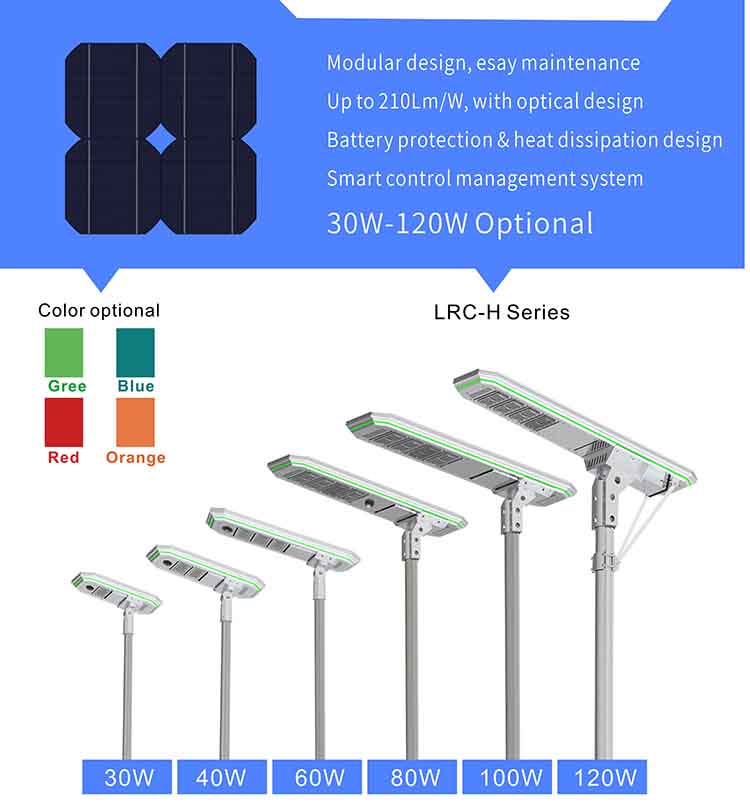

Features
1.Modular design,easy maintenance
2.Up to 210Lm/W,with optical design
3.Battery protection &heat dissipation design
4.Smart control management system

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.


Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.


Q3. Can I use the all in one LED solar street light product on the islands?

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.


Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q5. What about the lead time?

A5:We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.


Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.


OEM & ODM Service
Brand, Logo,Color, Product Manual, Packaging etc....
18+ Years experience of Solar LED Lighting
Brand, Logo, Lighting mode, Brightness, Product Manual, Packaging, etc.



Thank you so much for reaching here

We believe you have learned a lot about our products, projects, and profiles, our vision, mission, and patience. Thanks for your time, before you contact us, we’d like to emphasize, we are:

  • Military Enterprises

    Military Qualified Enterprises Strict accordance with

    military standard design and production 13 years only of r&d production and sales of solar lights

    Shipments of more than 300,000 units

  • Leading Innovator

    All in one solar billboard light global inventor

    More than 20 patents applied and approved

    Original three core technologies

  • Real total solution provider

    Full Range of Technical Support

    OEM/ODM acceptable, Customization easily

    Localized After-sales Service available…
