Outdoor Lamp Waterproof Streetlight for Project Lighting Warm Cold White Road Lamp

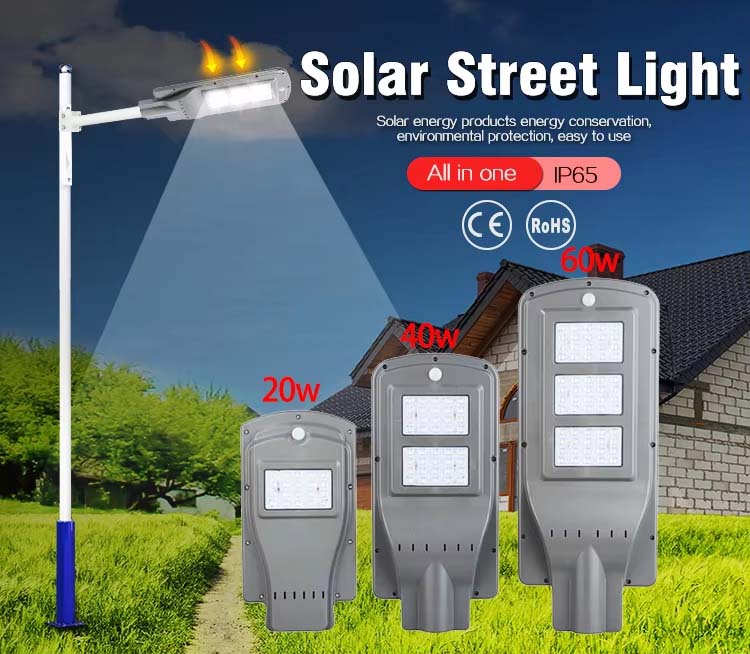

ABS Industrial Solar Outdoor Streetlight IP65 Waterproof 20W 40W 60W All in One Integrated Solar Lights Roads White SMD 6000K ABS Industrial Solar Outdoor Streetlight IP65 Waterproof 20W 40W 60W All in One Integrated Solar Lights Roads White SMD 6000K ABS Industrial Solar Outdoor Streetlight IP65 Waterproof 20W 40W 60W All in One Integrated Solar Lights Roads White SMD 6000K ABS Industrial Solar Outdoor Streetlight IP65 Waterproof 20W 40W 60W All in One Integrated Solar Lights Roads White SMD 6000K ABS Industrial Solar Outdoor Streetlight IP65 Waterproof 20W 40W 60W All in One Integrated Solar Lights Roads White SMD 6000K
ABS Industrial Solar Outdoor Streetlight IP65 Waterproof 20W 40W 60W All in One Integrated Solar Lights Roads White SMD 6000K
  • Model No. :

    LR-003-Z-40W
  • LED brand :

    LEADRAY
  • LED Power :

    40W
  • Solar Panel Power :

    Monocrystalline Silicon 6V
  • Battery Type :

    LiFePO4 Battery Capacity 3.2V/20Ah
  • Infrared senor :

    YES
Contact Us
description

Commercial Integrated Floodlight Ip65


Power:

20W

40W

60W

Dimension(D*H)

395*210*60mm

495**230*65mm

630*250*65mm

Solar panels:

polycrystalline silicon 6V-7W

polycrystalline silicon 6V-9W

polycrystalline silicon 6V-13W

LED Type & Brand:

20pcs

SMD2835 1W

Epistar

40pcs

SMD2835 1W

Epistar

60pcs

SMD2835 1W

Epistar

Battery type:

6000mah  Lithiumiron phosphate 32650

12000mah Lithium iron phosphate 32650

18000mah Lithium iron phosphate 32650

Charge time:

4-6H

4-6H

4-6H

work time:

8-12H

8-12H

      8-12H

PF:

>0.9

>0.9

       >0.9

Beam Angle:

70*140°

70*140°

70*140°

Color Temperature:

3000-6500K

3000-6500K

3000-6500K

IP Rating:

IP66

IP66

IP66

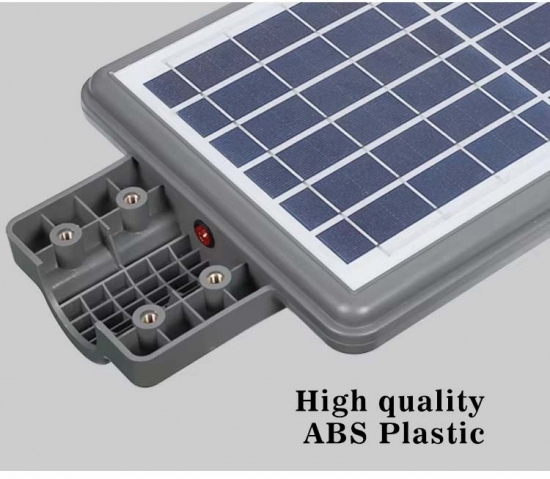

Material

ABS+PC lens

Hole size of

light pole:



60mm

Applications:

Highway, courtyard, road, park,outdoor


  • Durable and High-Quality Construction: This 20w-60w solar street light is crafted from A-graded aluminum alloy, ensuring a robust and long-lasting structure that can withstand various environmental conditions.

  • Energy Efficiency: With a luminous efficiency of 100 lm/w and a luminous flux of 120 lm, this solar street light provides a bright and energy-efficient lighting solution for residential, garden, hotel, landscape, sports stadiums, and theme park applications.

  • Advanced MPPT Controller: Equipped with a high-efficiency MPPT (Maximum Power Point Tracking) controller, this solar street light maximizes energy harvesting from the solar panel, ensuring optimal performance and extended battery life.

  • User-Friendly Remote Control: This solar street light comes with a remote control feature, allowing users to easily adjust and customize lighting settings to suit their preferences, as requested by the user.

  • Long-Lasting Lithium Battery: Powered by a reliable lithium battery, this solar street light offers a warranty of 1-5 years, providing peace of mind for users and ensuring continuous lighting for an extended period.

Commercial Integrated Floodlight Ip65

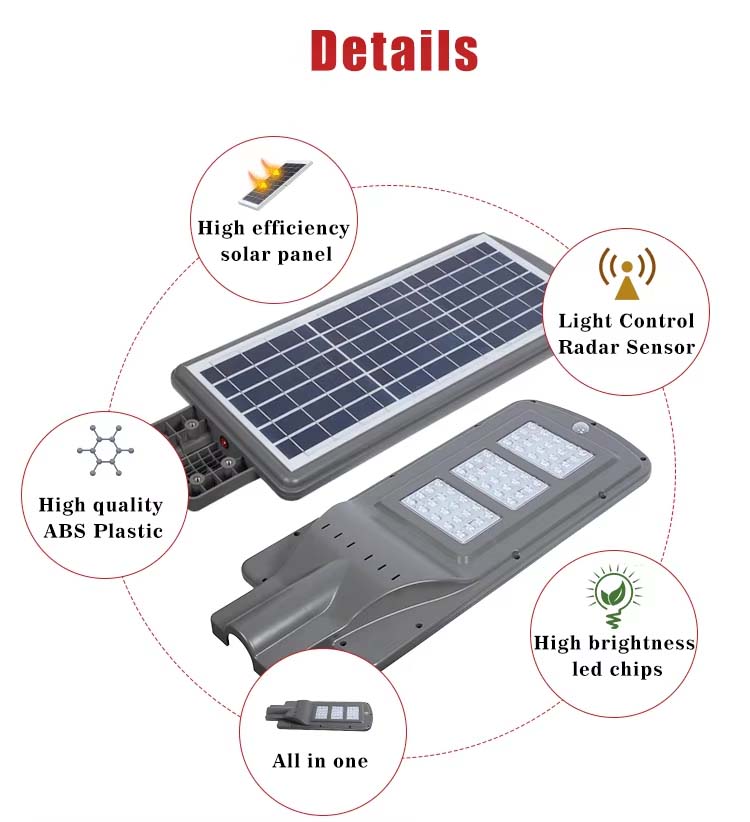

Solar street lights are integrated with solar panels, led lights, lithium iron phosphate batteries, controllers, constant current drivers and lamp housings. It combines photoelectric effect, constant current control, single chip microcomputer, human infrared sensing and other practical control technologies. It can be used in areas without electricity grid.


Commercial Integrated Floodlight Ip65

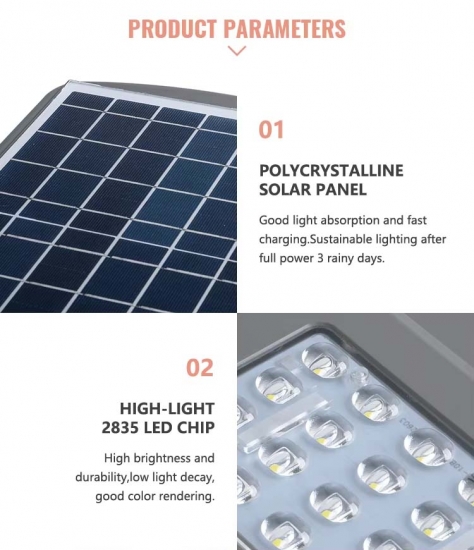

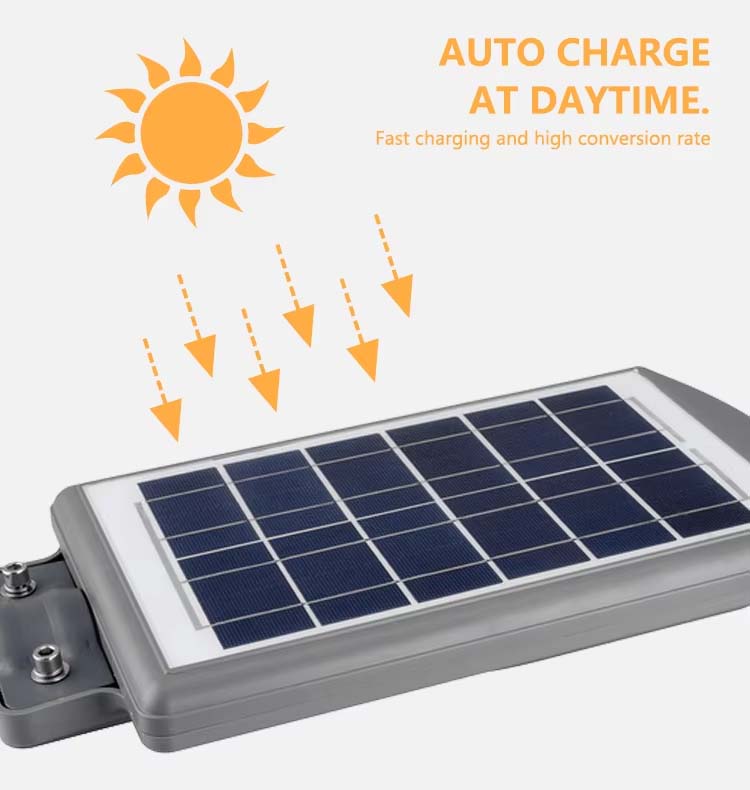

High conversion solar panels
High efficiency polycrystalline silicon solar energy
Light conversion panel,> 20%
4-6 hours fast charge

Lithium iron phosphate
Battery: Lithium iron phosphate battery improves the reliability of lamps. Low temperature charging protection, effectively protect the battery


Commercial Integrated Floodlight Ip65


MPPT charging method is adopted to improve the utilization rate of solar panels.
Lithium battery low temperature charging protection, effectively protect the battery.
Three induction level design. Working time 0~ 15 hours, power range 0~100%.

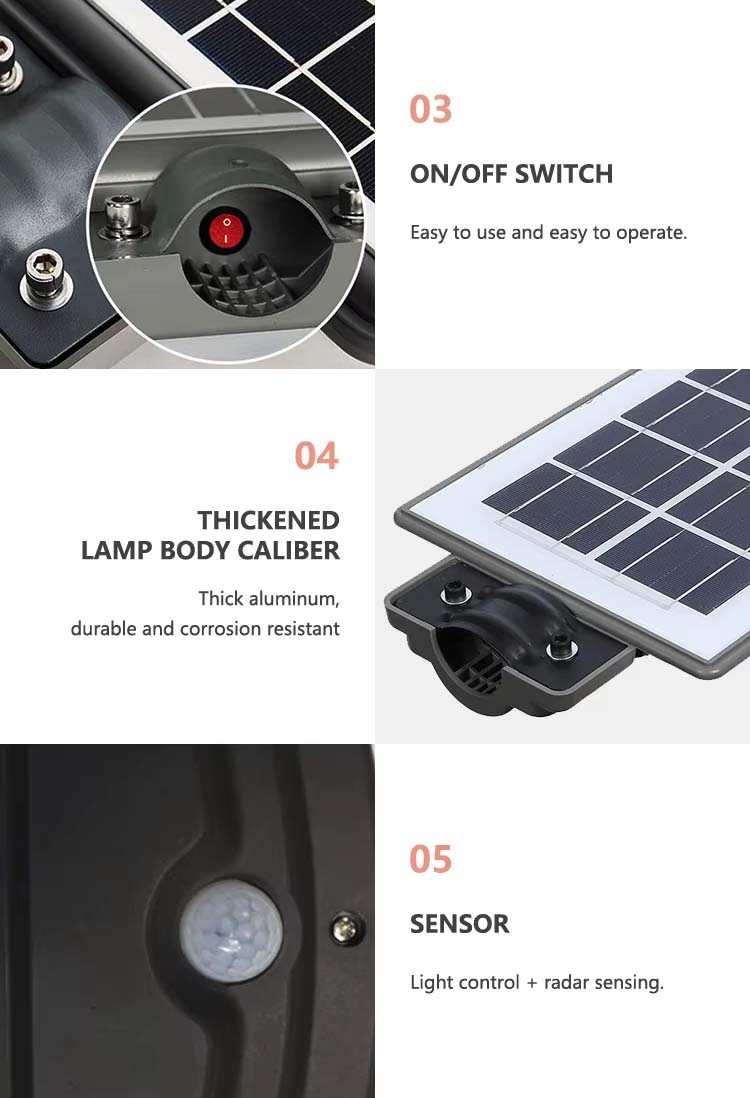

Human body infrared or microwave sensing function.
The sensitive delay can be set from 0 to 250 seconds.
Record system status for 7 days and monitor the entire system.
The overheat protection function reduces or shuts down the load when the controller reaches a certain temperature.

Working status indication, easy maintenance.


Commercial Integrated Floodlight Ip65


Motion sensor
The power saving mode is automatically switched to one minute after the user leaves
Full brightness mode Automatically switches to 100% brightness when the person enters the 120° sensor range


Commercial Integrated Floodlight Ip65

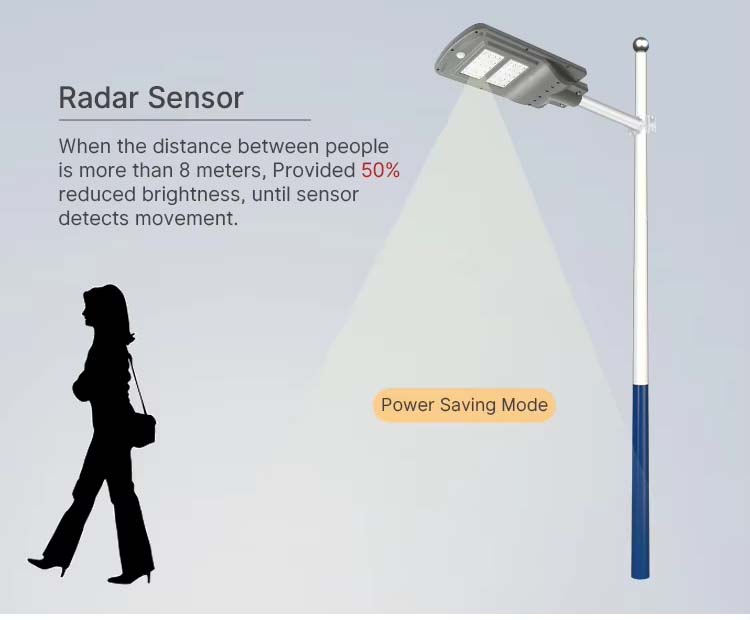

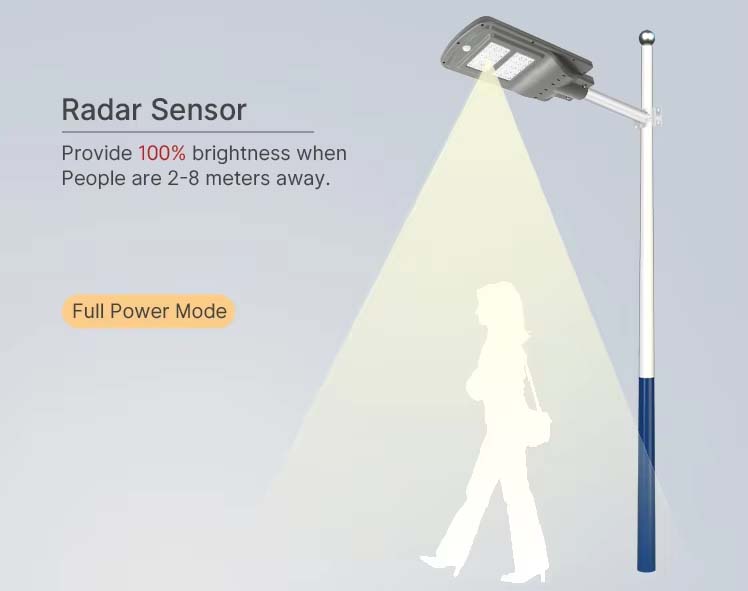

Radar sensor
Automatic adjustment of working mode, safety and energy saving

Body sensing
1. Dark days
2. The sky is lit up. Someone went through the light.

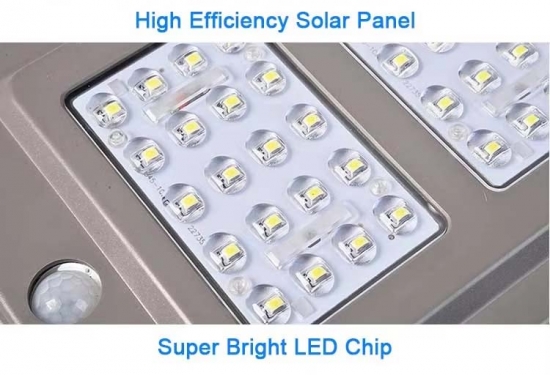

HIGH QUALITY LED WICK
High-power high-light beads, high brightness, low light decay, durable and stable use

Commercial Integrated Floodlight Ip65

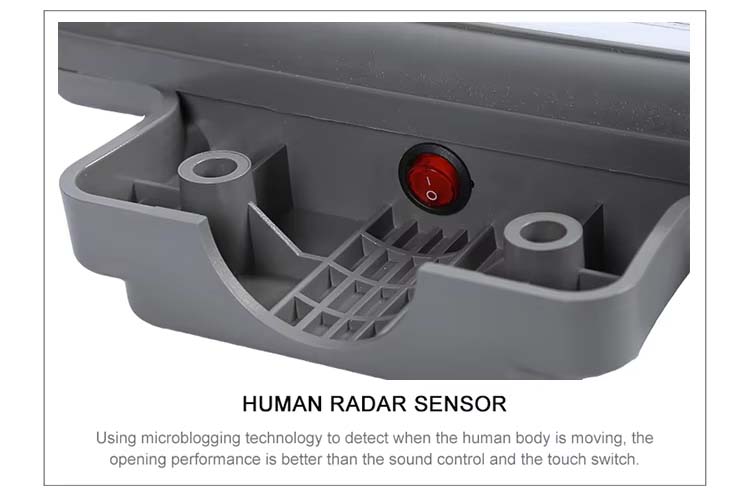

HUMAN RADAR SENSOR
Using microblogging technology to detect when the human body is moving, the opening performance is better than the sound control and the touch switch.

Solar street lights are independent of the utility grid. Hence, the operation costs are minimized.

Solar street lights require much less maintenance compared to conventional street lights.

Since external wires are eliminated, risk of accidents are minimized.

Electricity produced from solar panels is non-pollutive.

Separate parts of a solar panel system can easily be transported.

Energy costs can be saved.
