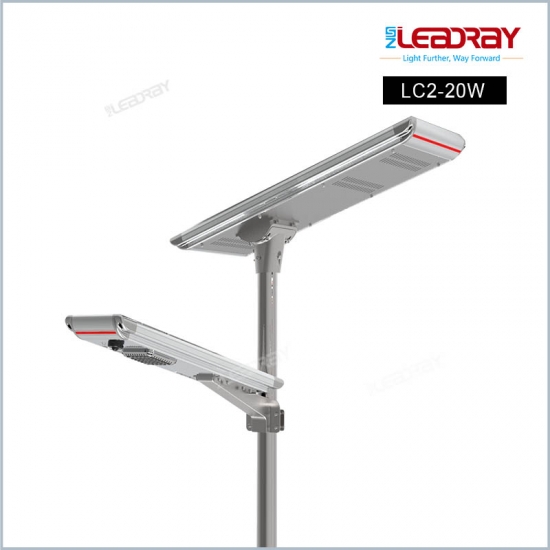

All In Two combination solar street light 20W led solar street light factory
  • Model No. :

    LC2-20W
  • LED brand :

    LEADRAY
  • LED Power :

    20W
  • Solar Panel Power :

    18V 80W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    Available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Paypal, Western Union
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

LC2 combination solar street light, adopt mono crystalline silicon solar panel with higher conversion rate, high luminous efficiency LED chips, ultra-long-life lithium battery pack, high-efficiency intelligent controller and human body sensing technology; it has an integrated design concept, which is convenient for installation and maintenance; The solar radiation intensity and lighting direction can be adjusted arbitrarily to the direction of solar panels and lamp head, providing a more flexible solution for the harsh lighting needs of complex roads.


Combined Solar Lamp 20W 30W 40W Exterior All Wattage Outdoor Led Ip65 Lamp Focos LED Solar Street Light.

Lamp Power:20-40W

Solar Panel Power:80-130W

Battery Capacity:460-691Wh

PIR Motion Sensor/Timer

1.Using imported Philips LED chips, single lumen up to 210lm/w;

2.Large-area aluminum lamp holder has excellent heat dissipation, silicone ring sealing, and good waterproof performance;
3.The lens uses high-quality PC material, anti-ultraviolet, anti-aging, light transmittance up to 93%, professional secondary optical design, make the light more uniform and wider area.

4.Large system configuration and intelligent power control, realize 365 days of lighting.

5.Aviation aluminum integrated lamp head.

6.Hoop installation.

7.No lamp arm required.

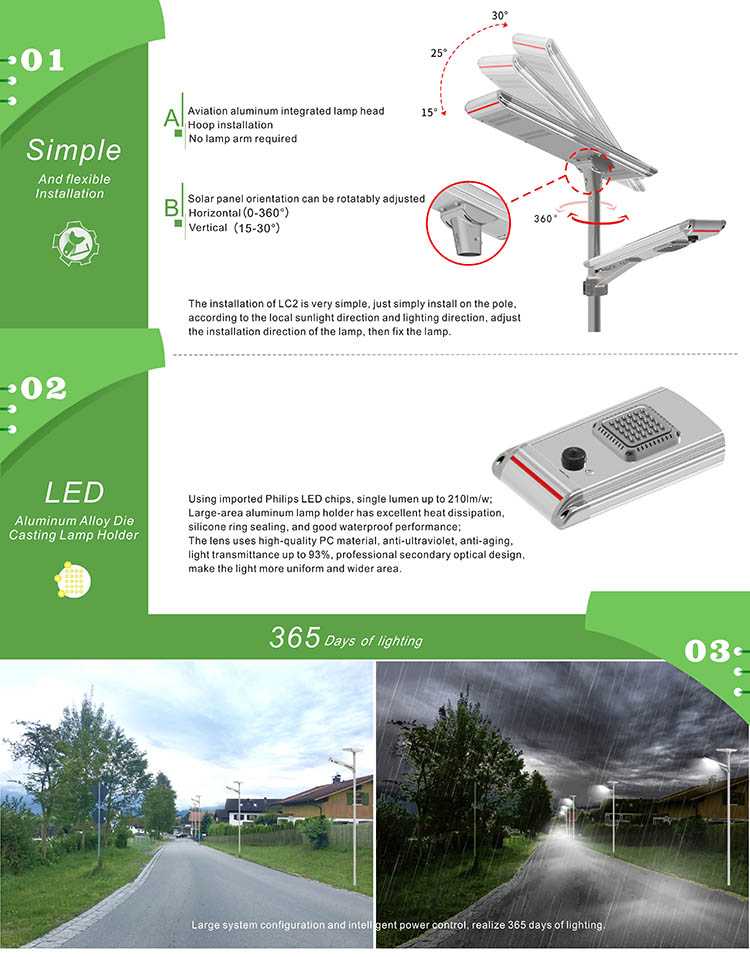

8.Solar panel orientation can be rotatably adjusted:

Horizontal (0°~ 360°)

Vertical (15°~ 30°)


Feature

1. Above system configurations are designed working time: 11-12 hrs per night, battery capacity with continuous 2-3 days backup.The configuration is based on scientific calculation and engineering project experience.

2. The Galvanized pole are standardized practical model recommended by us. It can be customized with more patterns according to clients specific requirement.

3. All Parts are CE certified, with high quality level meeting European standards.

4. Please contact us for more detailed technical specification of each part of the system.



Exterior All Wattage Outdoor Led Ip65 Lamp Focos LED Solar Street Light

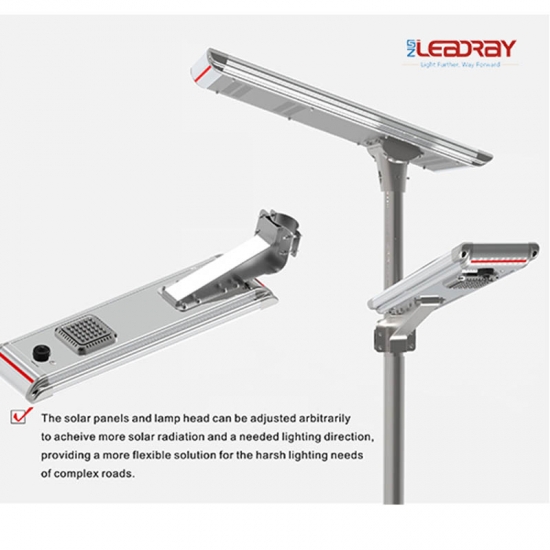

The solar panels and lamp head can be adjusted arbitrarilyto acheive more solar radiation and a needed lighting direction,providing a more flexible solution for the harsh lighting needsof complex roads.


Combined Solar Lamp


 Super Bright Aluminium Die Casting Panels Led Outdoor Solar Street Road Lights Spotlights with Inbuilt Batteries Lamp


Model
LC2-20W
LC2-30W
LC2-40W
Physical Parameters
LED Brand
PHILIPS
PHILIPS
PHILIPS
LED Qty(pcs)
50 100 100
Power of PV Module(W)
18V 80W
18V 110W
18V 130W
LIFEPO4
Battery Capacity(Ah)
12.8V 460Wh
12.8V 615Wh
12.8V 619Wh
Light Mode
PIR
Time Control
Time Control

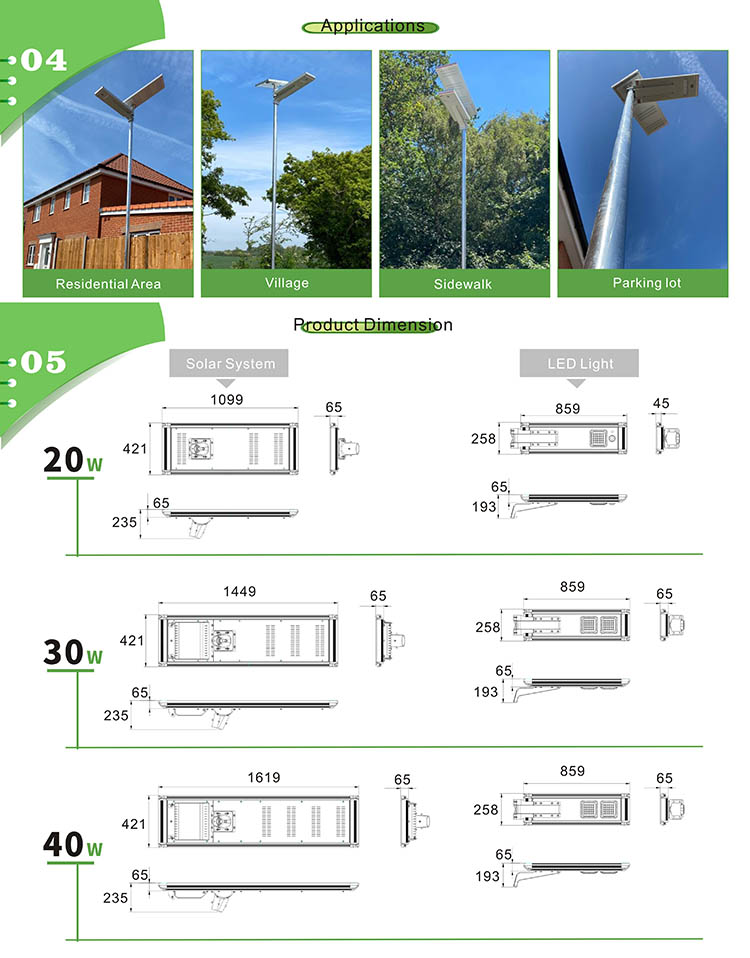

Product Dimension(mm)
Lamp 1
1099*421*65
1449*421*65
1619*421*65
Lamp 2
859*258*65
Product N.W.(kg)
/ / /
Carton #1/Lamp 1
Dimension(mm)& G.W.
1160*180*490
 (12KG)
1510*180*490
 (14.5KG)
1675*180*490
 (12KG)
Carton #2/Lamp 2
Dimension(mm)& G.W.
995*315*255 (0.6/Kg)
Carton #3/Accessories
Dimension(mm)& G.W.
215*2155*210 (3Kg)
Light Parameters
Light Power(W)
20W 30W 40W
Typical Liminous Flux(Lm)
3600
5400 7200
LED Light Effect(Lm/W)
210Lm/W
Color Temperature(K)
2700-6500
Beam Angle(°)
75°x 150°
Rainy Days(D)
10~15
Environment Parameters
Charging
Temperature(℃)
 0 ℃ to +60 ℃
Discharging
Temperature(℃)
-20 ℃ to +60 ℃
Storage
Temperature(℃)
-20 ℃ to +45 ℃
Installation
Dia. of Top Pole (mm)
89 89
89
Installation Height(m) 4~6
5~7
6~8
Installation Distance (m)
 15~20
 20~25
 25~30

Exterior All Wattage Outdoor Led Ip65 Lamp Focos LED Solar Street Light


Automatic Light and Time ControlOver-charging/discharging ProtectionReverse-connection ProtectionSwitch on Automatically with Light SensolSwitch off after 11-12 Hrs later.

wholesale all in one solar street light


Shenzhen Leadray is fully licensed to operate as an international supplier of steel products. Our ISO 9001 certification ensures that our company adheres to the highest manufacturing standards and is able to consistently produce high quality products that meet our customers’ needs. In addition, our company has gone through vigorous inspection conducted by SGS group to ensure our production and manufacturing process meets international standards.


The main markets grows in Africa, South America, Middle East and South-East of Asia. The company not only provide wholesale business but also OEM & ODM service for clients. Strong and experienced D & R team is ready at your service. In order to provide fast order-to-products service, Tenailiang Lighting optimized working process which helps to offer 3~5 days production time. Fast responding is always the key to success in modern world.
