Timer Control Lighting 100W Battery Power Panel Lights System Outdoor Dimmable Integrated Led Solar Street Light
Lamp Power:80-120W Solar Panel Power:110-160W Battery Capacity:538-691Wh PIR Motion Sensor Original Integrated concept, Double arc streamline Element Design; Innovative Battery Protection System; LED Modular Thermal Design; Typhoon Resistant。 CREE LED without gold wire packaging, creates a first-class light source; Rectangular beam design, with bat wing light distribution; 170Lm/W, 30% brighter than other similar products; Longer working hours, 15% longer than other similar products. The well optimized light distribution, made for a more uniform and wider lighting area; Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan; Original thermal system design, innovative heat sink with IP67 PG head.
-
Timer Control Lighting 100W Outdoor Dimmable Integrated All In One Led Solar Street Light
Leadray IP65 Waterproof Solar LED Street Light 30W 40W 60W 80W 100W 120W All In One Integrated Solar Street Light system with Motion Sensor 1.Modular design,easy maintenance 2.Up to 210Lm/W,with optical design 3.Battery protection &heat dissipation design 4.Smart control management system

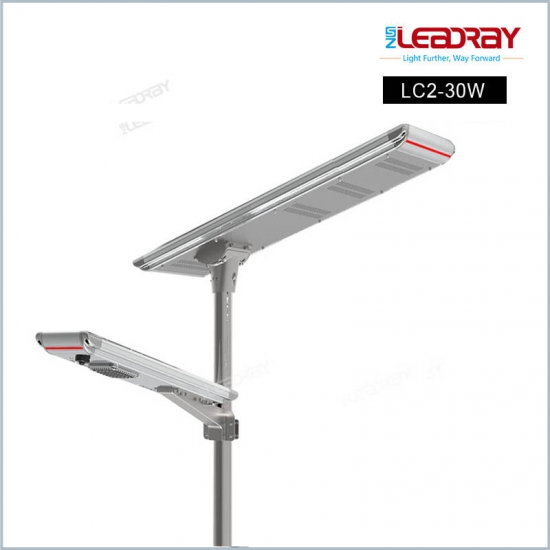

Model No. :
LC2-30WLED brand :
LEADRAYLED Power :
30WSolar Panel Power :
18V 110WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
AvailableColor :
SilverPort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk
2023 Selling the best quality cost effective products ip65 led 40w led solar street light.

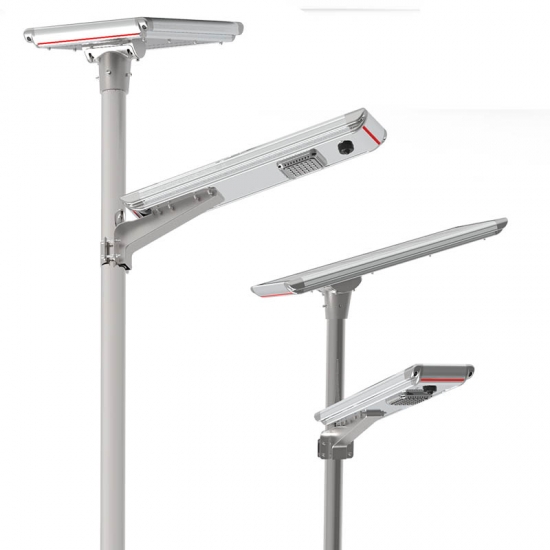

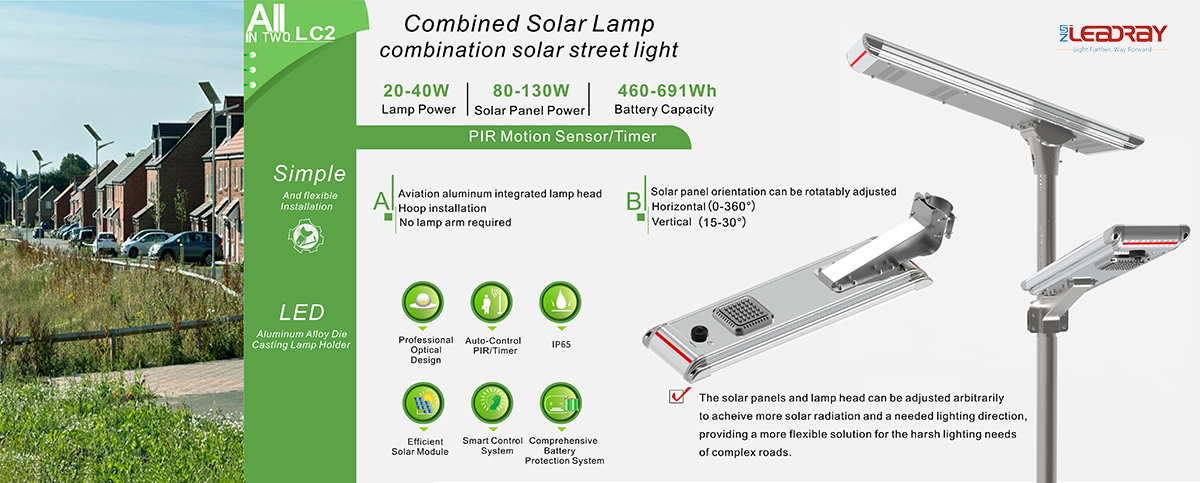

LC2combination solar street light, adopt mono crystalline silicon solar panel with higher conversion rate, high luminous efficiency LED chips, ultra-long-life lithium battery pack, high-efficiency intelligent controller and human body sensing technology; it has an integrated design concept, which is convenient for installation and maintenance; The solar radiation intensity and lighting direction can be adjusted arbitrarily to the direction of solar panels and lamp head, providing a more flexible solution for the harsh lighting needs of complex roads.
Lamp Power:20-40W
Solar Panel Power:80-130W
Battery Capacity:460-691Wh
PIR Motion Sensor/Timer
1.Using imported Philips LED chips, single lumen up to 210lm/w;
2.Large-area aluminum lamp holder has excellent heat dissipation, silicone ring sealing, and good waterproof performance;
3.The lens uses high-quality PC material, anti-ultraviolet, anti-aging, light transmittance up to 93%, professional secondary optical design, make the light more uniform and wider area.
4.Large system configuration and intelligent power control, realize 365 days of lighting.
5.Aviation aluminum integrated lamp head.
6.Hoop installation.
7.No lamp arm required.

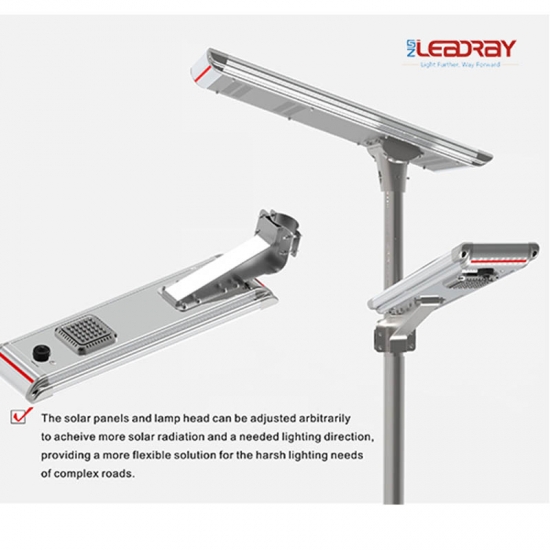

8.Solar panel orientation can be rotatably adjusted:
Horizontal (0°~ 360°)
Vertical (15°~ 30°)
Model |
LC2-20W |
LC2-30W |
LC2-40W |
|
Physical Parameters | ||||
LED Brand |
PHILIPS |
PHILIPS |
PHILIPS |
|
LED Qty(pcs) |
50 | 100 | 100 | |
Power of PV Module(W) |
18V 80W |
18V 110W |
18V 130W |
|
LIFEPO4 Battery Capacity(Ah) |
12.8V 460Wh |
12.8V 615Wh |
12.8V 619Wh |
|
Light Mode |
PIR |
Time Control |
Time Control |
|
Product Dimension(mm) |
Lamp 1 |
1099*421*65 |
1449*421*65 |
1619*421*65 |
Lamp 2 |
859*258*65 |
|||
Product N.W.(kg) |
/ | / | / | |
Carton #1/Lamp 1 Dimension(mm)& G.W. |
1160*180*490 (12KG) |
1510*180*490 (14.5KG) |
1675*180*490 (12KG) |
|
Carton #2/Lamp 2 Dimension(mm)& G.W. |
995*315*255 (0.6/Kg) |
|||
Carton #3/Accessories Dimension(mm)& G.W. |
215*2155*210 (3Kg) |
|||
Light Parameters |
||||
Light Power(W) |
20W | 30W | 40W | |
Typical Liminous Flux(Lm) |
3600 |
5400 | 7200 | |
LED Light Effect(Lm/W) |
210Lm/W | |||
Color Temperature(K) |
2700-6500 |
|||
Beam Angle(°) |
75°x 150° |
|||
Rainy Days(D) |
10~15 |
|||
Environment Parameters | ||||
Charging Temperature(℃) |
0 ℃ to +60 ℃ |
|||
Discharging Temperature(℃) |
-20 ℃ to +60 ℃ |
|||
Storage Temperature(℃) |
-20 ℃ to +45 ℃ | |||
Installation |
||||
Dia. of Top Pole (mm) |
89 |
89 |
89 |
|
Installation Height(m) |
4~6 |
5~7 |
6~8 |
|
Installation Distance (m) |
15~20 |
20~25 |
25~30 |

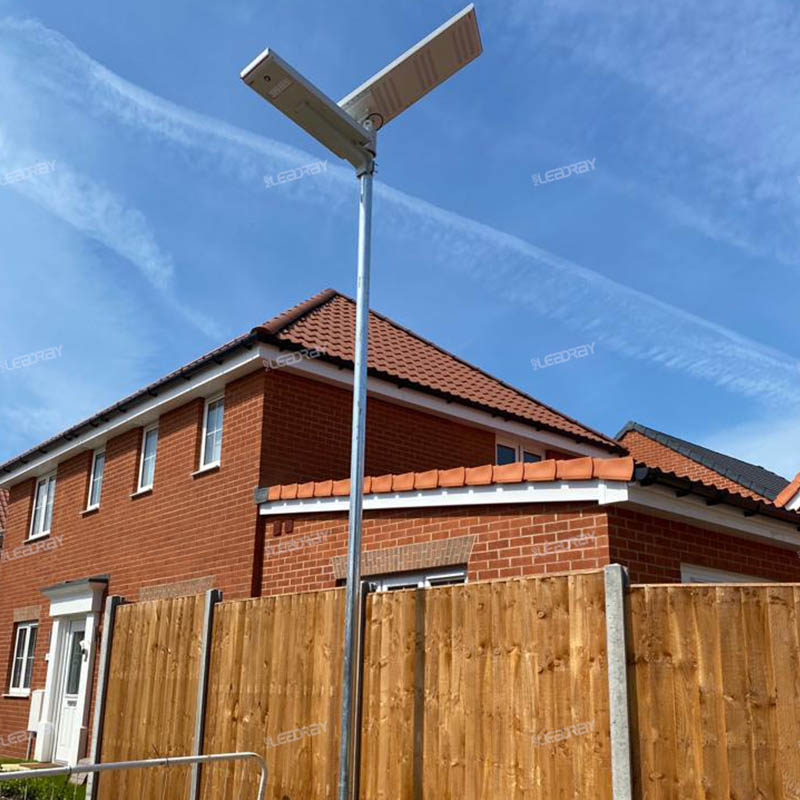

![led 40w led solar street light led 40w led solar street light](/js/htmledit/kindeditor/attached/20230828/20230828095531_20847.jpg)
Solar street light Highway Road with Smart for highway high power led lamp Waterproof Outdoor.
Professional Aluminum Housing Outdoor Waterproof IP65 20W 30W 40W Solar Led Street Lights.
