Hot Products
  • combination solar street light
    All In Two combination solar street light 30W

    LC2combination solar street light, adopt mono crystalline silicon solar panel with higher conversion rate, high luminous efficiency LED chips, ultra-long-life lithium battery pack, high-efficiency intelligent controller and human body sensing technology; it has an integrated design concept, which is convenient for installation and maintenance; The solar radiation intensity and lighting direction can be adjusted arbitrarily to the direction of solar panels and lamp head, providing a more flexible solution for the harsh lighting needs of complex roads. Lamp Power:20-40W Solar Panel Power:80-130W Battery Capacity:460-691Wh PIR Motion Sensor/Timer 1.Using imported Philips LED chips, single lumen up to 210lm/w; 2.Large-area aluminum lamp holder has excellent heat dissipation, silicone ring sealing, and good waterproof performance; 3.The lens uses high-quality PC material, anti-ultraviolet, anti-aging, light transmittance up to 93%, professional secondary optical design, make the light more uniform and wider area. 4.Large system configuration and intelligent power control, realize 365 days of lighting. 5.Aviation aluminum integrated lamp head. 6.Hoop installation. 7.No lamp arm required. 8.Solar panel orientation can be rotatably adjusted: Horizontal (0°~ 360°) Vertical (15°~ 30°)

  • Solar Parking Lot Light
    60W Solar Parking Lot Light

    Lamp Power:40-80W Solar Panel Power:160-230W Battery Capacity:922-1536Wh Angle of LED modules adjustable: (15°~ 45°) 1.Professional secondary light 2.distribution, suitable for a variety of lighting scenes:(90°/75°x 150°) 3.Can add the LED module to the bottom side to achieve two-way lighting 4.4h(100%) + 4h(when motion detected100%,when no motion30%) + 6h(when motion detected60%,when no motion20%)

  • Led solar street light
    40W Solar Parking Lot Light

    Lamp Power:40-80W Solar Panel Power:160-230W Battery Capacity:922-1536Wh Angle of LED modules adjustable: (15°~ 45°) 1.Professional secondary light 2.distribution, suitable for a variety of lighting scenes:(90°/75°x 150°) 3.Can add the LED module to the bottom side to achieve two-way lighting 4.4h(100%) + 4h(when motion detected100%,when no motion30%) + 6h(when motion detected60%,when no motion20%)

  • Led solar street light
    Led solar street light outdoor 180W Typical Liminous Flux 28800Lm high lumen all in one integrated auto-cleaning solar light

    Lamp Power:150-200W Solar Panel Power:180-260W Battery Capacity:1075-1536Wh PIR Motion Sensor Original Integrated concept, Double arc streamline Element Design; Innovative Battery Protection System; LED Modular Thermal Design; Typhoon Resistant. CREE LED without gold wire packaging, creates a first-class light source; Rectangular beam design, with bat wing light distribution; 170Lm/W, 30% brighter than other similar products; Longer working hours, 15% longer than other similar products. The well optimized light distribution, made for a more uniform and wider lighting area; Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan; Original thermal system design, innovative heat sink with IP67 PG head.

solar light
Products
Led solar street light
Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light

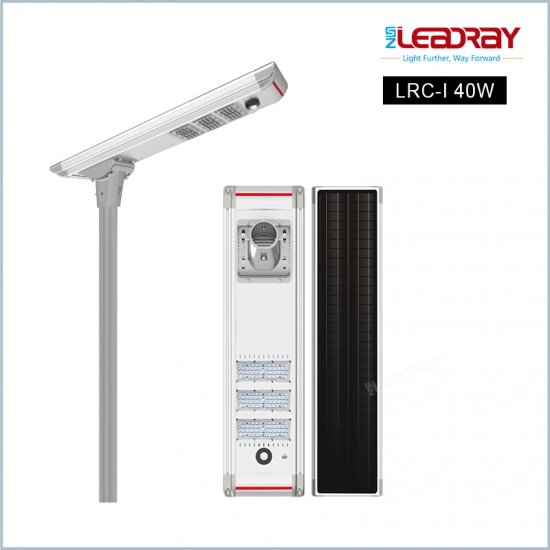

Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light
  • Model No. :

    LRC-I40W
  • LED brand :

    LEADRAY
  • LED Power :

    40W
  • Solar Panel Power :

    60W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    Available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Paypal, Western Union
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light.

China Best Outdoor Waterproof Integrated Solar Power Street Light Led Smart control with cell phone APP.

Wholesale green energy integrated lithium battery led solar street light

Product Application Area:
Courtyard/Garden/Park/Street/Roadway/pathway/ParkingLot/Private road/Sidewalk/Public
square/plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/ Wildlife area/Remote Area/Military Base

Features & Specification
Solar Panel
Max Power
60W
Type
Monocrystalline
Lifespan
25 years
Battery
Type
Lithium LiFePO4 battery
Capacity
346Wh
Lifespan
8-10 years
Charge Time
By Strong Sunshine
6-8 hours
Lighting Time
Full Power
12-14hours
30% saving mode
39 hours (3~5 rainy days)
Lighting Mode

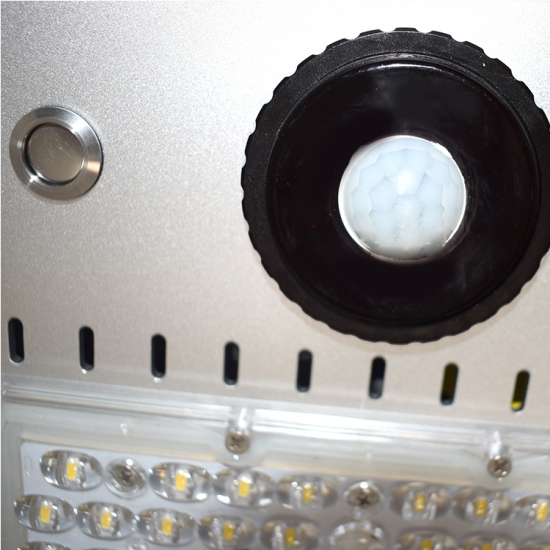

PIR Sensor: 30% brightness when no motion, 100% Brightness whe motion dectected.
Environment Parameter
Discharing temperature
-20 ℃ to +60 ℃
Charging Temperature
0 ℃ to +60 ℃
Storage temperature
-20 ℃ to +45 ℃
Installation
Mounting Height
5-7m
Top pole diameter
60-76mm
Space Between Lights
20-30m
Material
Superior aviation aluminum AL6063-T5
Certification
CE RoHs SASO IEC
IP Rating
IP65

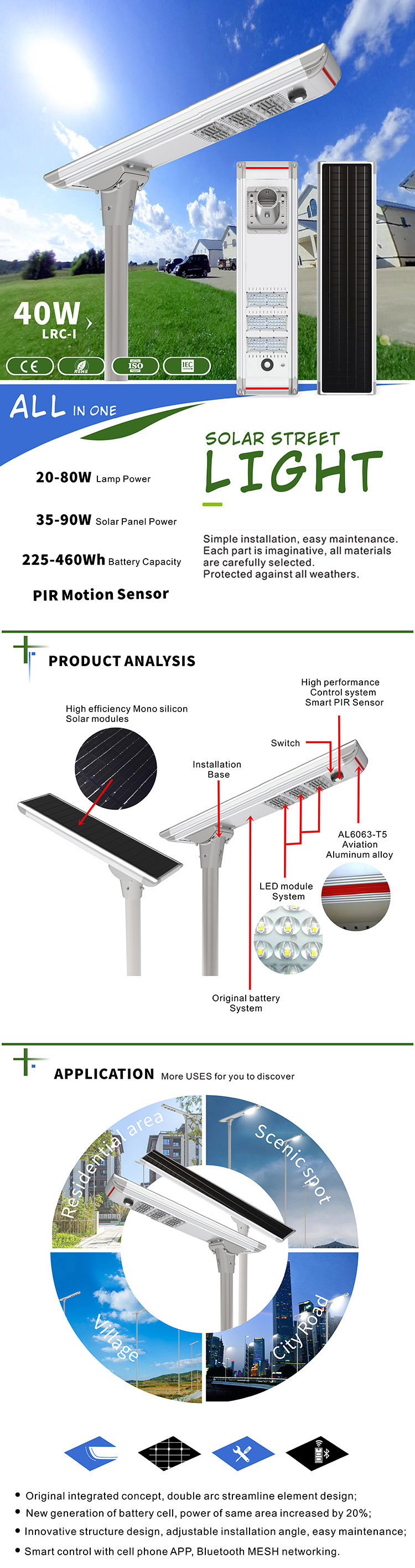

Feature:
1.Original integrated concept, double arc streamline element design;New generation of battery cell, power of same area increased by 20%.
2.Innovative structure design, adjustable installation angle, easy maintenance.

3.Smart control with cell phone APP, Bluetooth MESH networking.


4.Adopts A grade high quality semiconductor M10 solar cells.

5.Supporting MESH networking, Max. 65000pcs devices Ad-Hoc networking.
6.Military grade LiFePO4 Battery, High Safety and stability.


7.Constant current driving, Stable current output.

8.Dual charge and discharge management, temperature protection, military grade IC chip control.
Mobile phone APP control, with BEL5.0 MESH networking function,Neighboring devices form their own LAN and communicate with each other and achieving ultra remote control (optional).



Model
LRC-I20W
LRC-I30W
LRC-I40W
LRC-I60W
LRC-I80W
Physical Parameters
LED Brand
PHILIPS
PHILIPS
PHILIPS
PHILIPS
PHILIPS
LED Qty(pcs)
36 72 108 144 180
Power of PV Module(W)
35W
50W
60W
70W
90W
LiFePO4
Battery Capacity
225Wh
307Wh
346Wh
46.8Wh
460.8Wh
Light Mode
PIR/Time Control
PIR/Time Control
PIR/Time Control
PIR/Time Control
PIR/Time Control
Product Dimension (mm)
679.5*258*65
859.5*258*65
1589.5*258*65
999.5*258*65
1229.5*258*65
Product N.W.(kg)
9.3 10.3 11.3 13.3 15.3

Package #1 Dimension(mm)&

G.W. (1 Lamps/CTN)

735*315*200
(10.6KG)
915*315*200
(11.5KG)
1055*315*200
(12.6KG)
1285*315*200
(15KG)
1645*315*200
(17KG)

Package #2 Dimension(mm)&

G.W. (1 Bracket/CTN)

215*215*210
(1.3KG)
Light Parameter
Light Power(W)
20W 30W
40W
60W
80W
Tyical Liminous
Flux(Lm)
3200 4800 6400 9600 12800

LED Light Eect

(Lm/W)

210Lm/W
Color Temperature(K)
2700-6500
Beam Angle(°)
150°x 80°
Rainy Days(D)
3~5
Environment Parameter
Charging
Temperaure(℃)
0~ +60
Discharging
Temperature(℃)
-20  to +60
Storage
Temperature(℃)
-20  to +45
Installations
Dia. of Top Pole (mm)
60~76
60~76
60~76
60~76
60~76
Installation Height(m)
3~5
4~6
5~7
7~8
7~59
Installation Distance (m) 10~20
15~25
20~30
25~35
30~40







Packaging & Delivery

Quantity(pieces) 1 - 5 6 - 200 201 - 1000 >1000
Est. Time(days) 10 20 25 To be negotiated

Packaging DetailsPacking:
CTN #1 (2 sets/CTN):
Size: 1055*315*200mm
G.W.: 12.6KGPortQINGDAOLead Time



Our service:
1. Reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. Exclusive agents in local country are welcomed


:



Thank you so much for reaching here

We believe you have learned a lot about our products, projects, and profiles, our vision, mission, and patience. Thanks for your time, before you contact us, we’d like to emphasize, we are:

  • Military Enterprises

    Military Qualified Enterprises Strict accordance with

    military standard design and production 13 years only of r&d production and sales of solar lights

    Shipments of more than 300,000 units

  • Leading Innovator

    All in one solar billboard light global inventor

    More than 20 patents applied and approved

    Original three core technologies

  • Real total solution provider

    Full Range of Technical Support

    OEM/ODM acceptable, Customization easily

    Localized After-sales Service available…
