60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light100LED Super Bright Lighting 6900LM Solar Sensor Light IP65 Waterproof Outdoor Smart All in One Solar Led Street Light Radar Sensor LiFePO4 Battery 4 Rainy Days Working Solar Road Lights
-
IP65 Waterproof Luminous Flux 10800Lm 30W-120W Outdoor Solar Street Light SystemAll In One Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
-
IP65 Waterproof High Lumen 300W-600W Aluminum Integrated LED Solar Street Light for Road Outdoor All in One Solar LightAll in One Solar Street LED Solar Lights with Lifepo4 Lithium Battery
-
High lumen Integrated remote control ip65 outdoor waterproof 20w 40w 60w all in one led solar street lightElegant Integrated Design,High class Aluminum alloy case Easy maintenance, battery replacement can be completed on the lamp pole

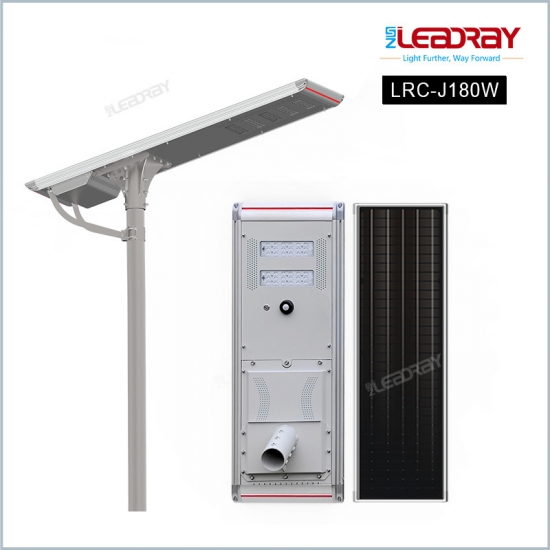

Model No. :
LRC-J180WLED brand :
LEADRAYLED Power :
180WSolar Panel Power :
39V 210WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
AvailableColor :
SilverPort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk
Material: Superior aviation aluminum AL6063-T5
Warranty: 3-5 years
| Model | LRC-J80W | LRC-J100W | LRC-J120W | LRC-J150W | LRC-J180W | LRC-J200W |
| Physical Parameter | ||||||
| LED Brand | PHILIPS | PHILIPS | PHILIPS | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 36 | 54 | 72 | 96 | 120 | 144 |
| Power of PV Module(W) | 18V 110W | 18V 120W | 18V 160W | 36V 180W | 39V 210W | 36V 260W |
|
LiFePO4
Battery Capacity
|
12.8V 538Wh | 12.8V 615Wh | 12.8V 691Wh | 25.6V 1075Wh | 25.6V 1229Wh | 25.6V 1536Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control | Time Control | Time Control | Time Control |
| Product Dimension(mm) | 1099.5*421*65 | 1339.5*421*65 | 1619.5*421*65 | 1449.5*591*65 | 1849.5*591*65 | 1619.5*761*65 |
| Product N.W.(kg) | 28 | 32 | 35 | 38 | 40 | 45 |
| Package #1 Dimension(mm)& G.W. (1 Lamps/CTN) |
1160*180*490 (20.7KG) |
1400*180*490 (24.2KG) |
1675*180*490 (29.5KG) |
1510*655*185 (37.5KG) | 1910*655*185 (46.1KG) | 1680*825*185 (50.85KG) |
| Package #2 Dimension(mm)& G.W. (1 Bases/CTN) |
395*275*270 (7KG) |
395*400*310 (8.6KG) | 395*400*310 (10.93KG) | |||
| Light Parameter | ||||||
| Light Power(W) | 80W | 100W | 120W | 150W | 180W | 200W |
|
Tyical Liminous
Flux(Lm)
|
12800 | 16000 | 19200 | 24000 | 28800 | 32000 |
| LED Light Effect(Lm/W) | 170Lm/W | |||||
| Color Temperature(K) | 2700-6500 | |||||
| Beam Angle(°) | 150°x 70° | |||||
| Rainy Days(D) | 3~5 | |||||
| Environment Parameter | ||||||
|
Charging
Temperaure(℃)
|
0℃~ +60℃ | |||||
|
Discharging
Temperature(℃)
|
-20 ℃ to +60 ℃ | |||||
|
Storage
Temperature(℃)
|
-20 ℃ to +45 ℃ | |||||
| Installations | ||||||
| Dia. of Top Pole (mm) | 60~76 | 76~85 | 76~85 | 89~105 | 89~105 | 89~105 |
| Installation Height(m) | 6~8 | 8~10 | 8~10 | 10~12 | 10~12 | 10~12 |
|
Installation
Distance (m)
|
25~30 | 30~35 | 30~35 | 35~40 | 35~40 | 40~45 |
