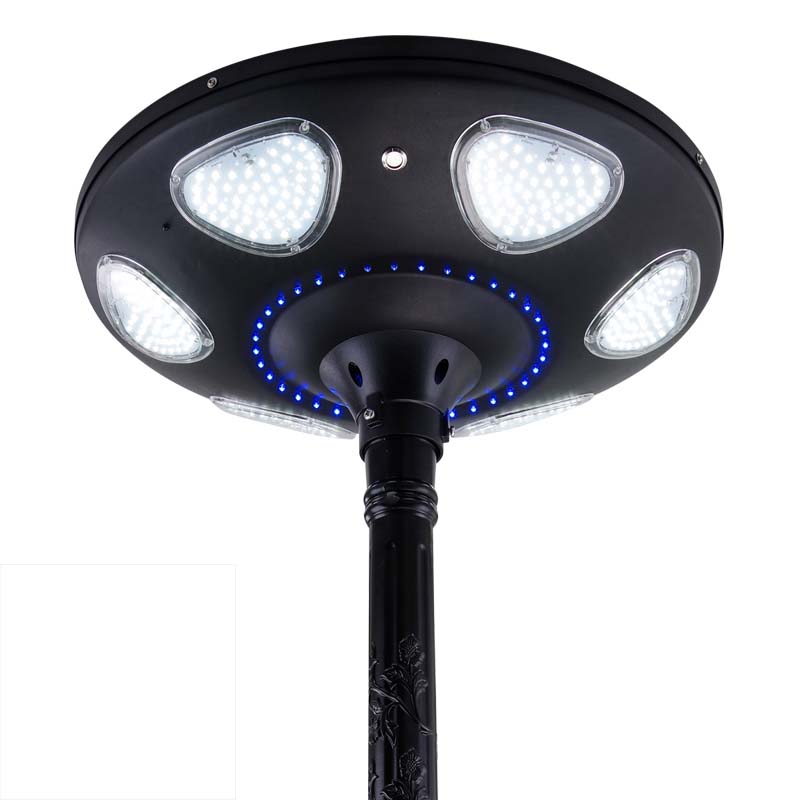

Outdoor IP65 UFO Solar Power Garden Street Light 50W UFO Solar Street Light

SCOPE OF APPLICATION

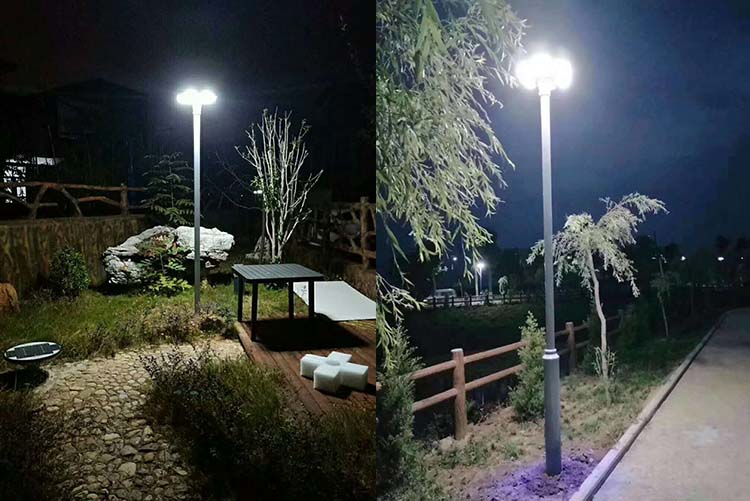

Urban roads,squares,parks,Residential areas,institutions,military barracks,industrial areas,farms,resorts,villas,courtyaand other outdoor places of lighting.

FEATURES
---All in one design

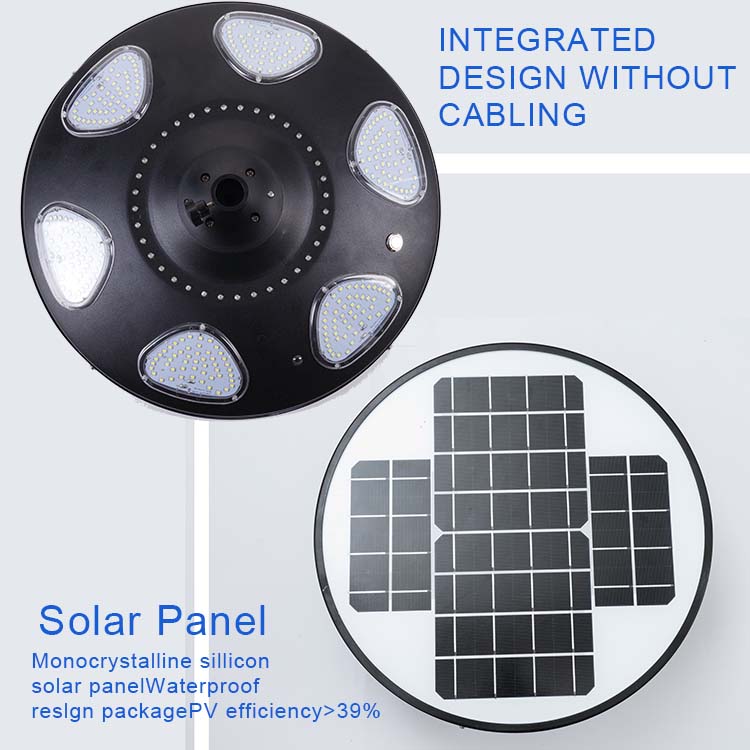

..Perfect combination of solar power,LED,Lithium battery,lighting sensor and timing control technology.-.integrated design without cabling--P65 Rain-proof,rust-proof structure,maintenance free for permanent installation---high efficiency Monocrystalline silicon solar panel, lifetime lasts 25 years.-integrates lighting sensor and timing control to save power and lighting performance...huge capacity and long lifetime Lithium battery, stable and heat-proof withstand high temperatures
.

WORK MODE
There are two working modes for integrated light:full power working mode and energy saving working mode.Energy saving working mode the light will dim to 30% working efficiency when nobody psaaes by.

When people or vehiclepasse by,the sensor will detect the motion and the light wilighten up to 100% efficiency,The brightness of the light will be reduced gradually to 30% after the people and vehicle pass away.

After installation,pls use the remotecontrol face toward the sensor and press the button "ON",the fixture will flash 1 time and then light up.Pls set the working mode follow below steps:

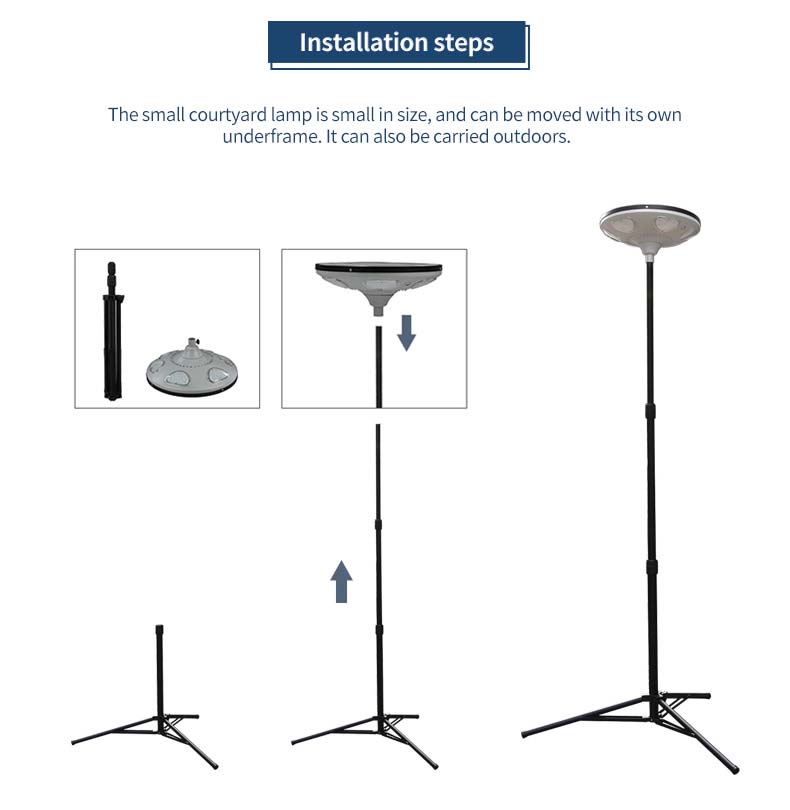

INSTALLATION STEPS

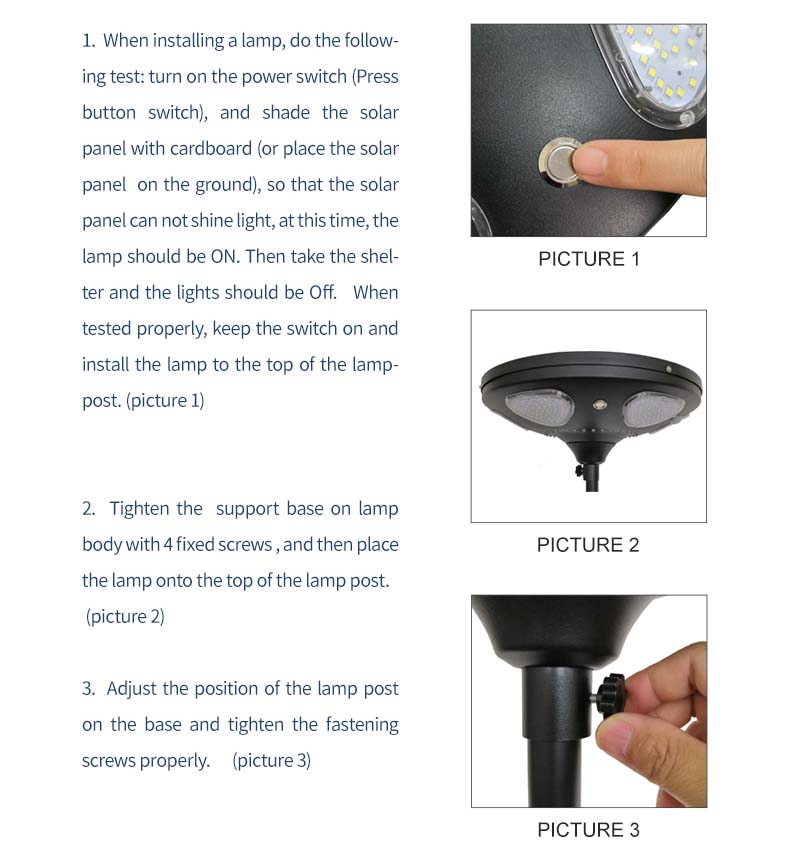

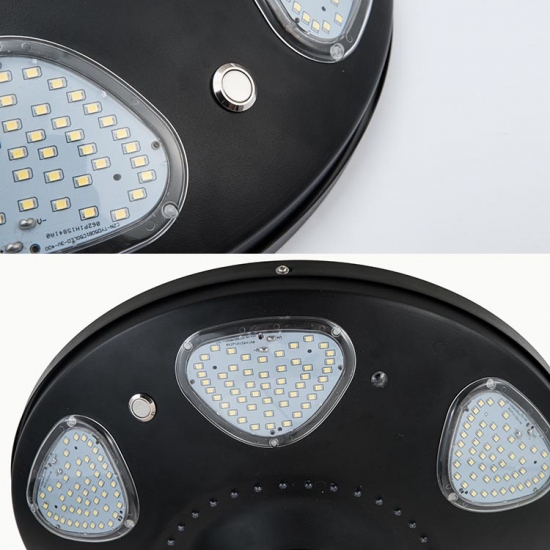

1. When instaling a lamp, do the following test: turn on the power switch (Press buton switch), and shade the solar panelwith cardboard (or place the solar panel on the ground), so that the solar panel can not shine light, at this time, the lampshould be ON. Then take the shelter and the lights should be Off. (PICTURE 1)

2. Loosen the fixing screw on the base of the lamp properly until i t can fit into the lamp pole to be installed, and then putthe lamp into the top of the lamp pole. (PICTURE 2)

3. Adjust the position of the lamp post on the base and tighten the fastening screws properly. (PICTURE 3)

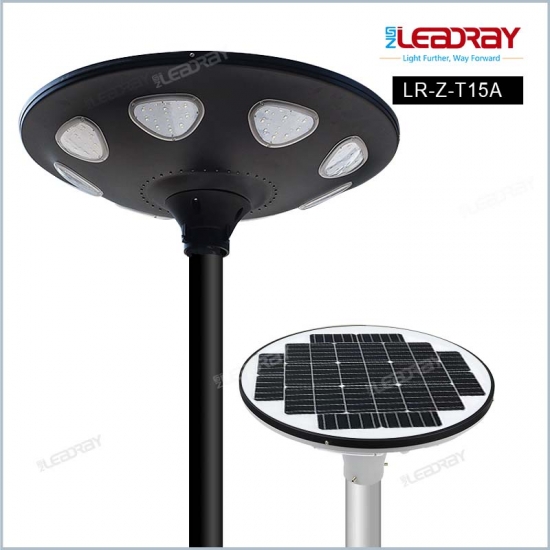

High Efficient Solar Panels High photoelectric conversion rate Charging time:4-6H

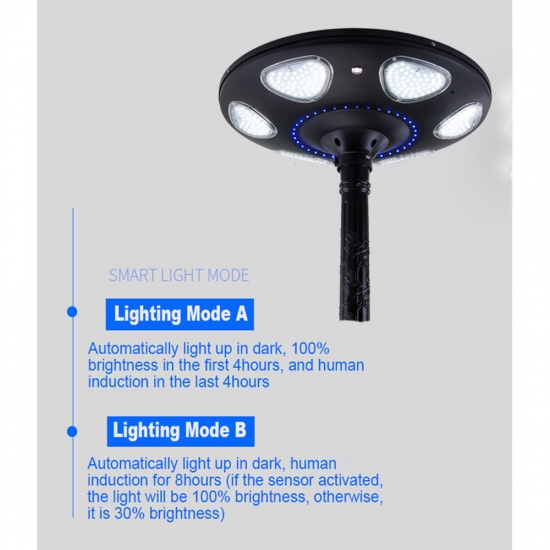

★Press "A" buton,the lamp will be 100% power working at the first 4 hours+remaining time working with Sensor.

★Press "B" button,the lamp will working at sensor mode for whole night.After setting finish,the fixture will flash 1 tims and then crush out if on daytime,then work normally at night.

★The sensor distance will be reduced when the external temperature rises to approaching human temperature.

★The lamps will be automatically light up in the evening after the installation is completed. lf need to test on the day timeplease use the remote control to aim the infrared receiver of the lamp, press ON, and the lamp willflashing one time and lightup .When the seting is complete, the light wil be off after flicking one time in the day time, and the lights wilbe on normallyat night.
★The lights wil flashing one time when press the remote control's buton after successfuly setting.if not ,it means the lampdidn't receive the remote signal,should adjust the angle or check the battery of the remote control.

★The lamp will work in "B" mode by default after installation.

★In order to ensure sufficient lighting time and service life, it is recommended to work in "B" mode.
