all in one solar led garden Light
New Design 30w Led High Quality Solar Ufo Light For Road Garden Square Street Light With Motion Sensor New Design 30w Led High Quality Solar Ufo Light For Road Garden Square Street Light With Motion Sensor New Design 30w Led High Quality Solar Ufo Light For Road Garden Square Street Light With Motion Sensor New Design 30w Led High Quality Solar Ufo Light For Road Garden Square Street Light With Motion Sensor New Design 30w Led High Quality Solar Ufo Light For Road Garden Square Street Light With Motion Sensor
New Design 30w Led High Quality Solar Ufo Light For Road Garden Square Street Light With Motion Sensor
  • Model No. :

    LGA30W
  • LED brand :

    LEADRAY
  • LED Power :

    30W
  • Solar Panel Power :

    18V/60W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    not available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Paypal, Western Union
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

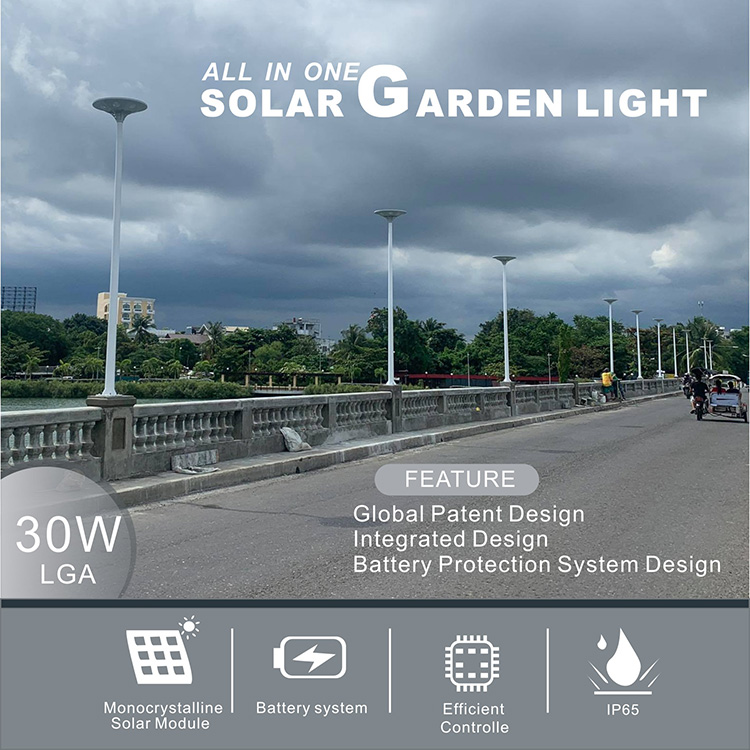

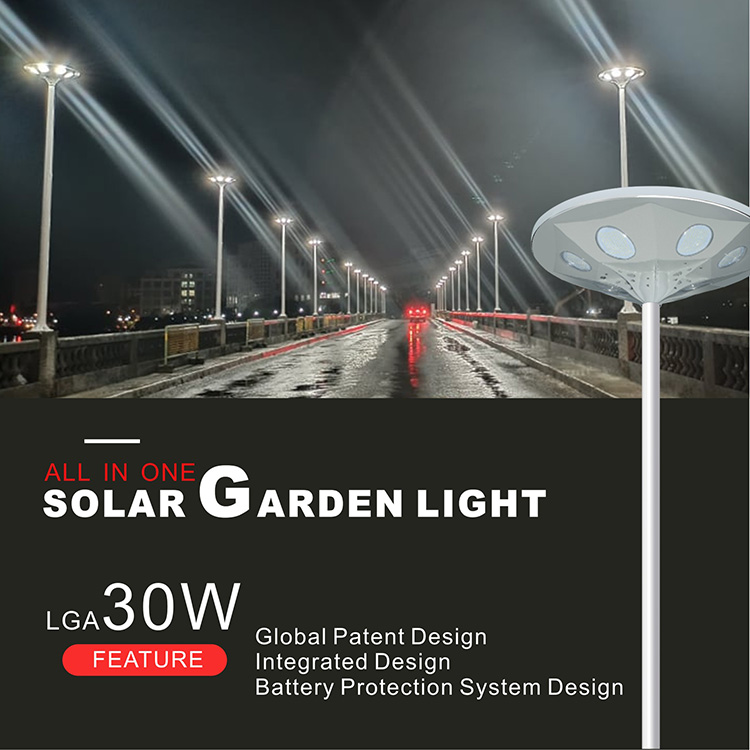

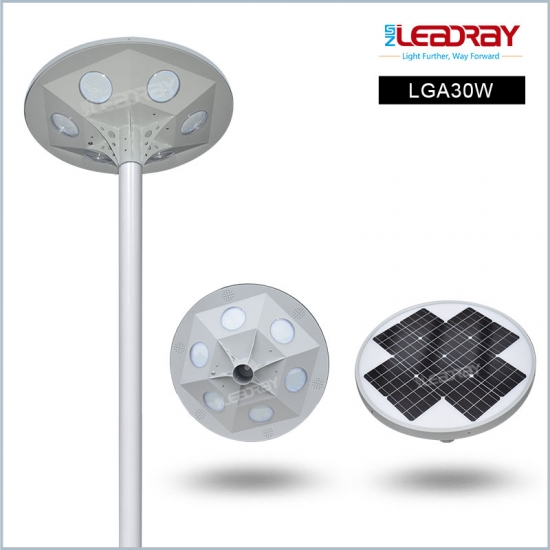

30W Integrated Solar Led Garden Light for Garden and Villa

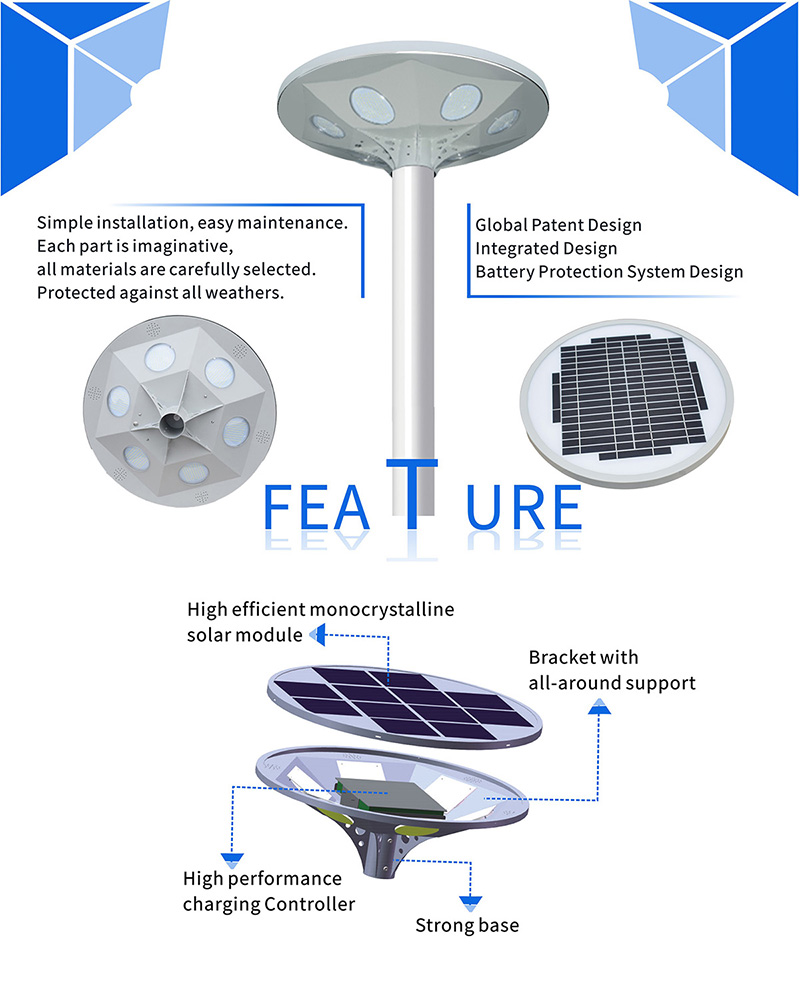

30W Integrated Solar Led Garden Light for Garden and Villa: Integrated design/Free maintenance/Easy installation/Environmental Friendly

Model No: LGA30W

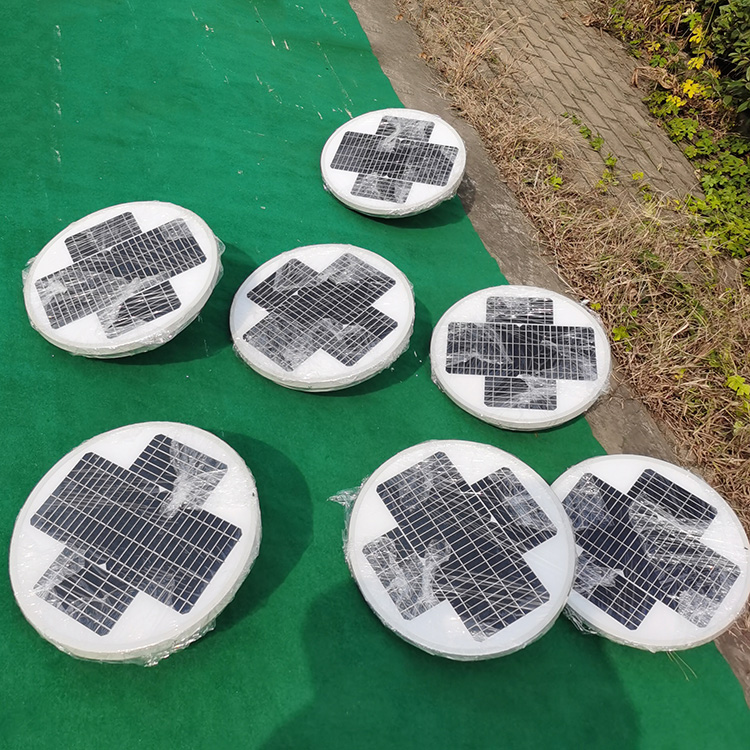

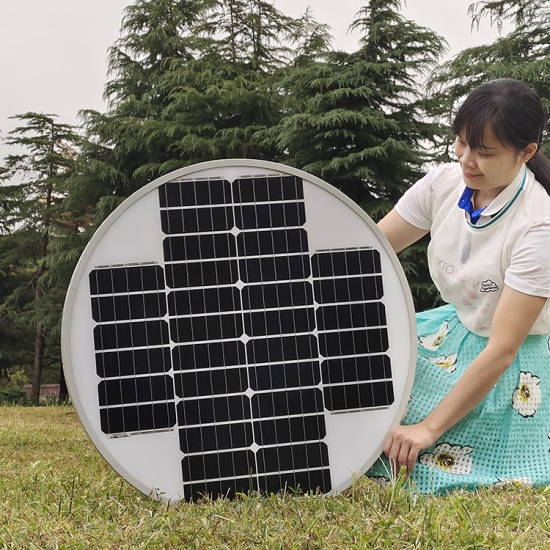

Solar Panel Power: 18V/60W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: Bridgelux
LED Power: 30W
Luminous Flux: 3600Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 135x60°
Charging Time: 6-8 hours
Lighting Time(Full Power): 10-12hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 5-7m
Suggested Distance Between Lights: 30-35m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

Model No. LGA30W
Physical Parameters
LED Brand Bridgelux
Power of PV Module (W) 60W
LIFEPO4 Battery Capacity (Ah) 24
Dimension of Product (mm)
769*769*267
16.4
Net Weight (kg)
Dimension of Carton (mm) 915*915*322
Gross Weight (kg) 20
Light Parameters
Light Output (W) 30W
Typical Luminous Flux (Lm) 3600
Color Temperature (K) 2700-6500
Beam Angle (°) 120°
Min. Working Time (Hours) Full Bright 13
Dim Mode 39
Environment Parameters
Charging Temperature (℃) 0 ℃ to +60 ℃
Discharing temperature (℃) -20 ℃ to +60 ℃
Storage temperature (℃) -20 ℃ to +45 ℃
                     Installation
Recommended Dia. of
Top Pole (mm)
 70~80
Recommended Installation
Height (m)
2~4
Recommended Installation
Distance (m)
5~10
