Technological Process

1. LED light bulb

2. Constant current source including PCBA substrate

3. Lamp cover accessory shell, waterproof sealing ring, fixing screw

4. Sticking and welding light balls

5. Penetration welding constant current source

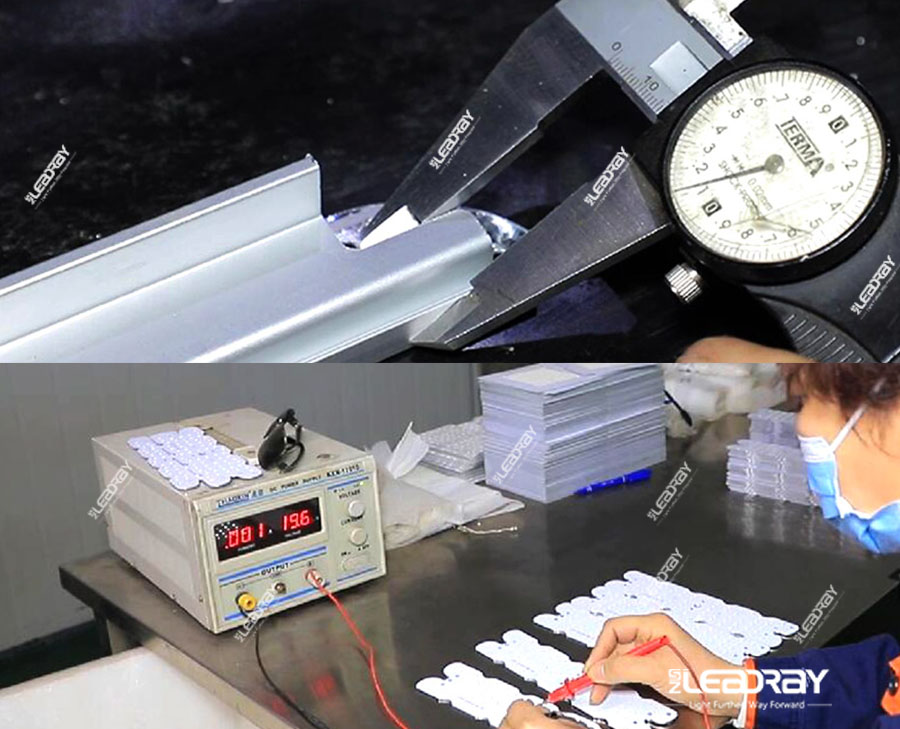

6. Testing

7. Fixed substrate

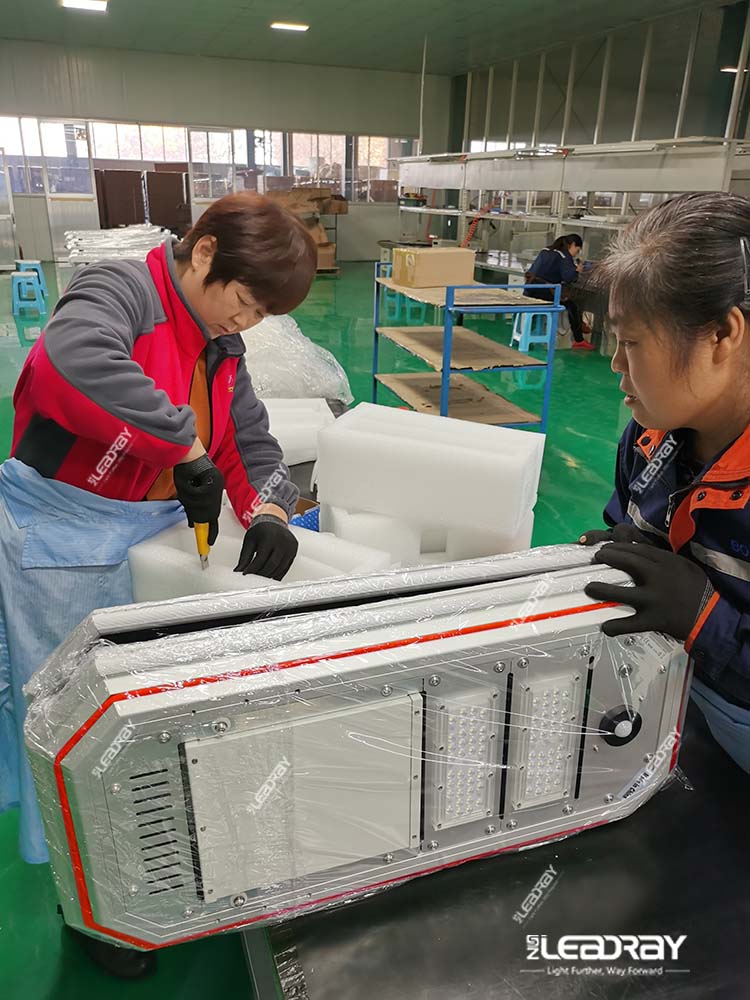

8. Install lamp holder accessories

9. Quality inspection

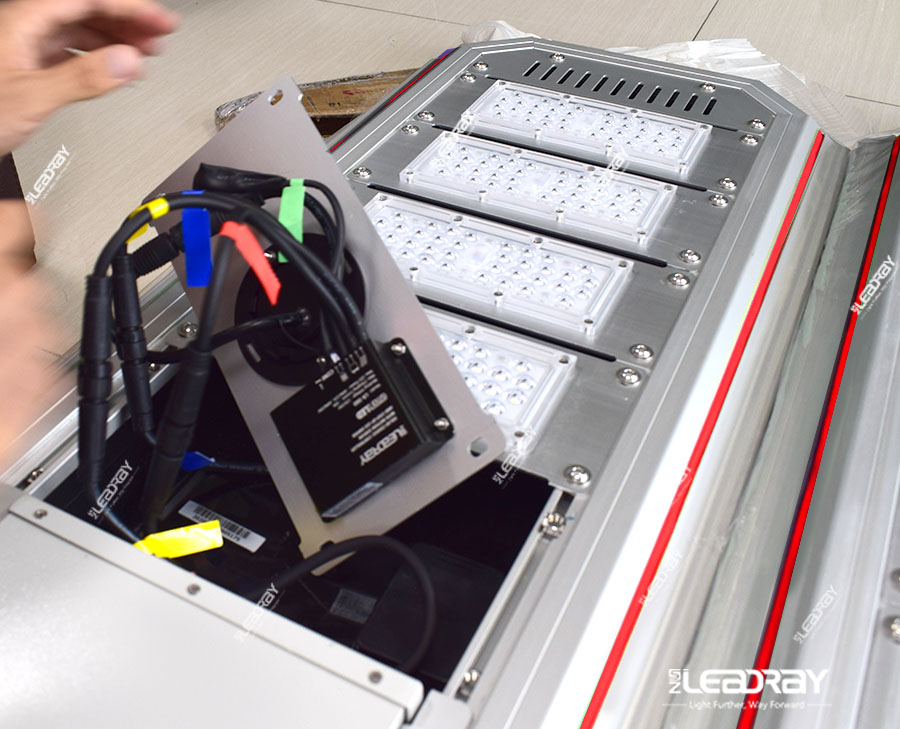

All in one outdoor solar street light is a new kind of solar led street light for the road lighting. Its solar panel,LED lamp, controller, battery are all integrated inside the lamp then it is very easy for the installation. In addition, there is a brightness sensor on the lamp.

1.welding

Perform straight seam welding on the bent pipe seam during welding. Due to the fact that welding is an automatic buried welding, it is mainly because the welder should have more responsibility. During welding, attention should be paid to adjusting the welding position to ensure the straightness of the weld seam.

If the brightness is enough, the solar panel can absorb the solar energy for battery charging, while if the brightness is not enough, the LED lamp will be on automatically and the battery will supply the energy to the lamp for area illumination.

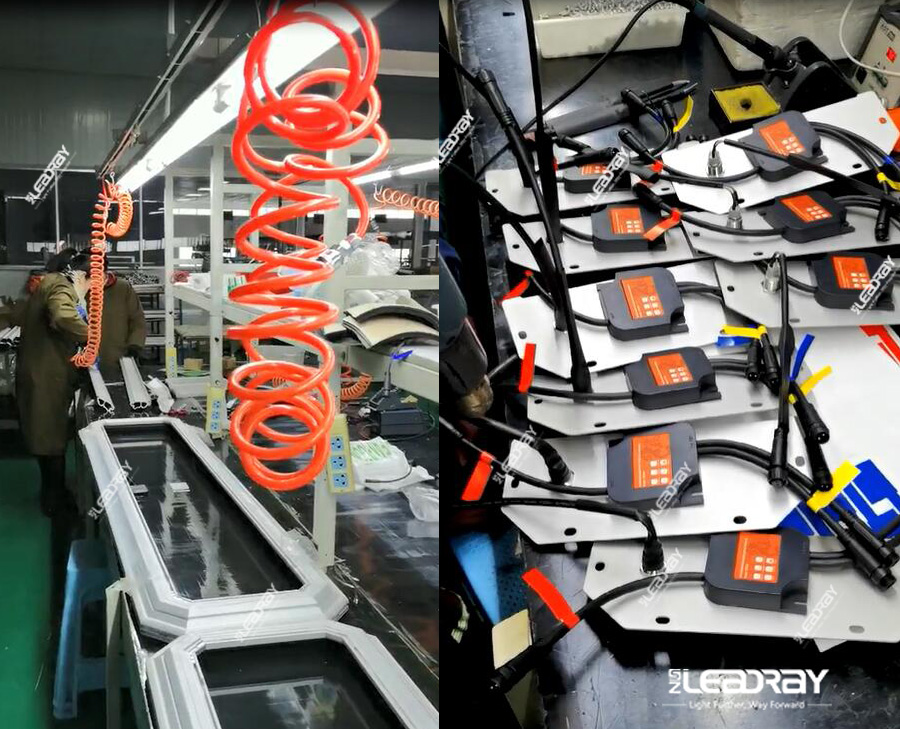

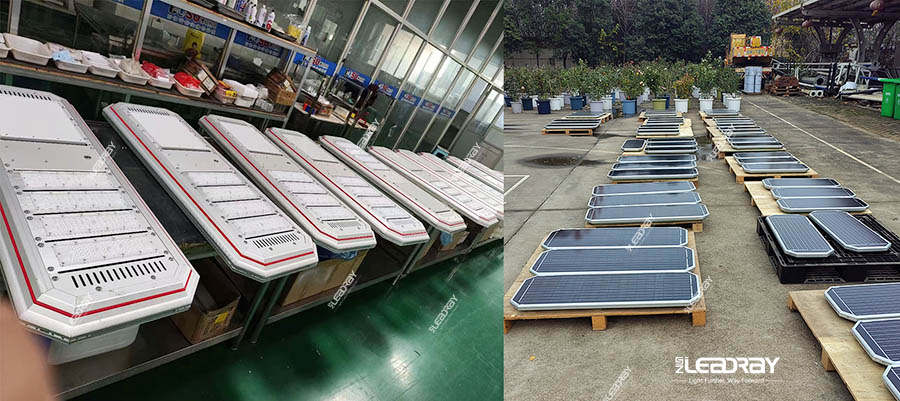

Daily workflow for producing street lights。
