Auto Cleaning Solar Street Light 60W 80W 100W LED Constant MPPT Motion Mode Road Projector

Solar Energy Auto Cleaning Street Light 60watt 80watt 100watt

Solar Energy Auto Cleaning Street Light 60watt 80watt 100watt

Model No. :
LRQX-60W
LED brand :
LEADRAY
LED Power :
18V 60W
Solar Panel Power :
60W
Battery Type :
LiFePO4 Battery Capacity 12.8V 30AH
Infrared senor :
YES

description

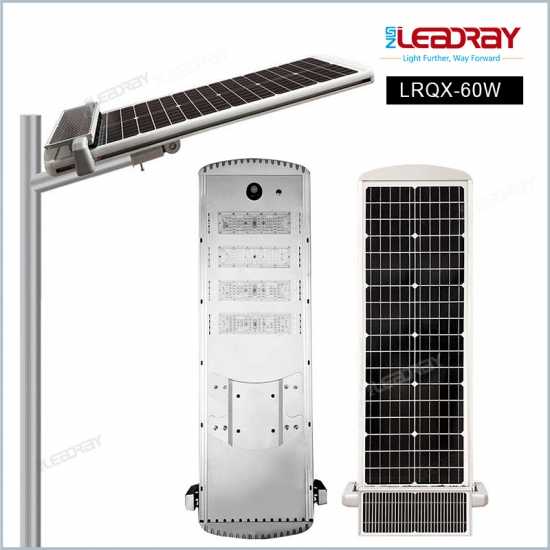

New Design Self-Cleaning Solar Waterproof IP65 Street Light 60W 80W 100W LED Constant MPPT Motion Mode Road Projector

Solar panel Efficiency:>21%
LED chip: 50000 hours lifespan
Battery: Deep Cycle>2000 times
Outer shell: Die-casting aluminum

Street solar light with Auto cleaning System

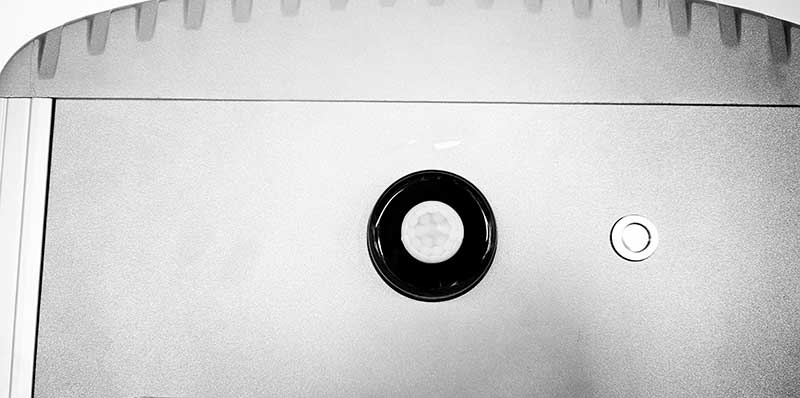

Solar power High brightness Radar sensor Waterproof lP66

Product Module	LRQX-60W	LRQX-80W
Power	60W	80W
LED Quantity	180pcs 3030	240pcs 3030
System Luminous Flux	10800LM	14400 LM
System Effcacy	180±5 LM/W
Color Temperature	3000K/4000K/5000K/5700K/6000K
Color Rendering Index	Ra≥70
Material	6063Aluminum
Solar Pane	60W	80W
Battery	12.8V 25ah	12.8V 30ah
Controller	MPPT controller, up to 95% efficiency
Way to control	Dusk to dawn + Time control + motion sensor, Auto on /off
Product Dimension (mm)	L1233W455H235	L1543W455H235
Net Weight	15.5KG	19KG
Package	1
Packing Size (mm)	L1300W525H305	L1610W525H305
Gross Weight(Kg)	17KG	20.5KG
IP Rating	IP66
AmbientTemperature(℃)	-30℃~+55℃
Lifetime	>50000H
Installation Height	6m	8m

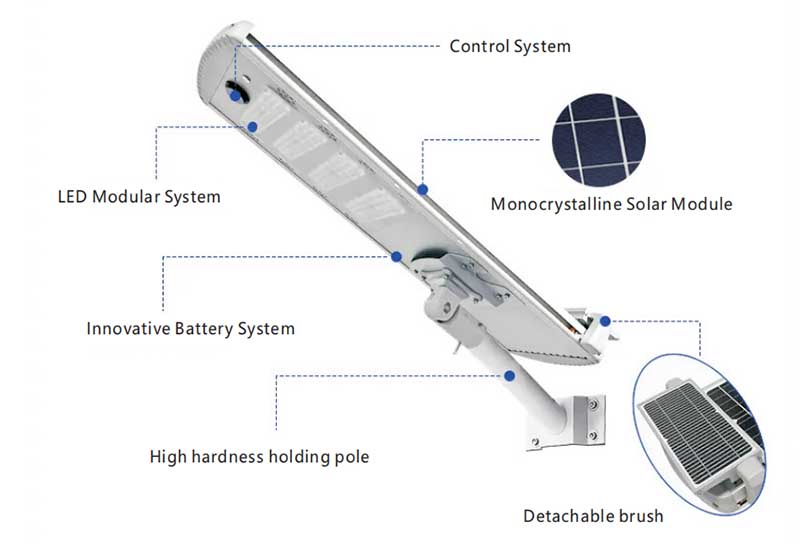

Street solar light with Auto cleaning System

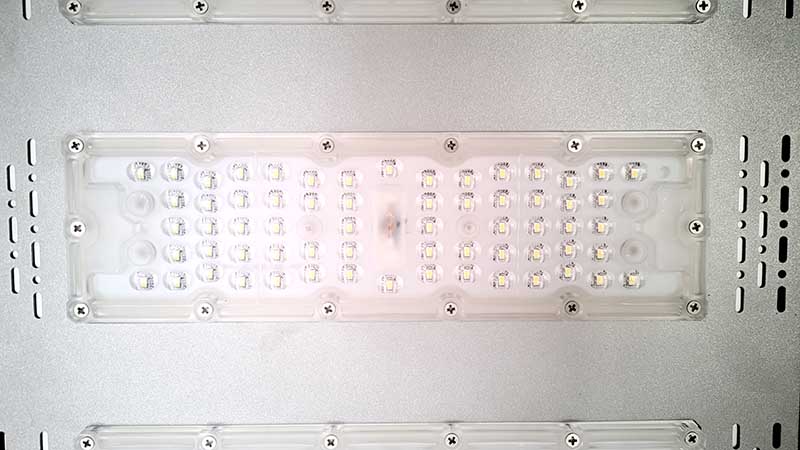

LED Chips

High brightness, high color rendering,low heat generation and light attenuation.Stable and durable, long-lasting use

LED Modular System Design;

Rectangular bat wing light distribution for road lighting Optimized lightmore uniform

and wider lighting area;

Integrated optical lens design, Light transmittance up to 93%;

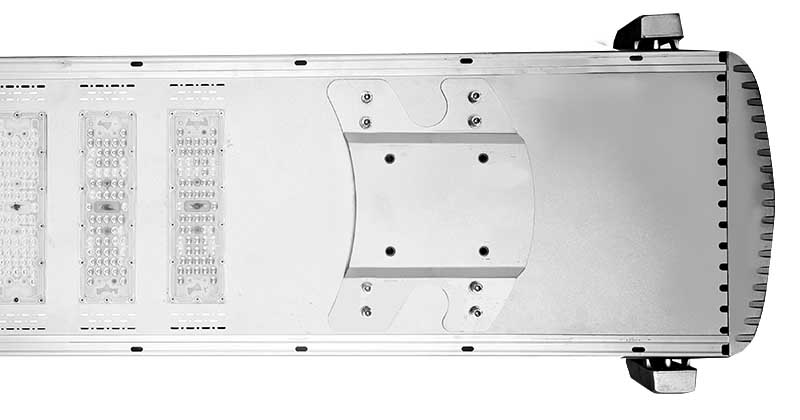

Customized heat sink, better heat dissipation and waterproof ability

Street solar light with Auto cleaning System

Die-casting Aluminum Alloy Shell

Aluminum alloy lamp body, disperseschip heat and provides good heatdissipation effect

Street solar light with Auto cleaning System

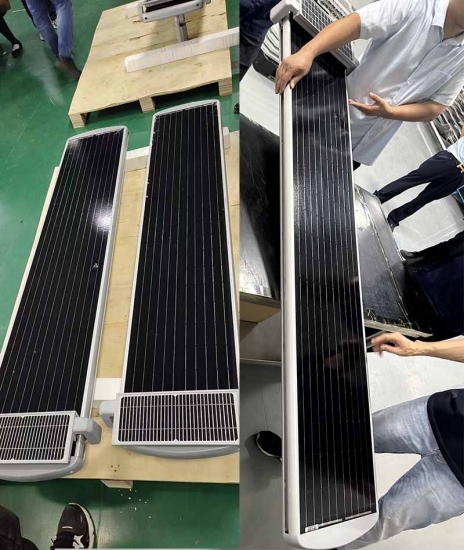

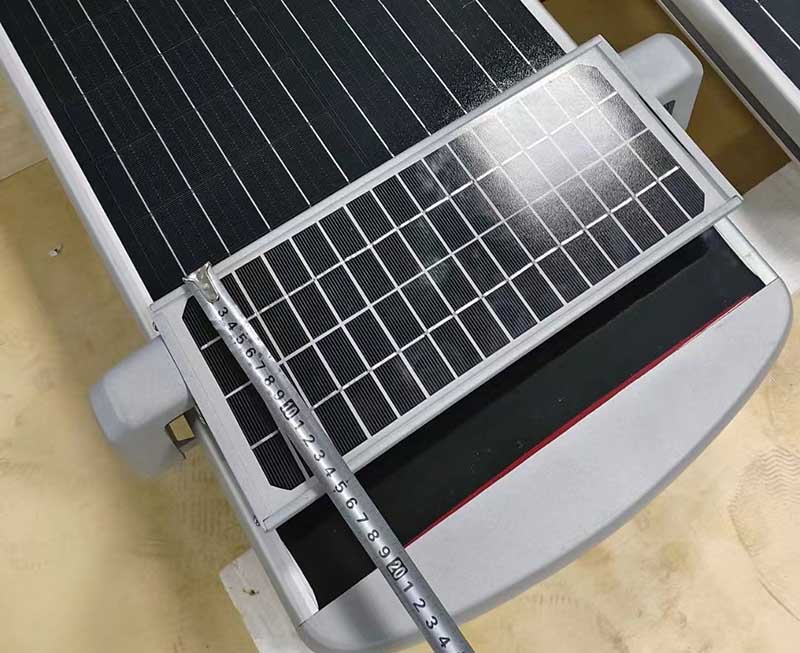

Solar Panel

High-efficiency solar panel phosphoric acid to electric energy conversion high-crystalline silicon solar panel, fast access to solar energy

Adopts high quality semiconductor Solar cells;

Weak light power generation is good;

Independent production of solar panels, comprehensive quality control;

High conversion efficiency up to 23%.

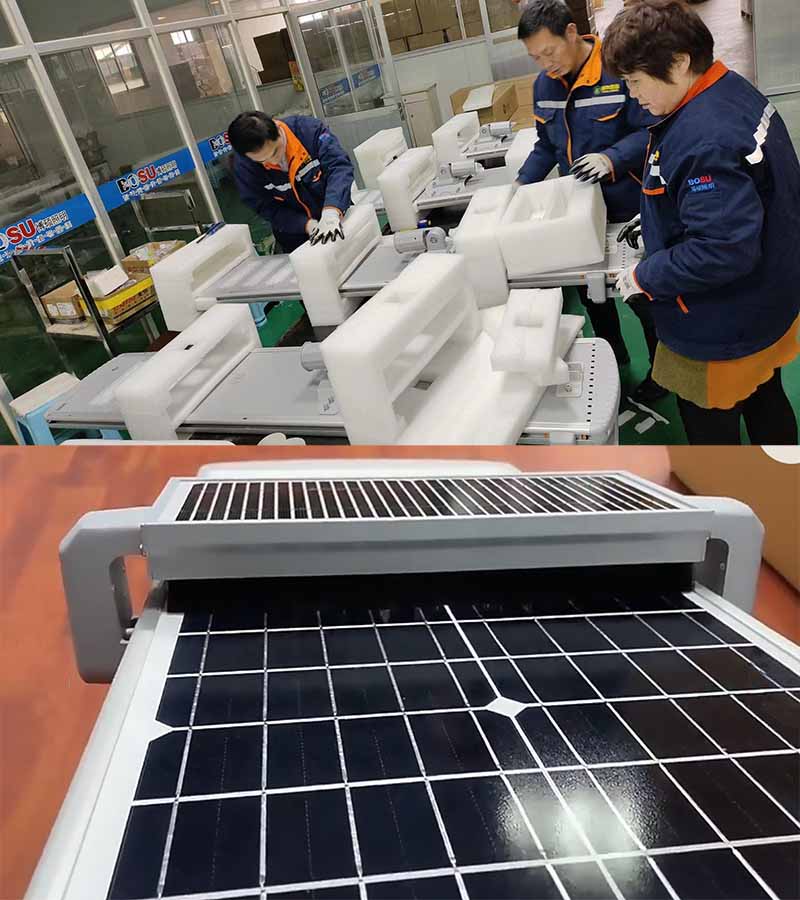

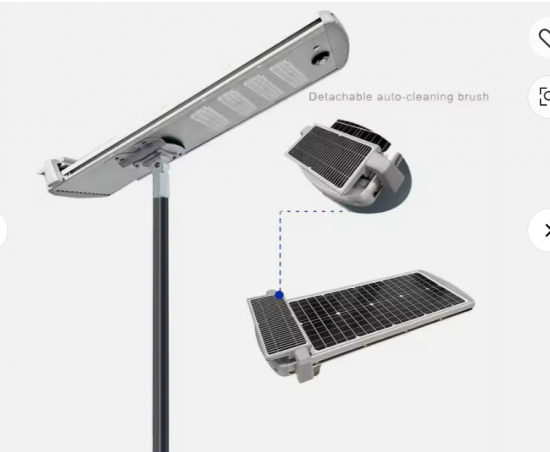

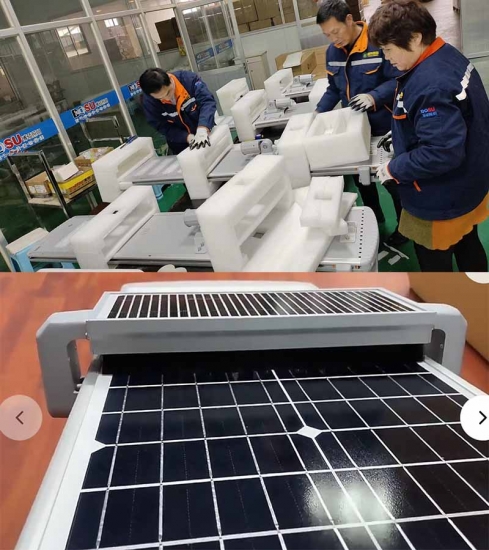

Automatic Cleaning Device

Regularly clean the dust on the solar cells to ensure the photoelectric conversion rate

LED light attenuation and extend the lifespan

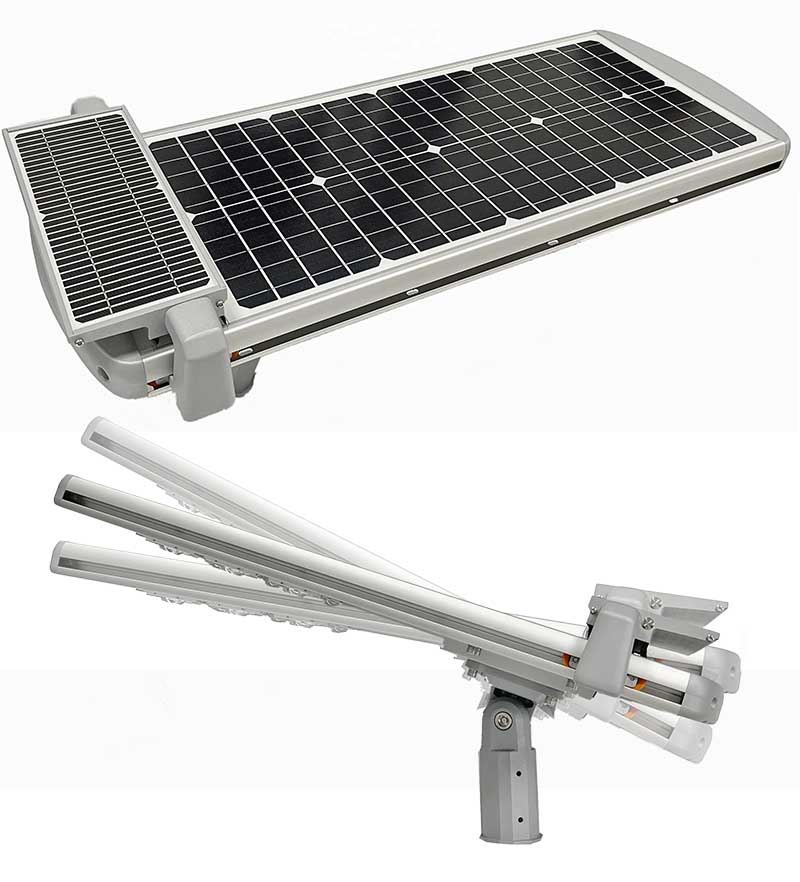

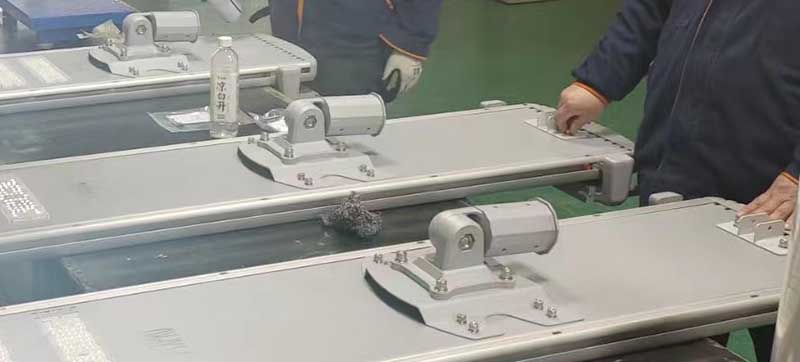

Adjustable Bracket

Aluminum alloy material bracket, with anti-rust screws. The bracket can be adjusted 15-30 degree to suitable for the better sunshine direction.

Street solar light with Auto cleaning System

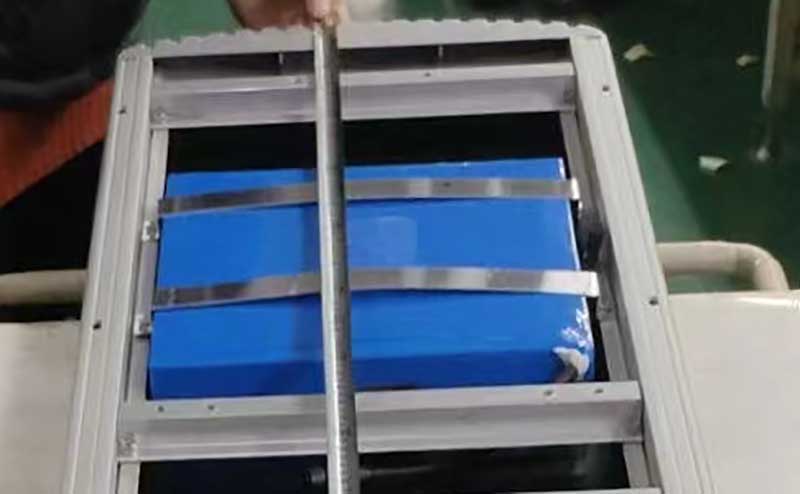

Lithium Battery Pack

Grade A lithium iron phosphate battery lifespan is 5-8 years, high safety, stable performance

Military grade LiFeP04 Battery,High Safety and stability

Long lifespan, More than 2000 Battery light cycles

Secure metal structure around battery

Overcharge and over discharge protection

Street solar light with Auto cleaning System

outdoor waterproof 60w 80w all in one street solar light with automatic dust sweeping and snow cleaning

Street solar light with Auto cleaning System

Real constant current control,reduce LED light attenuation and extend the lifespan

Protecting the battery when charging in high or low temperature

Charging efficiency is 92%, LED driving efficiency above 95%

Intelligent energy management, adjust the power output and extend the lighthours

according to the battery capacity

Light control Turn on at night and turn off in the daytime for charging

Street solar light with Auto cleaning System

80W IP65 Street solar light with Auto cleaning System all in one Aluminum Housing Shell

Model	LRQX-60W	LRQX-80W	LRQX-100W
Physical Parameters
LED Brand	PHILIPS	PHILIPS	PHILIPS
LED Qty (pcs)	144	256	256
Power of PV Module (W)	18V 60W	18V 70W	18V 100W
LiFePO4 Battery Capacity (Ah)	12.8V 30AH	12.8V 36AH	12.8V 48AH
Light Mode	PIR/Time Control	Time Control	Time Control
Product Dimension (mm)	1233 × 373 × 50	1543 × 373 × 50	1863 × 373 × 50
Product N.W. (kg)	18	20.6	22.8
Package #1 Dimension (mm)	1313 × 453 × 260	1623 × 453 × 260	1703 × 453 × 260
G.W. (1 Lamp/CTN) (kg)	21	24.3	26
Light Parameters
Light Power (W)	60W	80W	100W
Typical Luminous Flux (Lm)	8400	11200	16000
LED Light Effect (Lm/W)	210Lm/W	210Lm/W	210Lm/W
Color Temperature (K)	2700–6500	2700–6500	2700–6500
Beam Angle (°)	150° × 75°	150° × 75°	150° × 75°

Package

1) All in one street light system and self clean system dual system patented design.

2) Automated self clean system to keep the solar panel clean which result in the maximum performance on solar charging.
3) Street light system can work without or with self clean system.
4) Built in routine to sweep the panel three times a day. 3 back and forth each time.
