15W Solar Power Led Street Lighting
2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light 2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light 2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light 2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light 2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light 2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light
2023 Newest Integrated 15w 5m ip66 solar outdoor light efficiency solar led street light

  • Model No. :

    LRC15W

  • LED brand :

    LEADRAY

  • LED Power :

    15W

  • Solar Panel Power :

    18V 30W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description
15W All In One Solar Led Garden Light Solar Street Light with high lighting efficency led.

15W All In One Solar Led Garden Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly

Solar Street Light with high lighting efficency led

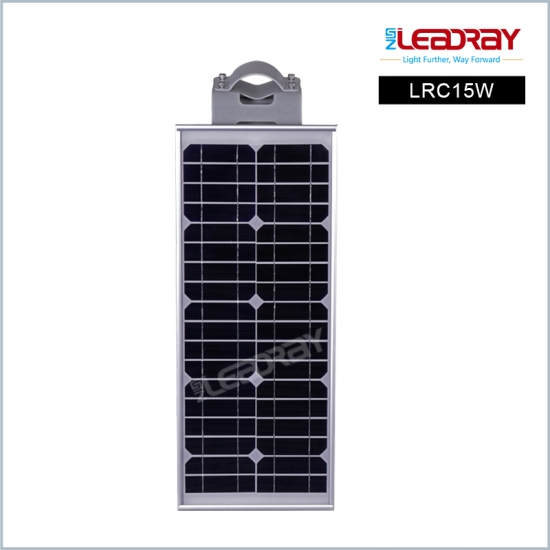

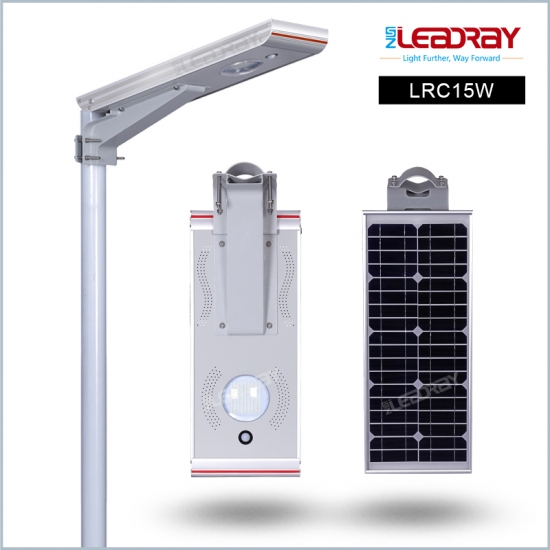

Model No: LRC15W
 Solar Panel Power: 18V 30W (High efficiency monocrystalline silicon)
 Battery Type: High efficiency LiFePO4 Battery
 LED Brand: CREE
 LED Power: 15W

Luminous Flux: 2100Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 4-6m
Suggested Distance Between Lights: 10-15m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

Model No. LRC15W
Physical Parameters
LED Brand EVERLIGHT
LED Qty 144
Power of PV Module (W) 30W
LIFEPO4 Battery Capacity (Ah) 12
PIR Sensor   YES

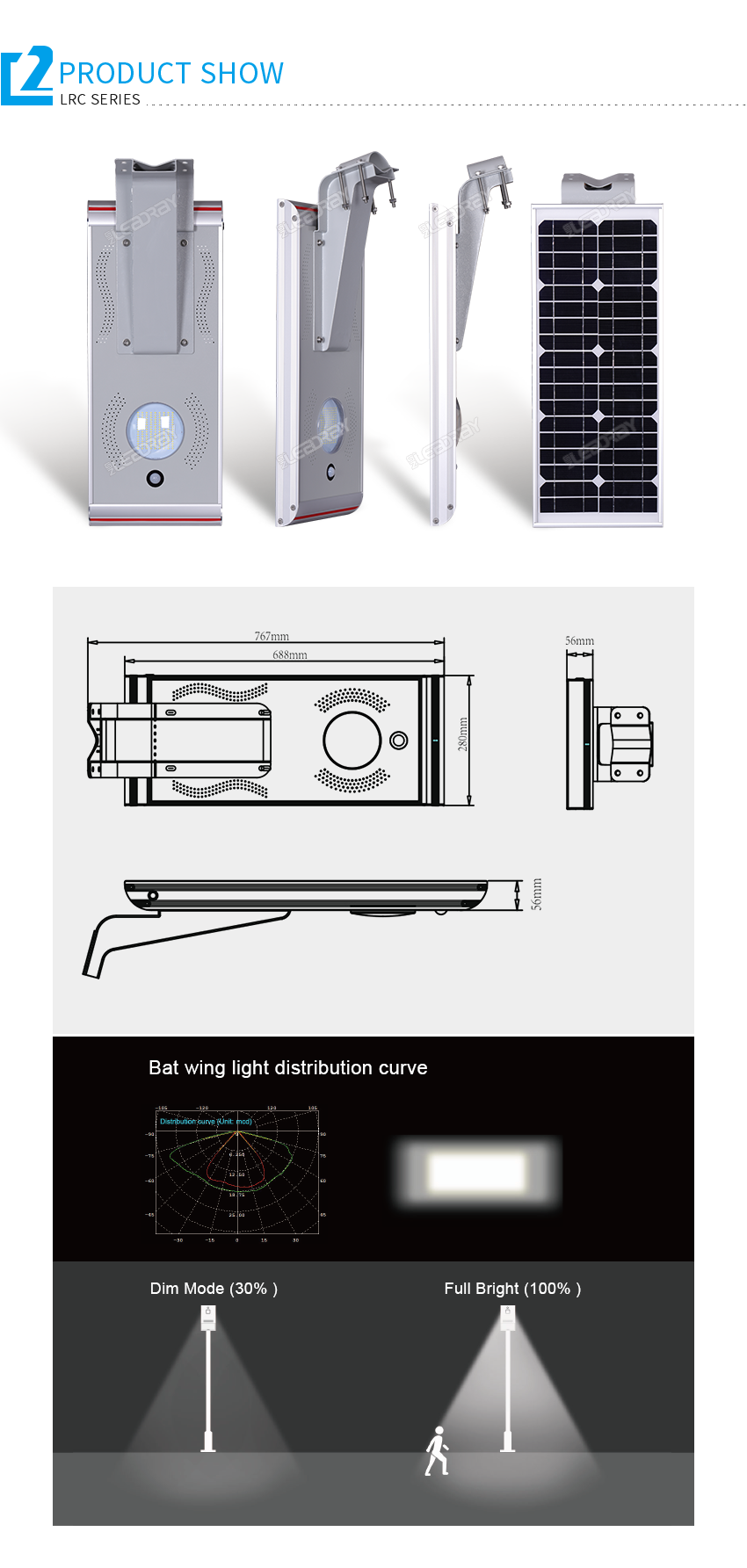

Dimension of Product (mm) 765*280*56
Net Weight (kg) 10.5

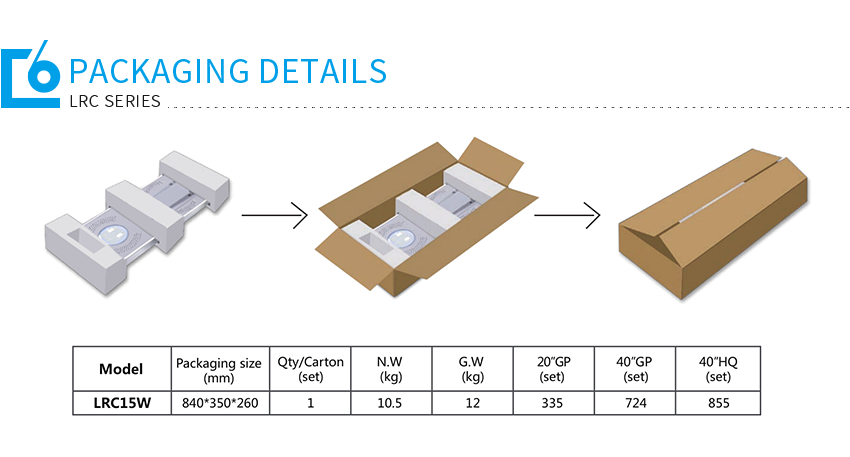

Dimension of Carton (mm) 840*350*260
Gross Weight (kg) 12
LightP arameters
Light Output (W) 15W
Typical Luminous Flux (Lm) 1800
Color Temperature (K) 2700-6500
Beam Angle (°) 120°
Min. Working Time (Hours) Full Bright 13
Dim Mode 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of Top Pole (mm) 60~105
Recommended Installation Height (m) 4~6
Recommended Installation Distance (m) 10~15

Solar Street Light with high lighting efficency led

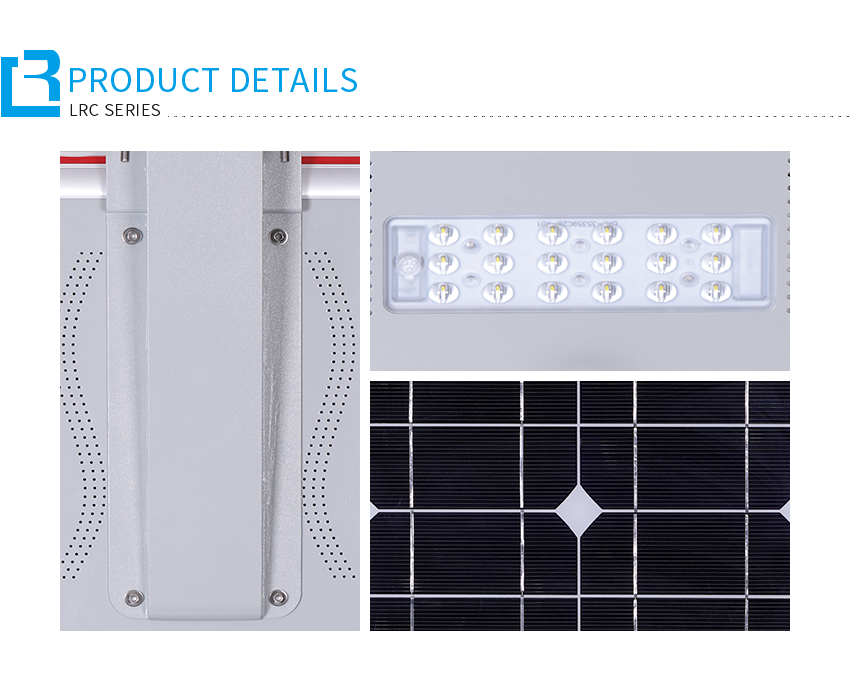

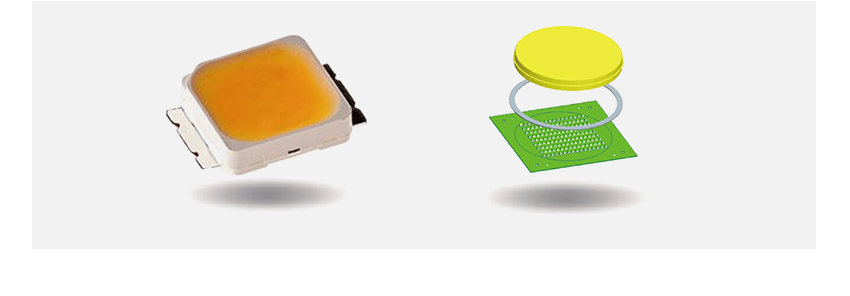

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other


Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

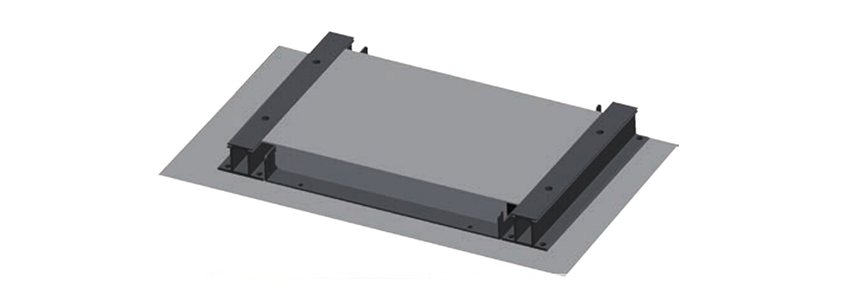

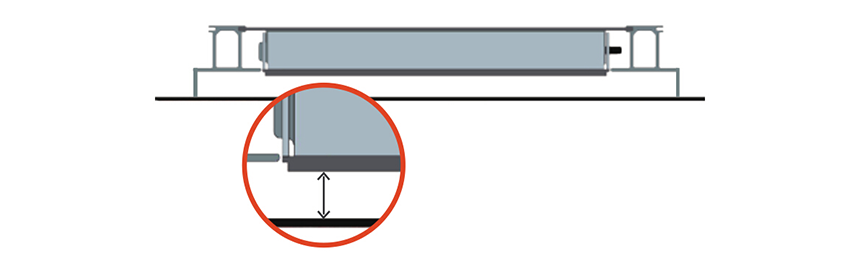

Original separate design with 5mm gap between battery and solar panel

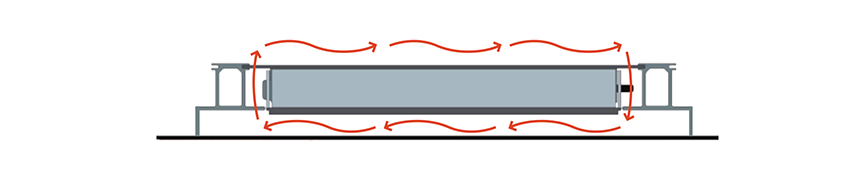

Air convection & thermal system design, More air flows and better heat dissipation

Solar Street Light with high lighting efficency led
