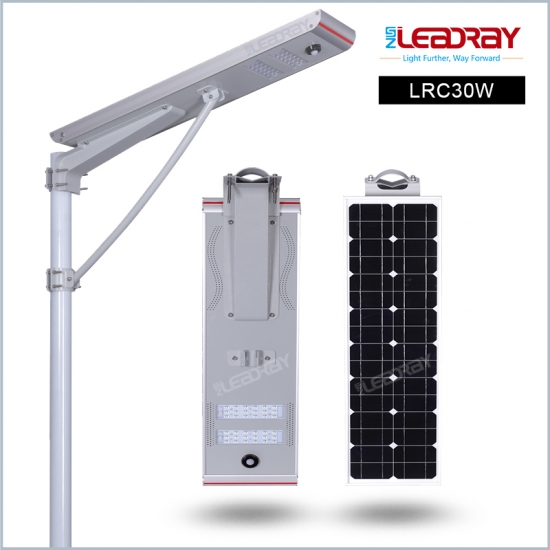

30W Solar Power Led Street Lighting all in one solar led street light integrated motion sensor lamp
30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote 30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote 30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote 30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote 30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote 30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote

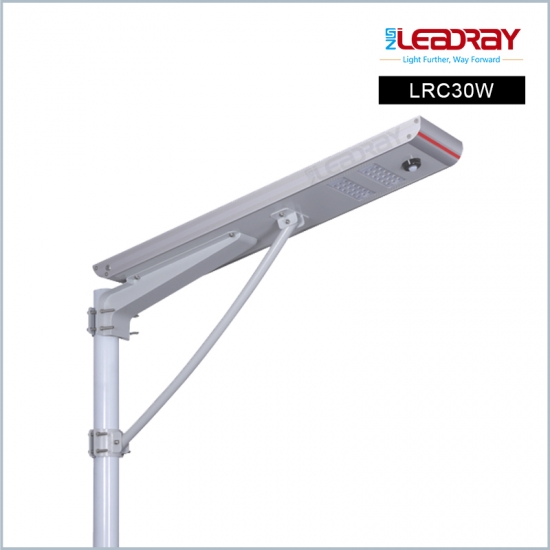

30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote
  • Model No. :

    LRC30W
  • LED brand :

    LEADRAY
  • LED Power :

    30W
  • Solar Panel Power :

    18V 60W
  • Battery Type :

    Lithium LiFePO4 battery
  • Infrared senor :

    Available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Paypal, Western Union
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

 integrated motion sensor lamp

30W Solar Power Led Street Lighting Outdoor waterproof 20w 30w 40w 50w 60w 80w 100wall in one solar led street light integrated motion sensor lamp


Model No: LRC30W
Solar Panel Power: 18V 60W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 30W
Luminous Flux: 4200Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 5-7m
Suggested Distance Between Lights: 20-25m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

 integrated motion sensor lamp

 integrated motion sensor lamp

Model No. LRC30W
Physical Parameters
LED Brand CREE
LED Qty 36
Power of PV Module (W) 60W
LIFEPO4 Battery Capacity (Ah) 25
PIR Sensor YES
Dimension of Product (mm) 1158*281*56
Net Weight (kg) 17

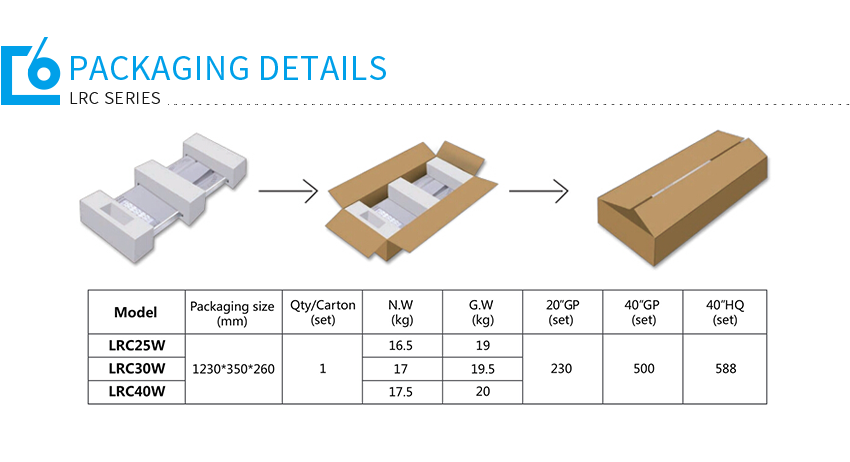

Dimension of Carton (mm) 1230*350*260
Gross Weight (kg) 19.5
Light Parameters
Light Output (W) 30W
Typical Luminous Flux (Lm) 4200
Color Temperature (K) 2700-6500
Beam Angle (°) 150°x70°
Min. Working Time (Hours) Full Bright 13
Dim Mode 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of Top Pole (mm) 75~105
Recommended Installation Height (m) 4~6
Recommended Installation Distance (m) 10~15

 integrated motion sensor lamp

PIR Motion Sensor Led Solar Street Light 30w IP65 Waterproof Road Light Express Way Yard Stadium Light

Road Light Express Way Yard Stadium Light


outdoor waterproof integrated solar powered street lamp dusk to dawn with motion sensor

  • Easy installations, no electrical bills: solar powered led street lamp, can be mounted on wall or pole, that in direct sunlight for charging.
  • Motion and light sensor built in:solar led street lamp goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1.Bright: motion activates for lighting when motion is detected for security light and to save battery; 2.DIM: 50% lighting for saving power when no motion; 3.Off/Recharge: automatically turns off in daylight and goes into recharge mode.



 integrated motion sensor lamp

 integrated motion sensor lamp

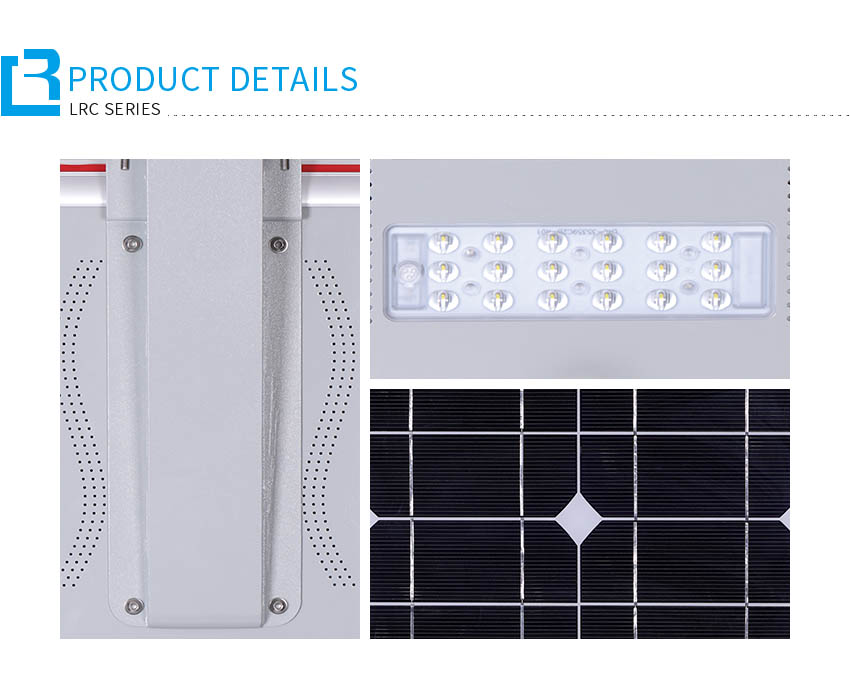

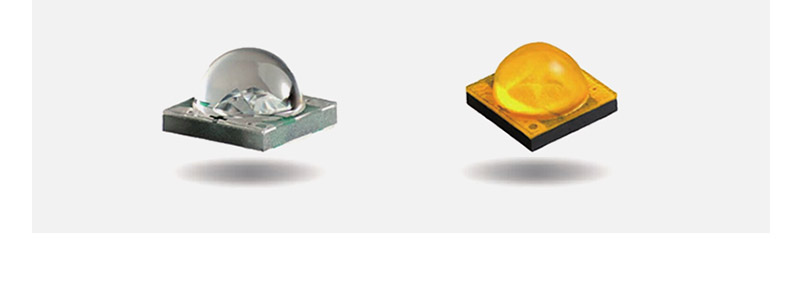

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other

 integrated motion sensor lamp

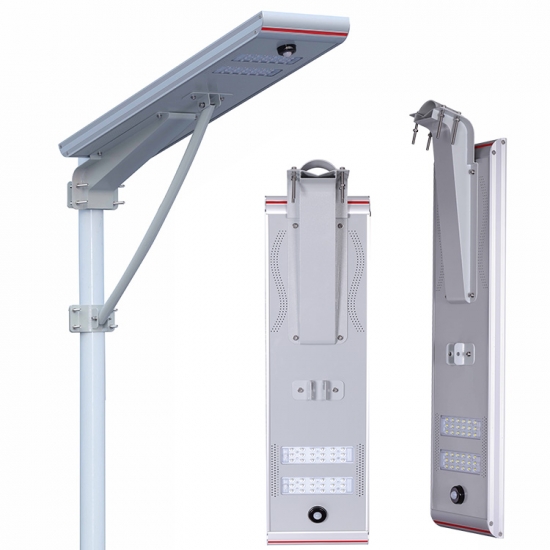

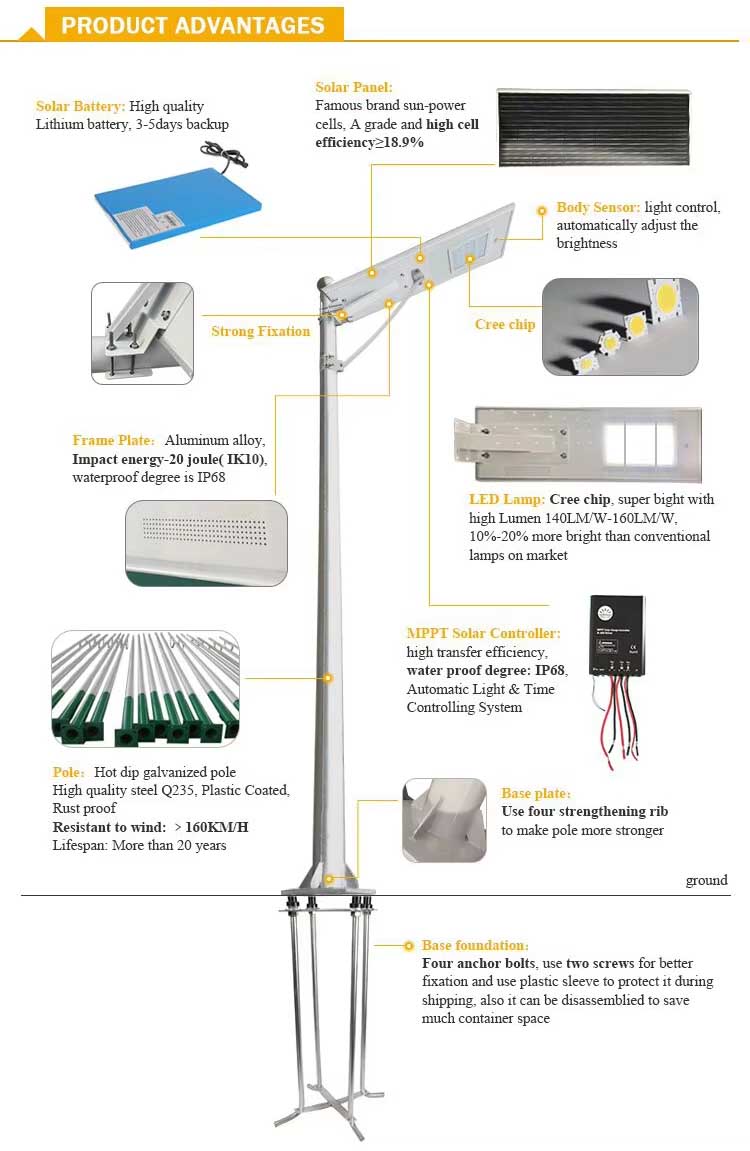

Integrated solar led street lamp is a new kind of solar led street lamp for the road lighting. Its solar panel,LED lamp, controller, battery are all integrated inside the lamp then it is very easy for the installation.


In addition, there is a brightness sensor on the lamp. If the brightness is enough, the solar panel can absorb the solar energy for battery charging, while if the brightness is not enough, the LED lamp will be on automatically and the battery will supply the energy to the lamp for area illumination. What’s more, the lamp can be customized with motion sensor or time control mode. Its brightness standard can be adjusted by movement or time schedule.


It has solved the problem of complex installation and expensive transportation compared with traditional solar LED street light.Waterproof and replaceable LED modular for easy maintenance.




 integrated motion sensor lamp

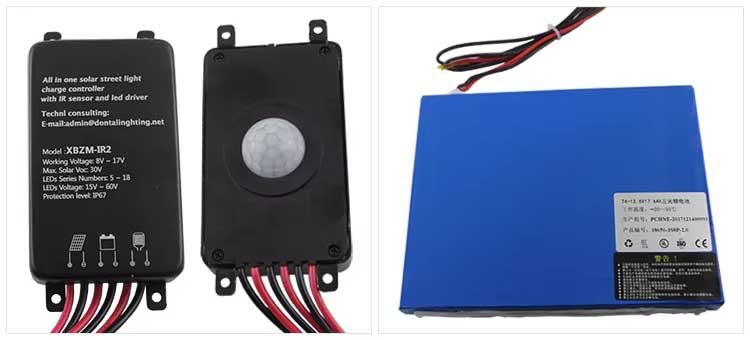

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection


 integrated motion sensor lamp

Innovative Battery Protection System

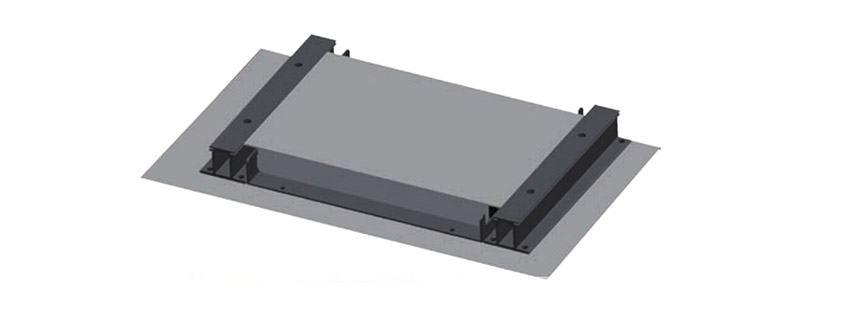

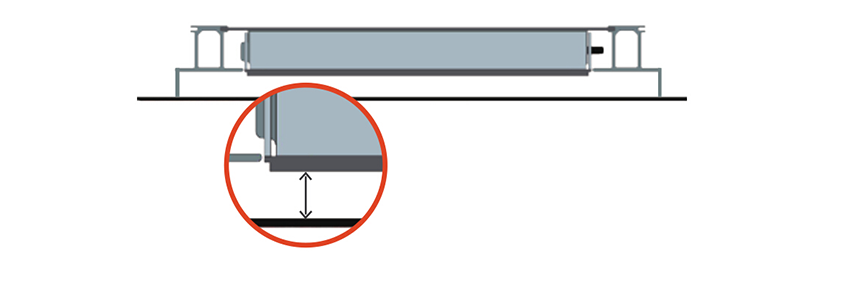

Original separate design with 5mm gap between battery and solar panel

 integrated motion sensor lamp

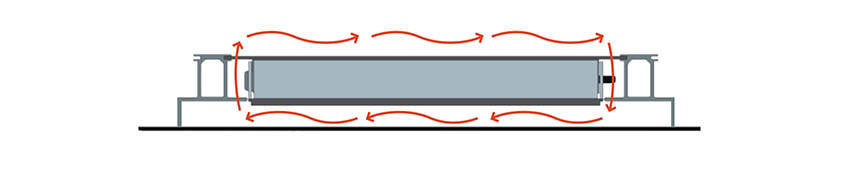

Air convection & thermal system design, More air flows and better heat dissipation


 integrated motion sensor lamp


 integrated motion sensor lamp

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.


Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.


Q3. Can I use the all in one LED solar street light product on the islands?

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.


Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q5. What about the lead time?

A5:We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.


Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.


Q7. How do you ship the goods and how long does it take to arrive?

A7: We usually ship by DHL, UPS, FedEx or TNT for sample orders. It usually takes 3-5 days to arrive. Airline and sea shipping is preferable for bulk order.

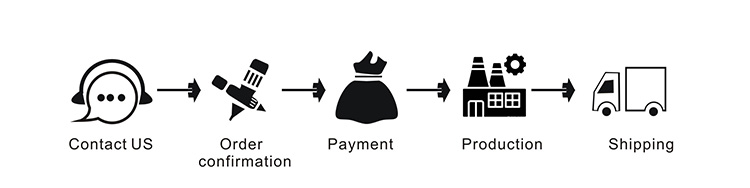

Q8. How to proceed an order for all in one LED solar street light?

A8: Firstly, Let us know the mode number and the quantity you want to order or tell us your requirements on the all in one LED solar street light. Secondly, We will quote accordingly.Thirdly, a proforma invoice(PI) will be sent to you after you confirm the item and quantity so you can arrange the payment. Fourthly, We arrange the production and make shipment.
