Led solar street light china
80W All In One Solar Street Lights 80W All In One Solar Street Lights 80W All In One Solar Street Lights 80W All In One Solar Street Lights 80W All In One Solar Street Lights

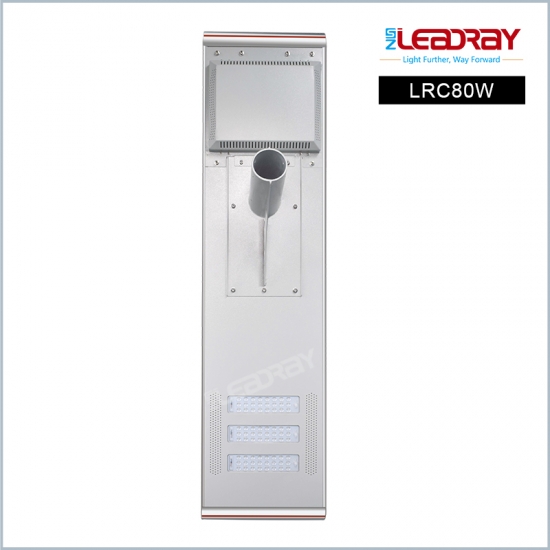

80W All In One Solar Street Lights
  • Model No. :

    LRC80W
  • LED brand :

    LEADRAY
  • LED Power :

    80W
  • Solar Panel Power :

    36V 110W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    Available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Paypal, Western Union
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

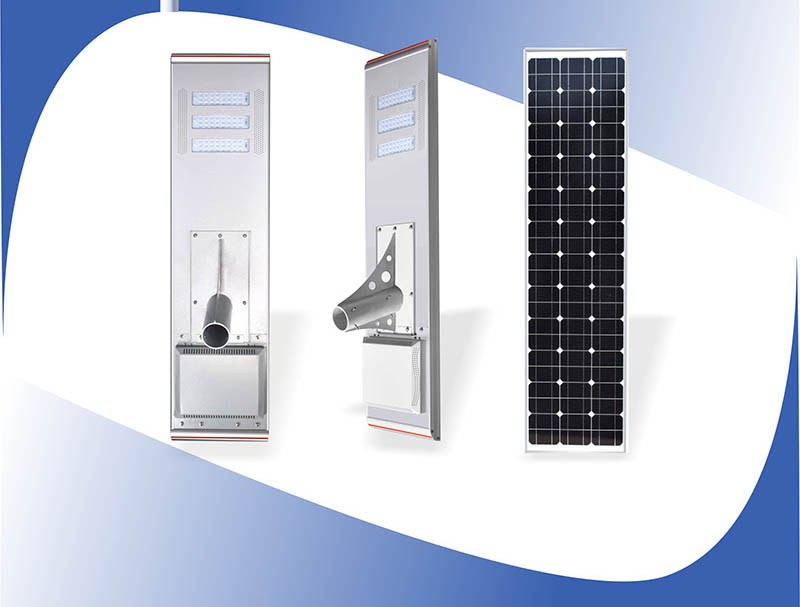

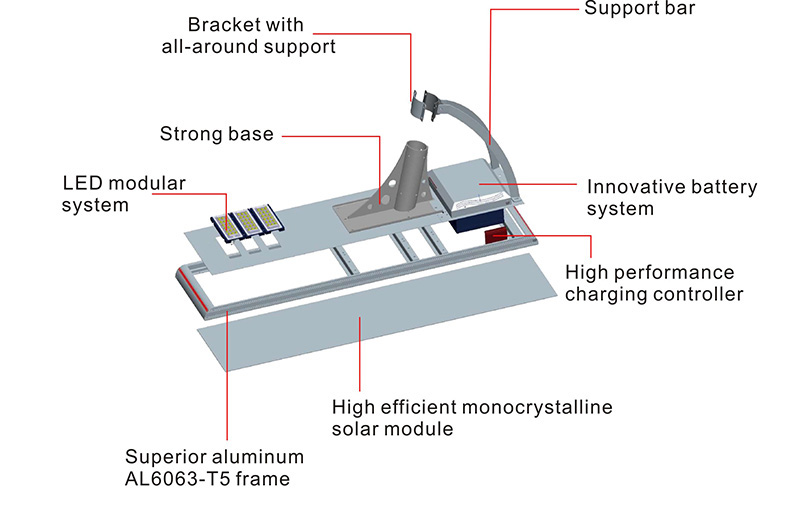

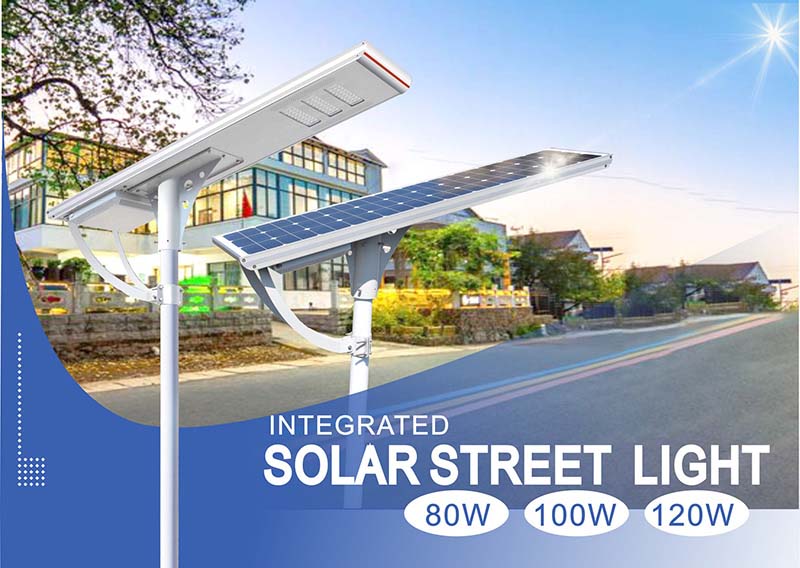

80W All In One Solar Street Light

All In One Solar Street Light: Integrated design/Free maintenance/Easy installation/Environmental Friendly

Model No: LRC80W

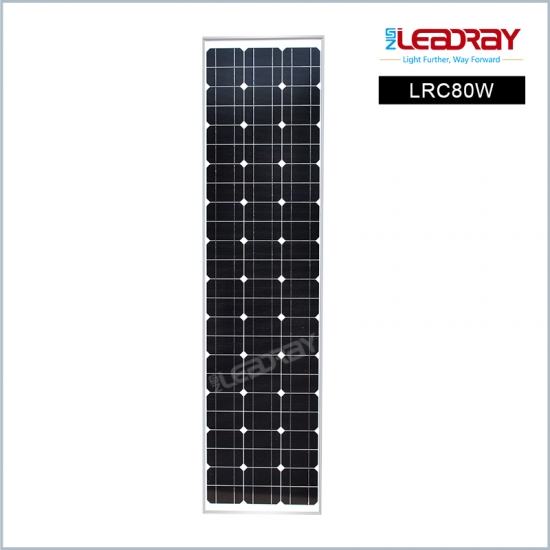

Solar Panel Power: 36V 110W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 24V 80W
Luminous Flux: 11200Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 8-10m
Suggested Distance Between Lights: 30-35m
Material: Superior aviation aluminum AL6063-T5

Warranty:3-5 years

Model No. LRC80S LRC100S
Physical Parameters
LED Brand CREE CREE
LED Qty 72 72
Power of PV Module (W) 36V  110W 36V  120W
LIFEPO4 Battery Capacity (Ah) 25.9V  25Ah 25.9V  30Ah
Lighting Mode Time Control Time Control
Dimension of Product (mm) 1608*405*112 1608*405*112
Net Weight (kg) 26.5 32

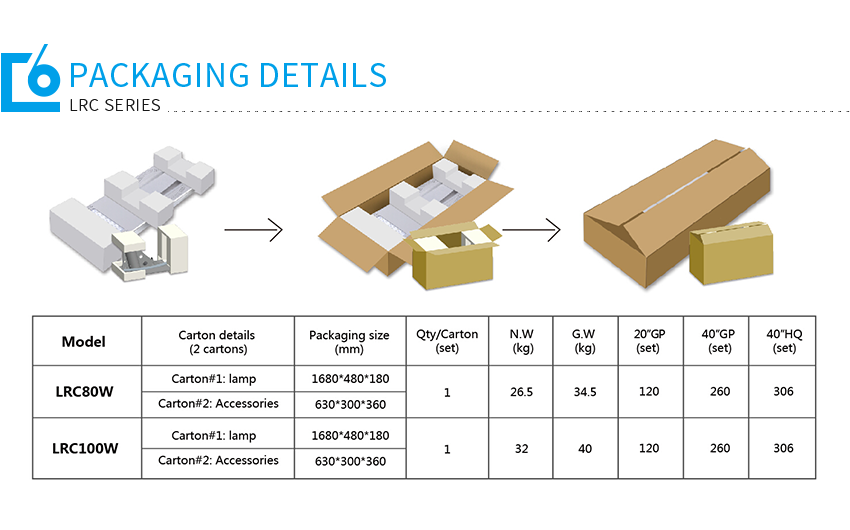

Dimension of Carton #1(mm) 1680*480*180 1680*480*180
Dimension of Carton #2(mm) 630*300*360 630*300*360
Gross Weight (kg) 34.5 40
Light Parameters
Light Output (W) 80W 100W
Typical Luminous Flux (Lm) 11200 14000
Color Temperature (K) 2700-6500 2700-6500
Beam Angle (°) 150°x70° 150°x70°
Min. Working  Time (Hours) Full Bright 13 13
Dim Mode 39 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C

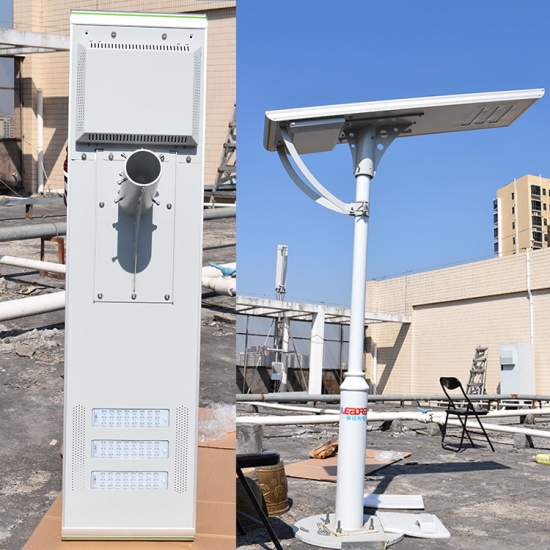

Installation
Recommended Dia. of  Top Pole (mm) 80~86 8~86
Recommended thickness of Pole (mm) ≥3.5 ≥3.5
Recommended Installation Height (m) 8~10 8~10
Recommended Installation Distance (m) 30~35 30~35





all in one solar street light

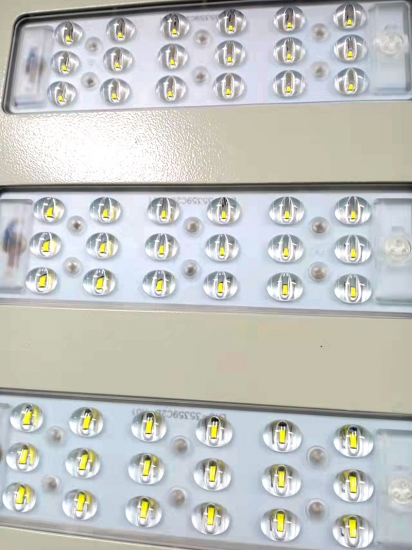

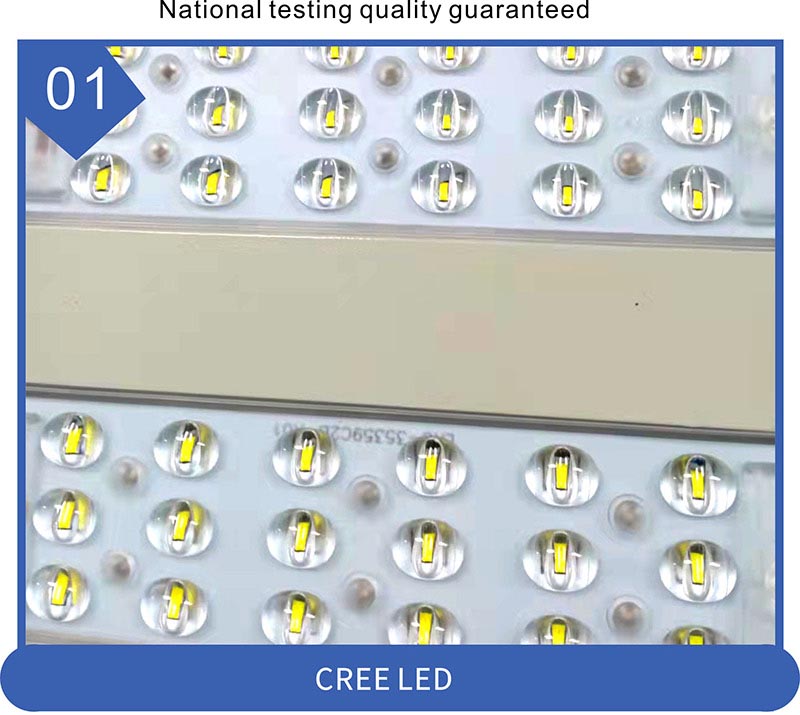

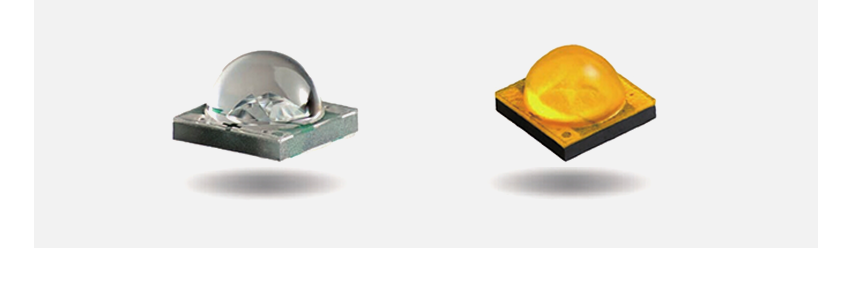

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other

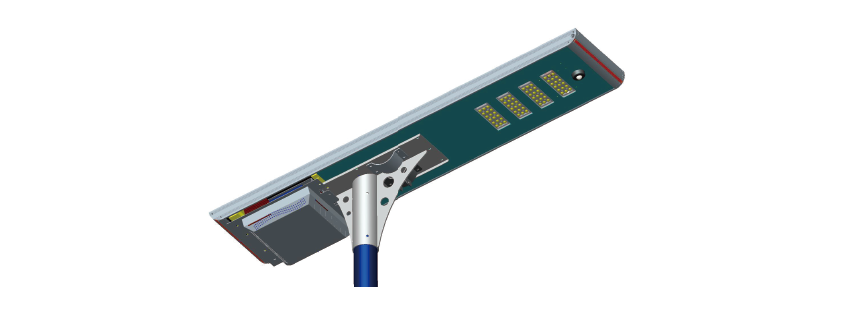

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Superior IC with military standards in batteryprotection board
Waterproof, damp proof, explosion proof, Over charging & over discharging protection






Independent design for easy replacement and maintenance,
Insulation design makes longer lifespan for battery

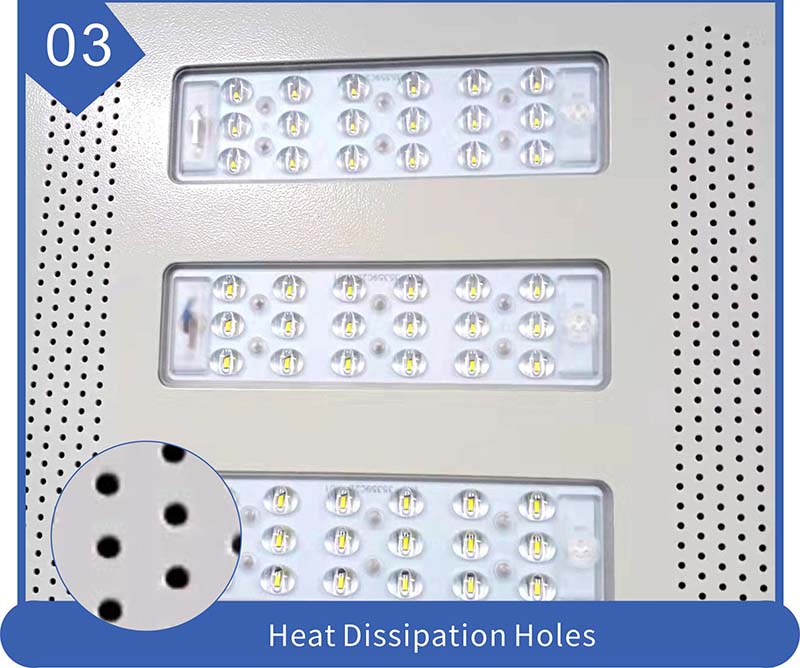

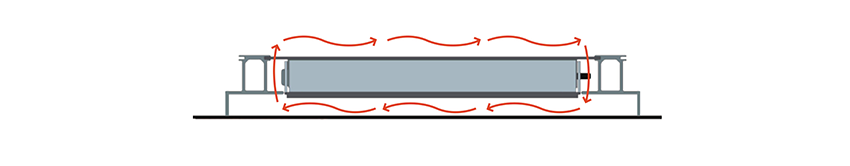

Air convection & thermal system design
More air flows and better heat dissipationAir convection & thermal system design
More air flows and better heat dissipation
