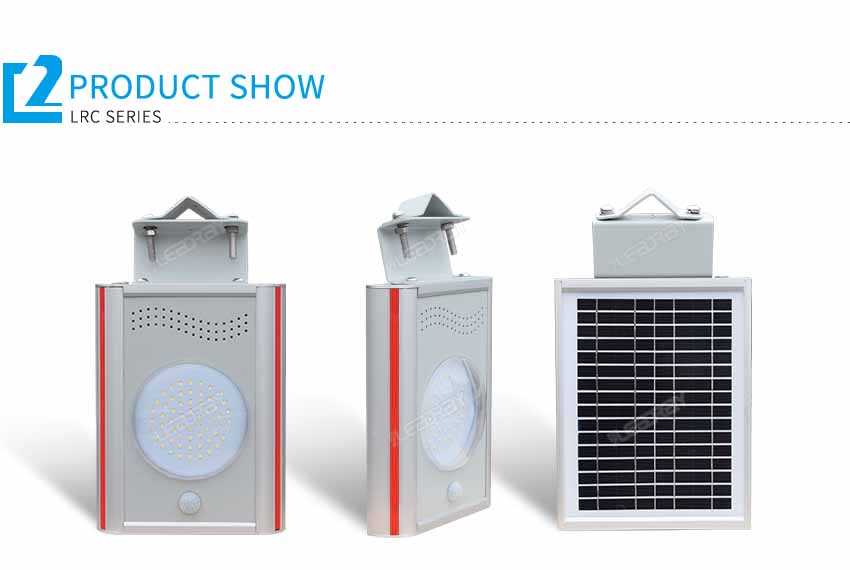

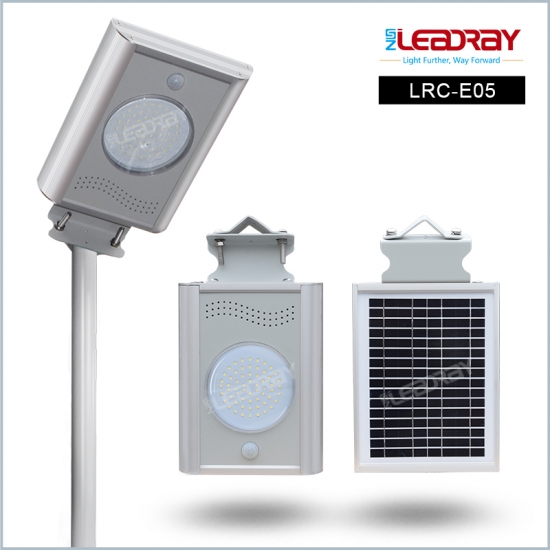

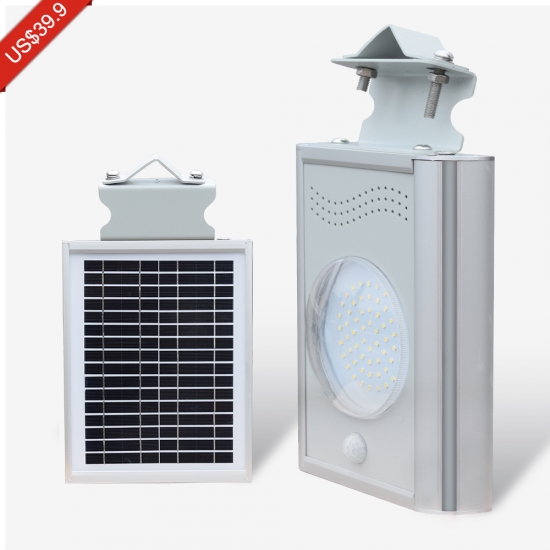

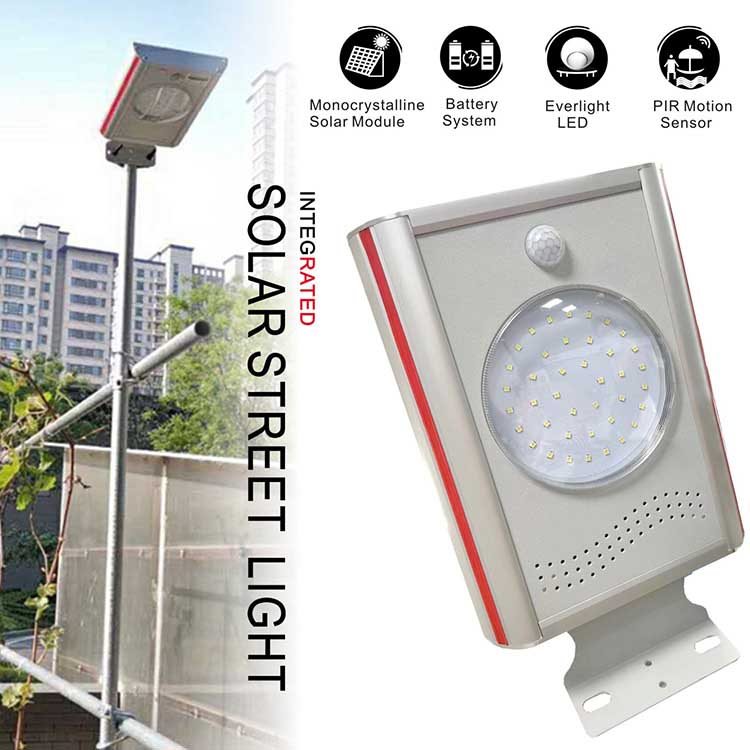

5W Mini integrated solar patio light with motion sensor
Promotion Model-5W Solar Light all in one solar street light manufacturer Promotion Model-5W Solar Light all in one solar street light manufacturer Promotion Model-5W Solar Light all in one solar street light manufacturer Promotion Model-5W Solar Light all in one solar street light manufacturer Promotion Model-5W Solar Light all in one solar street light manufacturer
Promotion Model-5W Solar Light all in one solar street light manufacturer

  • Model No. :

    LRC05W

  • LED brand :

    LEADRAY

  • LED Power :

    5W

  • Solar Panel Power :

    18V 6W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

5W Mini All in one led solar patio light with motion sensor Monocrystalline solar panel 5V 18W 26W 36W street light Solar outdoor street light



led solar patio light

5W Mini All in one led solar patio light with motion sensor: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly

Model No: LRC05W
Solar Panel Power:16V 6W(High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 5W
Luminous Flux:600Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 2-3m
Suggested Distance Between Lights: 6-8m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3years


led solar patio light


Model No. LRCO5W
Physical Parameters
LED Brand EVERLIGHT

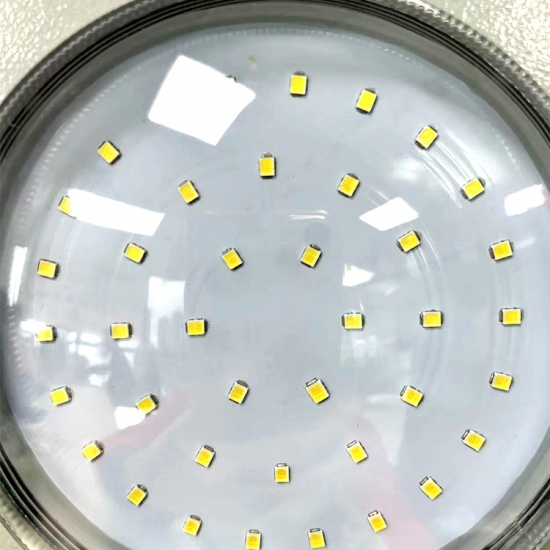

LED Qty 40
Power of PV Module (W) 6W
LIFEPO4 Battery Capacity (Ah) 5
PIR Sensor YES

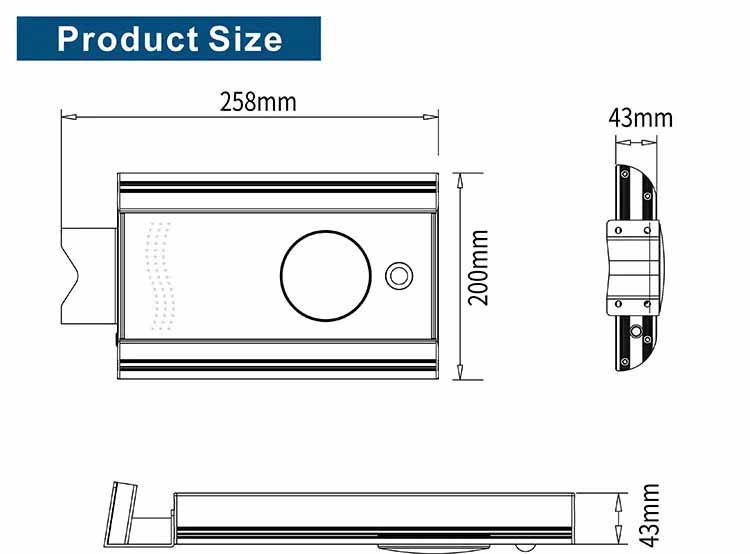

Dimension of Product (mm) 258’200*43
Net Weight (kg) 1.7
Dimension of Carton (mm) 400*270*125
Gross Weight (kg) 2.3
Light Parameters
Light Output (W) 5W
Typical Luminous Flux (Lm) 600
Color Temperature (K) 2700-6500
Beam Angle (°) 120°
Min. Working Time (Hours) Fu|| Bright 13
Dim Mode 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of Top Pole (mm) 20~60
Recommended Installation Height (m) 2~3
Recommended  Installation Distance (m) 8~10


led solar patio light

led solar patio light


Working mode:Working time : Light control + PIR control
The lamp attomatically turn on after sunset ,and off when sunrise.

Default working mode :
During working time ,when there are someone close ,the lamp switches to 100% capactity ,when someone gone ,the lamp turns to 30capacity to save power .

led solar patio light

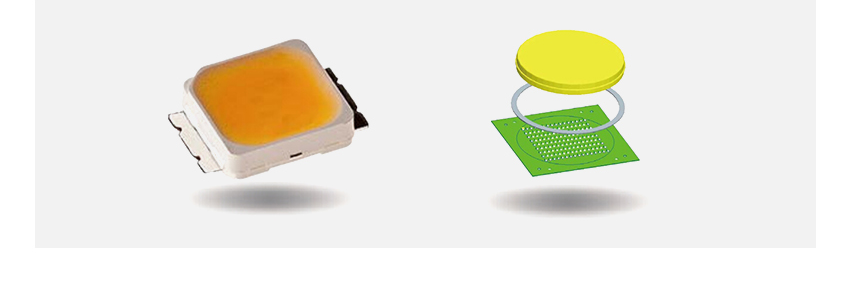

Super bright led source 200 lm/w

No wire and easy to installzero electricity cost & energy-saving

Aluminum alloy material with long lifespan

Long duration 5-7 rainy days

led solar patio light


led solar patio light

led solar patio light

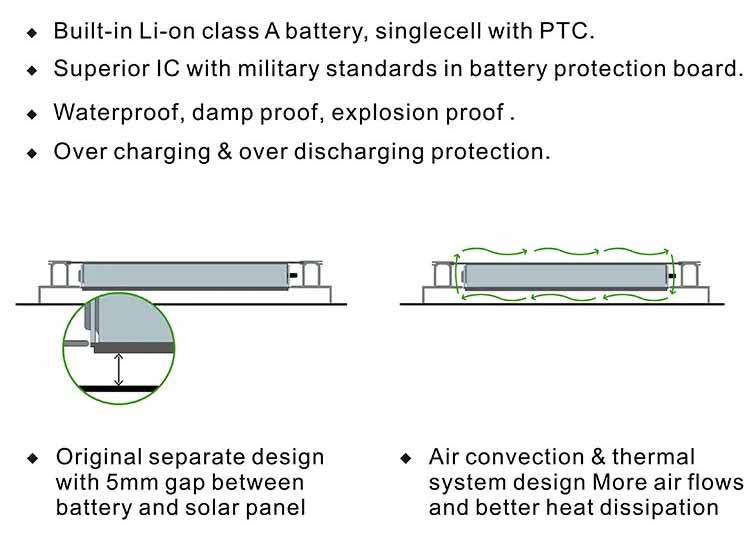

Original separate design with 5mm gap between battery and solar panel

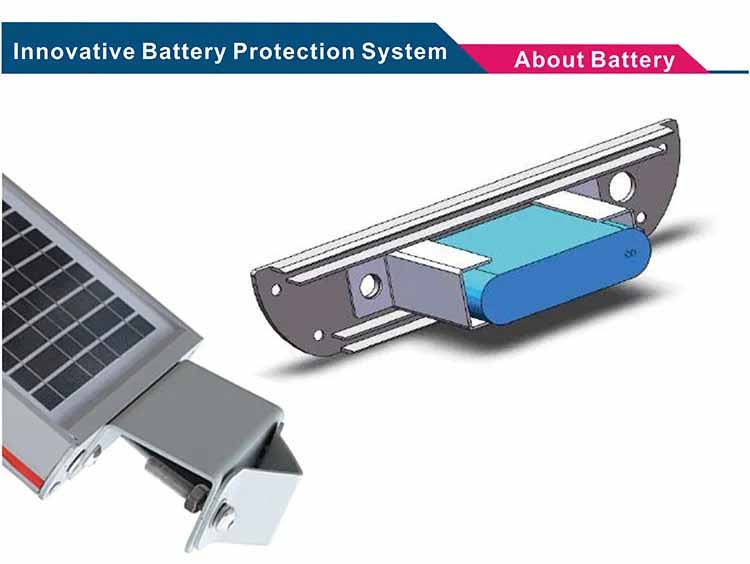

About Battery

Innovative Battery Protection System
Built-in Li-on class A battery, singlecell with PTC.
Superior IC with military standards in battery protection board.
Waterproof, damp proof, explosion proof.
Over charging & over discharging protection.
Original separate design with 5mm gap between battery and solar panel
Air convection & thermal system design More air flflows and better heat dissipation


Air convection & thermal system design

More air flows and better heat dissipation


Packaging Details

Model No. Product Size Package Size N.W G.W Qty/Ctn 20" Container 40" Container
LRC05W
250*200*42mm
 540*350*57mm
 1.7KG 2.5KG 1set 955sets 2200sets

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.


Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.


Q3. Can I use the all in one LED solar street light product on the islands?

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.


Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q5. What about the lead time?

A5:We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.


Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.
