60w Durable High Efficient Pole Led Solar Street Light IP66 6500K Rader Sensor Solar Street Light
100LED Super Bright Lighting 6900LM Solar Sensor Light IP65 Waterproof Outdoor Smart All in One Solar Led Street Light Radar Sensor LiFePO4 Battery 4 Rainy Days Working Solar Road Lights
-
IP65 Waterproof Luminous Flux 10800Lm 30W-120W Outdoor Solar Street Light System
All In One Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
-
IP65 Waterproof High Lumen 300W-600W Aluminum Integrated LED Solar Street Light for Road Outdoor All in One Solar Light
All in One Solar Street LED Solar Lights with Lifepo4 Lithium Battery
-
High lumen Integrated remote control ip65 outdoor waterproof 20w 40w 60w all in one led solar street light
Elegant Integrated Design,High class Aluminum alloy case Easy maintenance, battery replacement can be completed on the lamp pole
Model No. :
LRC05WLED brand :
LEADRAYLED Power :
5WSolar Panel Power :
16V 6WBattery Type :
Lithium LiFePO4 batteryInfrared senor :
AvailableColor :
Silver grayPort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk

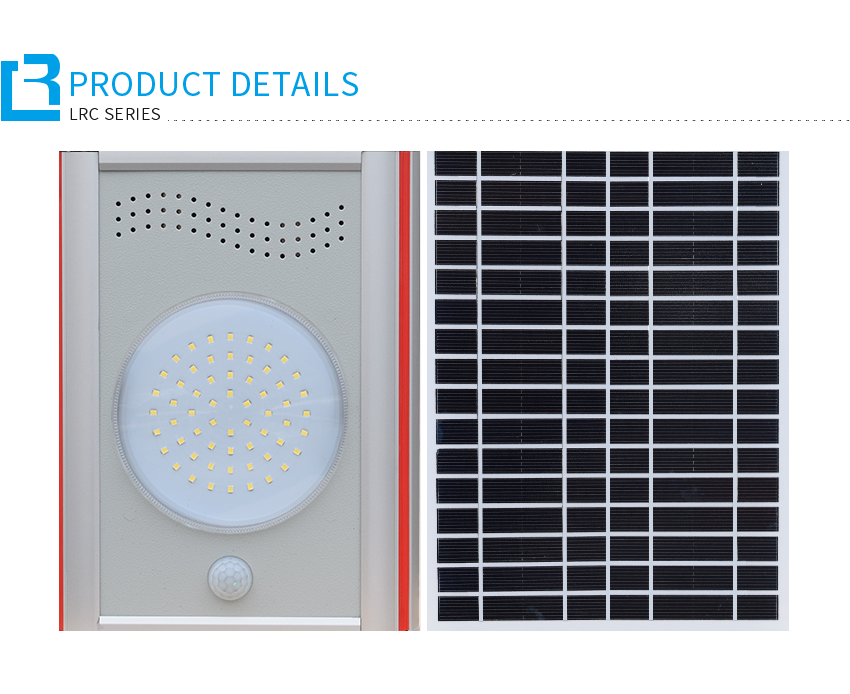

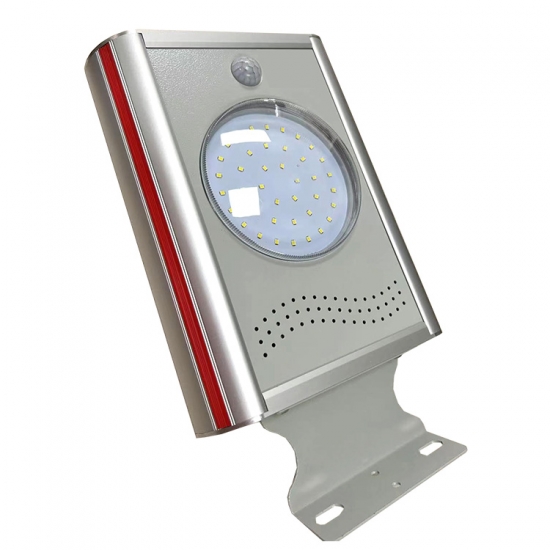

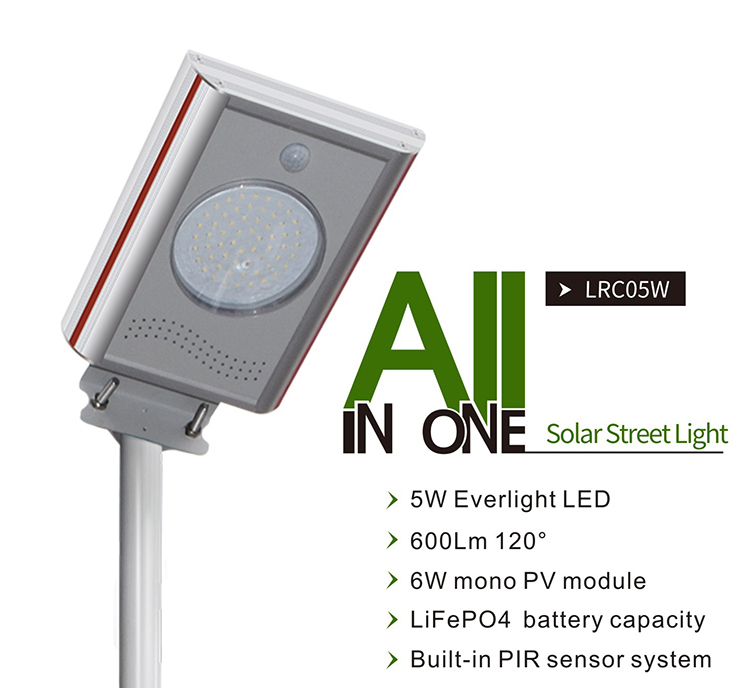

5W Mini All in one led solar patio light with motion sensor: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.

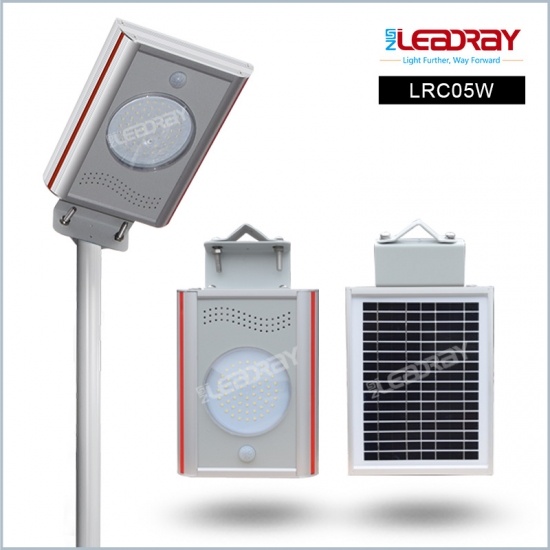

Model No: LRC05W
Solar Panel Power:16V 6W(High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 12V 5W
Luminous Flux:600Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 2-3m
Suggested Distance Between Lights: 6-8m
Material: Superior aviation aluminum AL6063-T5
Warranty: 1year
Model No.
LRC05W
Physical Parameters
LED Brand
40
LED Qty
6m EVERLIGHT
Power of PV Module (W)
6W
LIFEPO4 Battery Capacity (Ah)
5
PIR Sensor
YES
Dimension of Product (mm)
258*200*43
Net Weight (kg)
1.7
Dimension of Carton (mm)
400*270*125
Gross Weight (kg)
2.3
Light Parameters
Light Output (W)
5W
Typical Luminous Flux (Lm)
600
Color Temperature (K)
2700-6500
Beam Angle (°)
120°
Min. Working Time (Hours)
Full Bright
13
Dim Mode
39
Environment Parameters
Charging Temperature (℃)
0 ℃ to +60 ℃
Discharing temperature (℃)
-20 ℃ to +60 ℃
Storage temperature (℃)
-20 ℃ to +45 ℃
Installation
Recommended Dia. of Top Pole (mm)
20~60
Recommended Installation Height (m)
2~3
Recommended Installation Distance (m)
8~10
Road Streetlight Smd Ip65 Waterproof 5W 20W 25W 30W All In One Led Solar Street Light

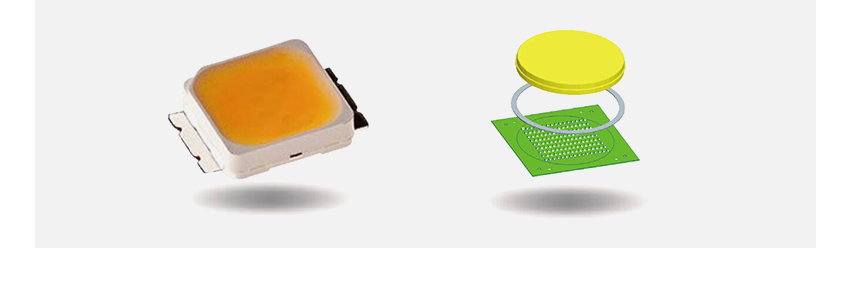

Everlight LED
67-22S package with high efficacy,
high CRI, low power consumption, wide viewing angle
120Lm/W, 30% brighter than other similar products
Longer working hours, 15% longer than other similar products
Innovative Battery Protection System
Built-in LiFePO4 class A battery, single cell with PTC
Over charging & over discharging protection

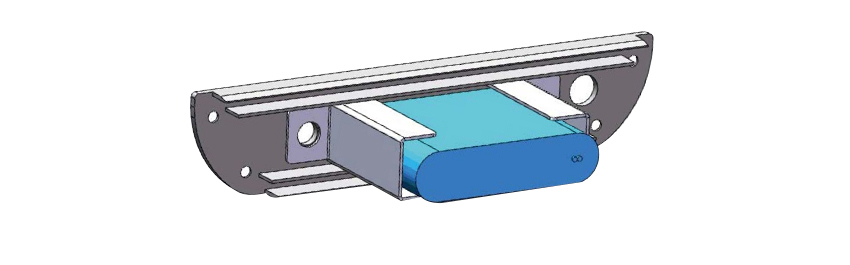

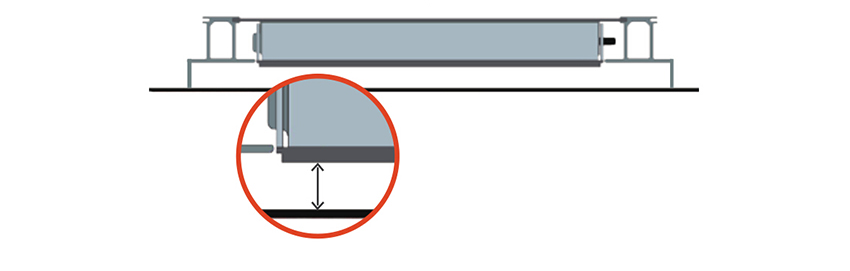

Original separate design with 5mm gap between battery and solar panel

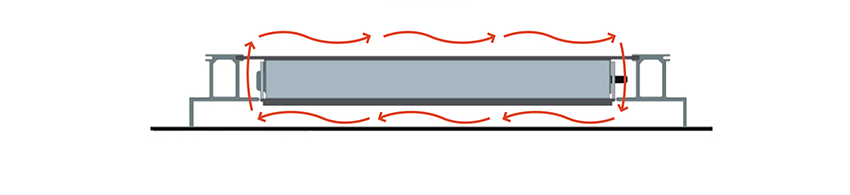

Air convection & thermal system design
More air flows and better heat
dissipation
