60 Watt LED Solar Street Light With High Conversion Rate Shingled Solar Panel

60-Watt LED Solar Street Light Product Features

High Conversion Efficiency: Laminated solar panels use laser slicing technology to cut cells into strips, which are then flexibly connected with conductive adhesive to achieve zero spacing between cells.

This allows for more cells to be packed within the same footprint, effectively increasing the light-receiving area and boosting photoelectric conversion efficiency.

For example, traditional modules typically have a 2mm spacing between cells due to welding process limitations, while laminated modules achieve zero spacing, thereby improving conversion efficiency.

Strong Hot Spot Resistance: Because laminated modules operate at a lower current than traditional welding methods, the reverse current reduces the impact of hot spot effects on the module.

This low current effectively prevents damage caused by localized overheating, such as glass breakage and cell burns, significantly improving the module's resistance to hot spot effects.

Low Risk of Hidden Cracks: Flexible conductive adhesive connects the cells, resulting in even stress distribution and adaptability to thinner silicon wafers, reducing the risk of hidden cracks.

While traditional modules may have cracks extending up to half the cell's length, laminated modules only extend up to one-sixth of the cell's length, limiting the impact to a smaller area and minimizing power loss.

High Brightness and Long Life: These are typically equipped with high-brightness LED chips, such as SMD5050 and Philips SMD3030, offering high luminous efficiency and a long lifespan of over 100,000 hours.

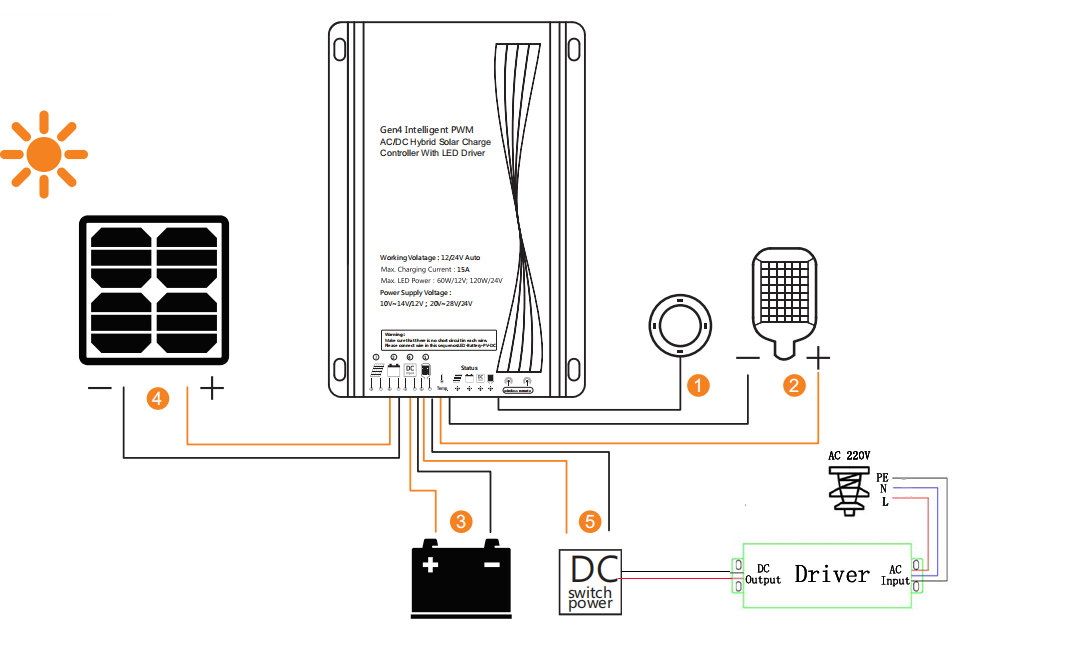

Intelligent Control: These are often equipped with an intelligent MPPT controller, enabling intelligent control of the lamp. These include automatic weather detection, intelligent power adjustment, and charge and discharge management. They can also be remotely controlled and configured via remote control or the Internet of Things (IoT).

Waterproof and Dustproof: The housing is made of materials such as aluminum alloy, offering excellent heat dissipation and waterproof and dustproof properties. The ingress protection rating is typically IP65 or higher, making them suitable for a variety of harsh weather conditions.

Technical Parameters

Power: The street light's power is 60W. The solar panel's power varies depending on the product, generally ranging from 70Wp to 120Wp.

Light Intensity: Luminous intensity can reach 6,000-10,200lm, meeting the lighting needs of various scenarios.

Battery Capacity: The matching lithium battery typically has a capacity between 12.8V/24Ah and 12.8V/42Ah. A full charge provides 12-15 hours of operation for the streetlight, and can provide illumination for 3-5 days even on rainy days.

Charging Time: Under standard lighting conditions, the charging time is typically 6-8 hours.

Application Scenarios

It is suitable for a variety of outdoor lighting scenarios, including streets, highways, parking lots, parks, courtyards, and rural roads. It is particularly suitable for areas with limited power supply or where energy conservation and environmental protection are paramount.
