How to connect your mobile phone to the 4G Option CCTV Camera via WIFI

February 13, 2018

If you have bought a 4G option Solar Street Light with CCTV Camera, but how to connect your mobile phone to the camera via WIFI?

Please follow the following steps:

(This instruction is for fixture which has 4G+WIFI function, not suitable for fixture that does not have 4G function)

(1) Use a laptop to connect the hot spot(MIFI****) of the fixture, then use the browser and login the website：192.168.100.1，input the code: admin; (By logging in this web, you can also manage the internet connection/setting.)

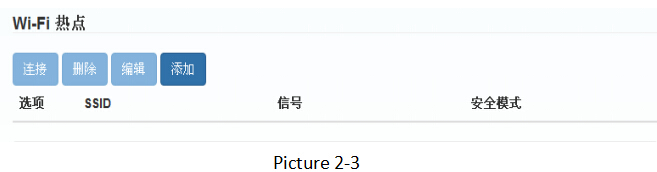

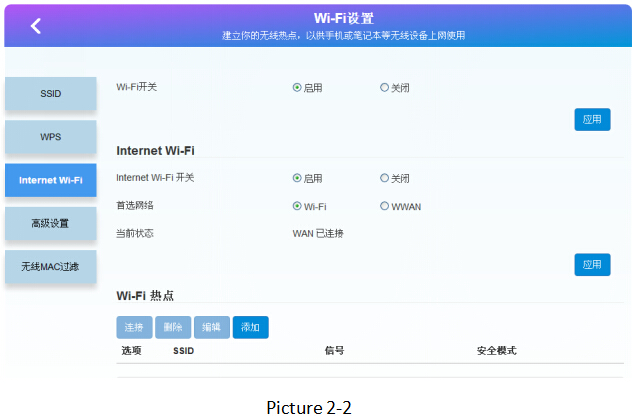

(2) Set the WIFI intranet（as picture 2-1 shows）-> Internet Wi-Fi (as picture 2-2 shows) -> Add (as picture 2-3 shows) (It will show English words when your computer system is in English)

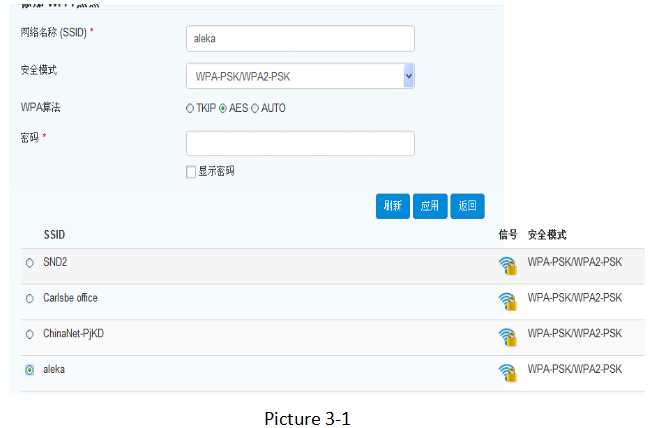

(3) After adding, it will show all the hot spot around, you just need to choose and click the one you want to connect. (as picture 3-1 shows)

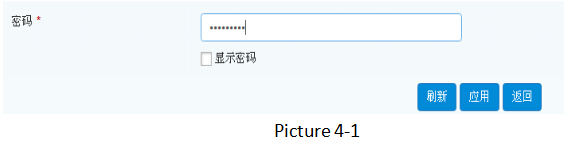

(4) Input the code of the hot spot you have chosen, click apply. (As picture 4-1 shows )

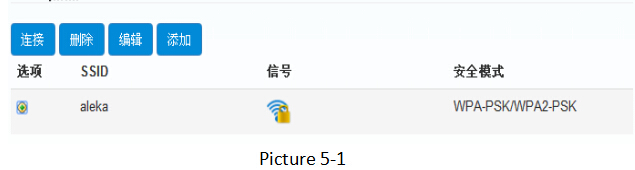

(5) Click the WIFI that you are going to connect, click connect. (as picture 5-1 shows)

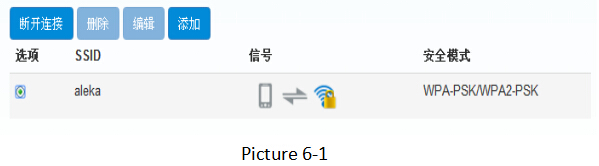

(6) Connect successfully. (as picture 6-1 shows)
