All-in-one solar street lights—like LEADRAY’s high-performance models—are engineered with intelligent energy management systems and robust core components to ensure reliable operation even in low-light (cloudy) or no-sunlight (rainy) conditions.
Their functionality hinges on three key principles: efficient energy capture, reliable energy storage, and smart power regulation.
1. First: The Basic Working Principle (Foundation for Bad Weather Performance)
Before diving into cloudy/rainy days, let’s recap the core workflow of all-in-one solar street lights—this explains why they can “survive” without direct sunlight:
- Charging Phase: During the day, solar panels convert sunlight into electrical energy, which is stored in the built-in battery via an intelligent controller.
- Discharging Phase: At dusk, the light sensor triggers the lamp to turn on, using the stored energy to power the LED chips.
- Key Adaptation: Even on cloudy/rainy days, the system prioritizes “energy conservation” while maintaining basic lighting needs—thanks to upgraded components and smart logic.
2. How They Handle Cloudy Days (Low-Light Charging + Stable Discharging)
Cloudy days don’t mean zero sunlight—they just mean sunlight is scattered (not direct). LEADRAY’s all-in-one solar street lights overcome this with two critical upgrades:
a. High-Efficiency Solar Panels: Capture Scattered Light Effectively
- LEADRAY uses enhanced monocrystalline silicon solar panels (conversion efficiency ≥23%), which outperform standard panels in low-light conditions. Unlike traditional panels that rely on direct sunlight, monocrystalline cells can absorb scattered light (e.g., light filtered through clouds, reflected light from the ground/atmosphere).
- Even on heavily overcast days, the panels generate 30-50% of the energy they produce in direct sunlight—enough to replenish the battery for nightly use.

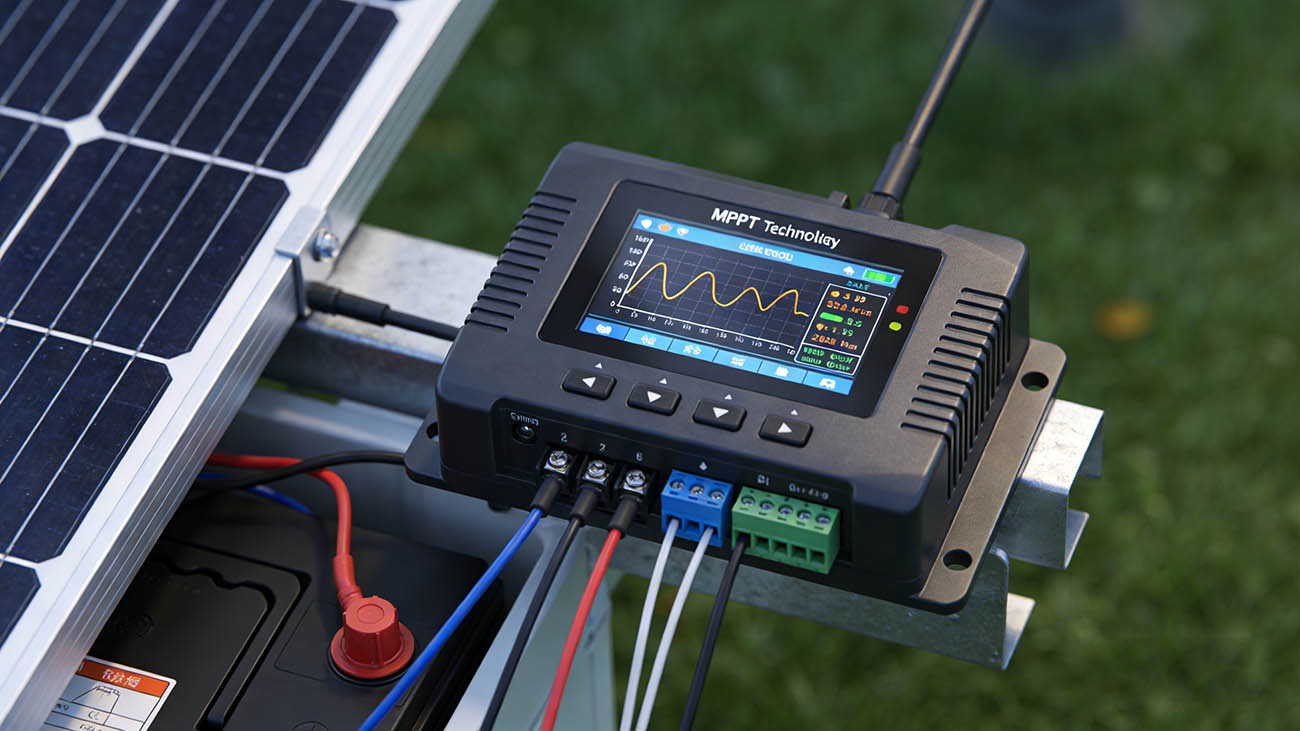

b. Intelligent MPPT Controller: Maximize Charging Efficiency
- The built-in Maximum Power Point Tracking (MPPT) controller dynamically adjusts the charging voltage and current to match the panel’s output. On cloudy days, when light intensity fluctuates, the MPPT controller instantly optimizes the charging process—ensuring every watt of scattered light is converted into stored energy (vs. 10-15% energy loss with basic PWM controllers).
c. Stable Discharging: No Compromise on Lighting Quality
- As long as the battery is sufficiently charged (from sunny days or partial cloudy-day charging), the lamp maintains its full brightness (e.g., 80W/100W/120W output) throughout the night.

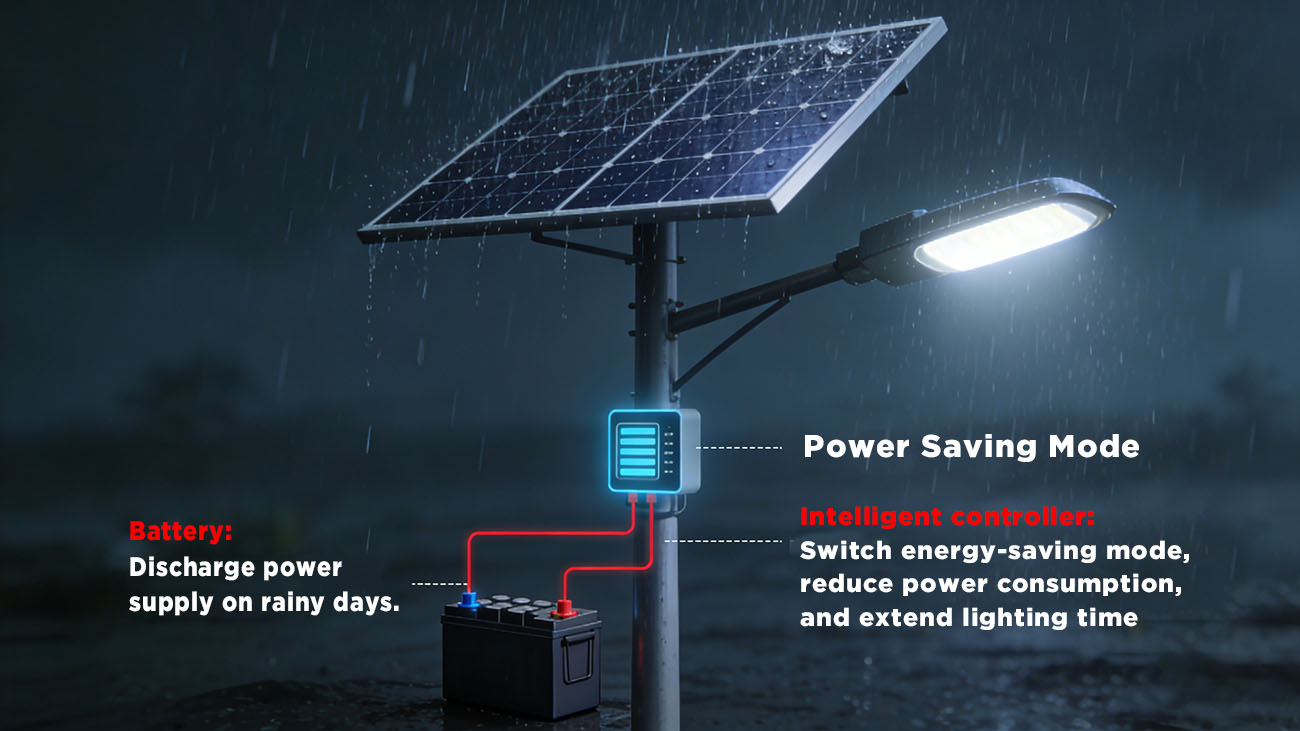

- For prolonged cloudy spells (3-5 days), the system can switch to “energy-saving mode” (if equipped with a motion sensor): it dims to 30-50% brightness when no movement is detected, then boosts to full brightness when motion is sensed—extending runtime while meeting safety lighting needs.

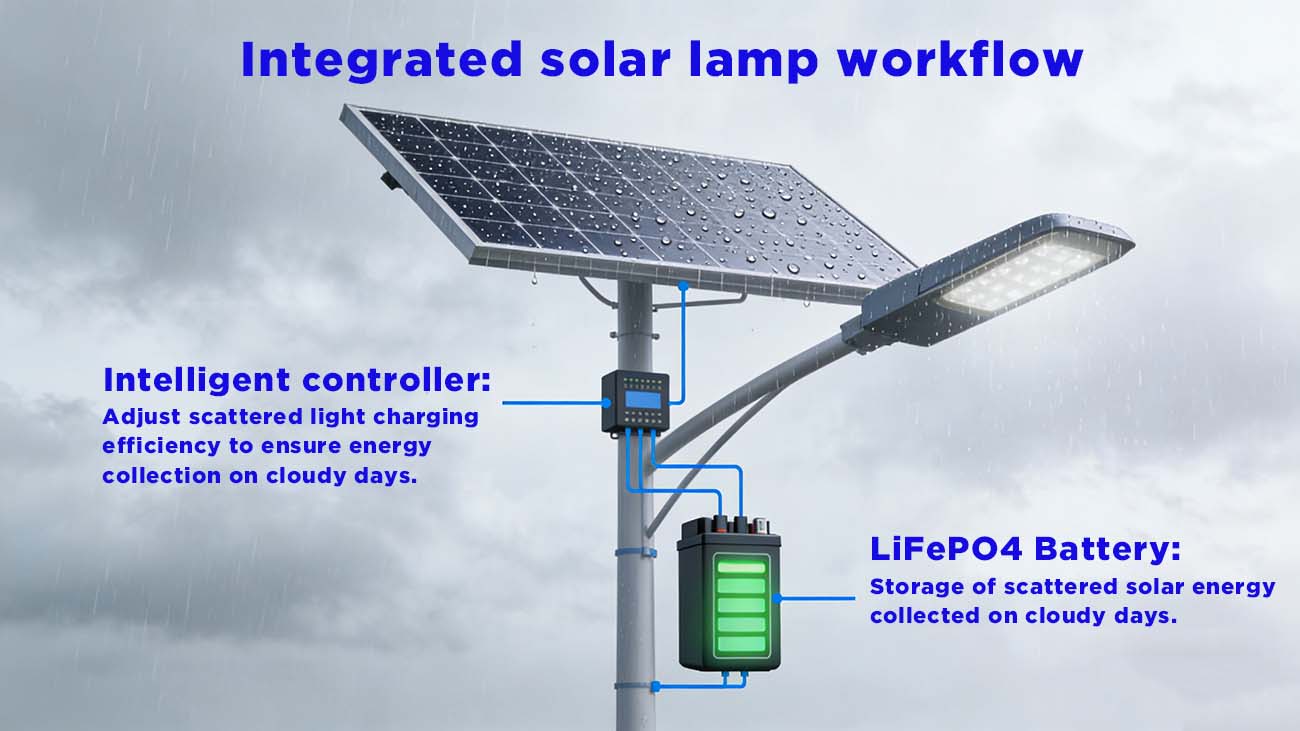

3. How They Survive Rainy Days (Reliable Energy Storage + Weatherproof Design)
Rainy days often mean little to no solar charging—so the lamp’s performance depends entirely on battery capacity and system durability:
a. High-Capacity LiFePO4 Battery: Backup Power for 2-3 Rainy Days
- LEADRAY equips its all-in-one solar street lights with LiFePO4 (Lithium Iron Phosphate) batteries, which offer superior energy density and cycle life compared to traditional lead-acid batteries.
- A fully charged LiFePO4 battery (e.g., 12V 100Ah for 100W lamps) can power the light for 8-12 hours per night for 2-3 consecutive rainy days. For areas with frequent rain, optional high-capacity batteries (e.g., 12V 150Ah) extend backup time to 4-5 days.
- LiFePO4 batteries also perform stably in humid environments (a key advantage over lead-acid batteries, which are prone to leakage or performance degradation in moisture).
b. IP65 Waterproof & Dustproof Design: Protect Core Components
- All-in-one solar street lights integrate panels, battery, controller, and LEDs into a single sealed housing. LEADRAY’s models feature an IP65 waterproof rating and corrosion-resistant aluminum alloy casing—preventing rainwater, dust, or humidity from damaging internal components (e.g., short-circuiting the battery or controller) during heavy rain.
c. Low-Power LED Chips: Minimize Energy Consumption
- The LED chips used in LEADRAY’s lamps have a high luminous efficacy (100-130lm/W), meaning they produce more light with less energy. For example, a 100W LED lamp consumes only 100Wh per hour—far less than traditional sodium lamps (which consume 250-400Wh per hour). This low power draw ensures the battery’s stored energy lasts longer on rainy days.
4. LEADRAY’s Extra Advantages for Bad Weather Performance
To further enhance reliability in cloudy/rainy conditions, LEADRAY adds two exclusive upgrades:
- Anti-reflective Coating on Panels: Reduces light reflection and improves absorption of scattered light—boosting cloudy-day charging efficiency by an additional 10-15%.
- Temperature Adaptability: The battery and controller are designed to work in extreme temperatures (-20℃ to 60℃), ensuring stable performance even in cold, rainy climates (where battery capacity often drops for inferior products).
Final Summary
All-in-one solar street lights don’t “stop working” on cloudy or rainy days—they adapt through:
✅ Scattered light capture (high-efficiency panels + MPPT control) for cloudy-day charging;
✅ Long-term energy storage (high-capacity LiFePO4 batteries) for rainy-day backup;
✅ Smart energy conservation (motion sensors + low-power LEDs) to extend runtime;
✅ Durable weatherproof design to protect components from rain and humidity.
LEADRAY’s all-in-one solar street lights take these advantages further—ensuring consistent, reliable lighting for roads, parks, rural areas, and remote locations, regardless of the weather.
Choose LEADRAY for a lighting solution that works every day, come rain or shine.
