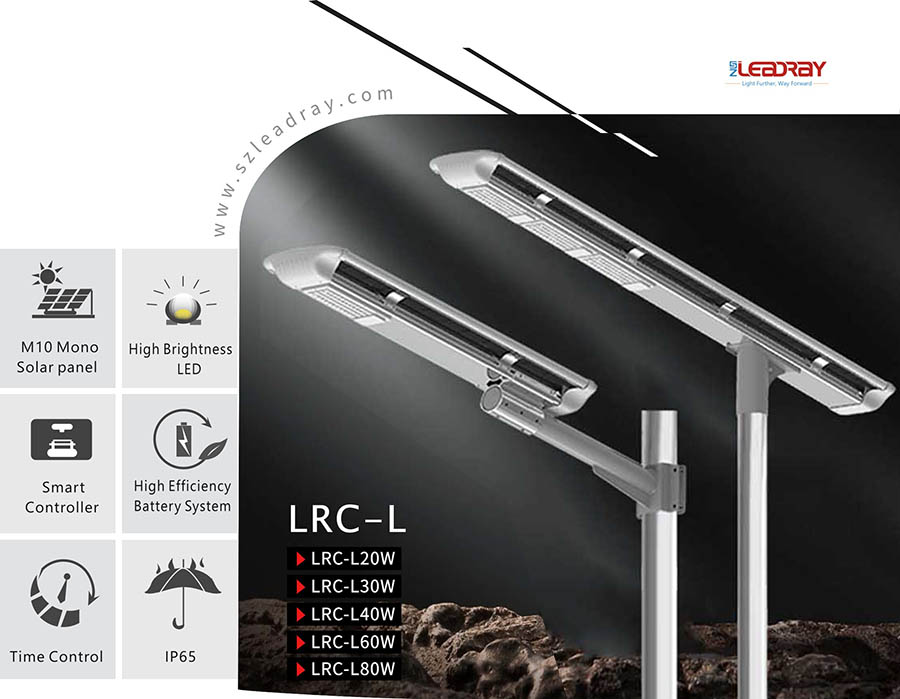

Energy Saving Integrated All In One Led Solar Street Light 20w 30w 40w 60w 80w Remote Control

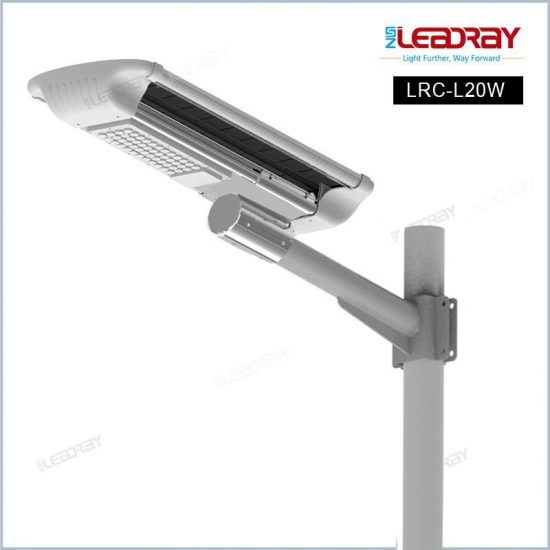

  • Model No. :

    LRC-L20W

  • LED brand :

    LEADRAY

  • LED Power :

    20W

  • Solar Panel Power :

    6V

  • Battery Type :

    Ternary lithium battery 12000mah

  • Infrared senor :

    NO
Contact Us
description

Leadray Optoelectronic Co., Ltd. specializes in urban road lighting engineering for major road traffic and road lighting projects. We specialize in lighting projects for urban villages and purchase branded street lamps with high energy efficiency, high light efficiency, photoelectric lighting, and independent research and development.
The best choice for suppliers, large enterprises across the country, genuine and reliable, professional services, and the best partner for purchasing urban village streetlights and road lighting fixtures.

solar street lights outdoor

material:steel, aluminium alloy
size:20w/30W/40W/60w/80w
surface treatment:powder coated
Shape:custom design
application:garden, pathway, driveway
Design:OEM ODM
Thickness:90mm
technology:custom design
Product characteristics:high bright, multiple power options


solar street lights outdoor

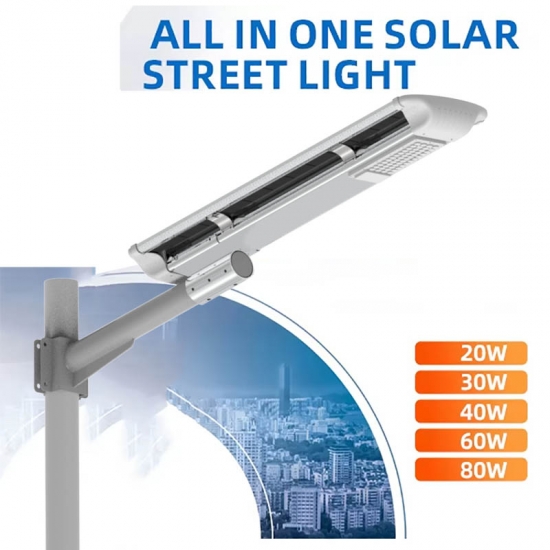

LEADRAY All In One Integrated Solar Powered Street Light
Power
20W
30W
40W
60W
80W
Single crystal solar panels
6V/20W
6V/30W
6V/40W
6V/60W
6V/80W

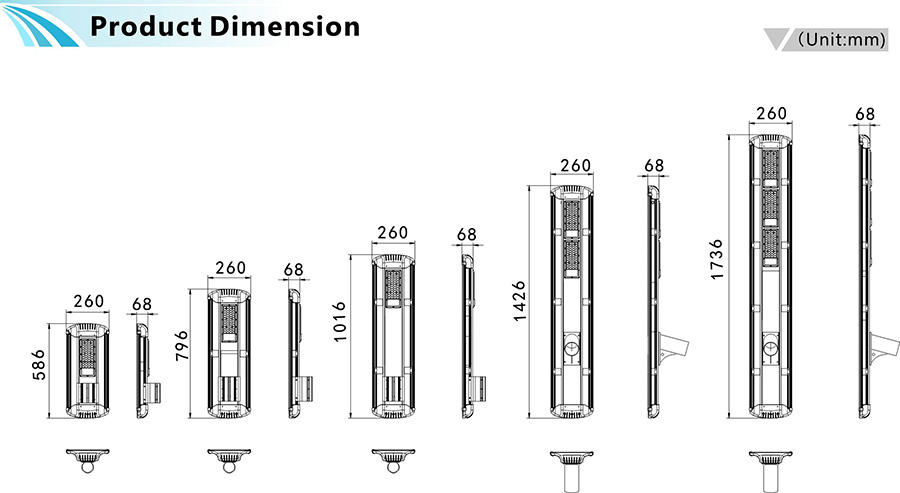

Solar panel size
586*260*68mm
796*260*68mm
1016*260*68mm
1426*260*68mm
1736*260*68mm
Battery
Lithium iron phosphate
3.2V 20AH
Lithium iron phosphate
3.2V 30AH
Lithium iron phosphate
3.2V 40AH
Lithium iron phosphate
3.2V 60AH
Lithium iron phosphate
3.2V 90AH
LED
Philips3030，48PCS
Philips3030，48PCS
Philips3030，48PCS
Philips3030，96PCS
Philips3030，144PCS
Product size（mm)
640*300*130
850*300*130
1060*300*130
1480*300*130
1790*300*130
Light efficiency
180LM/W
180LM/W
180LM/W
180LM/W
180LM/W
Controller
MPPT、PWM selectable
Lighting mode
Infrared sensing+segmented time control + intelligent control
Recommended
installation height
3-5 meter
4-6 meter
5-7 meter
6-8 meter
7-9 meter

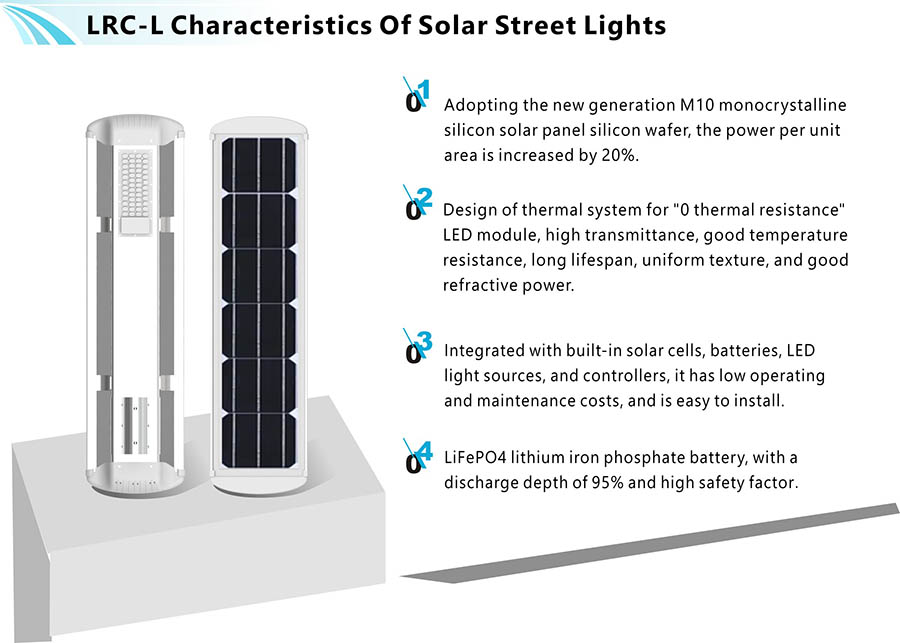

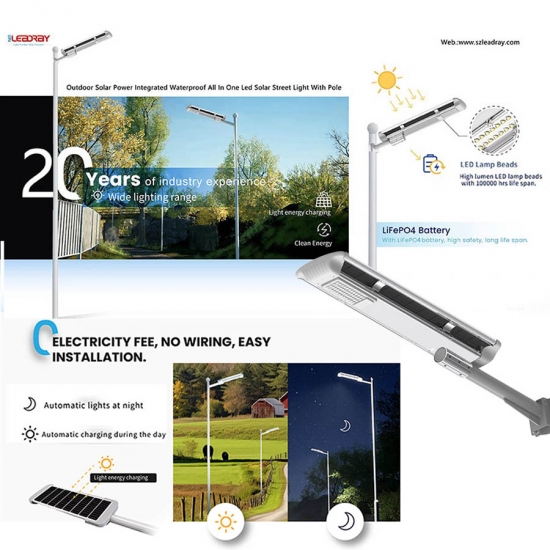

Completely wireless -no need for trenching or cabling
Uses NO electricity.All components are lP65 rated
Suitable for Residential and Commercial use
LiFePO4 Battery offers 5 times longer cycle life than gel acid battery
Philips Luxeon high-brightness LEDs with over 50000 hours design life
Batwing Lenses ensure light distribution with greater than 93% uniformity
Encapsulated Water-Proof smart controller with over 98% charging efficiency
Using 6063 Aluminum, 304 stainless steel fastening screws 3 Year Warranty



Lighting solutions service：Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation


solar street lights outdoor

Packaging and delivery

Selling Units:Single item
Single package size:580X260X68 cm
Single gross weight:12.000 kg



High-lumen solar lighting means more light where you need it and a more cost-effective solution requiring fewer light poles— with higher better-focused lumens that will reach the intended surface with less energy waste and lower project cost. Our solar lighting systems require less backup power during natural disasters, require less maintenance, eliminate grid load, and operate longer than our competitor's lights.


solar street lights outdoor


The solar cells we use are tested to a higher standard than most, and the solar panels’ mounting design protects your investment even in high wind conditions. Our street lighting solar systems, of course, operate from dusk to dawn without dimming.

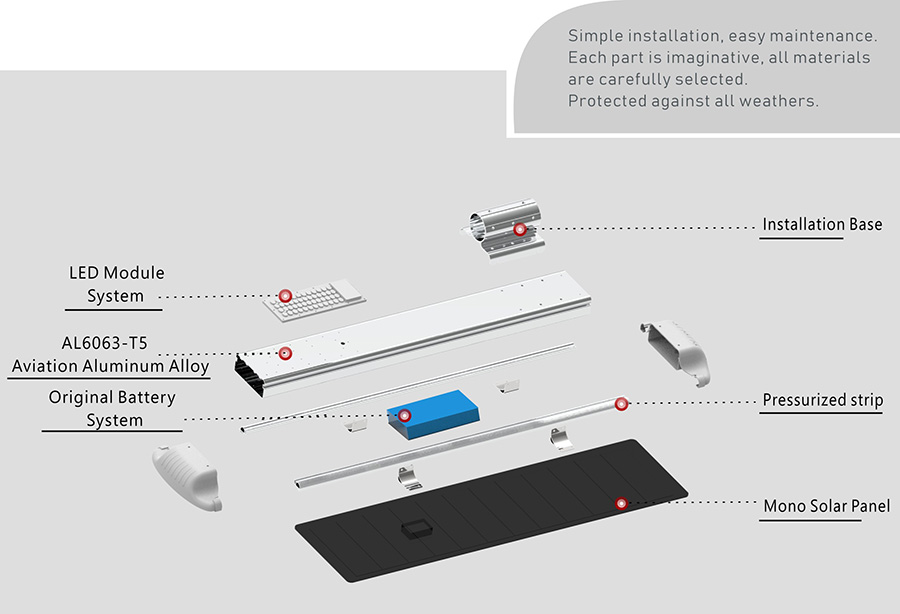

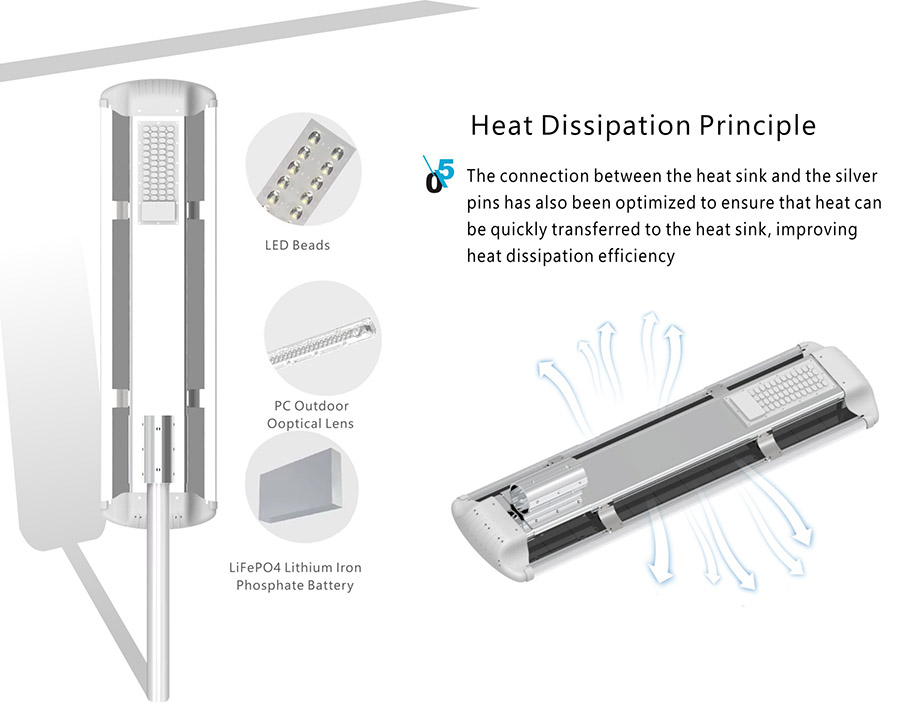

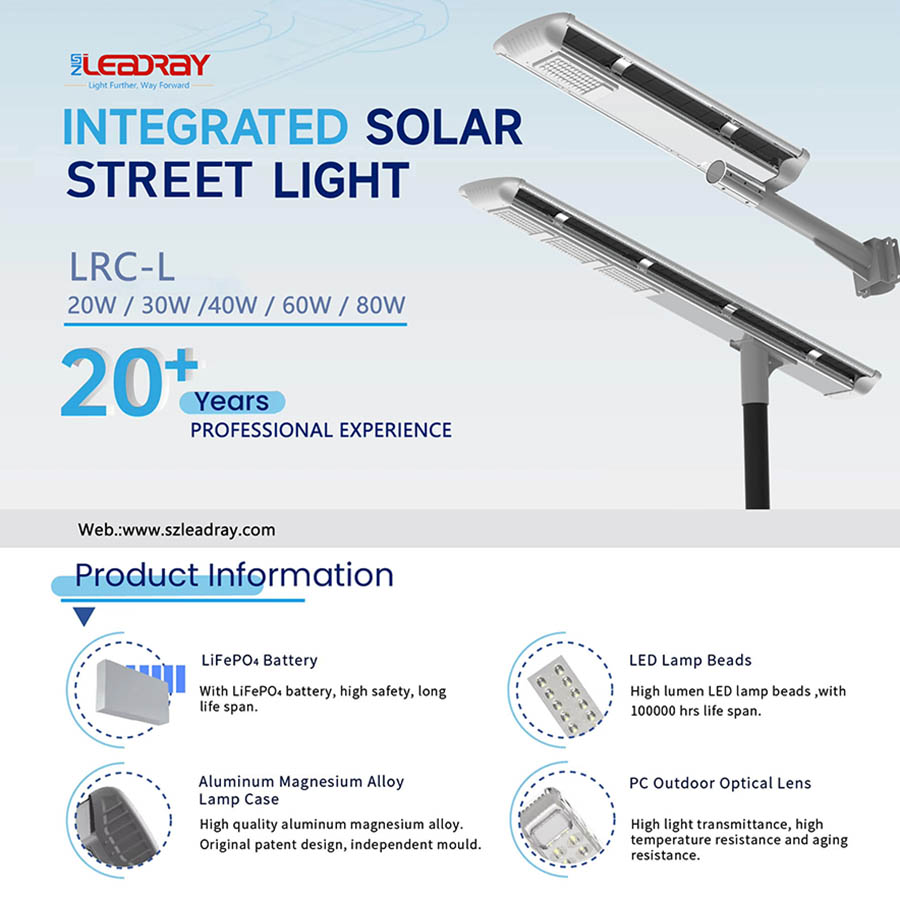

LiFePO4 Battery

With LiFePO4 battery, high safety, long life span.
LED lamp
High lumen LED lamp beads ,with 100000 hrs life span.
PC Outdoor Optical Lens
High light transmittance.high temperature resistance and aging resistance.

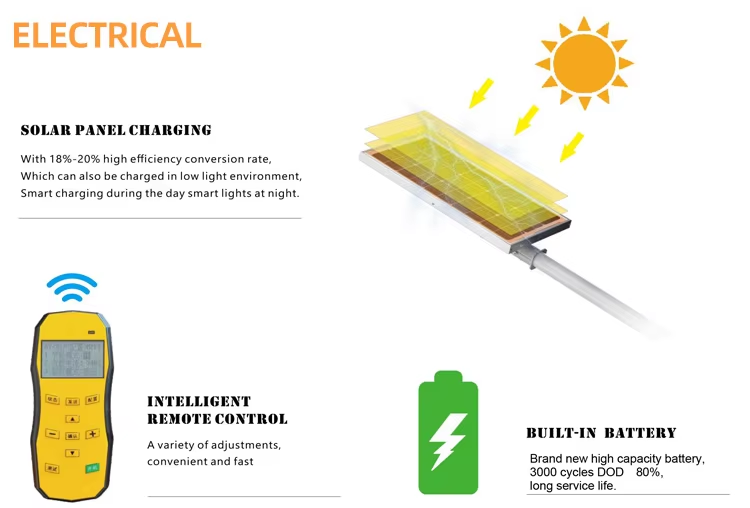

Solar Panel
Grade A+ solar cell.each cell has a complete IV curve. Conversion efficiency is more than 19.5%
Aluminum Magnesium Alloy Lamp Case
High quality aluminum magnesium alloy.Original patent design.independent mould.



solar street lights outdoor


Street light function

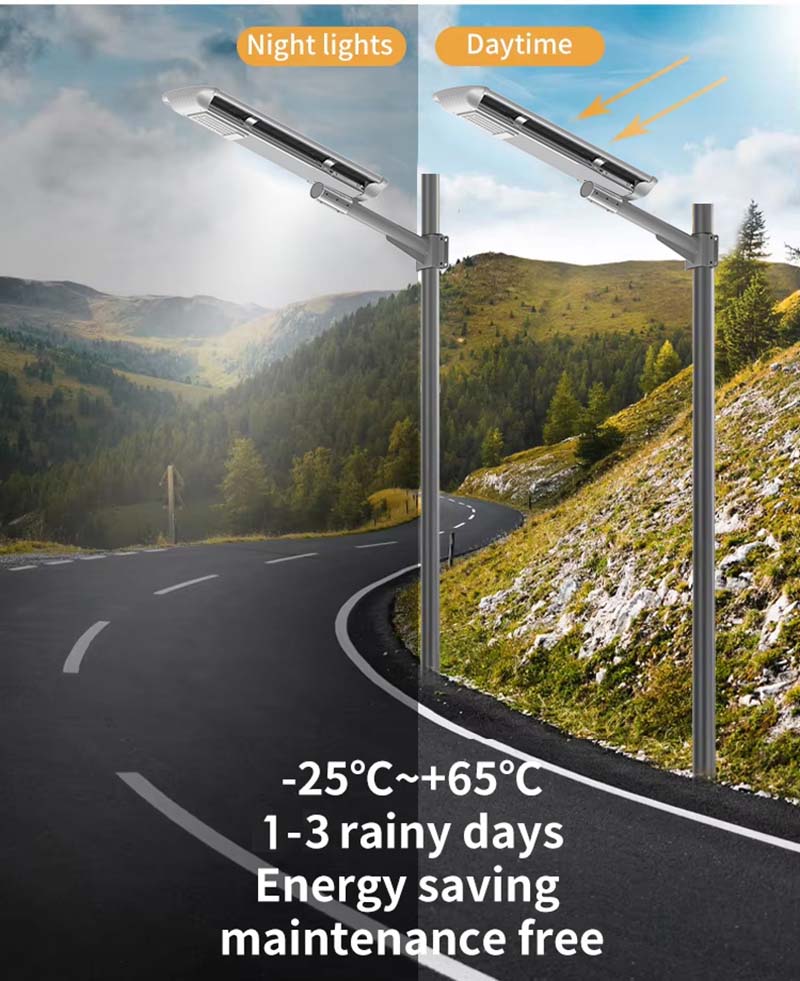

Solar Street lights can automatically identify day and night by measuring the open-circuit voltage of the solar panel. When night falls, when the panel voltage reaches the set light control point, the light will start to work.

1) Working mode:

MODE1:

Sensing mode:

First period: 4h with exercise (100%)---- without exercise (30%)Second period: 2h with exercise (100%)---- without exercise (30%)The third period: 4h with exercise (80%)---- without exercise (20%)Fourth period: 2h with exercise (100%)---- without exercise (30%)

MODE2:

Time control mode:

First period: 1h (80%)Second session: 2h (100%)Third period: 1h (70%)Fourth period: 8h (30%)

MODE3:

Time control + Sensing mode: First period: 1h with exercise (80%)----without exercise (80%)Second period: 3h with exercise (100%)----without exercise (100%)Period 3:2h with exercise (70%) ---- without exercise (30%)Fourth period: 4h with exercise (50%) ---- without exercise (10%)Fifth period: 2h with exercise (70%)---- without exercise (20%)

MODE4:

Customizable mode: Set the mode based on customer requirements.

 No special requirements, the default mode of the light is:

MODE1 mode (mode should be confirmed with our company before delivery, users do not change the mode if necessary).

2) When the battery capacity is insufficient and the voltage is insufficient, the system will enter the low-voltage protection state. After entering the low-voltage protection state, the battery can only be restored after charging through the solar panel and reaching the set "low-voltage recovery" voltage.



solar street lights outdoor

solar street lights outdoor



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
