High Brightness Intelligent Outdoor Aluminium Charge Controller Split 80w Solar Street Light

High Brightness Intelligent Outdoor Aluminium Charge Controller Split 80w Solar Street Light

Lamp Power:40-80W

Solar Panel Power:160-230W

Battery Capacity:922-1536Wh

High Brightness Intelligent Dimming Separated Solar LED Street Lamp

  • Payment :

    T/T, Paypal, Western Union
  • Color :

    Black
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
  • Original Region :

    China
  • Port Of Dispatch :

    Qingdao
  • Infrared senor :

    No
  • Battery Type :

    Lithium LiFePO4 Battery
  • Solar Panel Power :

    36V 230W
  • LED Power :

    80W
  • LED brand :

    LEADRAY
  • Model No. :

    LBA-80W
Inquiry now

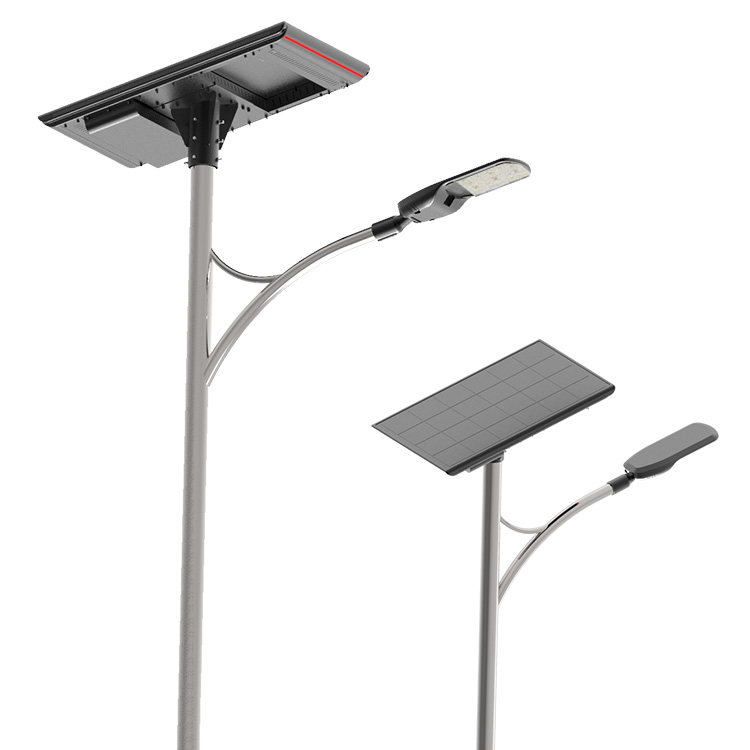

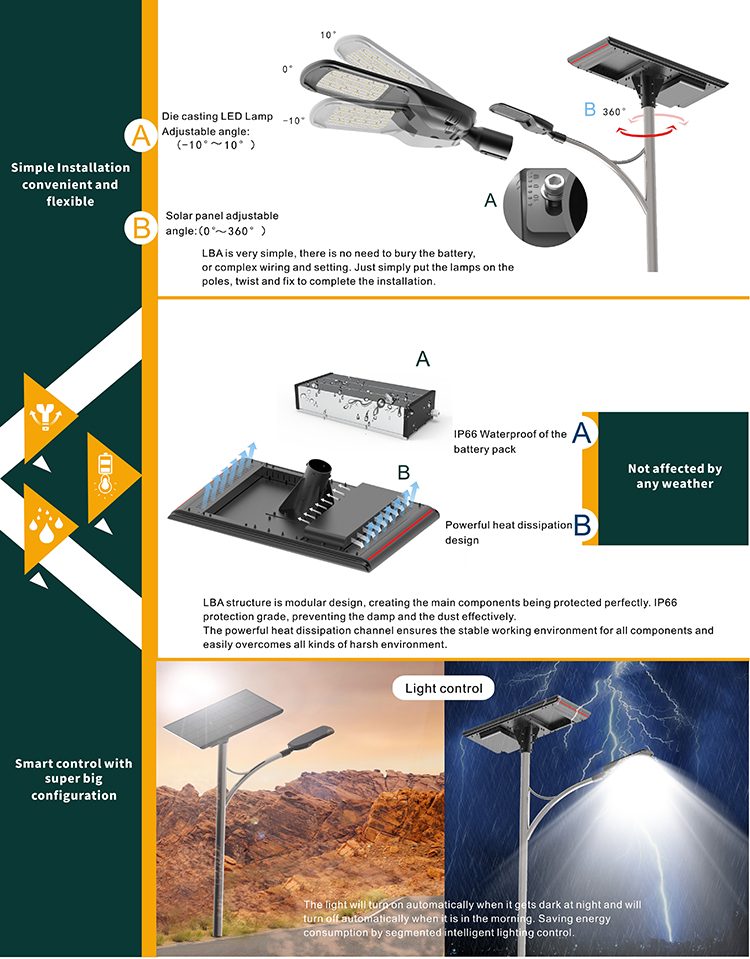

LBA series semi-split solar street light is a street lamp system integrating high conversion rate solar panel, ultra-long life LiFePO4 battery pack, efficient intelligent controller and die-cast aluminum alloy LED street lamp .

It is not only the most cost-effective solution to build a new solar street lamp system, but also the best solution to update and replace the existing old solar street lamp system.

led street light outdoor

Voltage
100-277vac/50-60hz; 200-480vac/50-60hz
Luminous efficency
130lm/w, 150lm/w, 160lm/w available
CRI
85
Sensor

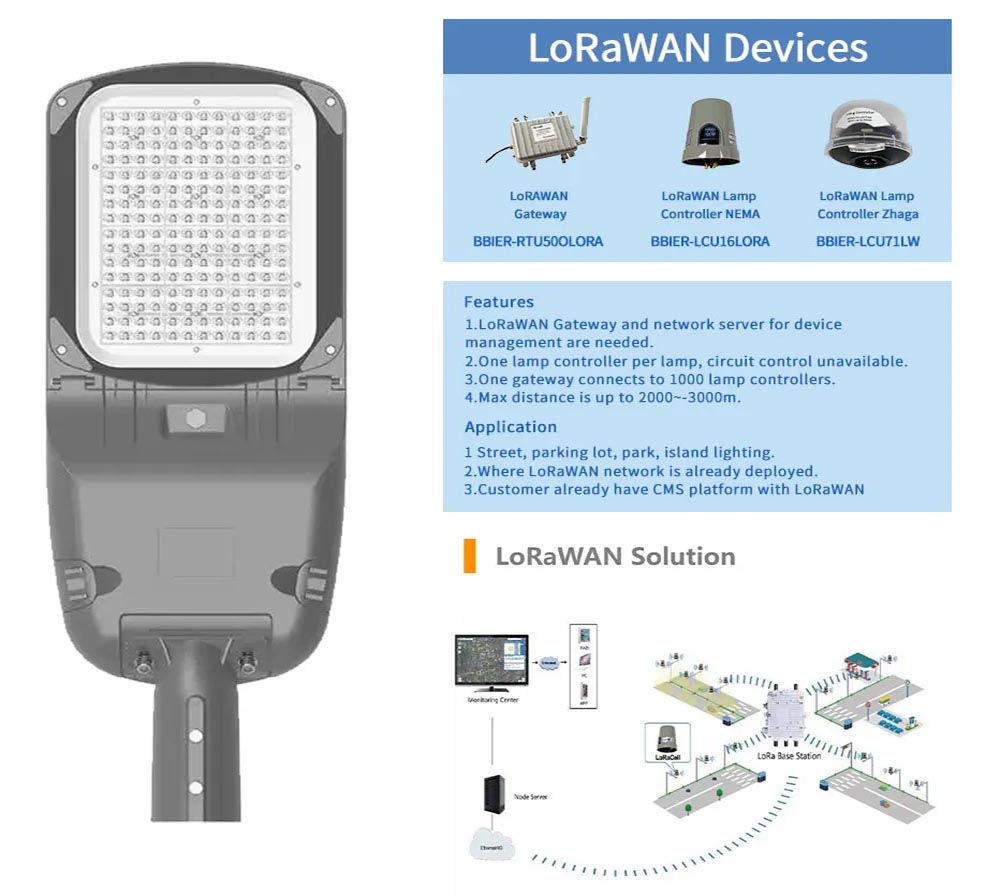

Timer control, motion sensor, photoelectric sensor, three-in-one dimming, Wifi Zigbee connection, photoelectric + timer control,
3-step dimming, GPRS, 3G/4G, Bluetooth, PLC and smart motion sensors. microwave sensor
default setting
The brightness is 100%, the microwave sensitivity is 75%, and the holding time is 5 minutes. Start illumination
50LUX, continuous brightness 30%, duration 30 minutes.

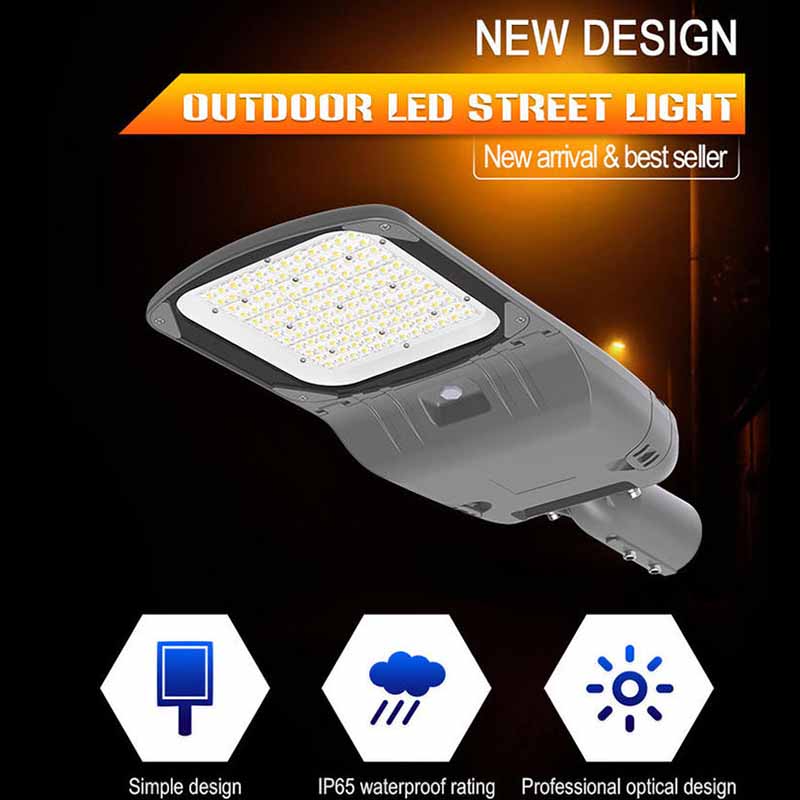

 LED street light

CE/ENEC/ROSH/IP/IK/CB certidicate led street light

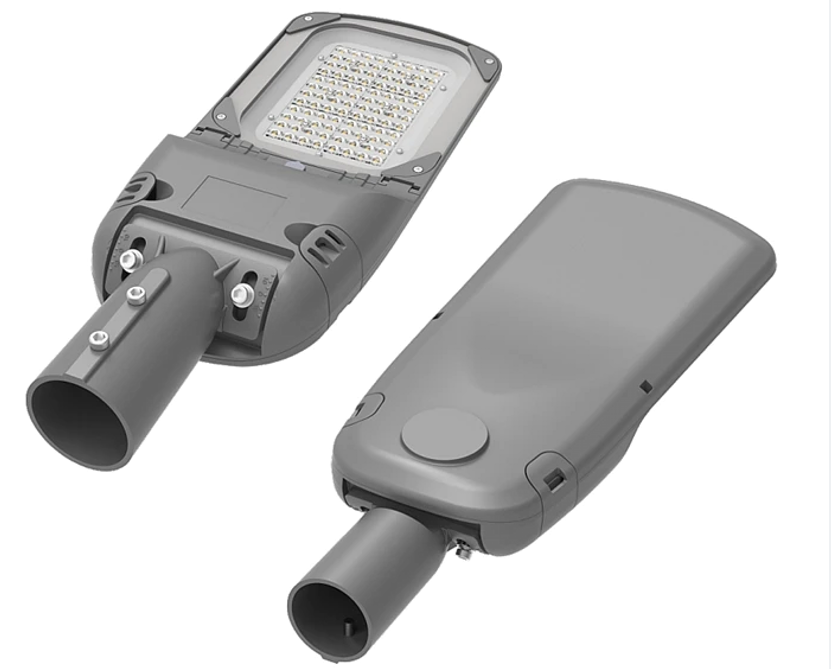

Die-cast aluminum led street light, tempered glass led street light, 316 stainless steel screws led street light, smart led street light



Lamp Power:40-80W

Solar Panel Power:160-230W

Battery Capacity:922-1536Wh

Lamp Material
Die Casting Aluminum
Ip Grade
Waterproof IP65
Charge time
6-8Hrs
Application
Street/Park/Yard/Road/Highway/Pathway
Function
Remote Control/Light Control
Feature
1.High Light
2.Fast Charging
3.Intelligent Dimming
4.Timing Mode
5.Long Working Time In Rainy Day
6.Can Be Customized

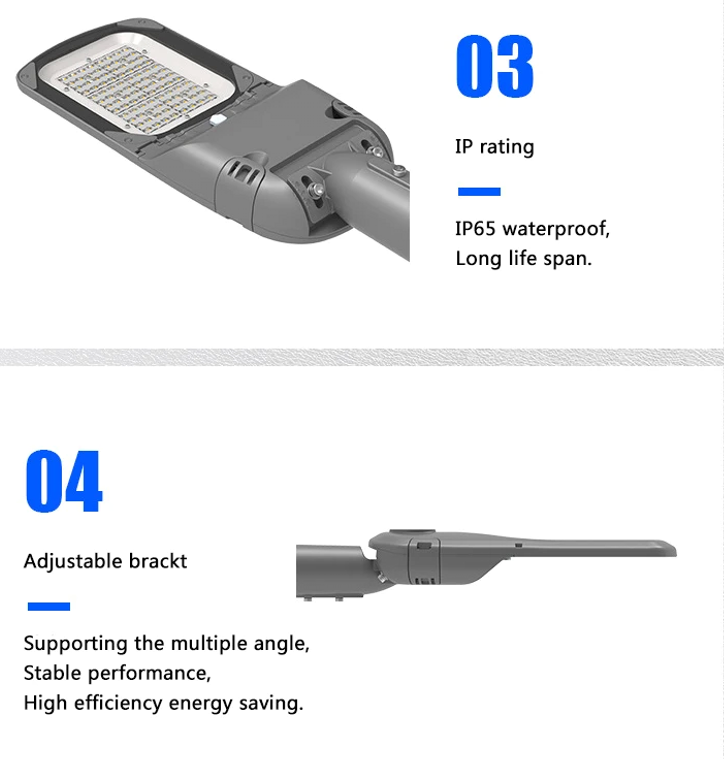

 LED street light

 LED street lamp

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

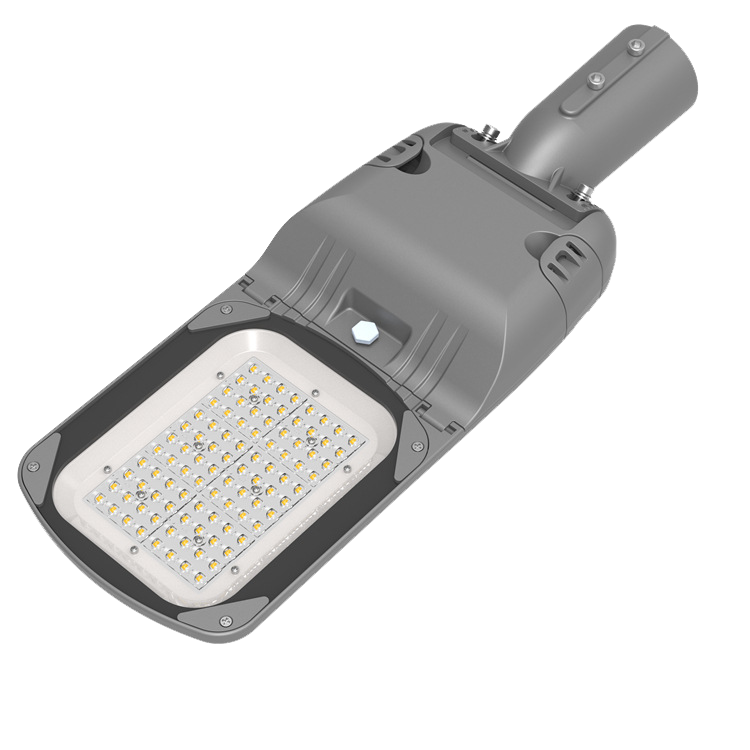

 LED street light

IP66 outdoor Pole Solar shoebox LED Street Light

 LED street lamp

High Powered Road Streetlight Waterproof IP65 Outdoor Lamp 40W 60W 80W LED Solar Street Lights. outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell



Model LBA-40W LBA-60W LBA-80W
Physical Parameters
LED Brand PHILIPS PHILIPS PHILIPS
LED Qty(pcs) 96 144 144
Power of PV Module(W) 36V 160W 36V 180W 36V 230W
LIFEPO4 Battery Capacity(Ah) 25.6V 922Wh 25.6V 1229Wh 25.6V 1536Wh
Light Mode Time Control Time Control Time Control

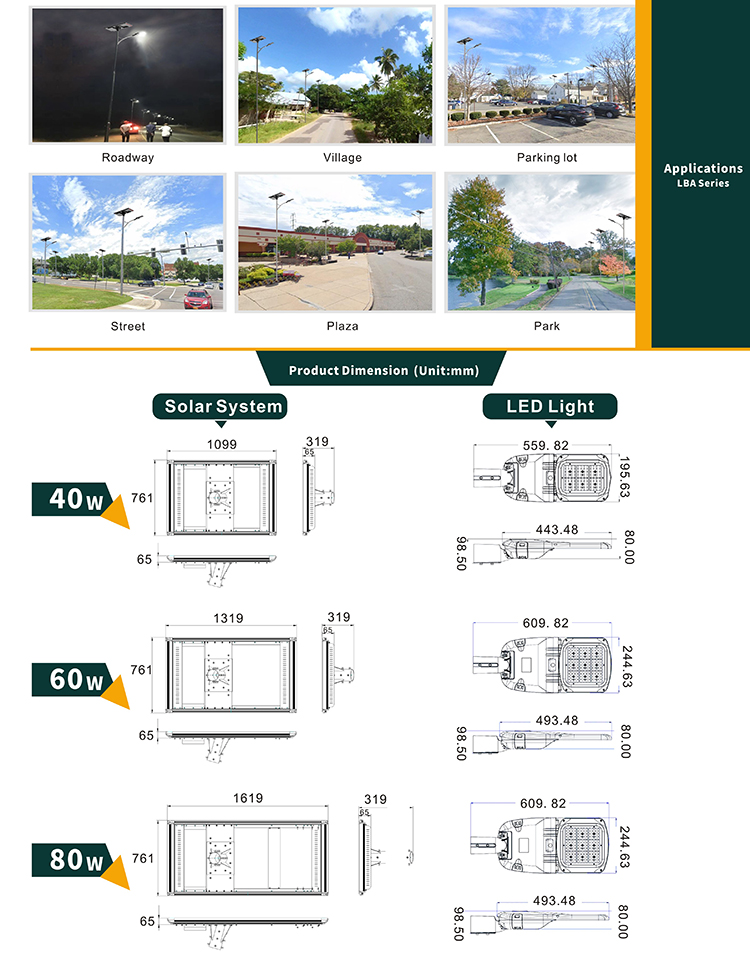

Product Dimension(mm) 1099*761*65 1319*761*65 1619*761*65
Product N.W.(kg) 38 40 45
Package #1
Dimension(mm)& G.W.
(1 Lamp/CTN)
1160*825*225
(25KG)
1380*825*225
(30KG)
1680*825*225
(35KG)
Package #2
Dimension(mm)& G.W.
(1 Lamp/CTN)

395*405*310

(7KG)

Package #3
Dimension(mm)& G.W.
(1 Bracket/CTN)

645*275*160

(15KG)

Light Parameters
Light Power(W) 40W 60W 80W
Typical Liminous Flux(Lm) 6400 9600 12800
LED Light Effect(Lm/W) 210Lm/W
Color Temperature(K) 2700-6500
Beam Angle(°) 90° / 75°x 150°
Rainy Days(D) 3~5 3~5 3~5
Environment Parameters
Charging
Temperature(℃)
0 ℃ to +60 ℃
Discharging
Temperature(℃)
-20 ℃ to +60 ℃
Storage
Temperature(℃)
-20 ℃ to +45 ℃
Installation
Dia. of Top Pole (mm) 89~105 89~105 89~105
Installation Height(m) 6~8 7~9 10~12
Installation Distance (m) 35~40 35~40 40~45

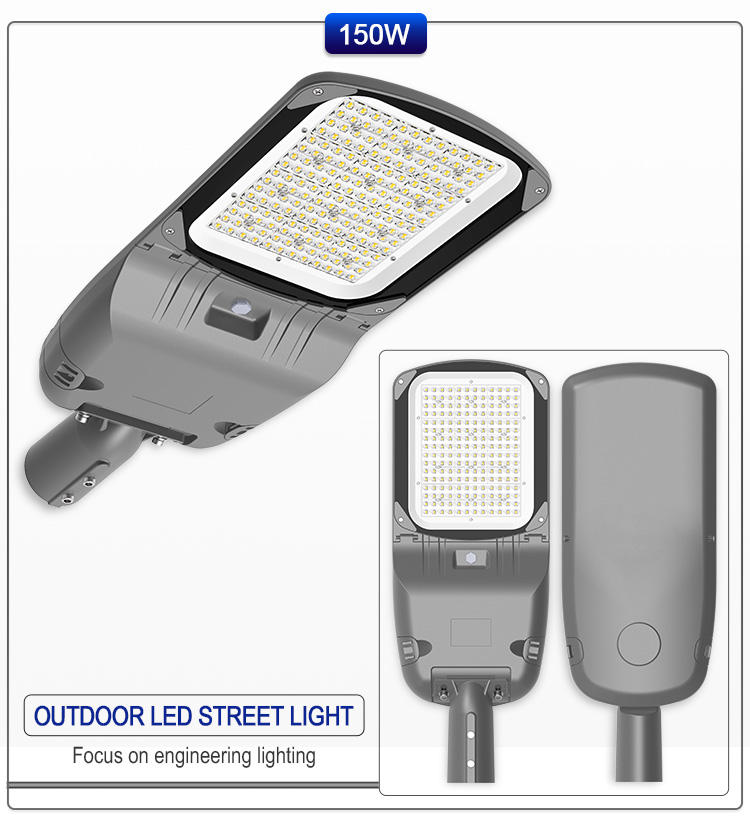

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

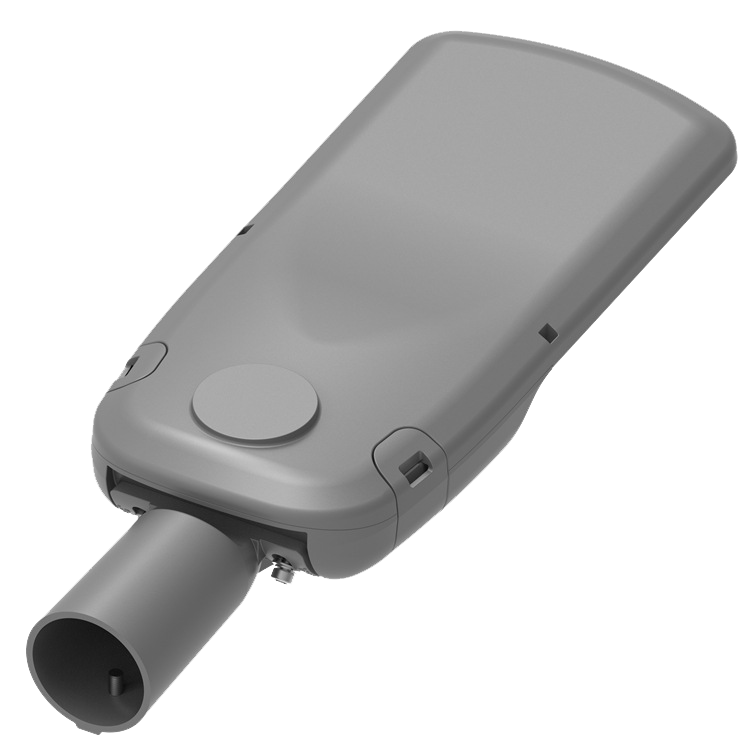

 LED street light

Product size
560x200x98mm/610x245x98mm/660x245x98mm/714x340x98mm
Material

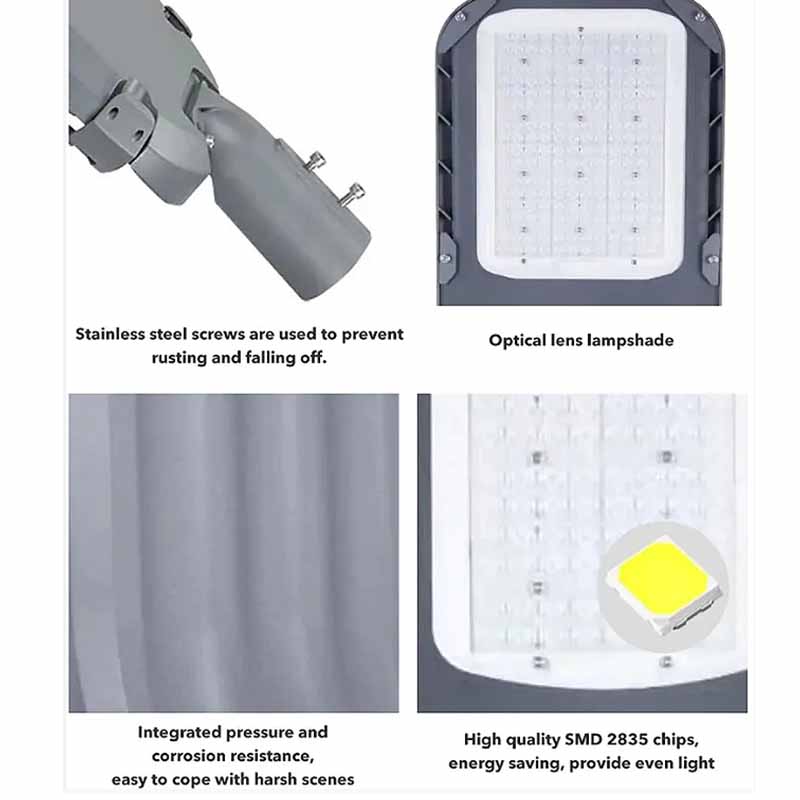

Die-cast aluminum + tempered glass + 316 stainless steel screws
Discharge Time
Die-cast aluminum + tempered glass + 316 stainless steel screws
Operation Temp
-40-+50℃
CCT
2700K/3000K/4100K/5000K/6500K
IP
IP66/IP68
Beam Angle
T2/T3/T4/T5

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell





outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

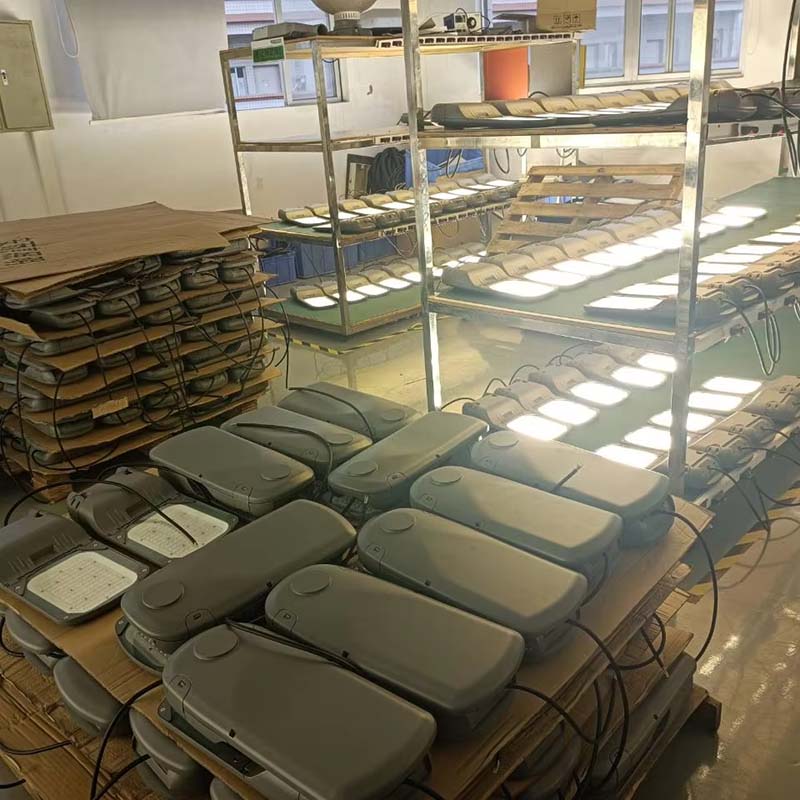

18 Years Production Experience In The Industry
High brightness: The lighting range of LED lamp beads is about 100-500㎡. Built-in large capacity battery. After fully charged for 6-8 hours, it can provide stable and bright lighting within 12-24 hours. No flash frequency.

One light two mode function key (remote control switch): Mode one (new charging indicator light) will automatically turn on the dim mode at dark, all people come on, and people leave dim light, and the lights will automatically turn off at dawn. Mode two (remote control always on + timing + light control) with memory function, automatic light on at dark (100% full light) automatic light off at dawn without human body induction.
Multiple control: the remote control distance can reach 40 feet. You can set the automatic mode, 9 levels of brightness, 3/5/8 hours timing mode. Easy to use.

No charge: Solar street lights use solar power. It not only saves energy, but also saves money. IP65 can work normally even in rainy days.

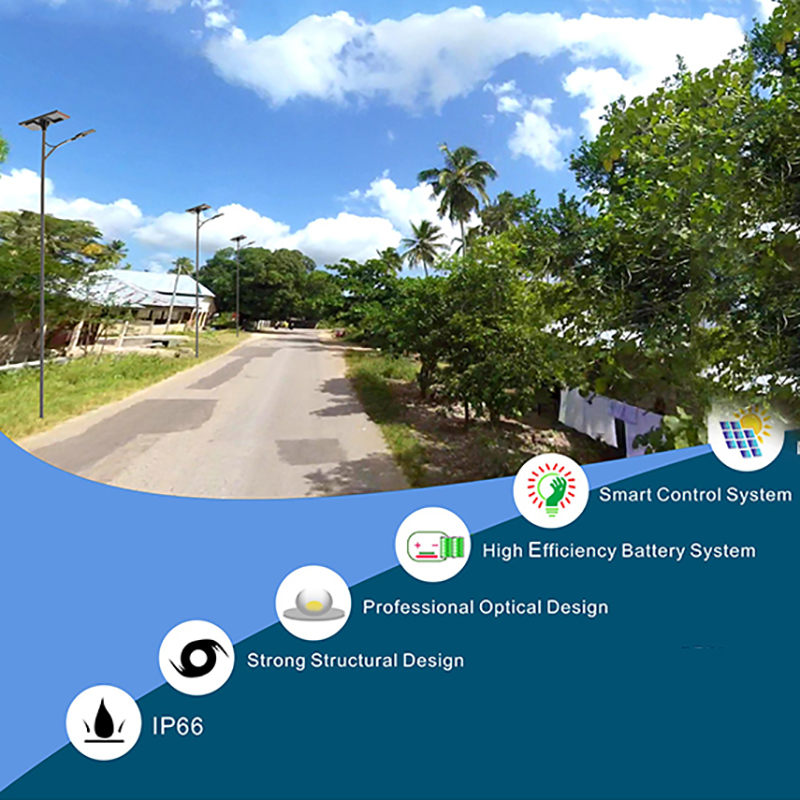

Application: No wiring is required, so you can install solar street lights anywhere. Ideal for streets and paths, courtyards, parks, squares, private gardens, courtyards, etc.
