Elegant Integrated Design,High class Aluminum alloy case
Easy maintenance, battery replacement can be completed on the lamp pole
Battery Type :
Ternary lithium battery 62000mahSolar Panel Power :
60WLED Power :
60WLED brand :
LEADRAYModel No. :
LRC-L60W

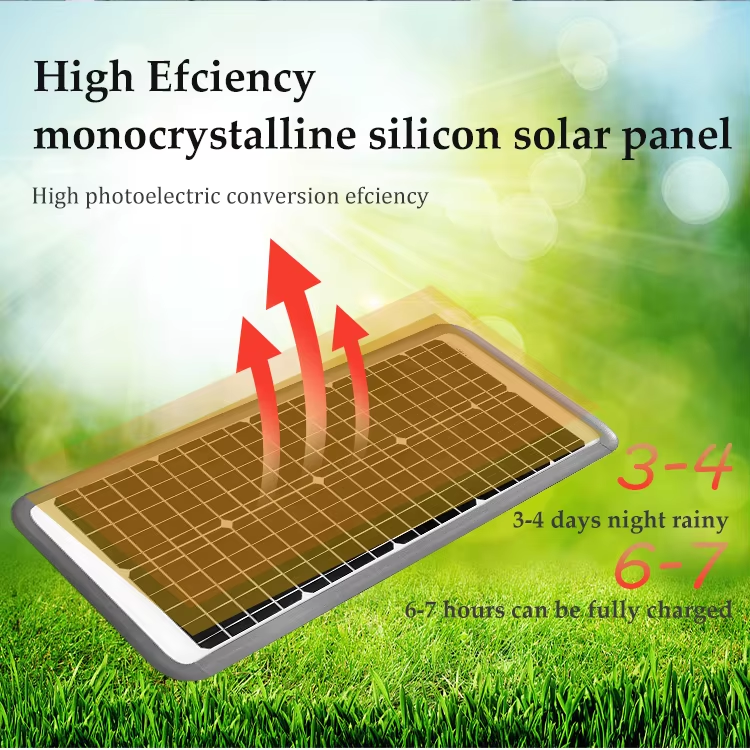

A-grade Mono Solar Panels
High photoelectric conversion rate.Fast storage of electrical energy
1.Two colors, adjustable mold design
2. Adopt high brightness ED chip
3. Large capacity deep cycle lithium battery, longer service life
4.High quality solar cells, small size, high efficiency.
5. Night sensor + PIR motion sensor + remote control, support 3-4 nights after full charge
6. Easy installation, square light distribution design, 70*140 lighting Angle.
7. Micro current switch, safer.

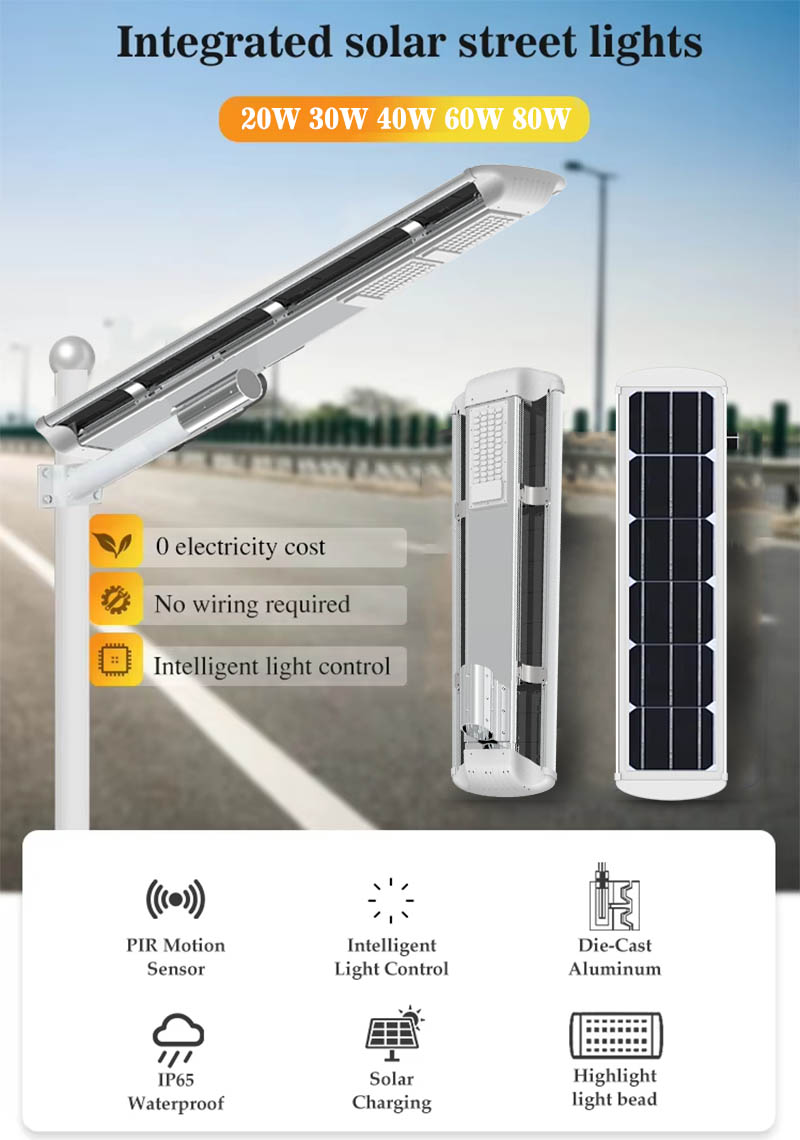

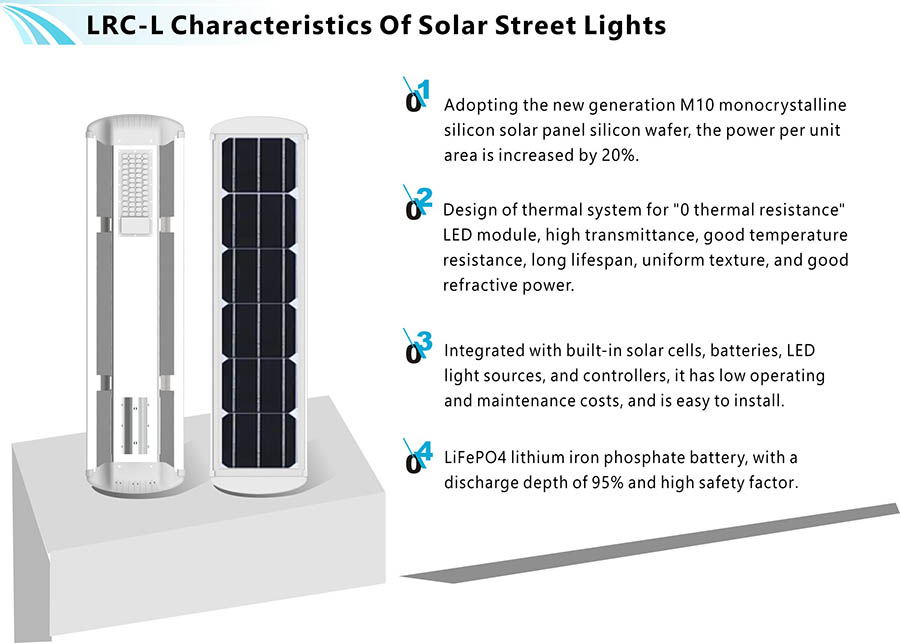

LEADRAY All In One Integrated Solar Powered Street Light
|
|||||
Power
|
20W
|
30W
|
40W
|
60W
|
80W
|
Single crystal solar panels
|
6V/20W
|
6V/30W
|
6V/40W
|
6V/60W
|
6V/80W
|
Solar panel size
|
586*260*68mm
|
796*260*68mm
|
1016*260*68mm
|
1426*260*68mm
|
1736*260*68mm
|
Battery
|
Lithium iron phosphate
3.2V 20AH
|
Lithium iron phosphate
3.2V 30AH
|
Lithium iron phosphate
3.2V 40AH
|
Lithium iron phosphate
3.2V 60AH
|
Lithium iron phosphate
3.2V 90AH
|
LED
|
Philips3030,48PCS
|
Philips3030,48PCS
|
Philips3030,48PCS
|
Philips3030,96PCS
|
Philips3030,144PCS
|
Product size(mm)
|
640*300*130
|
850*300*130
|
1060*300*130
|
1480*300*130
|
1790*300*130
|
Light efficiency
|
180LM/W
|
180LM/W
|
180LM/W
|
180LM/W
|
180LM/W
|
Controller
|
MPPT、PWM selectable
|
||||
Lighting mode
|
Infrared sensing+segmented time control + intelligent control
|
||||
Recommended
installation height
|
3-5 meter
|
4-6 meter
|
5-7 meter
|
6-8 meter
|
7-9 meter
|
Application
|
Highway, parking lot, courtyard, road, outdoor, etc.
|
High Brightness
Onticallens
Light transmittance>96% Light distribution is wide
Pro-MPPT Double Patented solar controller
Charging efficiency is higher than ordinary PWM 40%-50%

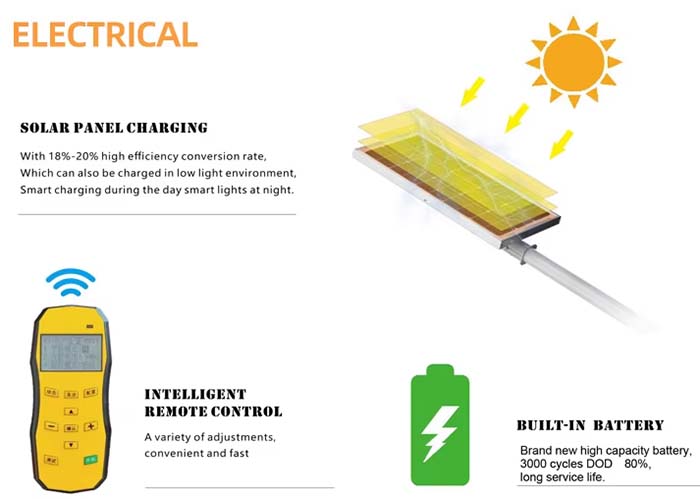

High conversion Rate
Monocrystalline silicon solar panels6h fully charging, lighting about 12h
LiFePO4 Battery
High-capacity lithium iron phosphate battery, good charging anddischarging performance, long battery life and lasting lighting time.
Production Process
|
Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |

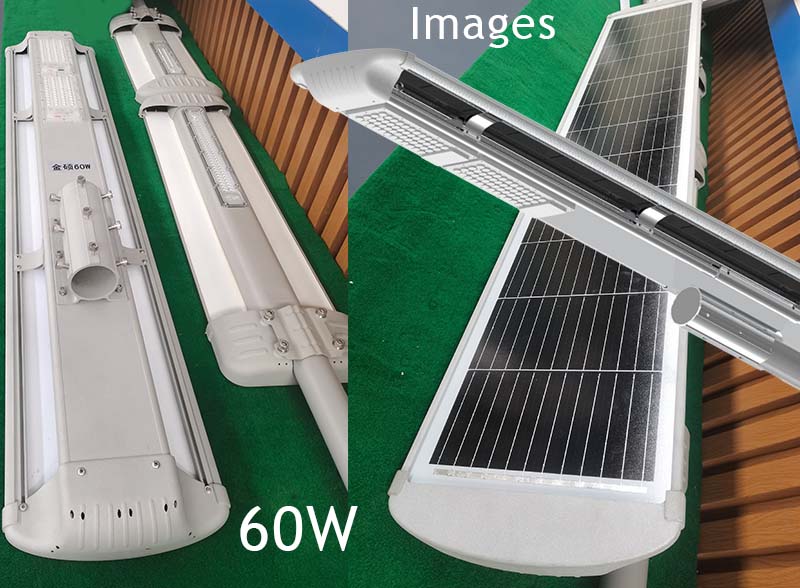

60 Watt Aluminium Integrated All in One Solar Street Light

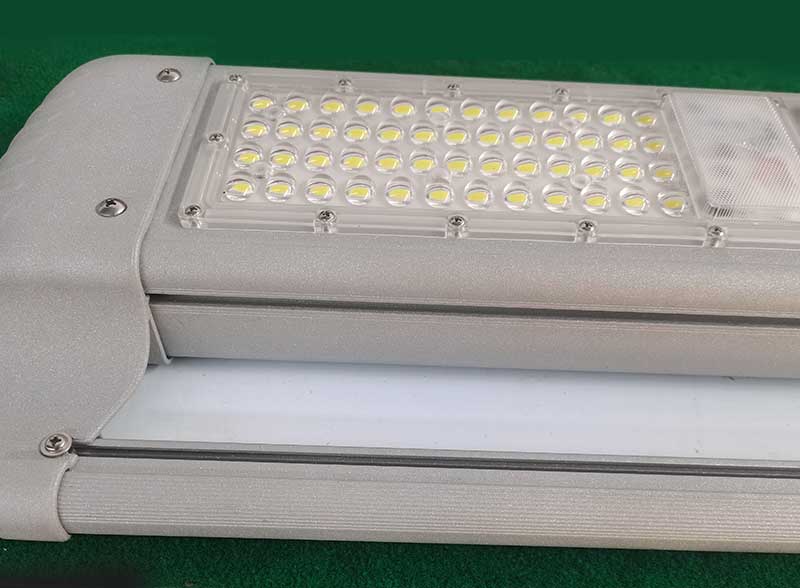

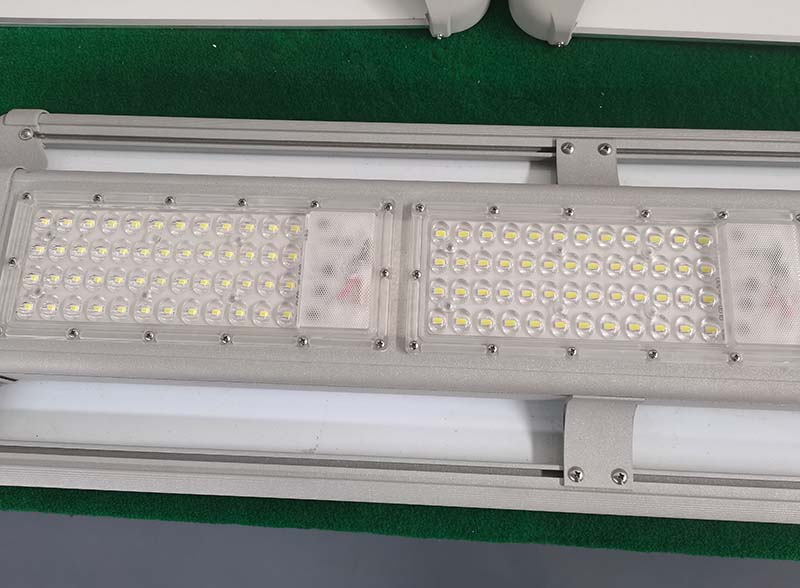

HIGH QUALITY LED WICK
High-power output, providing high-brightness illumination, moreuniform illumination, continuous illumination for 12 hours

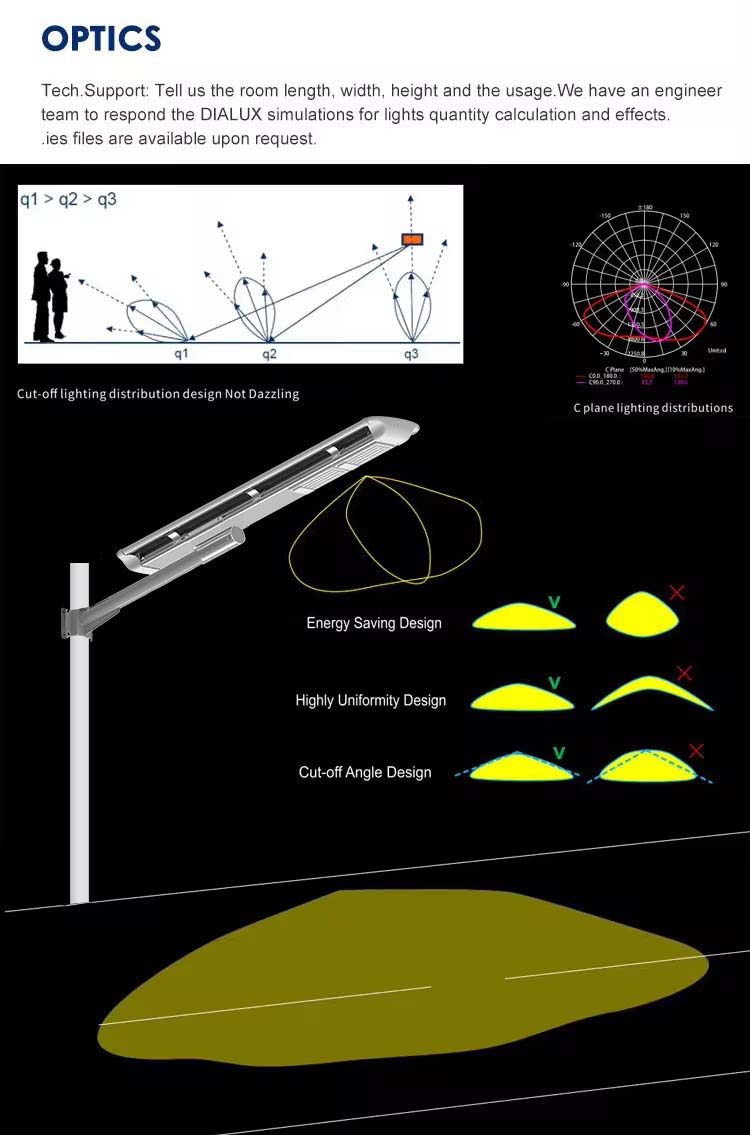

Support: Tell us the room length, width, height and the usage.We have an engineerteam to respond the DlALUX simulations for lights quantity calculation and effects.ies files are available upon request.

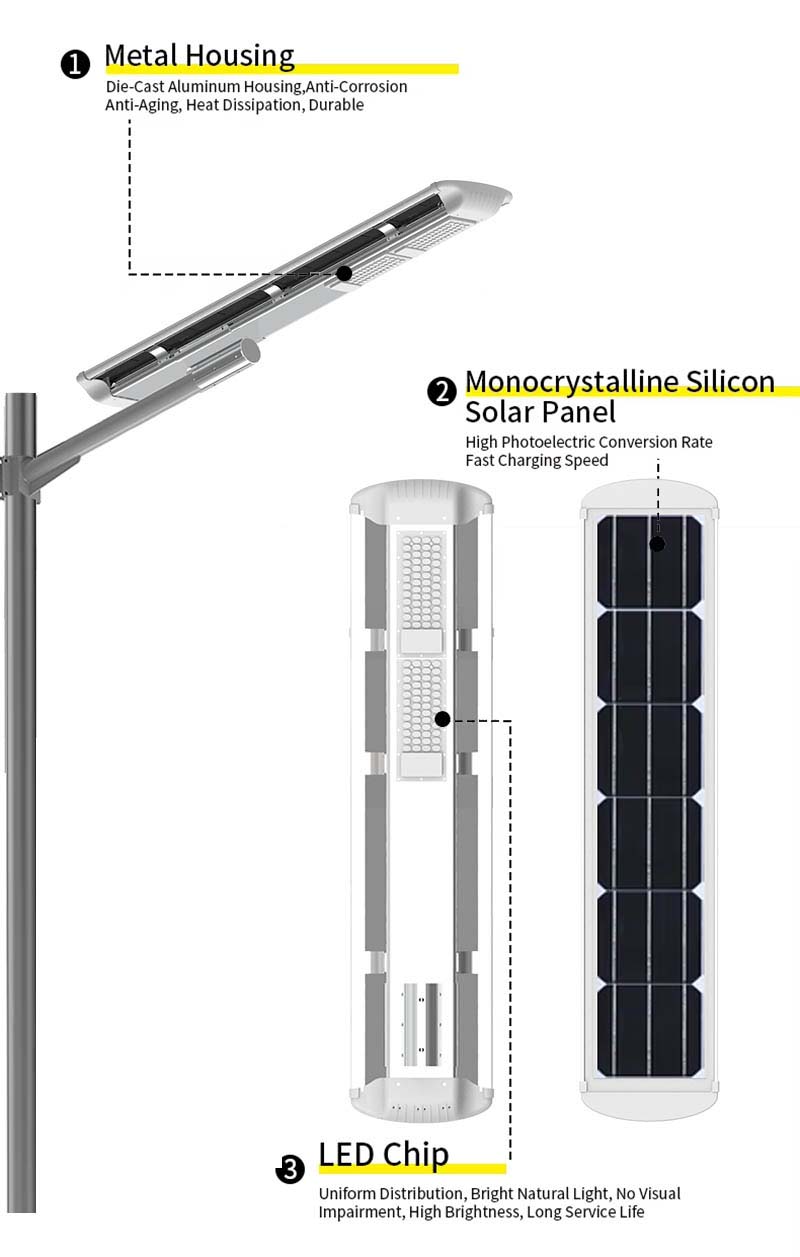

ALUMINUM LAMP HOUSING
Surface baking paint, thickened heat sink, waterproof and an-ticorrosive, cold and high temperature resistant.
