Model No. :
LR-PES-600/1000WCLED brand :
LEADRAYLED Power :
4/5WSolar Panel Power :
AC Adaptor, Car, Gas Generator, Solar PanelBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
NoColor :
WhitePort Of Dispatch :
ShenzhenPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk

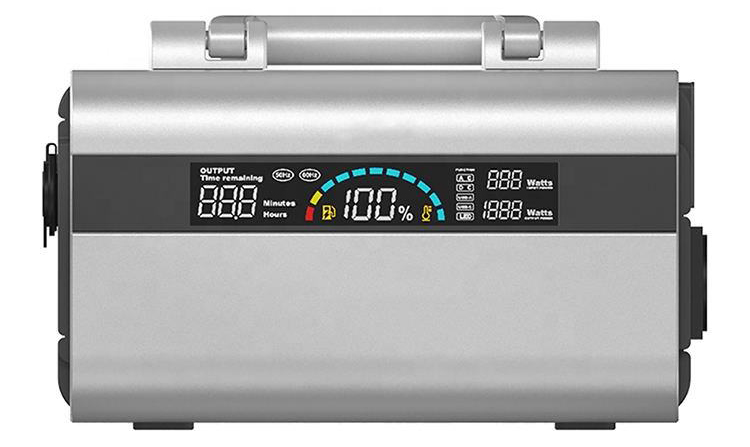

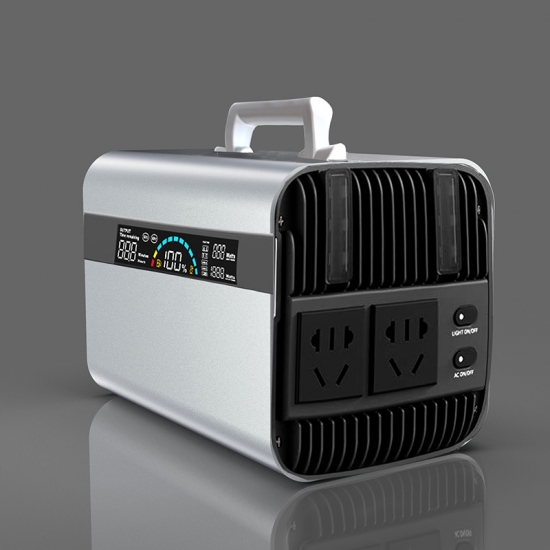

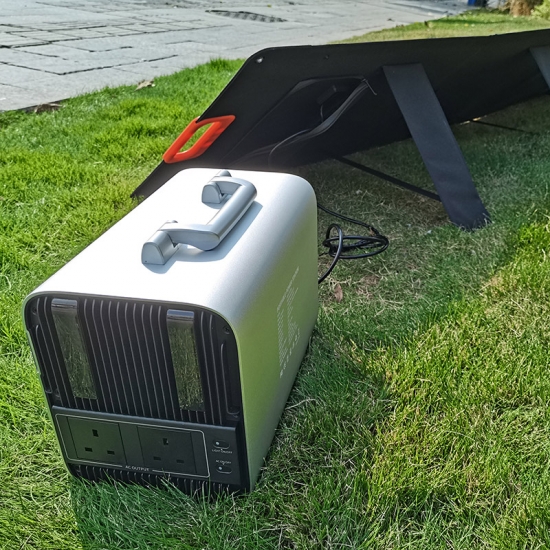

Portable power station 600W 1000W Energy storage outdoor power supply portable mobile power generator solar charging.
Place of Origin: Shandong, China
Brand Name: Leadray

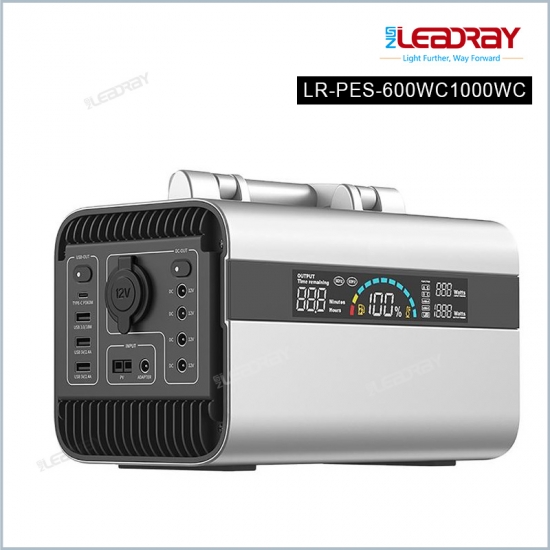

Model Number: LR-PES-600WC/1000WC
Power Source: AC Adaptor, Car, Solar Panel
Battery Type: LiFePO4
Inverter Type: Modified Sine Wave
Controller Type: MPPT
Special Features: Type C, Flashlight, jump starter, Air Compressor
Charging time by AC power: About 5 hours
Charging mode: Adapter/solar panel
DC output: 12V/3.5A
AC output: 110V 60Hz/220V 50Hz 100W Adapter(22V/5A)
USB output: 5V/2.4A*2
Life Cycles: 3000
Product Size: 286*150*158mm
Accessories: Adapter+Instructions
TECHNICAL DATA
|
LR-PES-600WC/1000WC
|
|
Rated Power(W)
|
600W
|
1000W
|
Peak Power(W)
|
1000W
|
2000W
|
Rated Capacity(WH)
|
577WH
|
896WH
|
Product Net Weight(kg)
|
About 7.5kg
|
About 9.95kg
|
Input
|
||
AC Output
|
AC 110V-220V 60/50Hz 100W(Adaptor22V/5A)
|
|
Solar Energy PV
|
18-24V/5A 120W(MAX)
|
18-24V/8A 200W(MAX)
|

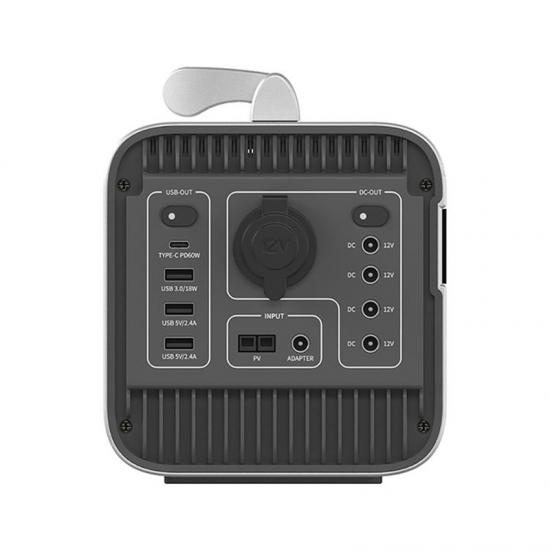

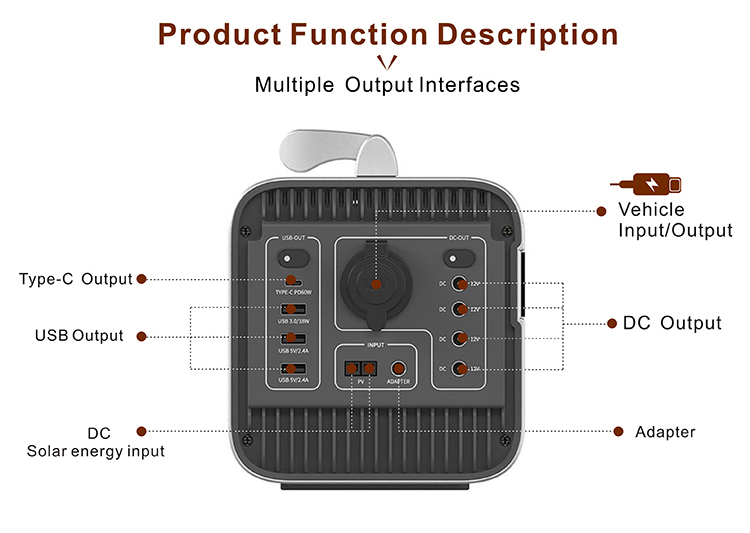

Output
|
||
AC Output
|
220V 50Hz/110V 60Hz Pure Sine Wave
|
|
QC3.0*1
|
5V⎓3A,9V⎓2A,12V⎓1.5A 18W(MAX)
|
|
USB-A*2
|
5V⎓2.4A
|
|
Type-C*1
|
PD3.0,100W(MAX)
|
|
DC 5521*4
|
12V⎓3.5A
|
|
Car Charger Output*1
|
13.2V⎓5-10A 132W(MAX)
|
|
Lights(W)
|
4W
|
5W
|
Battery Specification
|
||
Battery Type
|
High Quality LiFePO4
|
|
Cycle Lifespan
|
3000 times Capacity above 80%
|
|

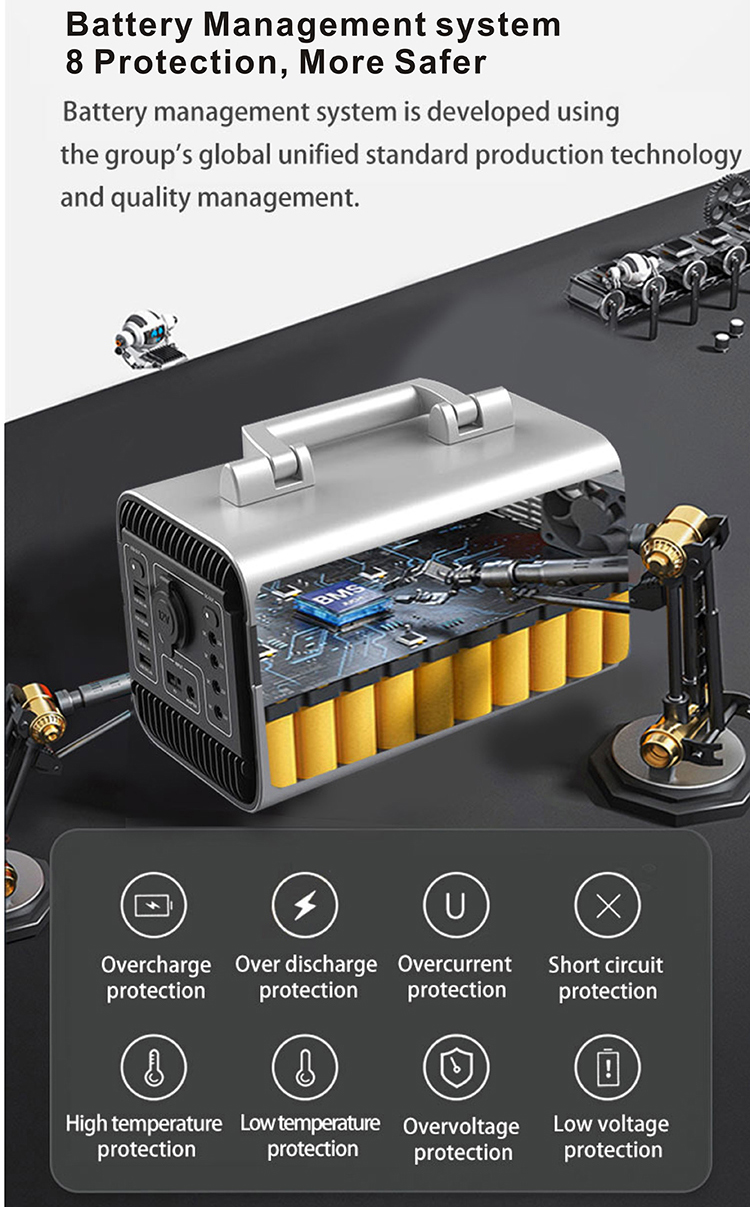

Safety Protection
|
Charge and discharge/Over-/under-voltage/Over Current/
Short circuit/High/Low Temp |
|
Working Temperature
|
||
Charging Temperature
|
0℃-45℃
|
|
Discharging Temperature
|
-10℃-60℃
|
|
Storage Temperature
|
-20℃-45℃
|

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;
With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team, independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
to ensure that the after-sales service can be responded and resolved within 24 hours.
