30W Stand Alone Integrated 30W Pole Led Solar Street Light 6500K White Light IP66 Waterproof Road Led Garden Solar Street Lights

30W Stand Alone Integrated 30W Pole Led Solar Street Light 6500K White Light IP66 Waterproof Road Led Garden Solar Street Lights

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
Available
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
50W
LED Power :
30W
LED brand :
LEADRAY
Model No. :
LRC-I30W

Inquiry now

Product Details

OEM Aluminum housing outdoor ip65 waterproof 20w 30w 40w 60w 80w all in one led solar street light

30W Stand Alone Integrated 30W Pole Led Solar Street Light 6500K White Light IP66 Waterproof Road Led Garden Solar Street Lights.

Wholesale green energy integrated lithium battery led solar street light

Product Application Area:
Courtyard/Garden/Park/Street/Roadway/pathway/ParkingLot/Private road/Sidewalk/Public
square/plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/ Wildlife area/Remote Area/Military Base

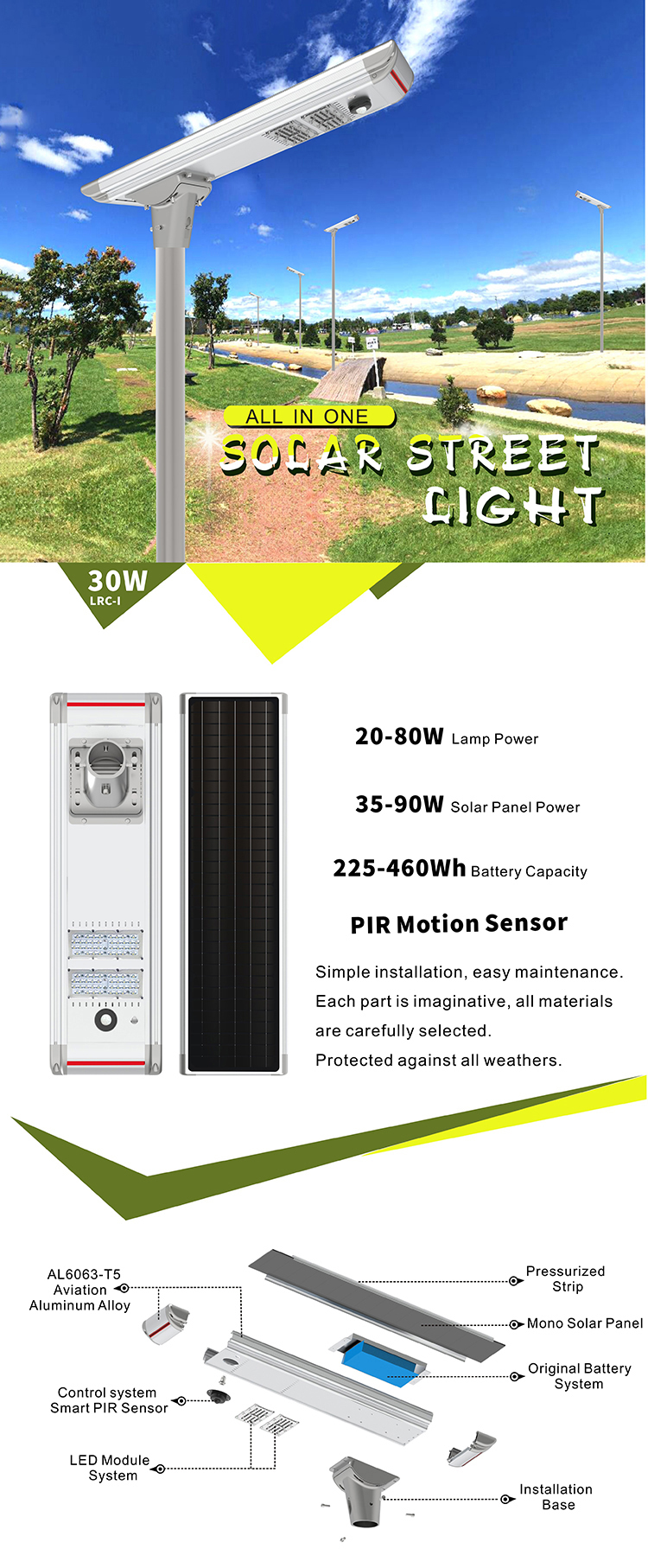

Features & Specification
Solar Panel	Max Power	50W
	Type	Monocrystalline
	Lifespan	25 years
Battery	Type	Lithium LiFePO4 battery
	Capacity	307Wh
	Lifespan	8-10 years
Charge Time	By Strong Sunshine	6-8 hours
Lighting Time	Full Power	12-14hours
Lighting Time	30% saving mode	39 hours (3~5 rainy days)
Lighting Mode	PIR Sensor: 30% brightness when no motion, 100% Brightness whe motion dectected.
Environment Parameter	Discharing temperature	-20 ℃ to +60 ℃
	Charging Temperature	0 ℃ to +60 ℃
	Storage temperature	-20 ℃ to +45 ℃
Installation	Mounting Height	4-6m
	Top pole diameter	60-76mm
	Space Between Lights	15-25m
Material	Superior aviation aluminum AL6063-T5
Certification	CE RoHs SASO IEC
IP Rating	IP65

Factory Direct Road Lamp Integrated 30w Outdoor All In One Solar Street Light Smart control For Street/Roadway

Feature：

1.Original integrated concept, double arc streamline element design;New generation of battery cell, power of same area increased by 20%.

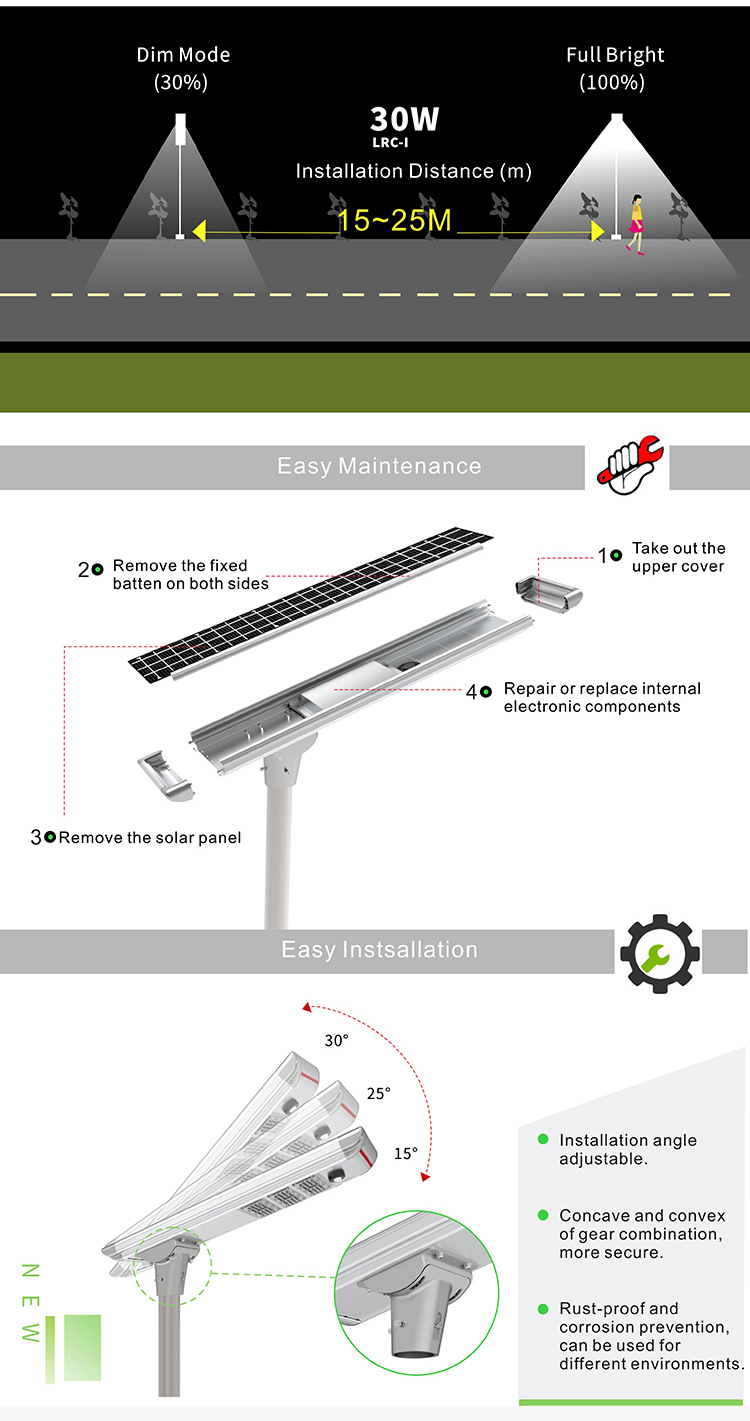

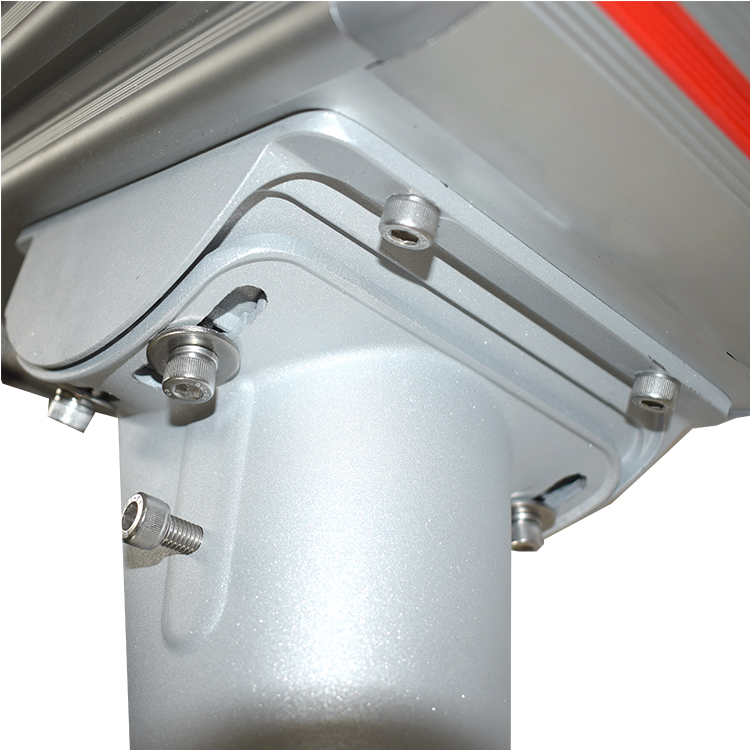

2.Innovative structure design, adjustable installation angle, easy maintenance.

3.Smart control with cell phone APP, Bluetooth MESH networking.

4.Adopts A grade high quality semiconductor M10 solar cells.

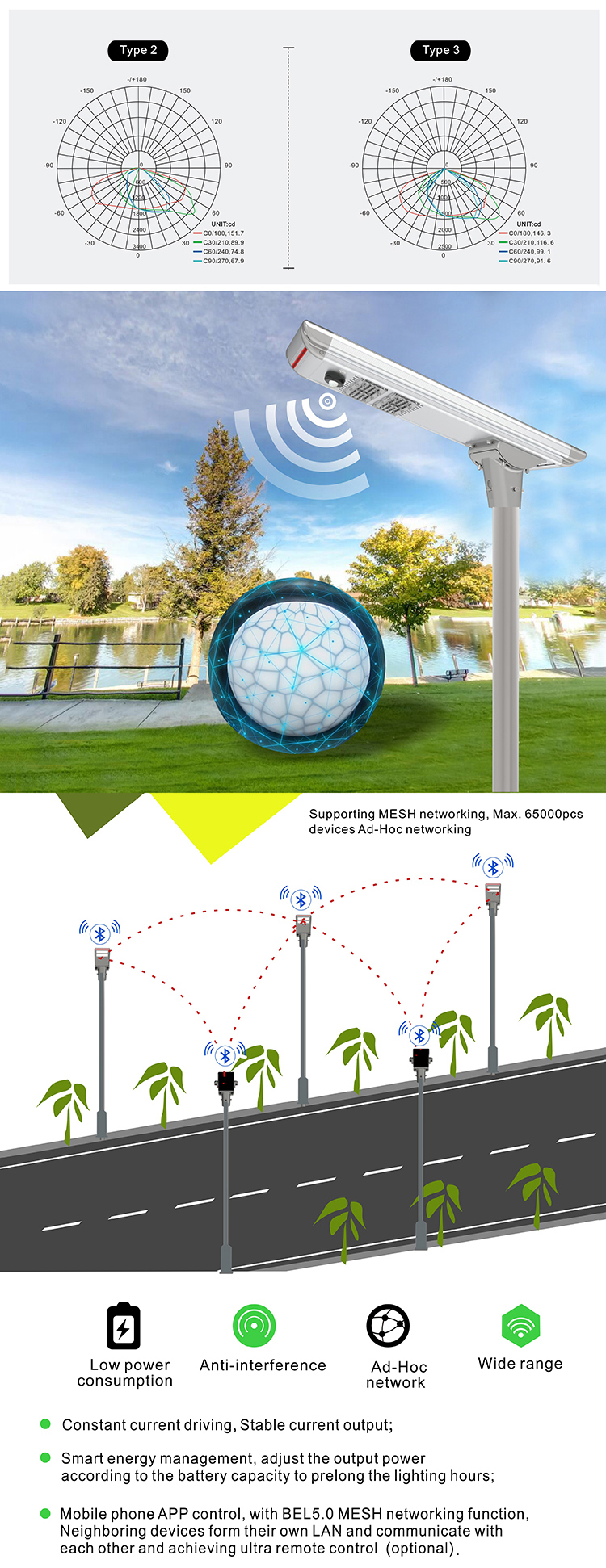

5.Supporting MESH networking, Max. 65000pcs devices Ad-Hoc networking.
6.Military grade LiFePO4 Battery, High Safety and stability.

7.Constant current driving, Stable current output.

8.Dual charge and discharge management, temperature protection, military grade IC chip control.
Mobile phone APP control, with BEL5.0 MESH networking function,Neighboring devices form their own LAN and communicate with each other and achieving ultra remote control (optional).

Model	LRC-I20W	LRC-I30W	LRC-I40W	LRC-I60W	LRC-I80W
Physical Parameters
LED Brand	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS
LED Qty(pcs)	36	72	108	144	180
Power of PV Module(W)	35W	50W	60W	70W	90W
LiFePO4 Battery Capacity	225Wh	307Wh	346Wh	46.8Wh	460.8Wh
Light Mode	PIR/Time Control	PIR/Time Control	PIR/Time Control	PIR/Time Control	PIR/Time Control
Product Dimension (mm)	679.525865	859.525865	1589.525865	999.525865	1229.525865
Product N.W.(kg)	9.3	10.3	11.3	13.3	15.3
Package #1 Dimension(mm)& G.W. (1 Lamps/CTN)	735315200 (10.6KG)	915315200 (11.5KG)	1055315200 (12.6KG)	1285315200 (15KG)	1645315200 (17KG)
Package #2 Dimension(mm)& G.W. (1 Bracket/CTN)	215215210 (1.3KG)
Light Parameter
Light Power(W)	20W	30W	40W	60W	80W
Tyical Liminous Flux(Lm)	3200	4800	6400	9600	12800

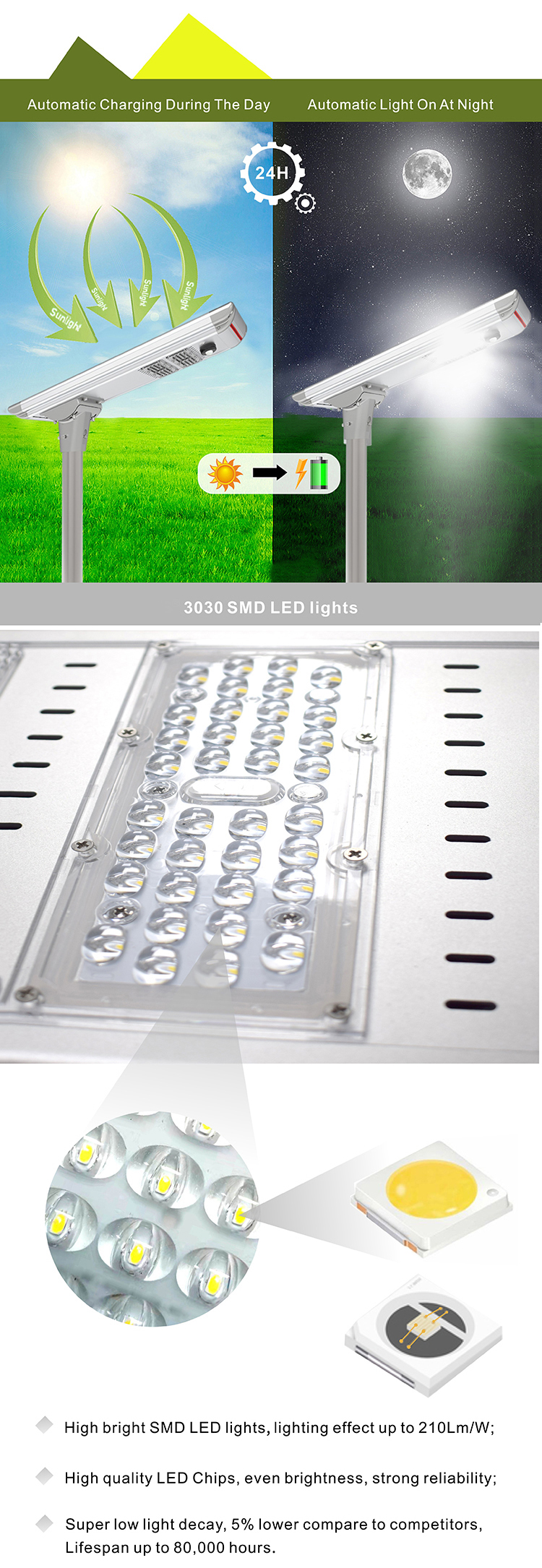

LED Light E ﬀ ect (Lm/W)	210Lm/W
Color Temperature(K)	2700-6500
Beam Angle(°)	150°x 80°
Rainy Days(D)	3~5
Environment Parameter
Charging Temperaure(℃)	0 ℃ ~ +60 ℃
Discharging Temperature(℃)	-20 ℃ to +60 ℃
Storage Temperature(℃)	-20 ℃ to +45 ℃
Installations
Dia. of Top Pole (mm)	60~76	60~76	60~76	60~76	60~76
Installation Height(m)	3~5	4~6	5~7	7~8	7~59
Installation Distance (m)	10~20	15~25	20~30	25~35	30~40

Military grade Lifepo4 Battery , High Safety and stability；

Long lifespan , More than 2000 Battery light cycles ;

Dual charge and discharge management , temperature protection , military grade IC chip control .

13mm gap between battery and solar panel , more air convection and effectively block the high temperature of the external environment transferring the heat to battery .

Low-surface aluminum panel design , efficient and rapid thermal conductivity , increase the heat dissipation area，effectively increase the heat dissipation effect , prolong the lifespan .

Smart Control System

Constant current driving , Stable current output；

Smart energy management , adjust the output power according to the battery capacity to prelong the lighting hours；

Mobile phone APP control , with BEL5 . 0 MESH networking function，Neighboring devices form their own LAN and communicate with each other and achieving ultra remote control ( optional ).

Quantity(pieces)	1 - 5	6 - 200	201 - 1000	>1000
Est. Time(days)	10	20	25	To be negotiated

Packaging & Delivery

Packaging Details Packing:

CTN #1 (2 sets/CTN):

Size: 915*315*200mm

G.W.: 11.5KG Port QINGDAO Lead Time:

Our service:

1. Reply you enquiry in 24Hrs

2. Feedback of complaint in 24Hrs

3. OEM/ODM are welcomed

4. Exclusive agents in local country are welcomed

Our service:

1. Reply you enquiry in 24Hrs

2. Feedback of complaint in 24Hrs

3. OEM/ODM are welcomed

4. Exclusive agents in local country are welcomed

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.

Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.

Q3. Can I use the all in one LED solar street light product on the islands?

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.

Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5. What about the lead time?

A5: We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.

Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.

Q7. How do you ship the goods and how long does it take to arrive?

A7: We usually ship by DHL, UPS, FedEx or TNT for sample orders. It usually takes 3-5 days to arrive. Airline and sea shipping is preferable for bulk order.
