The Leadray 40W integrated solar LED street light combines high efficiency, energy saving, intelligent control, and robust protection.
With its core advantages such as PIR human body sensing, APP remote control, and IP65 waterproofing, it has become the preferred solution for outdoor lighting scenarios, providing a stable and bright lighting experience in courtyards, roads, and public areas.

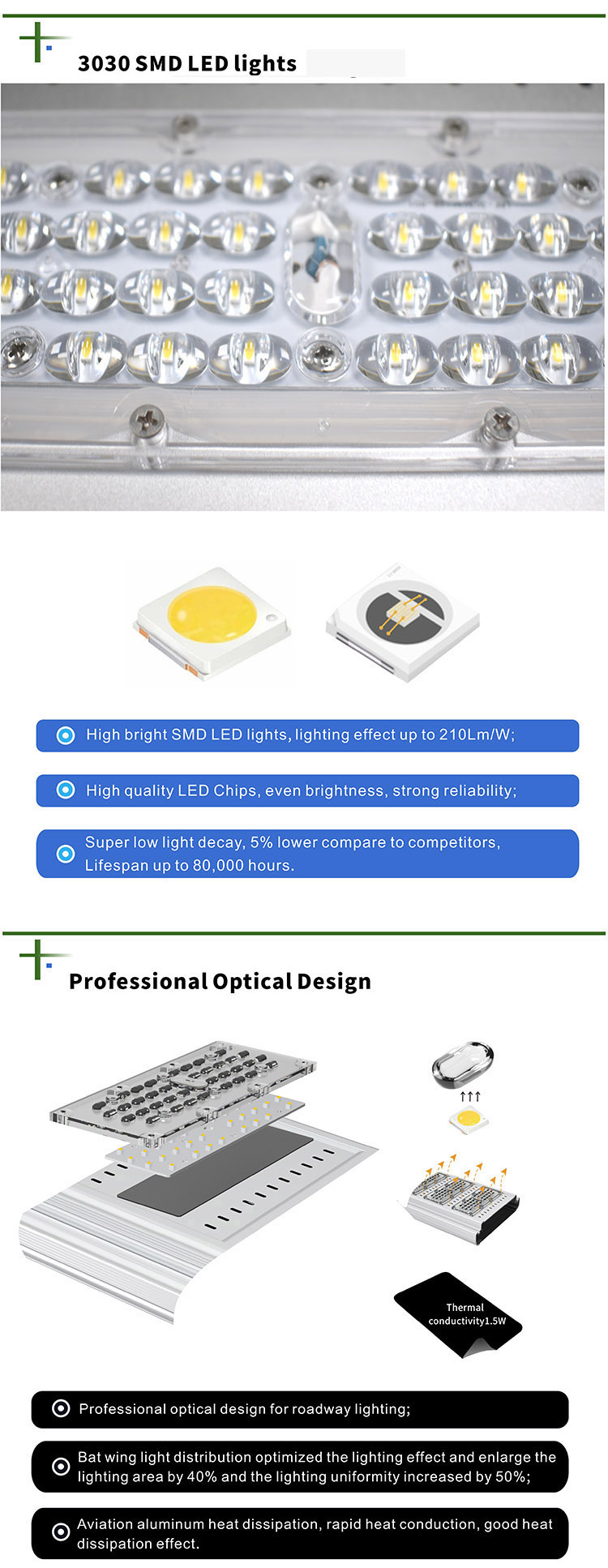

This 40W high-power LED light source uses custom-designed Philips LED chips, boasting a luminous efficacy of up to 210lm/W. It outputs pure white light (commonly 6500K daylight white), providing uniform and clear illumination with wide coverage, easily meeting the lighting needs of roads, courtyards, and other scenarios. The LED lifespan exceeds 50,000 hours, with light decay of less than 3%, ensuring stable performance over long-term use.

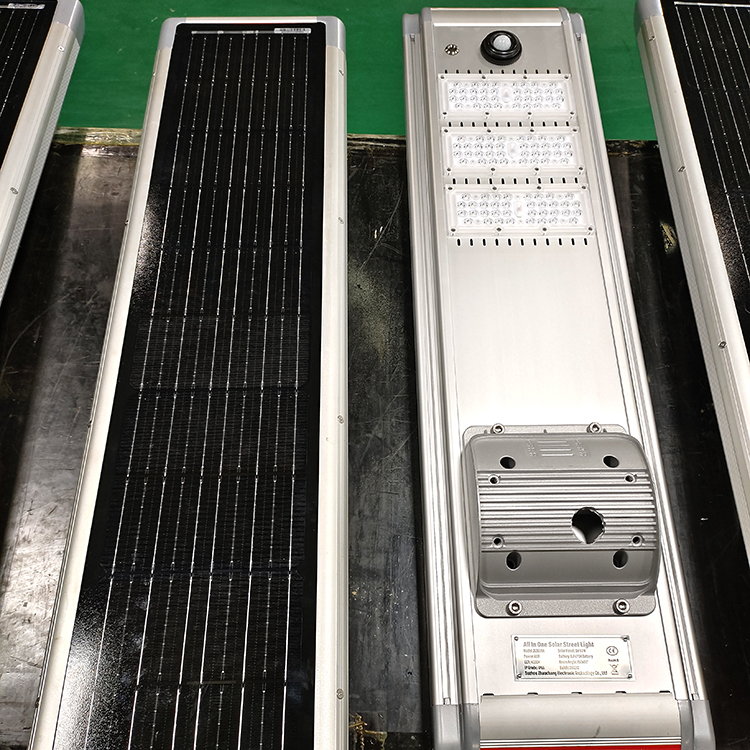

Equipped with a high-efficiency monocrystalline silicon solar panel, it offers high energy conversion efficiency. Combined with an MPPT intelligent controller, it can achieve a full charge in 6-8 hours, far exceeding the charging efficiency of ordinary solar lights.
China Best Outdoor Waterproof Integrated Solar Power Street Light Led Smart control with cell phone APP.
Courtyard/Garden/Park/Street/Roadway/pathway/ParkingLot/Private road/Sidewalk/Public
|
Features & Specification
|
||
|
Solar Panel
|
Max Power
|
60W
|
|
Type
|
Monocrystalline
|
|
|
Lifespan
|
25 years
|
|
|
Battery
|
Type
|
Lithium LiFePO4 battery
|
|
Capacity
|
346Wh
|
|
|
Lifespan
|
8-10 years
|
|
|
Charge Time
|
By Strong Sunshine
|
6-8 hours
|
|
Lighting Time
|
Full Power
|
12-14hours
|
|
30% saving mode
|
39 hours (3~5 rainy days)
|
|
|
Lighting Mode
|
PIR Sensor: 30% brightness when no motion, 100% Brightness whe motion dectected.
|
|
|
Environment Parameter
|
Discharing temperature
|
-20 ℃ to +60 ℃
|
|
Charging Temperature
|
0 ℃ to +60 ℃
|
|
|
Storage temperature
|
-20 ℃ to +45 ℃
|
|
|
Installation
|
Mounting Height
|
5-7m
|
|
Top pole diameter
|
60-76mm
|
|
|
Space Between Lights
|
20-30m
|
|
|
Material
|
Superior aviation aluminum AL6063-T5
|
|
|
Certification
|
CE RoHs SASO IEC
|
|
|
IP Rating
|
IP65
|
|
40W All In One Exterior All Wattage Outdoor Led Ip65 Lamp Focos Solar Street Light

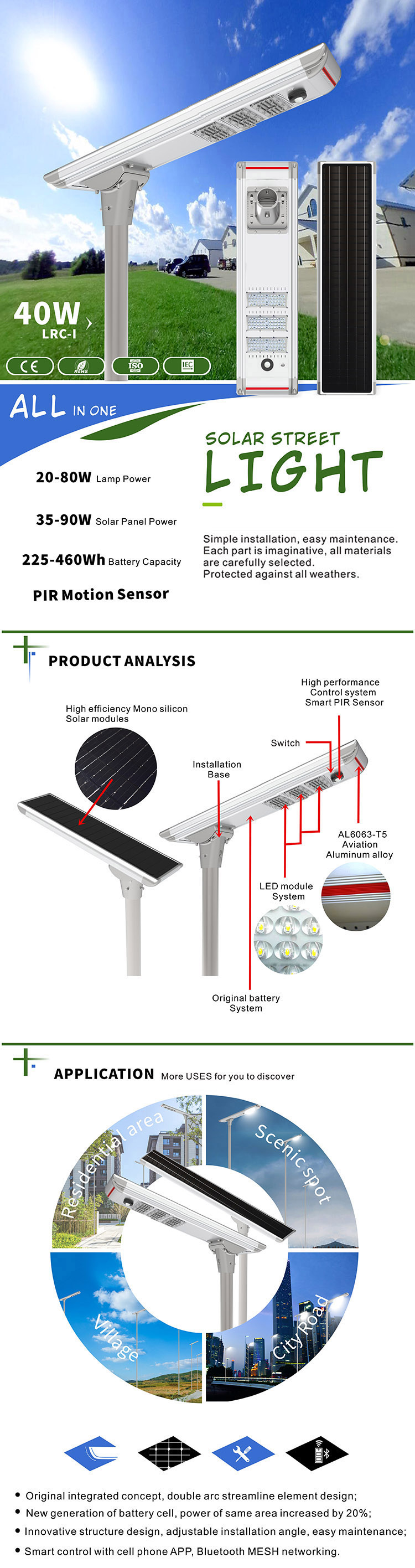

1.Original integrated concept, double arc streamline element design;New generation of battery cell, power of same area increased by 20%.
2.Innovative structure design, adjustable installation angle, easy maintenance.
3.Smart control with cell phone APP, Bluetooth MESH networking.
4.Adopts A grade high quality semiconductor M10 solar cells.
5.Supporting MESH networking, Max. 65000pcs devices Ad-Hoc networking.
6.Military grade LiFePO4 Battery, High Safety and stability.
7.Constant current driving, Stable current output.
8.Dual charge and discharge management, temperature protection, military grade IC chip control.
Mobile phone APP control, with BEL5.0 MESH networking function,Neighboring devices form their own LAN and communicate with each other and achieving ultra remote control (optional).
| Model | LRC-I20W | LRC-I30W | LRC-I40W | LRC-I60W | LRC-I80W |
| Physical Parameters | |||||
| LED Brand | PHILIPS | PHILIPS | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 36 | 72 | 108 | 144 | 180 |
| Power of PV Module(W) | 35W | 50W | 60W | 70W | 90W |
|
LiFePO4
Battery Capacity
|
225Wh | 307Wh | 346Wh | 46.8Wh | 460.8Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control | PIR/Time Control | PIR/Time Control |
| Product Dimension (mm) | 679.5*258*65 | 859.5*258*65 | 1589.5*258*65 | 999.5*258*65 | 1229.5*258*65 |
| Product N.W.(kg) | 9.3 | 10.3 | 11.3 | 13.3 | 15.3 |
|
Package #1 Dimension(mm)& G.W. (1 Lamps/CTN) |
735*315*200
(10.6KG) |
915*315*200
(11.5KG) |
1055*315*200
(12.6KG) |
1285*315*200
(15KG) |
1645*315*200
(17KG) |
|
Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
215*215*210
(1.3KG) |
||||
| Light Parameter | |||||
| Light Power(W) | 20W | 30W | 40W | 60W | 80W |
|
Tyical Liminous
Flux(Lm)
|
3200 | 4800 | 6400 | 9600 | 12800 |
|
LED Light E ff ect (Lm/W) |
210Lm/W | ||||
| Color Temperature(K) | 2700-6500 | ||||
| Beam Angle(°) | 150°x 80° | ||||
| Rainy Days(D) | 3~5 | ||||
| Environment Parameter | |||||
|
Charging
Temperaure(℃) |
0 ℃ ~ +60 ℃ | ||||
| Discharging Temperature(℃) |
-20 ℃ to +60 ℃ | ||||
|
Storage
Temperature(℃) |
-20 ℃ to +45 ℃ | ||||
| Installations | |||||
| Dia. of Top Pole (mm) | 60~76 | 60~76 | 60~76 | 60~76 | 60~76 |
| Installation Height(m) | 3~5 | 4~6 | 5~7 | 7~8 | 7~59 |
| Installation Distance (m) | 10~20 | 15~25 | 20~30 | 25~35 | 30~40 |

40W integrated solar LED street light features a built-in high-capacity lithium iron phosphate battery (LifePO4), excellent safety performance, high temperature resistance up to 60℃ or higher, more than 2000 charge-discharge cycles, and supports normal lighting for 2-3 consecutive cloudy or rainy days, eliminating concerns about power outages on cloudy days.

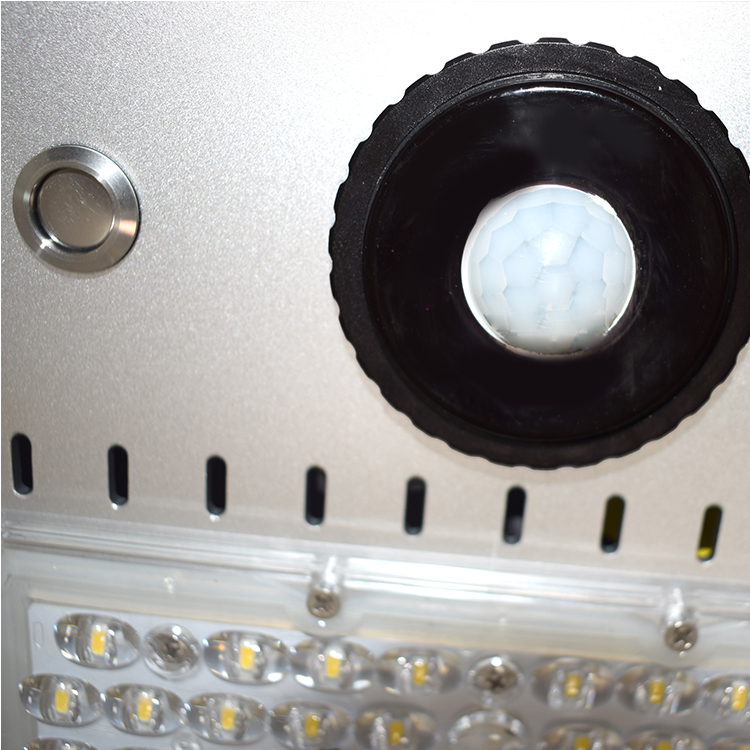

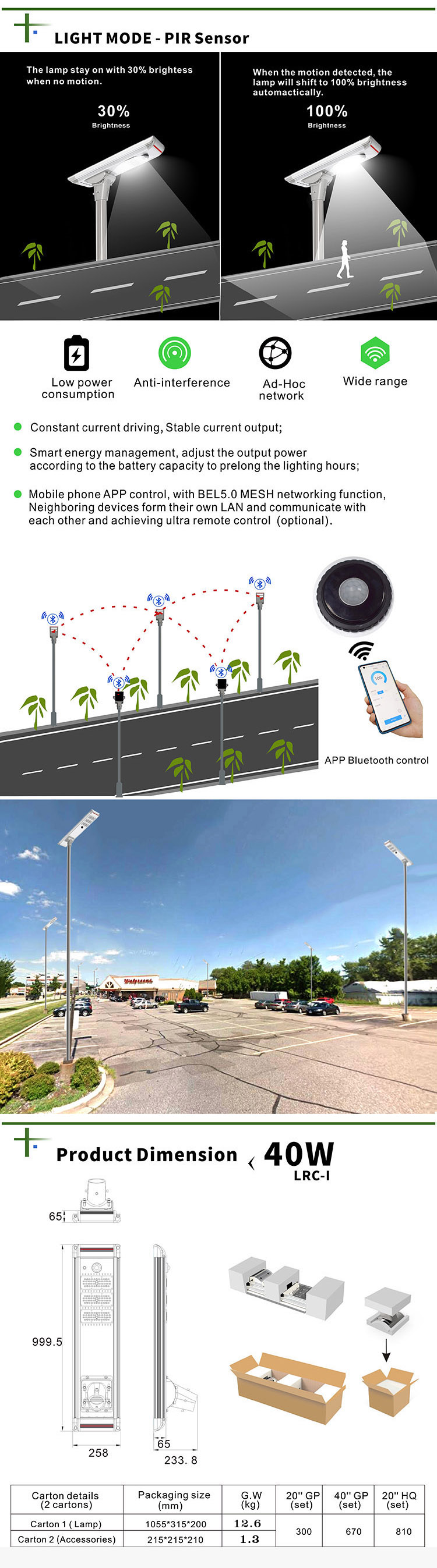

Equipped with a built-in high-sensitivity infrared motion sensor, the detection angle reaches 120°-150°, with a maximum detection distance of approximately 8 meters, accurately detecting human or vehicle movement. Upon triggering, it automatically switches to 100% full-power lighting; in unoccupied states, it maintains a 30% low-power energy-saving mode, ensuring lighting needs while significantly saving electricity, and also serving as a security warning (the sensor-activated light automatically turns off after 1 minute of continuous illumination, adjustable via settings).
Dual control via APP and 2.4G remote: Supports remote control via a mobile APP, allowing users to turn lights on and off, adjust brightness, set lighting duration (e.g., 6-12 hours of timed illumination), and switch operating modes at any time, eliminating the need for on-site operation and offering convenience and efficiency. It also comes with a 2.4G wireless remote control, providing 360° signal transmission without dead zones. One remote can control multiple lights in the same area simultaneously, suitable for batch installation scenarios (such as residential communities or parks) for unified management.
Multi-mode adaptive: Multiple preset lighting modes are available, including sensor mode (lights on when someone is present, energy-saving when no one is present), constant light mode (continuous full-power lighting at night), and intelligent brightness mode (dim light all night + sensor-enhanced illumination). These modes can be flexibly switched according to the usage scenario (such as courtyard security, constant road lighting, and garden ambient lighting) to meet different needs.
| Quantity(pieces) | 1 - 5 | 6 - 200 | 201 - 1000 | >1000 |
| Est. Time(days) | 10 | 20 | 25 | To be negotiated |
