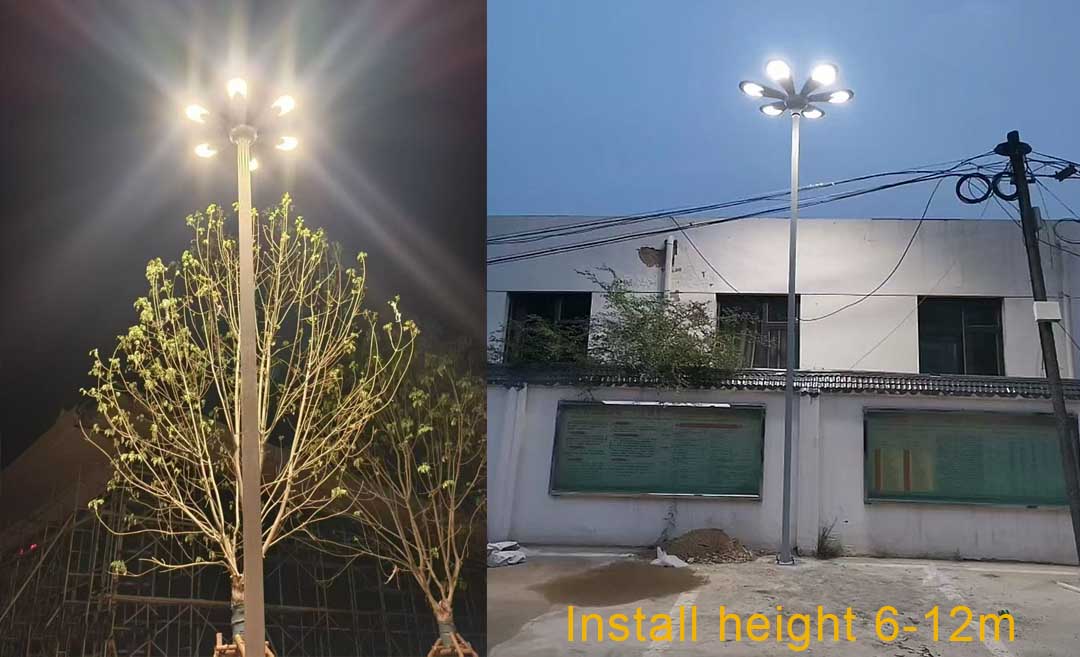

AC Solar Garden Light for Street Park Landscape Angola installation case

Angola, as a developing country in southwestern Africa, faces the challenge of insufficient electricity supply, especially in urban and rural areas.

The Leadray solar lighting system has become a preferred choice for local infrastructure construction due to its independence and reliability. Angola orders 38W AC/220V DC 6V solar courtyard light, which is a unique dual power system outdoor lighting product with die cast aluminum and PC shell. It is UV resistant, corrosion-resistant, and has a lifespan of up to 50000 hours.

At the same time, color temperature options are available:

*Warm white light (2700K-3500K): creates a warm and comfortable atmosphere, suitable for park rest areas and courtyards.

*Cold white light (5000K-6500K): Provides bright and clear illumination, suitable for high visibility areas such as streets and squares.

Installation steps and key points of solar lighting

1. Preliminary preparation

Site survey: Ensure that the installation location receives at least 6-8 hours of direct sunlight per day, without any obstruction from buildings or trees.

Foundation construction: pour concrete base (60 × 60 × 80cm), reserve pipes and junction boxes.

2. System installation process

AC/220V system installation:

Connect the AC power cord to the nearby distribution box and install an overcurrent protection device.

The main body of the lamp is fixed to the lamp post, and the angle is adjusted (it is recommended to lower it by 15 ° for optimal lighting distribution).

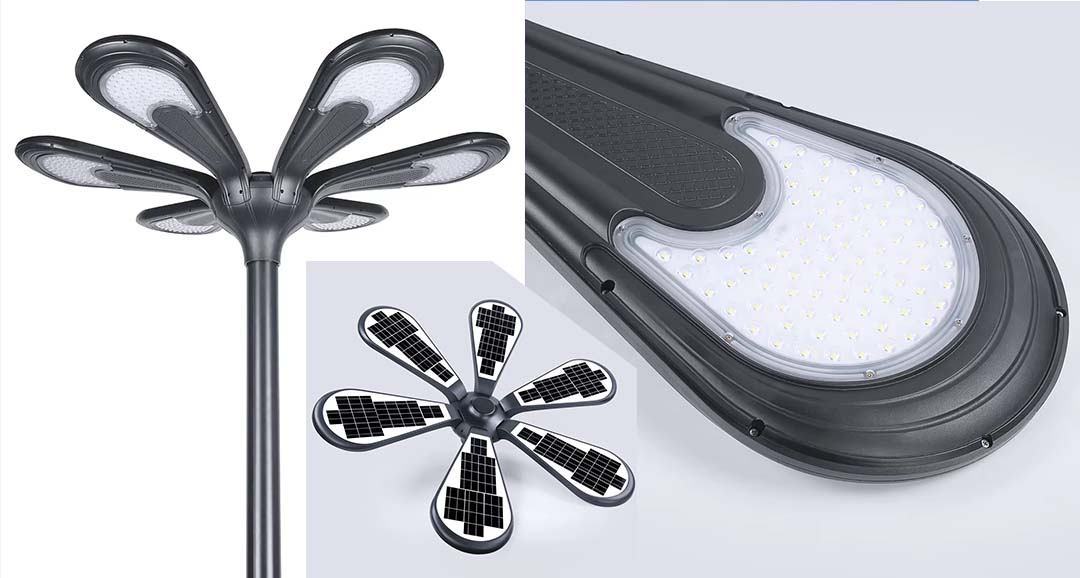

Installation of DC/6V solar system:

Install the solar panel on the top of the lamp post (with a tilt angle of 20-30 ° facing the equator).

Install a 6V battery (recommended for underground protection) and connect it to the charging controller.

System debugging: Testing solar charging and battery discharging functions.

3. Integration of dual power supply system

Install intelligent switching controller and set switching threshold.

Test: Disconnect the AC power supply and verify if the system automatically switches to solar mode.

Restore AC power supply, verify if the system returns to grid priority mode and charges the battery.

38W AC/220V DC 6V solar courtyard lights are an ideal choice for lighting infrastructure construction in Angola, particularly suitable for street, park, and landscape lighting in areas with unstable electricity.

Promoting renewable energy lighting projects in Angola can not only solve local lighting problems, but also add new highlights to the "the Belt and Road" initiative and China Africa cooperation, creating a bright future for sustainable development.
