80W Modular All In One Solar Street Light 230Lm/W High Lumen PIR Motion Sensor MPPT Solar Road Lamp with Military LiFePO4 Battery

80W All-in-one Solar Street Light

Full power range available: 30W/40W/60W/80W/100W/120W/130W/150W.

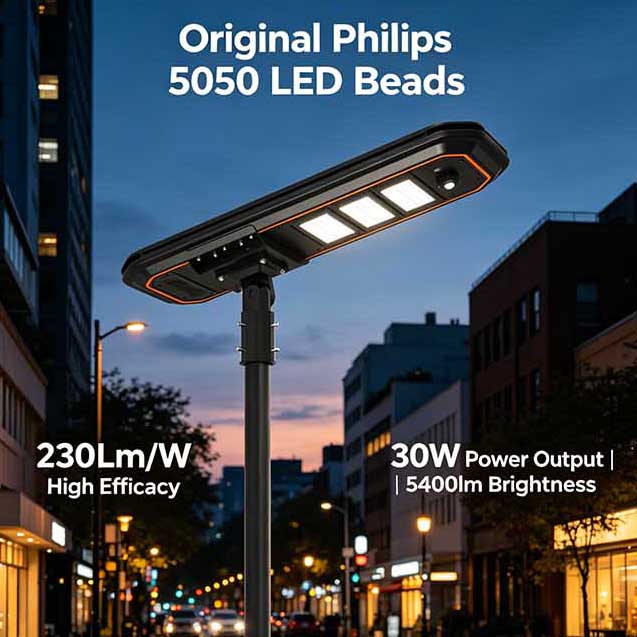

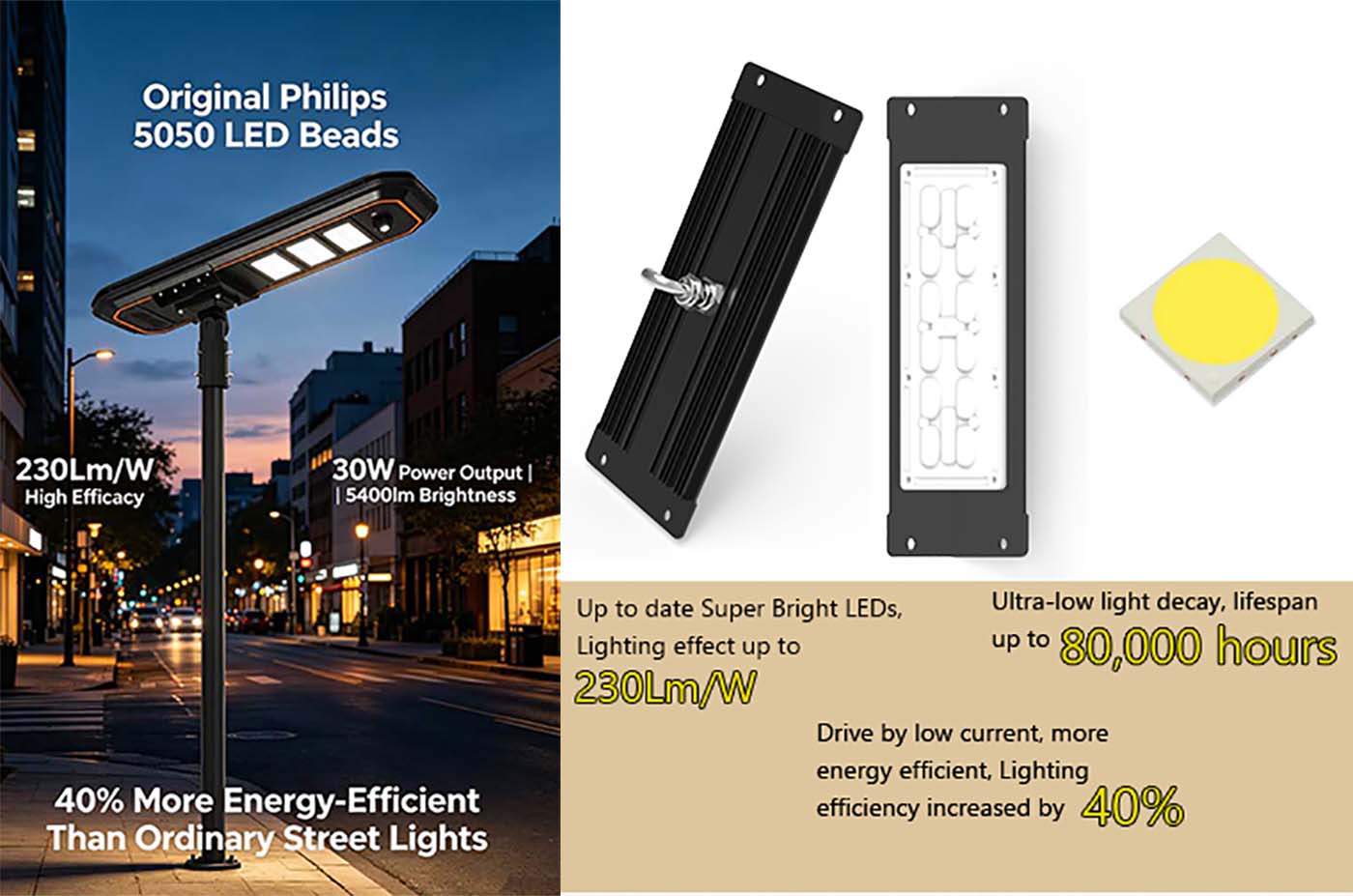

230Lm/W Ultra High Bright LED Source

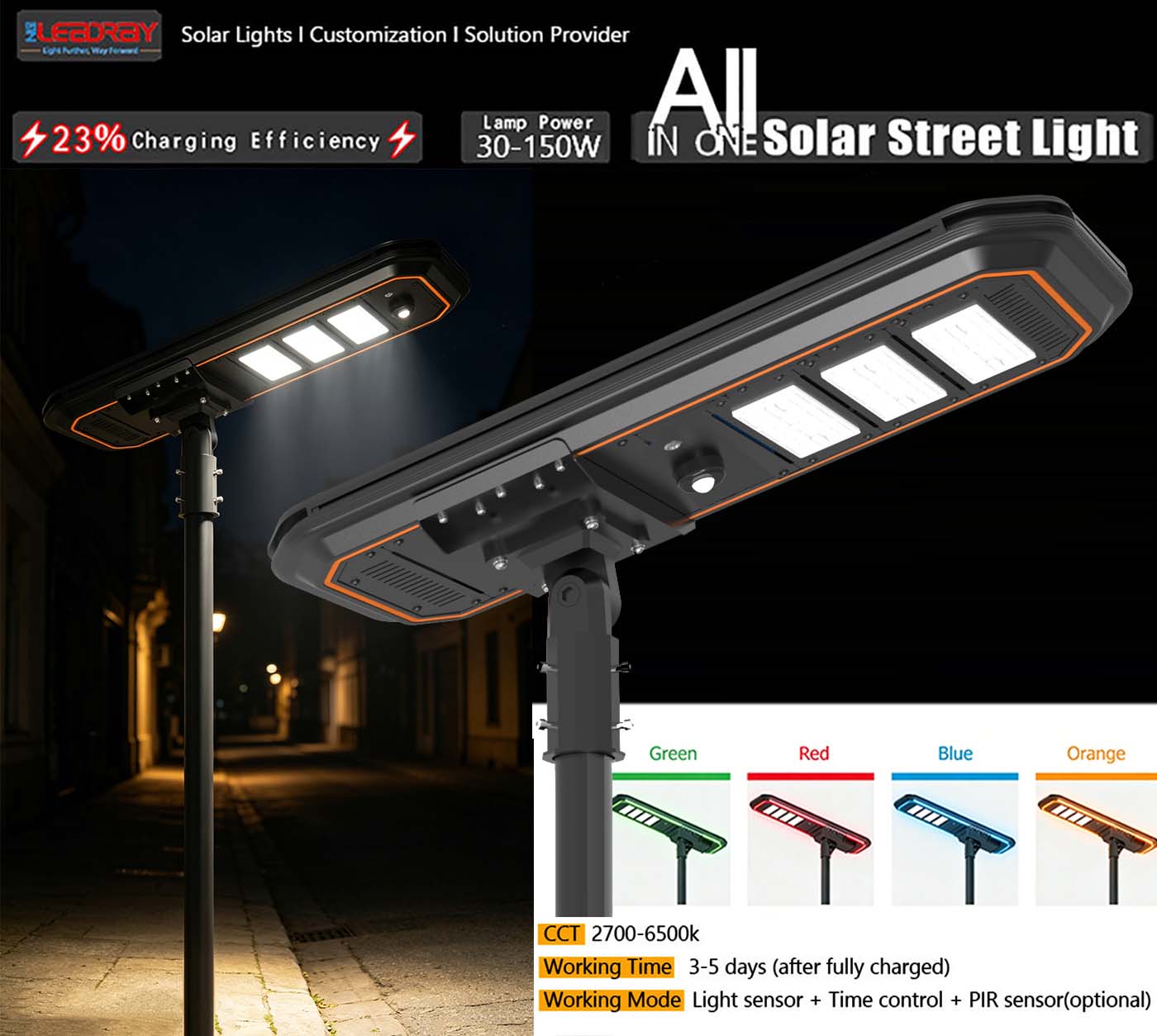

Adopts top-tier high-efficiency LED chips with industry-leading 230Lm/W luminous efficacy; low-current driving design lifts lighting efficiency by 40% vs conventional street lamps, ultra-low light decay, rated service lifespan over 80,000 working hours.

Three standard color temperature options: 4000K Warm White,5000K Natural White,6000K Cool White, customized 2700K~6500K available for bulk orders.

Detachable modular design for LED module/solar panel/driver separate replacement, greatly reduce after-sale maintenance cost;

Full aluminum alloy housing with customized heat sink, excellent IP65 waterproof & anti-corrosion performance for all harsh weather;

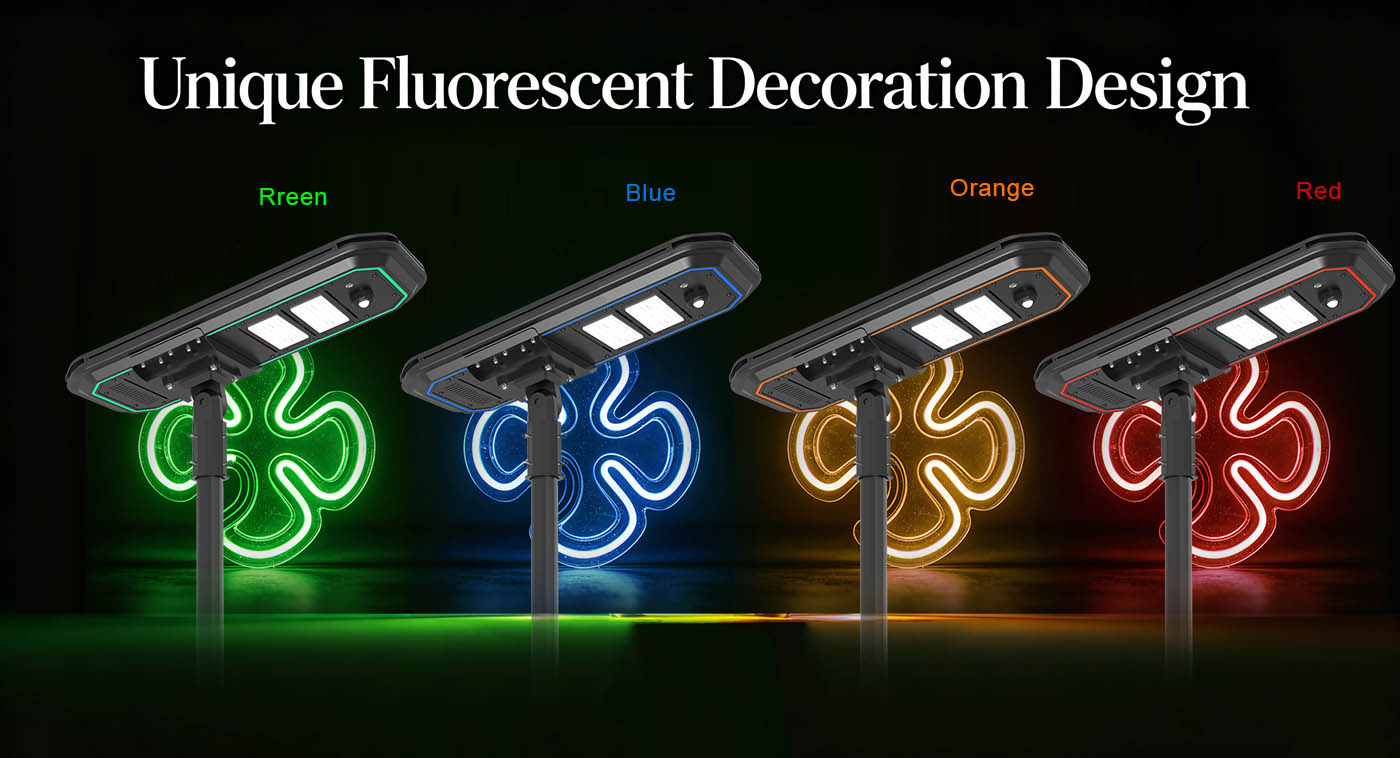

4 optional colorful decorative edge frame: Orange/Green/Blue/Red for personalized project appearance.

30Lux Light Sensor: Auto turn on at dusk & shut down at sunrise automatically;

Programmable Timer Mode: Custom segmented brightness timing schedule for different regional lighting demands;

Optional PIR Human Motion Sensor: Dim to 20%~30% standby brightness without pedestrians, instantly boost to full brightness when movement detected to save power;

After full charge, it can keep continuous lighting for 3~5 rainy/cloudy days.

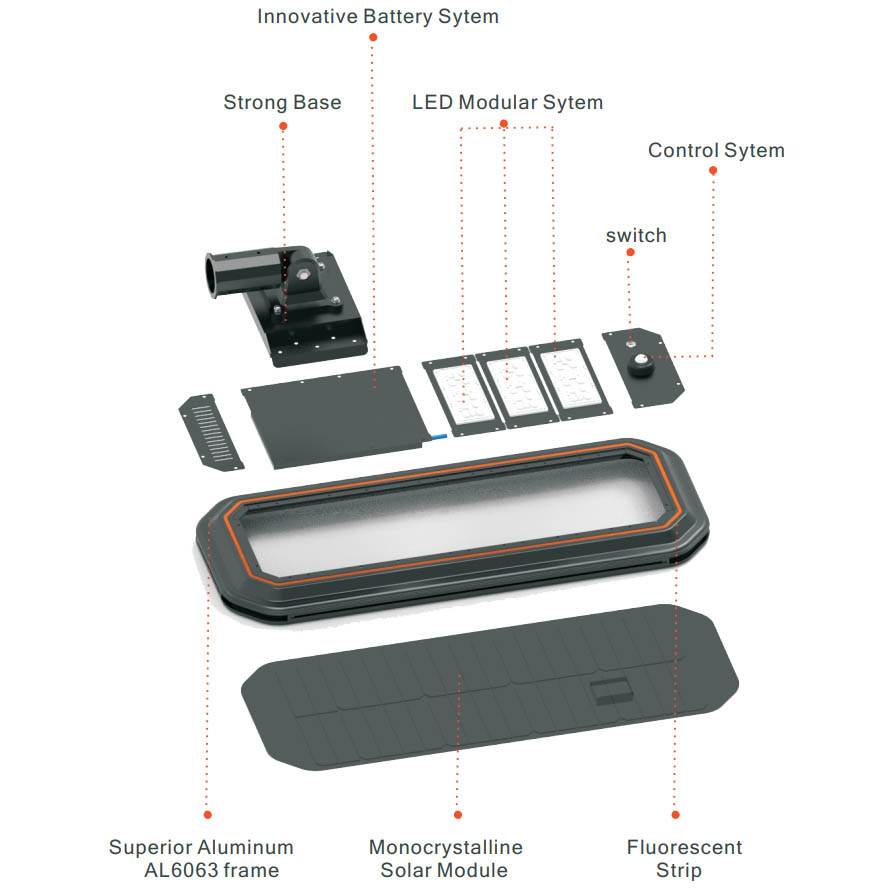

Modular Split Structure & Batwing Optical Design

Full detachable modular construction for separate replacement of LED modules, driver and solar panel, greatly cutting after-sales maintenance cost;

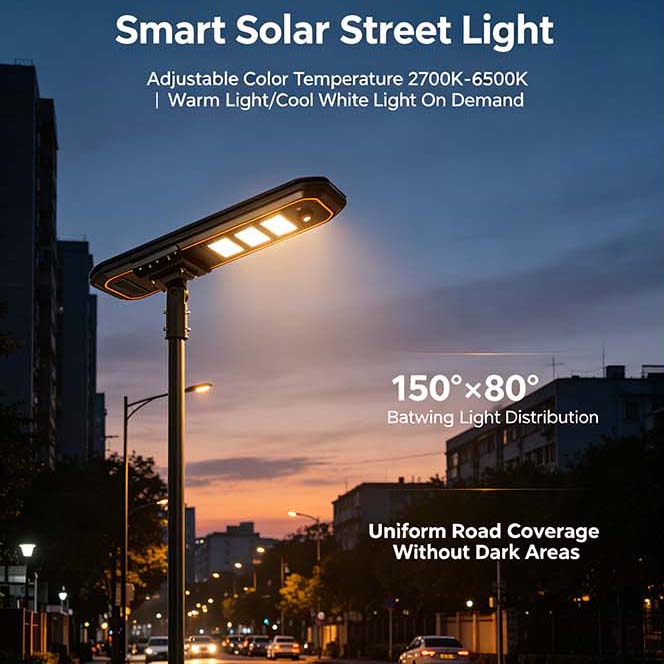

Customized bat-wing lens realizes 93% light transmittance, 150°×80° wide-angle uniform road illumination with wider coverage area.

Thickened all-aluminum heat sink optimizes heat dissipation and IP65 waterproof performance to adapt harsh outdoor weather.

Unique optional colorful edge decoration (Orange/Green/Blue/Red) for personalized project appearance.

Smart Dual-Control: PIR Human Motion + Timer Programmable

Built-in high-sensitivity PIR infrared motion sensor + 12-hour segmented timer system:

Dim to 20%~30% standby brightness without pedestrian activity, instantly boost to full brightness once human movement detected to save power;

Custom programmable timing mode (e.g.2H/20%→3H/100%→5H/50%→2H/30%) to fit different regional lighting schedule demands.

Cooperated with 30Lux photosensor for dusk auto-on & dawn auto-off.

MPPT Intelligent Driver & Energy Management System

Constant current control stabilizes LED output, suppresses light attenuation, driver efficiency＞95%;

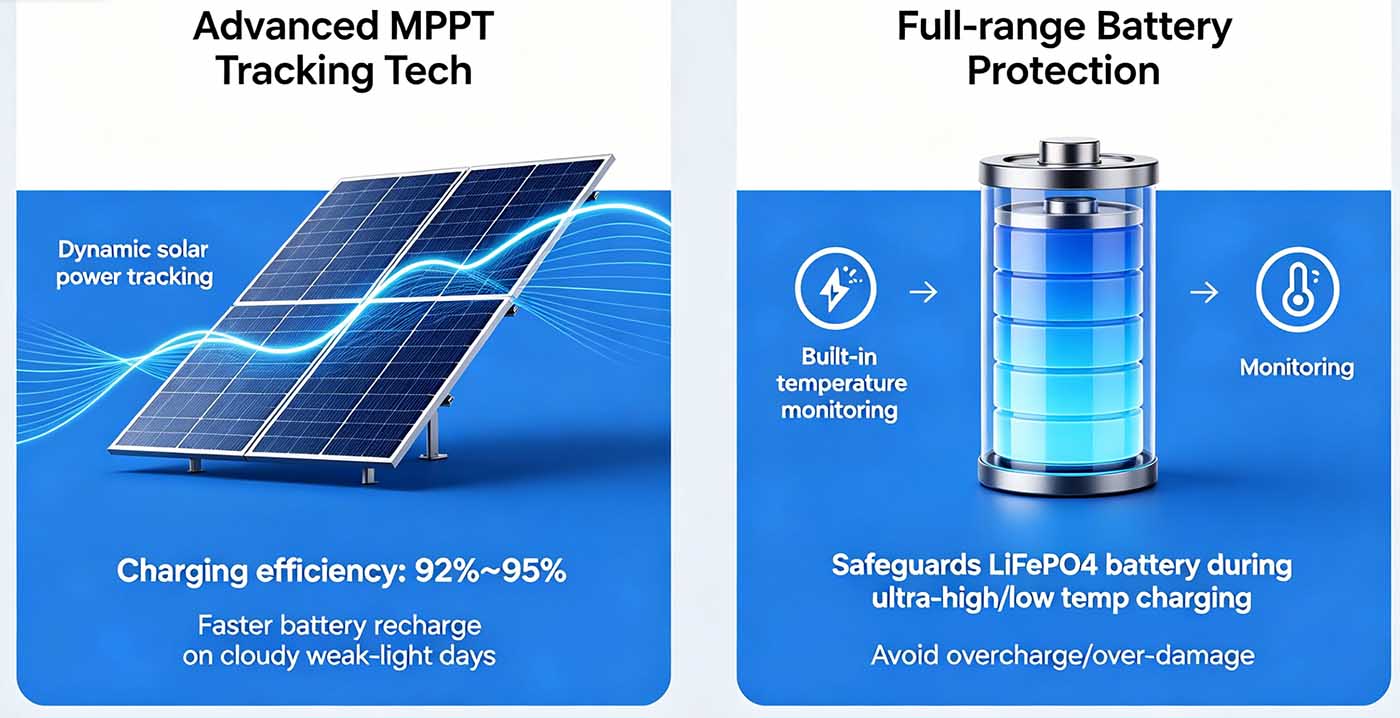

Advanced MPPT charge tech improves solar charging efficiency up to 92%~95%, fast battery replenishment under cloudy weak-light condition;

Built-in high/low temperature battery protection circuit to safeguard LiFePO4 cell from abnormal charging damage;

Adaptive power adjustment automatically lowers output based on residual battery capacity, ensuring up to 44-hour low-power lighting for successive rainy days.

Military Grade LiFePO4 Battery Pack

Military-standard Lithium Iron Phosphate battery features superior safety & chemical stability, supports more than 2000 charge-discharge cycles; fully enclosed metal battery compartment with top heat insulation + bottom convection heat dissipation, plus built-in BMS chip for full overcharge/over-discharge protection.

Grade A Monocrystalline Silicon Solar Panel

High-quality A-grade mono solar cell with max 23% photoelectric conversion efficiency, excellent weak-light generating performance, panel service lifespan up to 25 years, strict full-process QC during independent in-house production.

21Yrs Factory, ISO/CE/TUV/ROHS certified, support OEM/ODM customization, full power from 30W to150W

230Lm/W high efficiency LED, 80000H long lifespan, 2700-6500K adjustable color temperature

3-in-1 control: Light sensor+Timer+Optional PIR motion sensor, 3-5 days backup lighting after full charge

≥95% MPPT charging + ≥95% constant current driver, 23% high conversion A-grade mono solar panel

Military LiFePO4 battery>2000 cycles, modular all-aluminum IP65 shell, 4 optional decorative frame colors

Perfect for rural road renovation, residential courtyard, community sidewalk, urban auxiliary road, factory perimeter, parking lot, garden, new countryside construction & off-grid engineering lighting projects.

FAQ

Q1: Can we customize logo, color, power and lighting mode?

A: Yes, we provide full OEM&ODM service including shell color, silk-print logo, customized power and exclusive timing program.

Q2: How many rainy days can the light last?

A: All models support continuous lighting for 3~5 rainy days after fully charged under factory standard configuration.

Q3: What certificates do your products have?

A: Our lights passed CE, ROHS, CB, TUV, ISO9001, IP65 related certifications, can meet most countries' import standard.
