Solar Roof Mounting Support System Corrugated Roof Clamp Solar Panel Mounting Kit

The Super Solar Trapezoidal Roof Mounting System is designed for residential and commercial applications, offering a durable solution with stainless steel and aluminum materials. It ensures quick and easy installation, excellent wind resistance, and long service life.

Corrugated Roof Clamps are the key components for fixing solar panels to corrugated roofs. They are usually made of high - strength aluminum alloy, such as 6005 - T5, and stainless steel 304. The clamps are designed to fit the profile of corrugated roofs, ensuring a secure and stable connection. For example, T - shape clamp for corrugated roofing can hold the modules tightly with double clamping forces.

Rails and Brackets: Rails are used to support the solar panels and are connected to the corrugated roof clamps. Brackets may include end clamps, mid - clamps, and L - feet, which help in positioning and securing the solar panels and rails. Some systems use pre - assembled and pre - cut rails to simplify installation and prevent corrosion.

Fasteners and Accessories: This includes bolts, nuts, washers, and hanger bolts. These components are used to connect the various parts of the mounting system together. For corrugated cement fibre roofs, hanger bolts can be used in combination with an innovative hanger bolt clamp, allowing for simple and quick height adjustment of the profiles.

These mounting kits are mainly used in residential, commercial, and industrial solar power generation projects where corrugated roofs are present.

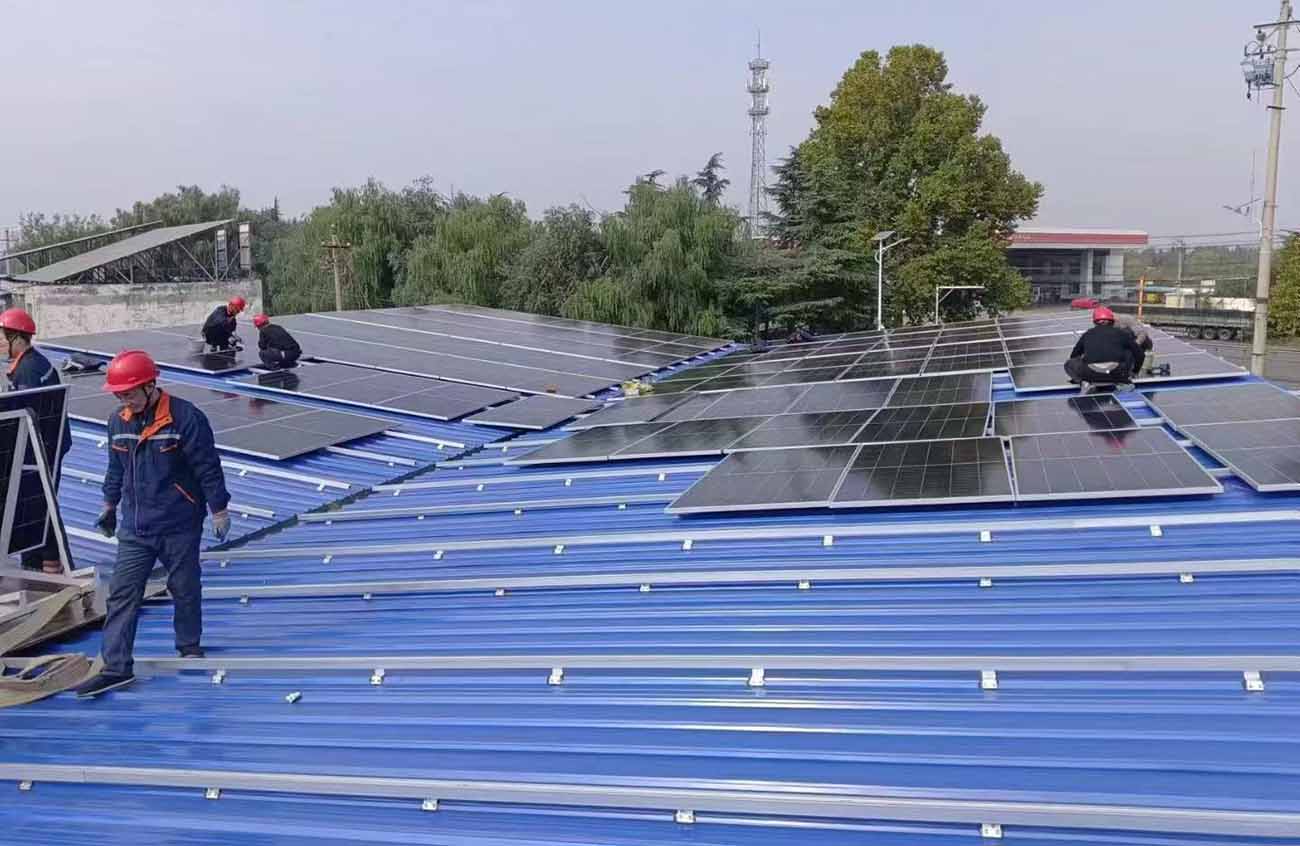

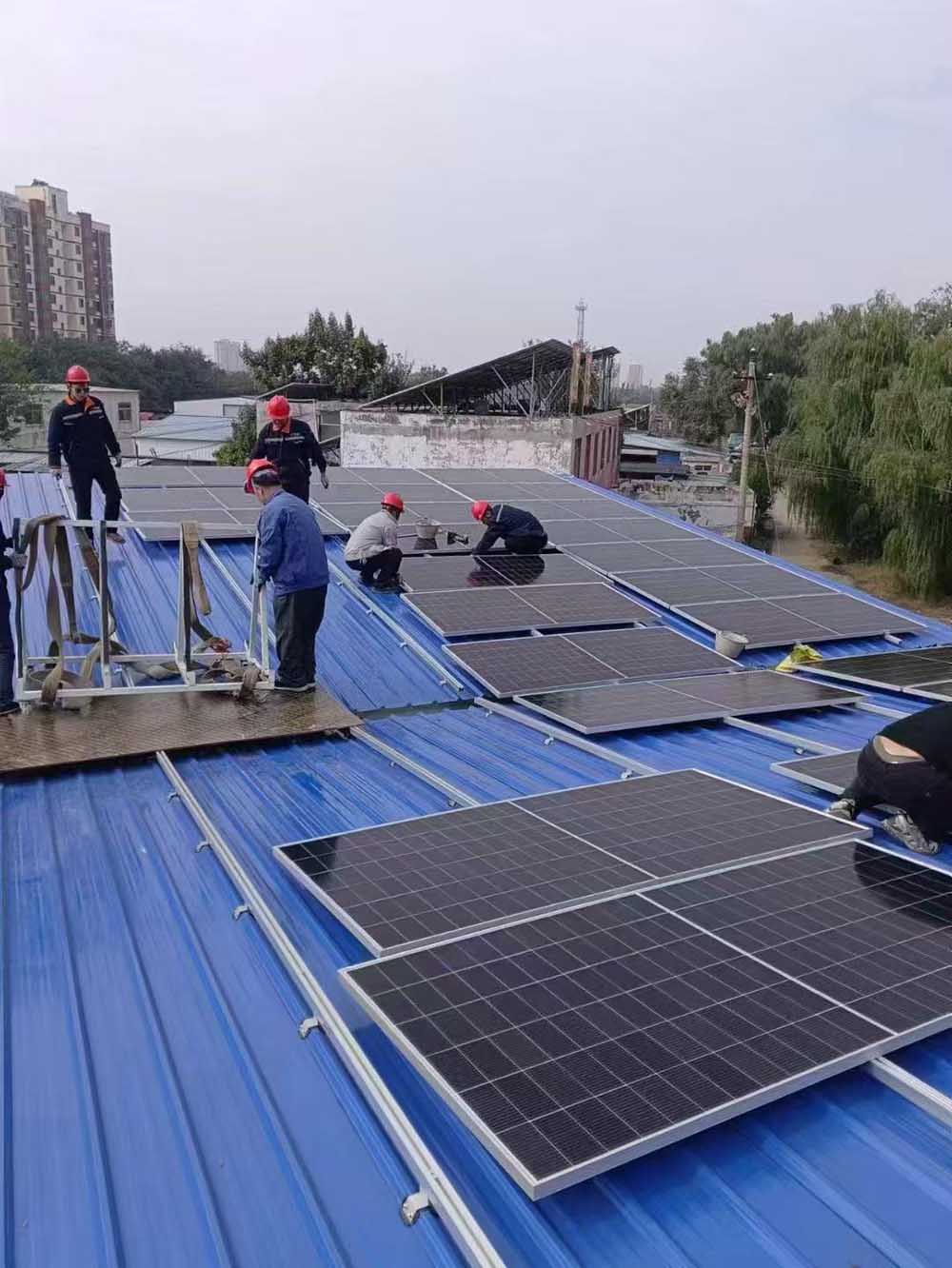

They can be used on metal roofs of factories, warehouses, and rural houses, as well as on corrugated cement fibre sheet roofs of some buildings, helping to convert solar energy into electricity efficiently.
