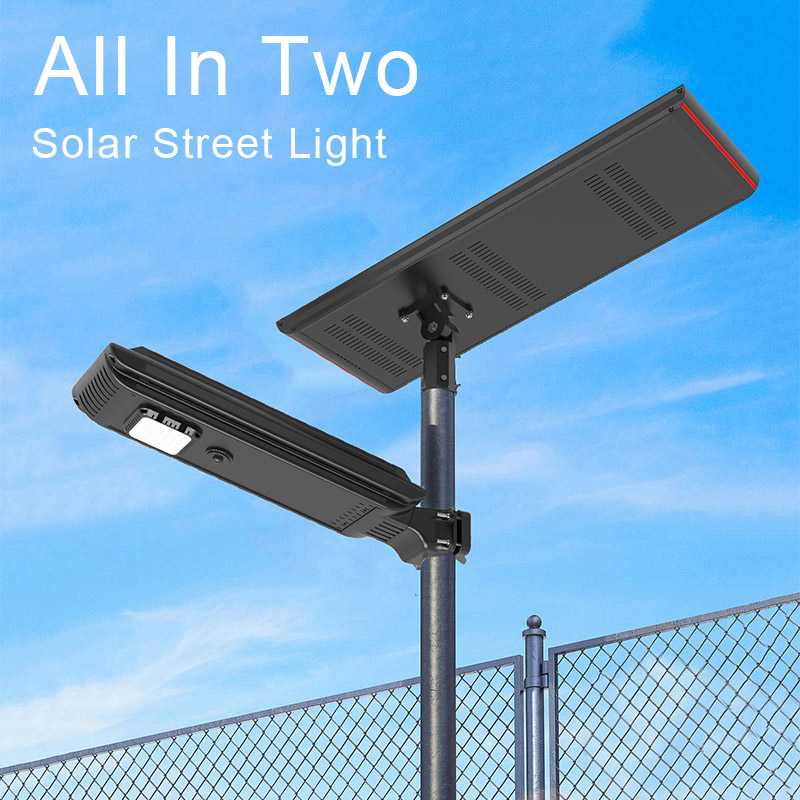

Outdoor Waterproof 40W 60W Integrated All in Two Led Solar Street Light
Street Lamp High Bright Led Solar Street Light
Infrared senor :
NOBattery Type :
Ternary lithium battery 98000mahSolar Panel Power :
40WLED Power :
40wLED brand :
LEADRAYModel No. :
LC3-40W
*Street Lamp High Bright Led Solar Street Light Grade-A Solar Cells
*Integrated All in Two Led Solar Street Light A-Grade Battery Cells
*Insist On Self-developed Products
*All Light Poles Pass Wind Resistance Rating Test
*Intelligent Modules From Procurement To Production
LEADRAY LC3 series adopts mono crystalline solar panel with 22% conversion rate, high luminous efficiency Philips chips, ultra-long-life lithium battery pack, high-efficiency smart controller and intelligent sensor technology. With its integrated design concept, it is convenient for installation and maintenance; Solar panel and lighting direction can be adjusted lexibly, providing an ideal solution for the harsh lighting needs of complex roads especially bad weather condition.
30M INDUCTION RANGE
Remote Control & Pir Sensor When people or vehicle pass,the sensor will detect the motion and light will up to 100% efficiency.The brightness of light will be reduced gradually to 30% after people and vehicle pass away.
* Intelligent charging and discharging management, soft and hard double protection of charging and discharging and intelligent equalization technology, battery cycles more than 2000 times.

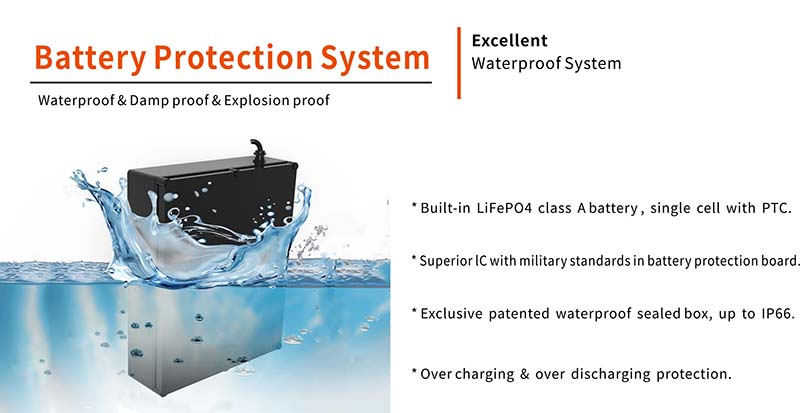

Integrated All in Two Led Solar Street Light Built-in LiFePO4 class A battery , single cell with PTC.
* Superior lC with military standards in battery protection board.
*
Exclusive patented waterproof sealed box, up to lP66.
Integrated All in Two Led Solar Street Light Over charging & over discharging protection.

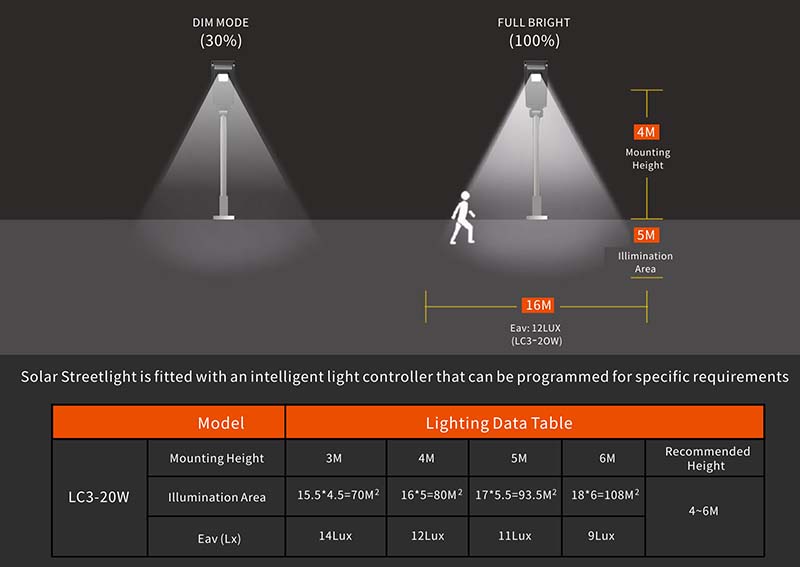

Solar Street light is fitted with an intelligent light controller that can be programmed for specific requirements.
Equipped with 433 remote control distance up to 6 mlt can control multiple lights Four lighting modes optional installation and commissioning support.
Integrated All in Two Led Solar Street Light Advantage :
1.3030 High Efficiency PHILIPS Brand LED Chip, 170LM/W,Aluminium alloy + PMMA
2.Bifacial solar panels improve power generation efficiency by over 30%
3. Elegant Integrated Design,High class Aluminum alloy case
4.70*140 degree , suitable for different road project

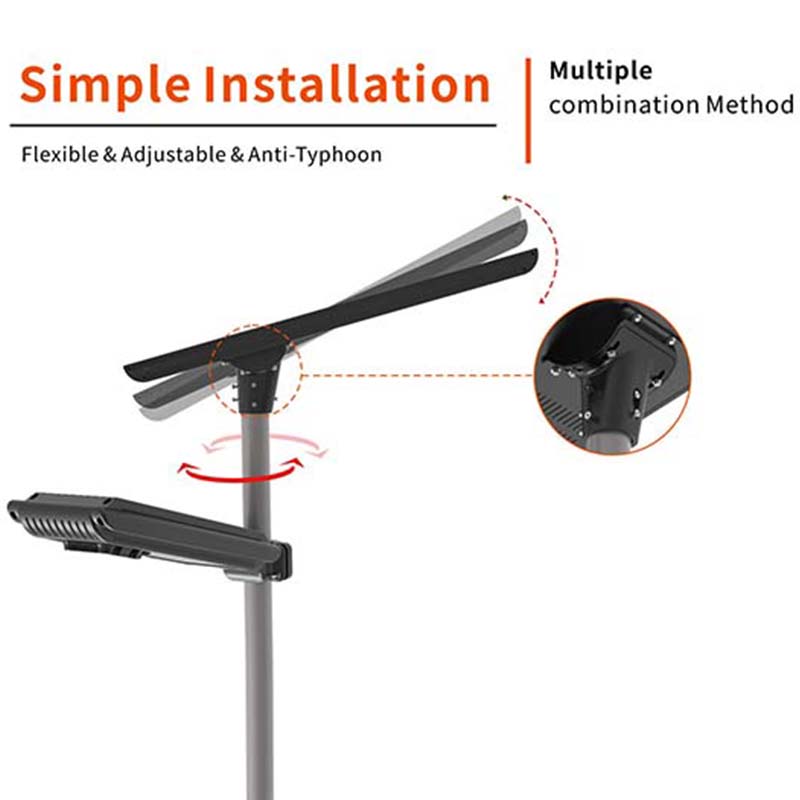

5.Multiple installation methods,0-20° adjust angle
6.Night sensor + motion sensor+Remote Control+Time control
7. The maximum wattage can reach 150 watts, specially designed for engineering

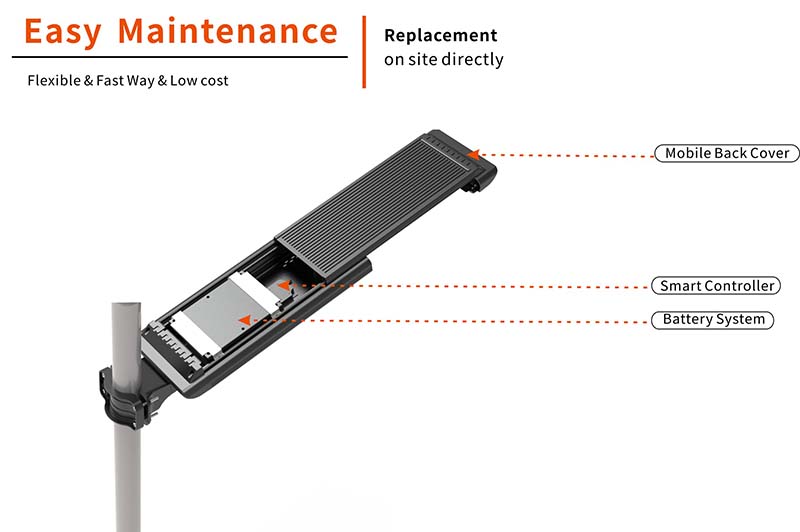

8.Easy maintenance, battery replacement can be completed on the lamp pole
SolarPanel:
1437*406*55
mm/
Lamp:
1087*916*75mm
Model
LC 3-40W
LC 3-60W
Power of PV Module (W)
90
120
LED Qty(pcs)
50
100
Light Mode
PIR/Time Control
PIR/Time Control
Typical Liminous Flux(Lm)
4500
6800
Product Size
Solar Panel:
1077*406*55mm/
Lamp:
917*279*75mm
Effective Projected Area(ft 2)
5.6
7.5
Light Control Threshold(Lux)
30
30
High Charging Efficiency Controller
Integrated All in Two Led Solar Street Light can automaically adjust the output power according to weather changing Qualification Rate 96.6%
Integrated All in Two Led Solar Street Light

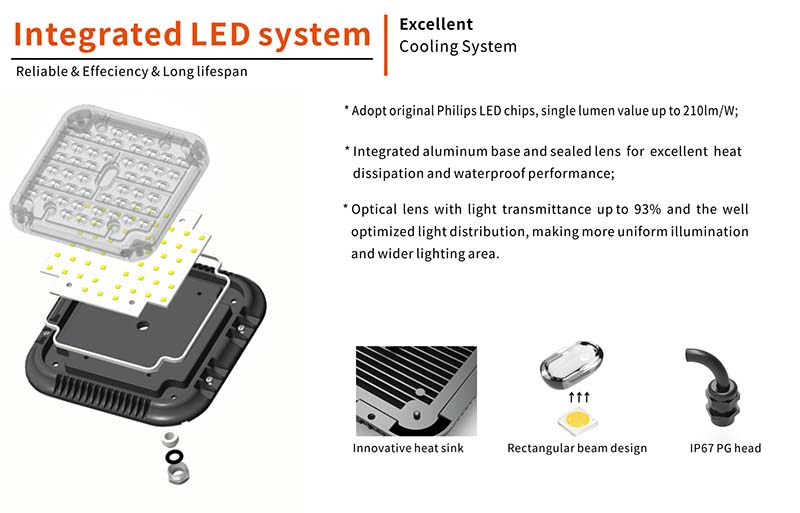

Efficient LED chips create first-class light sources. The overall lighting efficiency is >170lm/W, and the aluminum lamp holder and sealed lens provide good hea t dissipation, as if the LED chip is placed in a sealed unit. As a result, it maintains a high level of brightness with little attenuation. The sealed lens is made of UV-proof PC material, with anti-aging and shock-proof performance; The optimized light distribution makes the illumination area more uniform and wider.
Lighting simulation design software can be used to plan and analyze street lights to display lighting effects more intuitively. It uses rendering, the process of generating an image from a model through a computer program, to generate different tools for measuring the level of simulated light.
Integrated All in Two Led Solar Street Light High conversion efficiency
There is no doubt that modules will increase power generation. The results and studies show that modules can generate 10-20% more power than single-sided panels. If the conditions are optimized and a single-axis tracker is employed, the additional power can be up to 30-40%.
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
