High Quality Battery 40Watt Combined Solar Lamp Full led solar street integrated solar street light

High Quality Battery 40Watt Combined Solar Lamp Full led solar street integrated solar street light

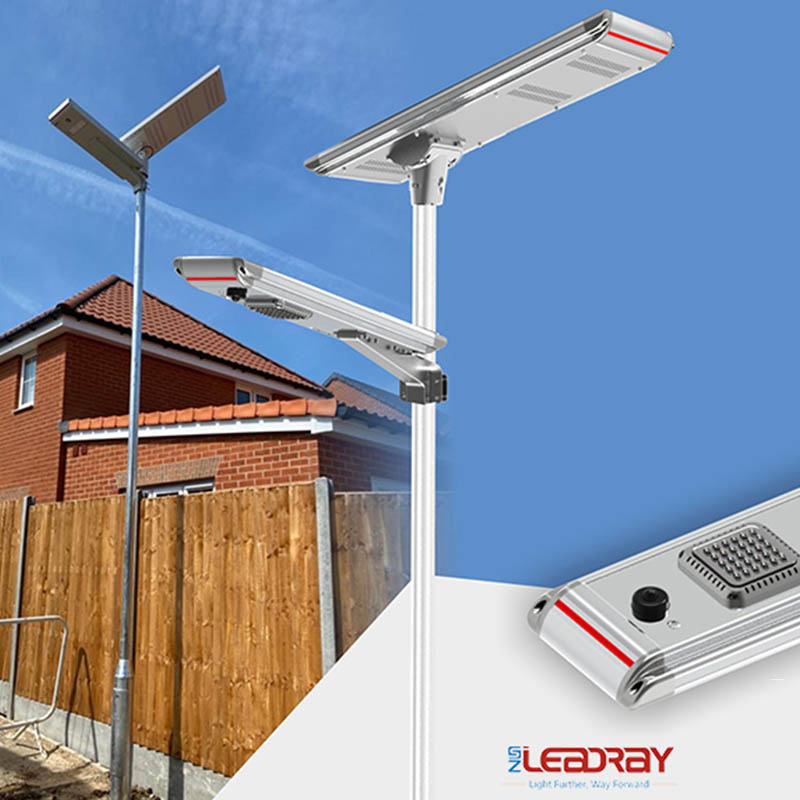

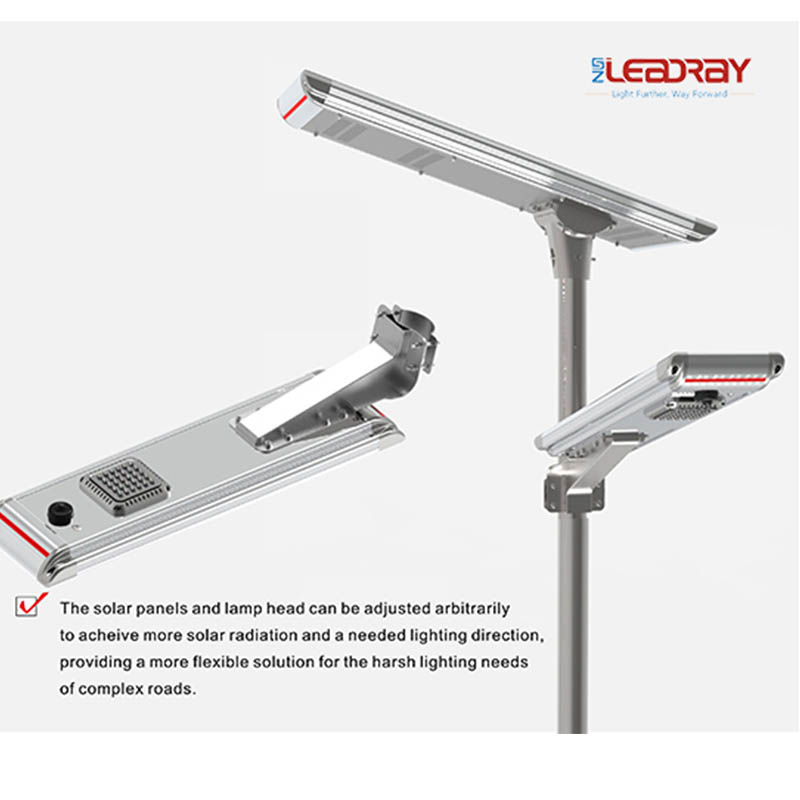

Combined Solar Lamp has an integrated design concept, which is convenient for installation and maintenance; The solar radiation intensity and lighting direction can be adjusted arbitrarily to the direction of solar panels and lamp head, providing a more flexible solution for the harsh lighting needs of complex roads.

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
Available
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
18V 130W
LED Power :
40W
LED brand :
LEADRAY
Model No. :
LC2-40W

Inquiry now

Product Details

Outdoor waterproof 20w 30w 40w all in one solar led street light integrated motion sensor lamp.

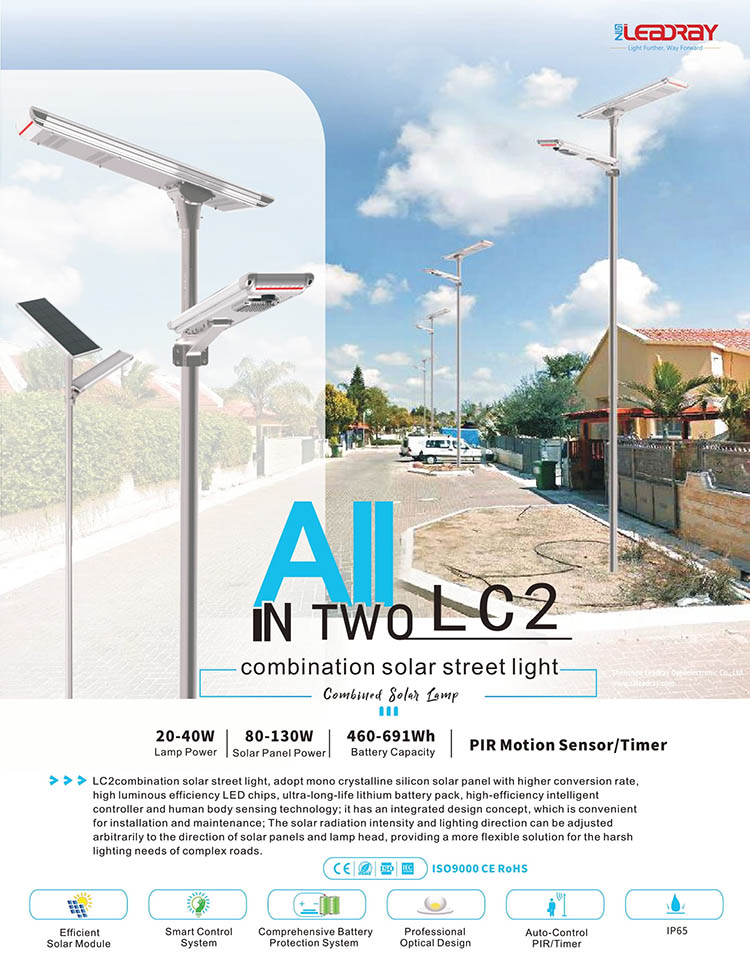

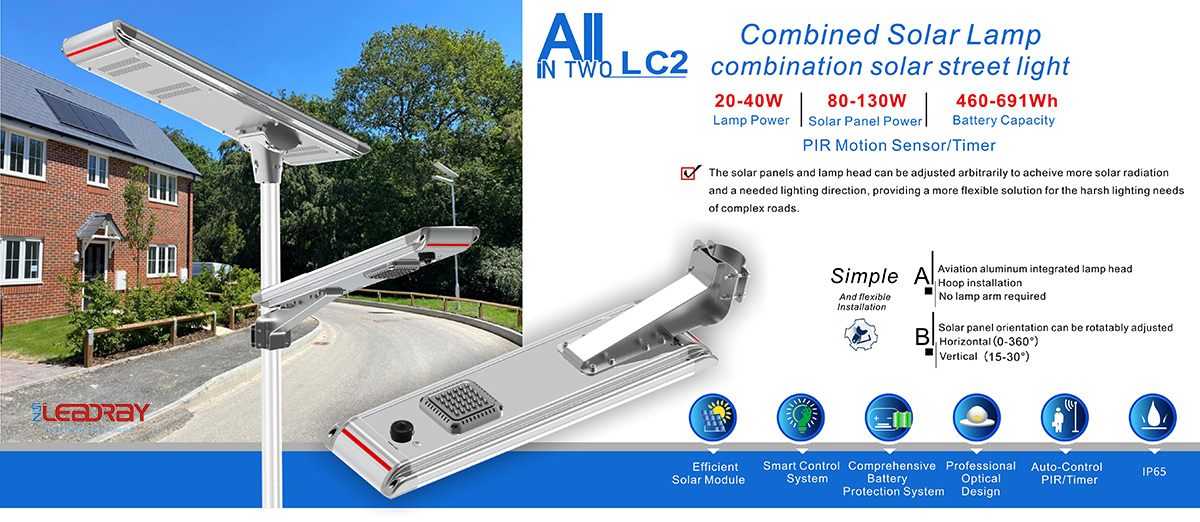

LC2 combination solar street light, adopt mono crystalline silicon solar panel with higher conversion rate, high luminous efficiency LED chips, ultra-long-life lithium battery pack, high-efficiency intelligent controller and human body sensing technology.

Lamp Power:20-40W

Solar Panel Power:80-130W

Battery Capacity:460-691Wh

PIR Motion Sensor/Timer

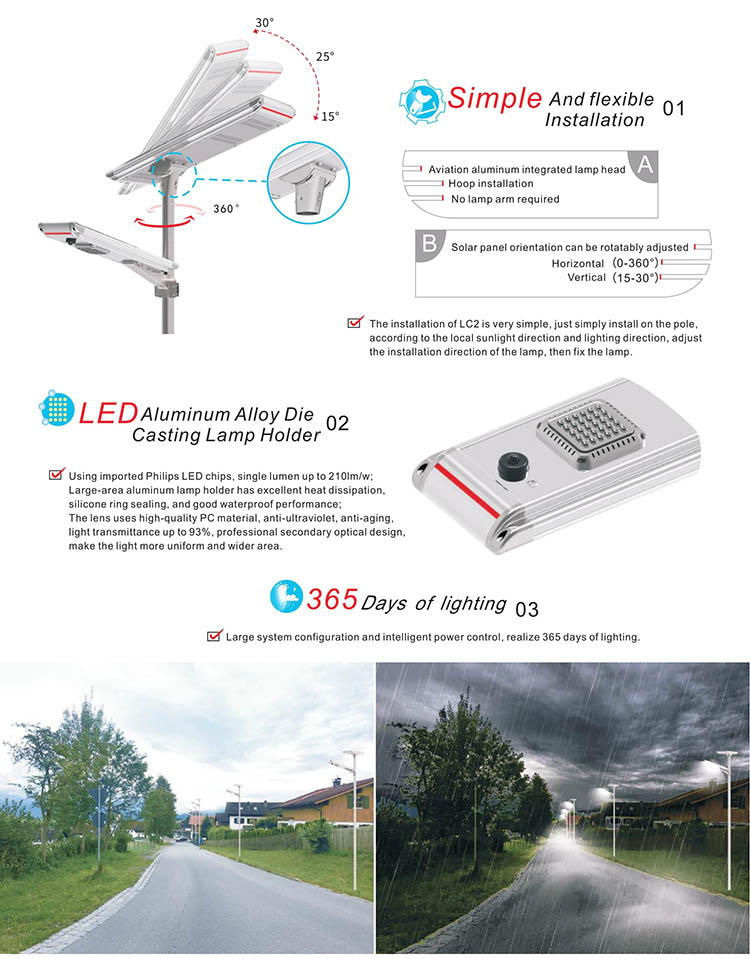

1.Using imported Philips LED chips, single lumen up to 210lm/w;

2.Large-area aluminum lamp holder has excellent heat dissipation, silicone ring sealing, and good waterproof performance;
3.The lens uses high-quality PC material, anti-ultraviolet, anti-aging, light transmittance up to 93%, professional secondary optical design, make the light more uniform and wider area.

4.Large system configuration and intelligent power control, realize 365 days of lighting.

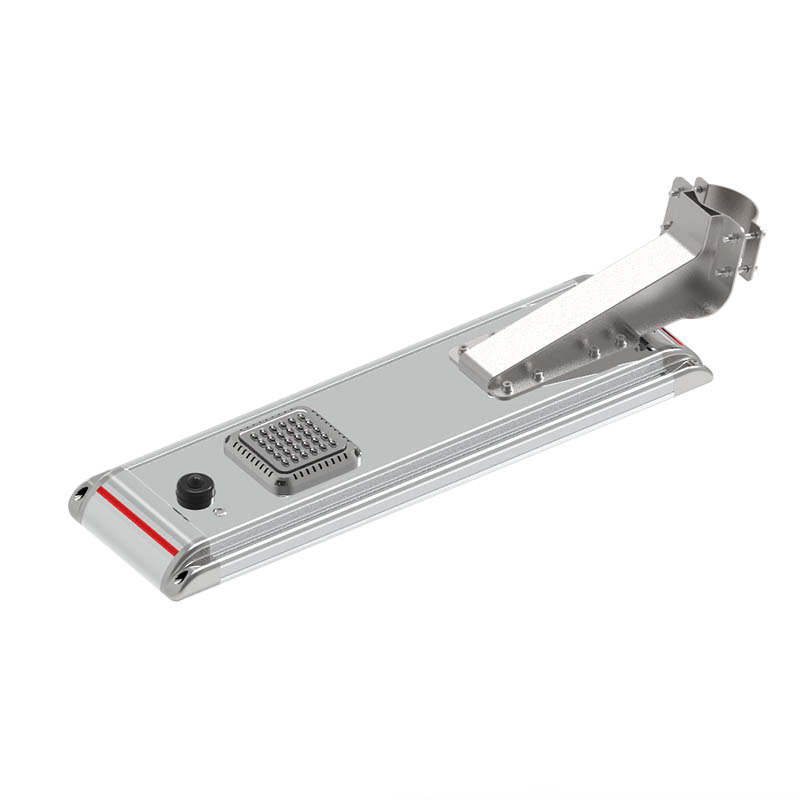

5.Aviation aluminum integrated lamp head.

6.Hoop installation.

7.No lamp arm required.

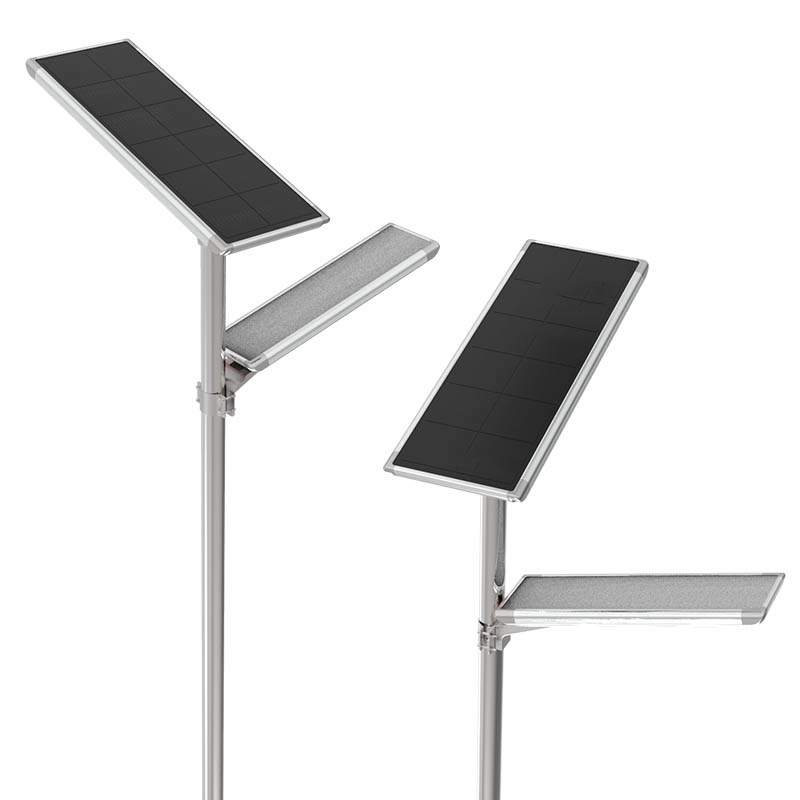

8.Solar panel orientation can be rotatably adjusted:

Horizontal (0°～ 360°）

Vertical (15°～ 30°）

Outdoor waterproof 40w all in one solar led street light integrated motion sensor lamp

all in one solar led street light integrated motion sensor lamp

Model		LC2-20W	LC2-30W	LC2-40W
Physical Parameters
LED Brand		PHILIPS	PHILIPS	PHILIPS
LED Qty(pcs)		50	100	100
Power of PV Module(W)		18V 80W	18V 110W	18V 130W
LIFEPO4 Battery Capacity(Ah)		12.8V 460Wh	12.8V 615Wh	12.8V 619Wh
Light Mode		PIR	Time Control	Time Control

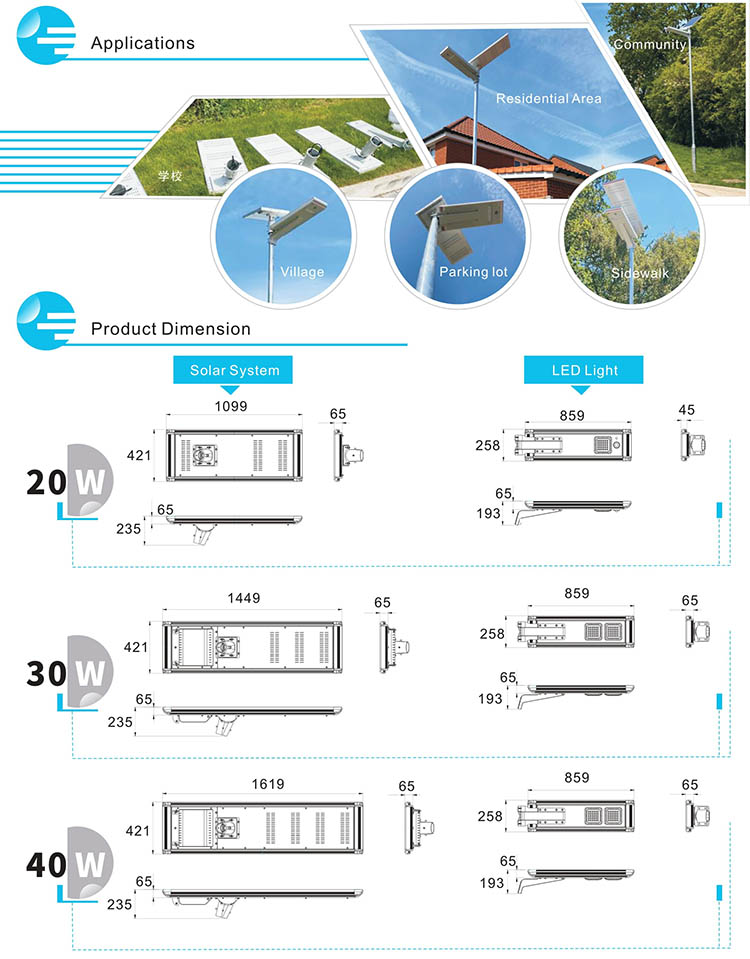

Product Dimension (mm)	Lamp 1	109942165	144942165	161942165
	Lamp 2	85925865
Product N.W.(kg)		/	/	/
Carton #1/Lamp 1 Dimension(mm)& G.W.		1160180490 (12KG)	1510180490 (14.5KG)	1675180490 (12KG)
Carton #2/Lamp 2 Dimension(mm)& G.W.		995315255 （0.6/Kg)
Carton #3/Accessories Dimension(mm)& G.W.		2152155210 （3Kg)
Light Parameters
Light Power(W)		20W	30W	40W
Typical Liminous Flux(Lm)		3600	5400	7200
LED Light Effect(Lm/W)		210Lm/W
Color Temperature(K)		2700-6500
Beam Angle(°)		75°x 150°
Rainy Days(D)		10~15
Environment Parameters
Charging Temperature(℃)		0 ℃ to +60 ℃
Discharging Temperature(℃)		-20 ℃ to +60 ℃
Storage Temperature(℃)		-20 ℃ to +45 ℃
Installation
Dia. of Top Pole (mm)		89	89	89
Installation Height(m)		4~6	5~7	6~8
Installation Distance (m)		15~20	20~25	25~30
