150W integrated solar street light with multiple lamp heads installed in the newly built factory area of the industrial park

Newly built factory area in large-scale steel structure industrial park

The steel structure industrial park is in the new construction stage, and the open square in the factory area has not yet laid the municipal power supply network. If excavating cables and laying transmission lines, the construction period is long, the civil engineering cost is high, and it will also damage the newly built concrete ground.

Adopting a circular bracket solar integrated high pole lamp, a white galvanized high pole lamp post, and a top circular lamp frame carrying 6 integrated solar street lamps;

The entire system is capable of independent photovoltaic power generation, without the need for laying cables or excavating trenches, and can be installed and used immediately.

Lamp pole: 15-25-meter hot-dip galvanized spray painted high pole, stable and wind resistant, suitable for large-scale site lighting;

Light source: integrated solar LED lighting fixture, built-in lithium iron phosphate battery, photovoltaic panel, intelligent control system;

Control mode: Light sensing automatic lighting+intelligent dimming, full power lighting in the first half of the night, power reduction and energy saving in the second half of the night;

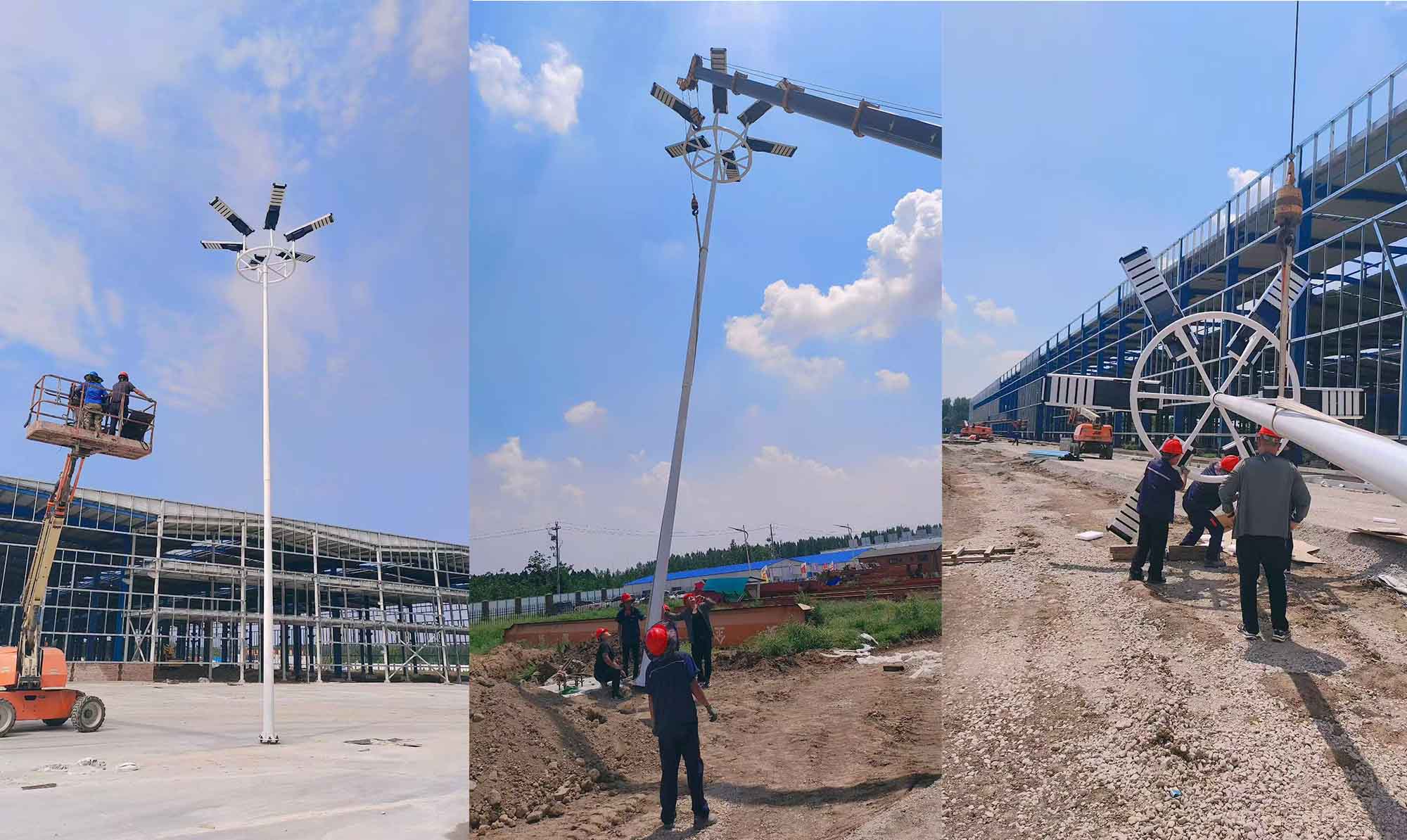

Installation method: The foundation concrete flange is fixed, with simple construction and quick lifting with the help of a crane.

This time, multiple sets of LRC-H150W integrated solar street lights were selected and installed in combination on the circular light panel bracket to achieve full coverage lighting in large areas of the square. No wiring required, fast lifting construction, meeting the needs of truck traffic, nighttime site operations, and security patrol lighting in the factory area.

LRC-H150W All in one Solar Street Light can be used for outdoor freight plazas in industrial parks, large factory open spaces, and high pole lighting fixtures on main roads in the park. Multiple lamp heads are installed in a circular bracket and matched with 10-12 meter high pole lights.

Project difficulties and solutions

Difficulty 1: The factory square has a wide area and requires uniform lighting over a large area.

Solution: Multiple LRC-H150W lamps are installed together with circular brackets on high poles, with multi angle lighting to cover a large area of hardened ground.

Difficulty 2: The temporary power supply in the new factory area is unstable and there is no desire to embed cables on a large scale.

Solution: Integrated solar energy design, completely detached from mains power, only the lamp post foundation can be completed by crane lifting, significantly reducing civil engineering costs.

Difficulty 3: There are truck loading and unloading operations at night, which require sufficient brightness while also considering long-term endurance.

Solution: Large capacity lithium iron phosphate battery, supporting intelligent dimming mode, energy storage during the day, and continuous stable lighting at night, meeting the all-weather use of the factory area.

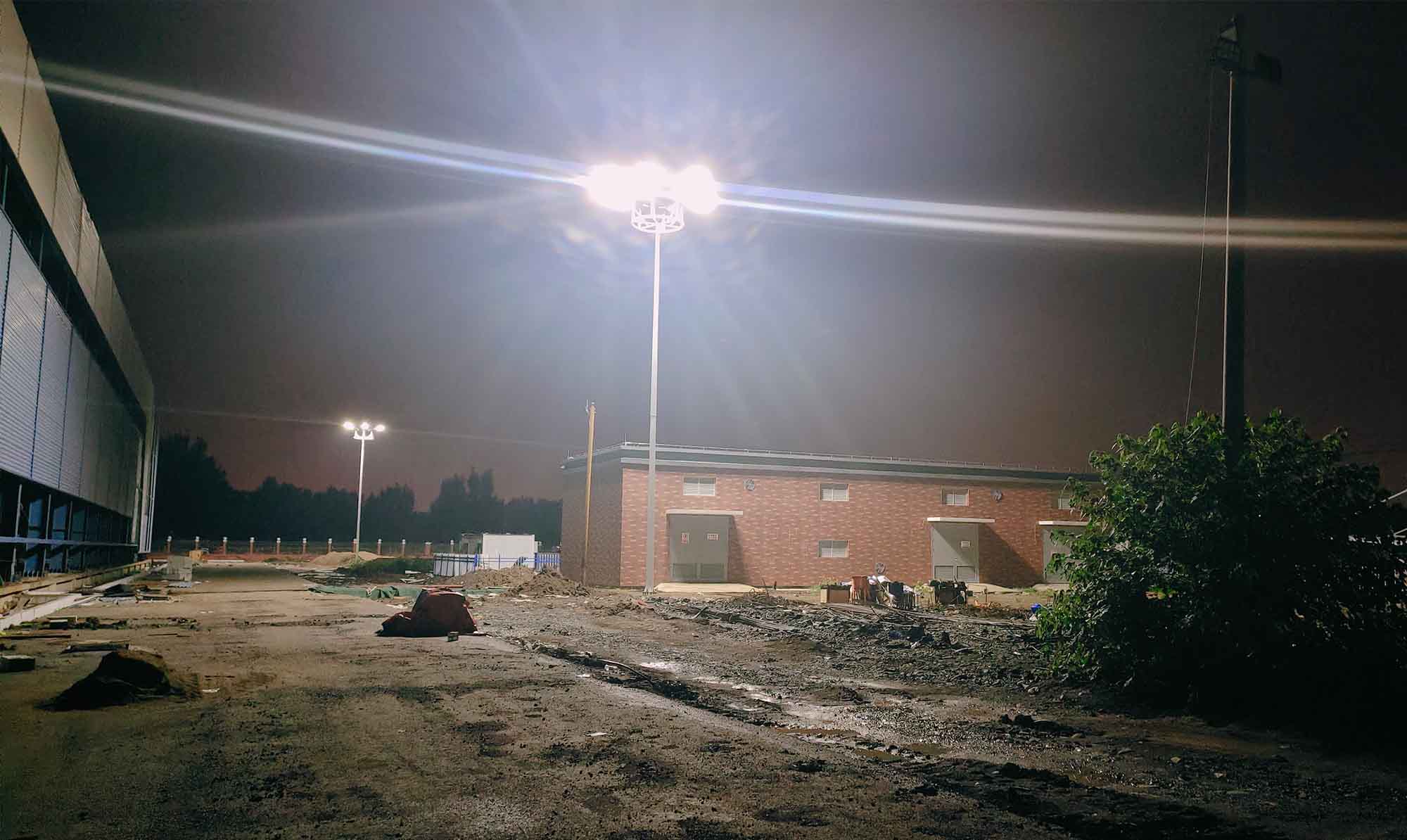

After being lit up at night, the light covers the entire outdoor area with sufficient intensity and strong penetration, meeting the all-weather operation and security lighting requirements of large industrial parks; During the day, photovoltaics continue to store energy, and on rainy days, they rely on batteries for continuous battery life to ensure stable lighting.
