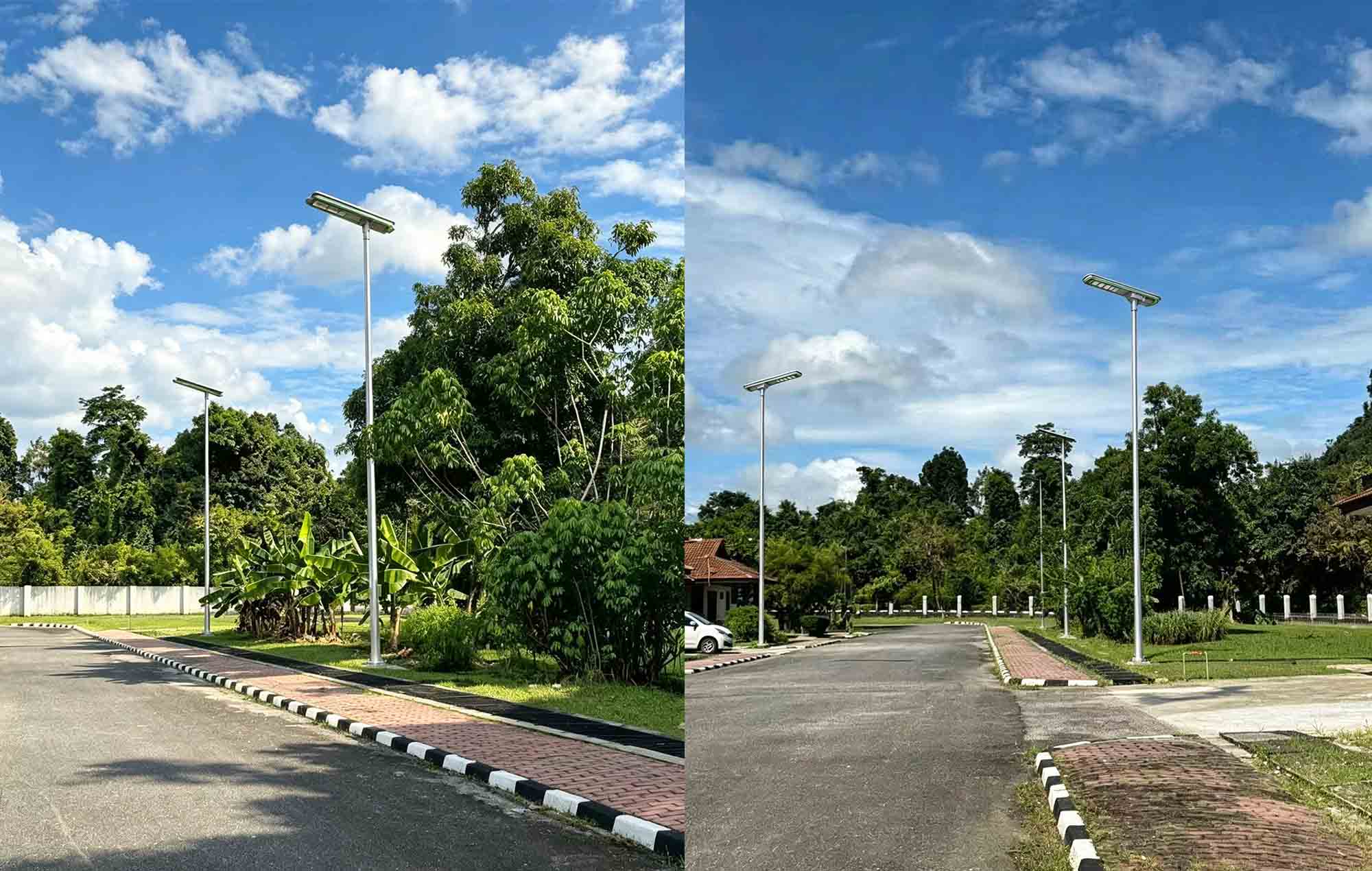

Malaysia Sarawak Integrated Solar Street Light Project

Malaysia Sarawak Integrated Solar Street Light Project

Project location: Sarawak, Sarawak, Malaysia

Application scenarios: Main roads and landscape trails in resort parks

Product selection: All in one Solar Street Light

Installation height: 8 meters

Project difficulty:

1. Tropical rainforest climate, with long rainy season and mostly cloudy weather, requires long-lasting battery life for lighting fixtures;

2. The park has dense green vegetation, and some sections of the road are blocked by trees;

3. Without municipal power grid wiring, the cost of excavating pipelines is extremely high, requiring no wiring and quick installation.

The solution adopts integrated solar street lights, which integrate photovoltaic panels, lithium iron phosphate batteries, intelligent MPPT control systems, and LED light sources. No need to lay cables or construct civil pipelines, the pole can be put into use after completion.

The lamp is equipped with intelligent light sensing and human body sensing mode, with energy storage during the day and automatic dimming at night; The large capacity lithium battery supports continuous rainy weather for 7 days and is suitable for Malaysia's tropical monsoon climate. Aluminum alloy shell, IP65 protection grade, high temperature resistance, rainstorm resistance, moisture corrosion resistance.

FAQ

Q1: Is this LRC-H100W solar street light suitable for the tropical rainforest climate in Malaysia?

A1: Fully compatible. The lamp adopts IP65 all aluminum alloy shell, which is moisture-proof, rainstorm proof and high temperature resistant; Equipped with a 12.8V lithium iron phosphate battery, it is resistant to hot and humid environments, effectively coping with prolonged rainy seasons and high humidity weather in Sarawak. Standard 7-day rainy and cloudy battery life, stable and continuous lighting in cloudy and rainy environments.

Q2: How to choose the installation height and spacing of lighting fixtures?

A2: The recommended installation height for the model is 8-10 meters, and the recommended spacing between road light poles is 30-40 meters, which matches the lighting needs of the main road paving in the resort park; The project site adopts an 8-meter lamp post layout, with uniform road illumination and meeting the traffic standards of the park.

Q3: What kind of light beads are used for the light source and what are the brightness parameters?

A3: Using Philips 5050 LED beads, a total of 112 pieces; Rated power of 100W, total luminous flux of 18000lm, luminous efficiency of 180lm/W, optional color temperature of 5000K positive white light, clear and soft road view, no glare.

Q4: What is the battery life mode? Can the brightness be adjusted?

A4: Built in intelligent control system, supporting light control+human body sensing dimming:

100% full power, minimum battery life of 13 hours

30% power mode with a minimum battery life of 42 hours

Support remote control to freely set working hours and brightness levels.

Q5: Do I need to lay cables and supply power to the basic power grid?

A5: No need to lay cables, zero mains power connection. Only the foundation of the lamp post needs to be poured, and the lamps can be installed on the pole to complete the project, greatly reducing the cost of civil construction and not damaging the green landscape of the park. It is very suitable for resort and ecological park renovation projects.

Q6: How long is the battery life and can it be replaced?

A6: Equipped with a 12.8V 55Ah lithium iron phosphate battery, with a cycle life of ≥ 3000 times and normal environmental use of 5-8 years; Modular design of the battery allows for individual replacement during later maintenance, without the need for a complete lamp replacement.

Q7: Will trees blocking the light affect charging?

A7: It is recommended to choose locations without severe obstruction as much as possible; The lamp is equipped with 120W high-efficiency photovoltaic panels, which still have charging ability under low light conditions. For partially shaded road sections, the intelligent system relies on large capacity batteries to ensure continuous illumination at night.

Q8: What are the size requirements for matching lamp posts?

A8: The installation interface of the lamp is compatible with a top pole diameter of 89mm, and can be customized according to this standard when purchasing lamp poles.
