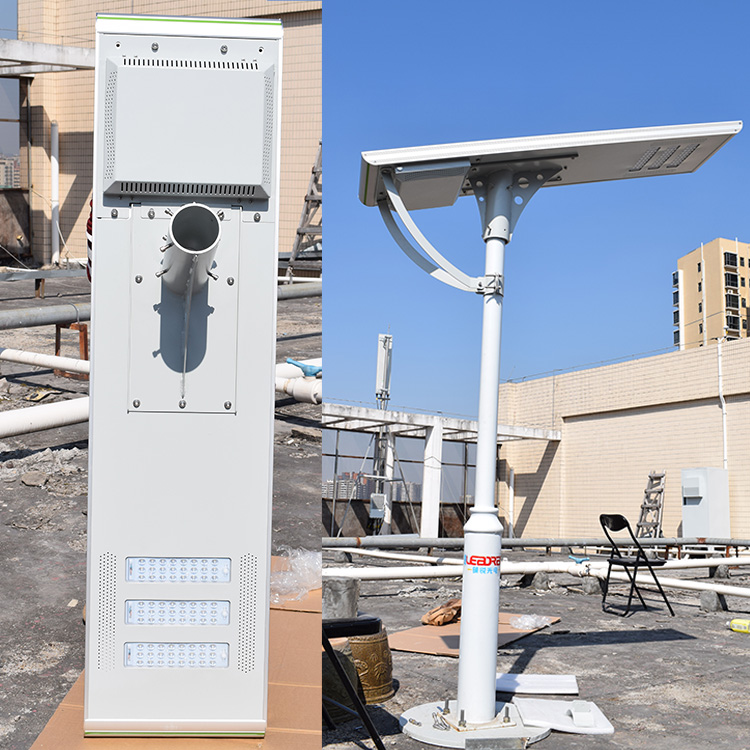

80W All In One Solar Street Lights

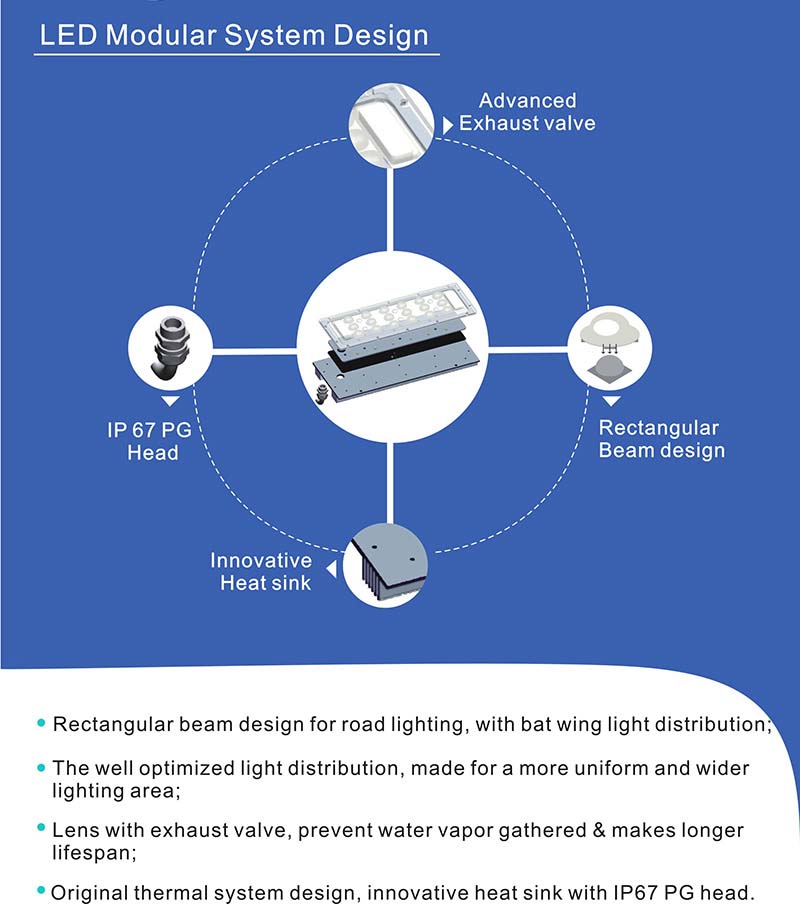

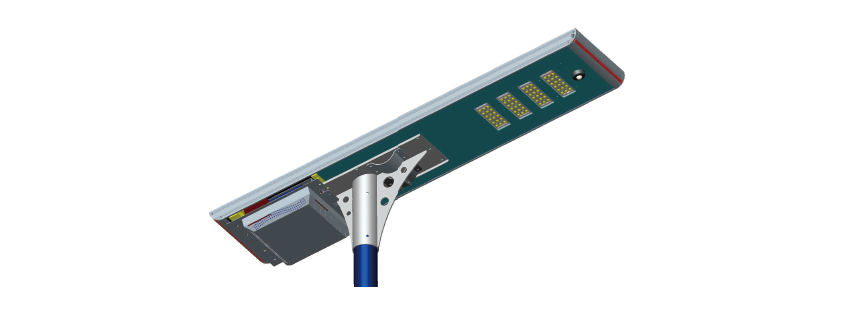

All In One Solar Street Light: Led Modular Thermal System Design/Battery Protection System Design/Typhoon Resistance Design

IP65 waterproof outdoor aluminum solar powered led

  • Payment :

    T/T, Paypal, Western Union
  • Color :

    Silver
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
  • Original Region :

    China
  • Port Of Dispatch :

    Qingdao
  • Infrared senor :

    Available
  • Battery Type :

    Lithium LiFePO4 Battery
  • Solar Panel Power :

    36V 110W
  • LED Power :

    80W
  • LED brand :

    LEADRAY
  • Model No. :

    LRC80W
Inquiry now
80W All In One Solar Street Light Factory wholesale price high lumen best outdoor garden integrated large solar street lamp

All In One Solar Street Light : Integrated design/Free maintenance/Easy installation/Environmental Friendly

Application: street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote area lighting;farm & ranch lighting.


integrated large solar street lamp

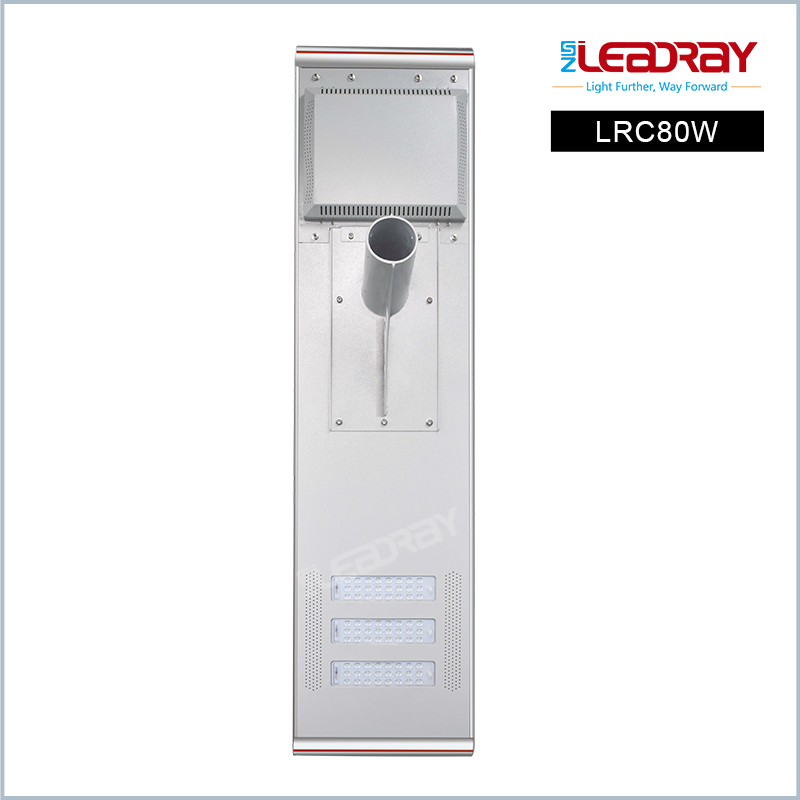

Model No: LRC80W

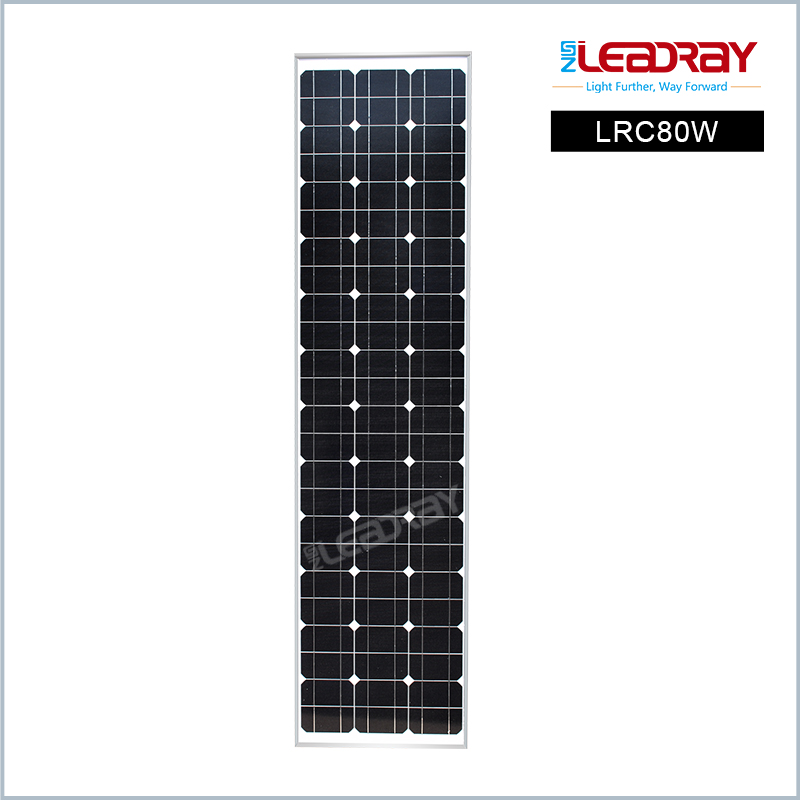

Solar Panel Power: 36V 110W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 24V 80W
Luminous Flux: 11200Lm(TYP )
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 8-10m
Suggested Distance Between Lights: 30-35m
Material: Superior aviation aluminum AL6063-T5

Warranty:3-5 years


integrated large solar street lamp


Model No. LRC80S LRC100S
Physical Parameters
LED Brand CREE CREE
LED Qty 72 72
Power of PV Module (W) 36V 110W 36V 120W
LIFEPO4 Battery Capacity (Ah) 25.9V 25Ah 25.9V 30Ah
Lighting Mode Time Control Time Control
Dimension of Product (mm) 1608*405*112 1608*405*112
Net Weight (kg) 26.5 32
Dimension of Carton #1(mm) 1680*480*180 1680*480*180
Dimension of Carton #2(mm) 630*300*360 630*300*360
Gross Weight (kg) 34.5 40
Light Parameters
Light Output (W) 80W 100W
Typical Luminous Flux (Lm) 11200 14000
Color Temperature (K) 2700-6500 2700-6500
Beam Angle (°) 150°x70° 150°x70°
Min. Working Time (Hours) Full Bright 13 13
Dim Mode 39 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of Top Pole (mm) 80 ~ 86 8 ~ 86
Recommended thickness of Pole (mm) ≥3.5 ≥3.5
Recommended Installation Height (m) 8 ~ 10 8 ~ 10
Recommended Installation Distance (m) 30 ~ 35 30 ~ 35





Ip65 Outdoor Waterproof Road Streetlight Smd 80w Integrated All in One Led Solar Street Light Super Bright Dust to Dawn

integrated large solar street lamp

integrated large solar street lamp

integrated large solar street lamp

integrated large solar street lamp

integrated large solar street lamp

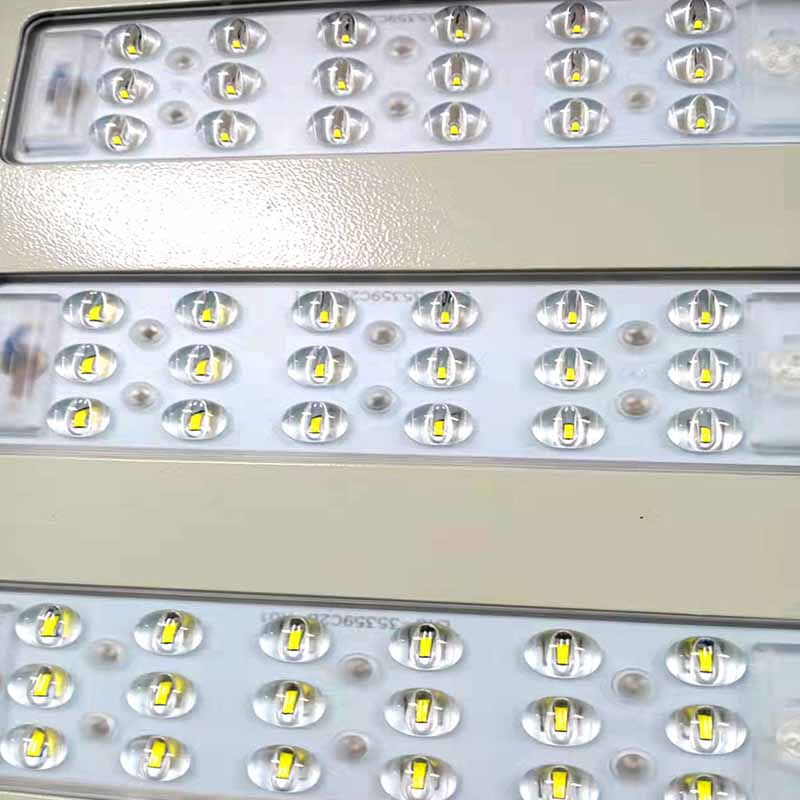

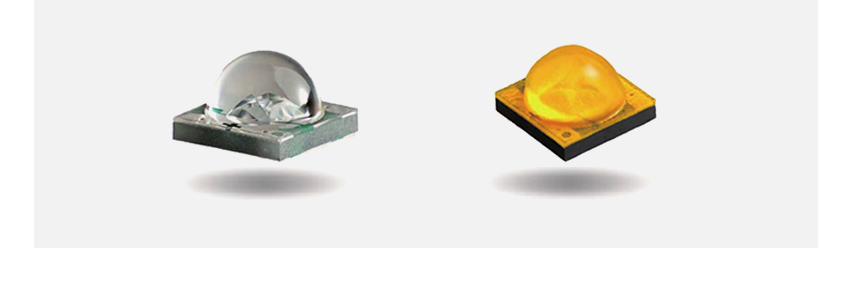

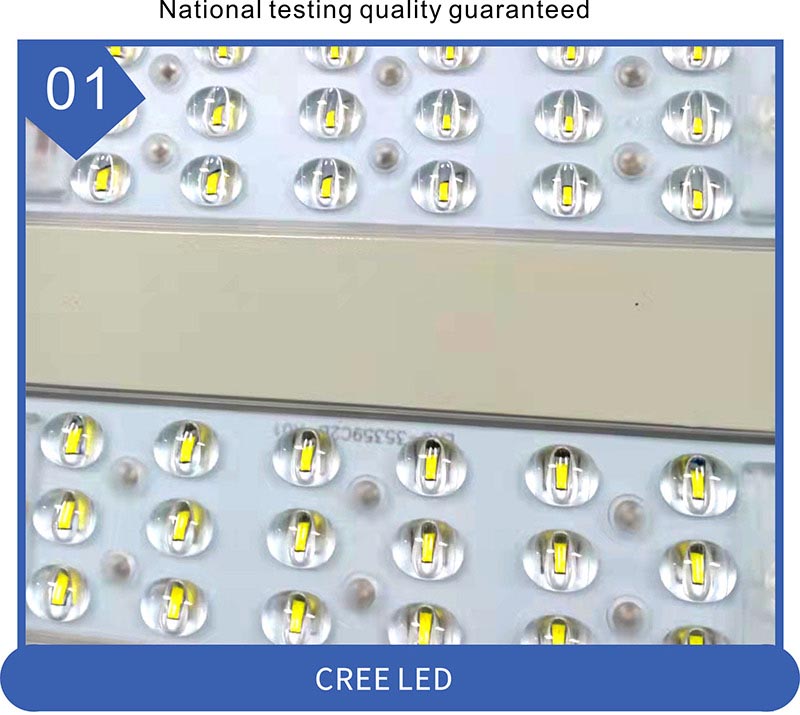

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other


integrated large solar street lamp integrated large solar street lamp integrated large solar street lamp

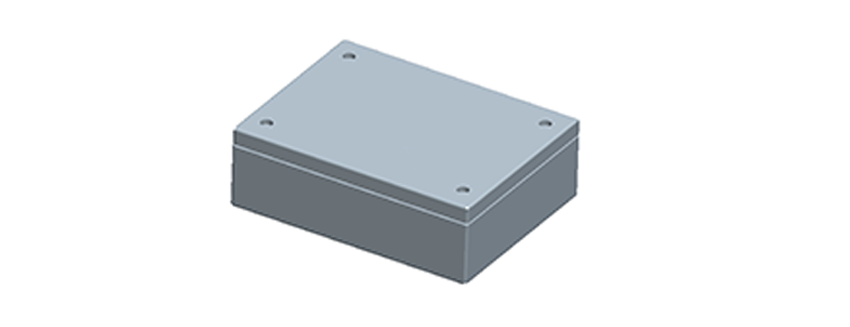

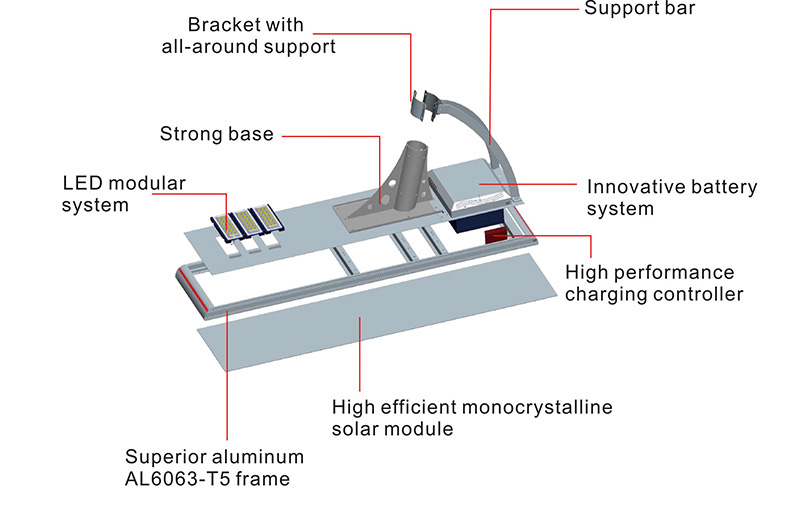

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Superior IC with military standards in batteryprotection board
Waterproof, damp proof, explosion proof, Over charging & over discharging protection

integrated large solar street lamp








Independent design for easy replacement and maintenance,
Insulation design makes longer lifespan for battery
integrated large solar street lamp

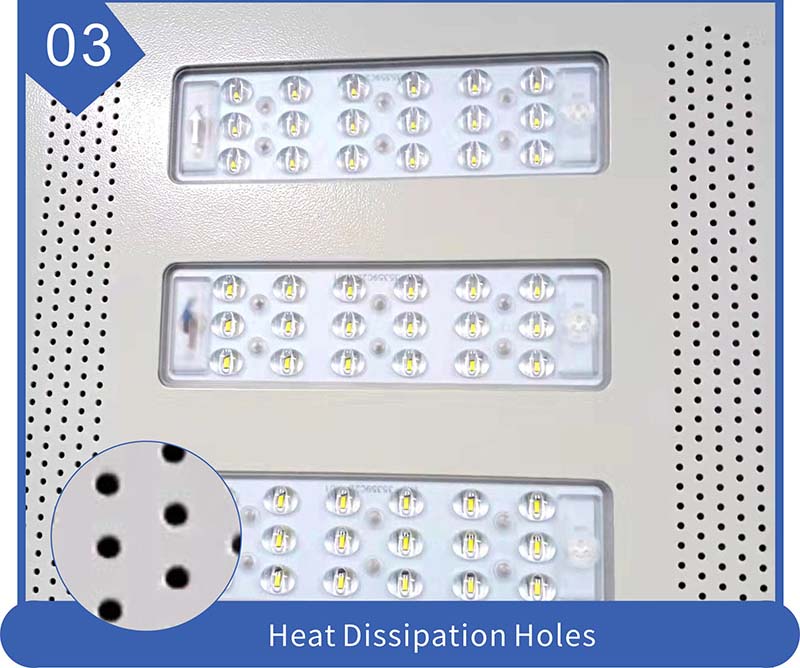

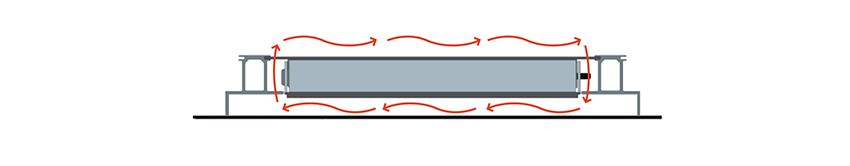

Air convection & thermal system design
More air flows and better heat dissipationAir convection & thermal system design
More air flows and better heat dissipation
integrated large solar street lamp

  • Solar Lighting Solutions For Streets, Roads & Intersections
  • Reliable operation all night, every night
  • Bright and strong lighting output
  • Cost-effective mains alternative
  • Easy plug n play installation
integrated large solar street lamp



OEM & ODM Service



OEM & ODM Service
Brand, Logo,Color, Product Manual, Packaging etc....



Every street lighting project requires two essential conditions to ensure the roads safety for traffic and pedestrians. Reliable operation all night, and consistent bright output that efficiently illuminates the dark areas. Xiuben Lighting solar street lights are the perfect alternative to mains powered lighting, offering comparable lighting outputs and reliability.

Here’s why:

Cost-Effective: Solar lighting offers a highly cost-competitive solution compared to mains powered lighting systems.
Quick Deployment: When no power is available, solar street lights can be quickly installed to enhance safety and security.

Environmental Sustainability: Offset your carbon footprint and contribute to a greener future with solar street lights.

Cost-Saving: Avoid expensive repairs of damaged cabling or broken conduits by opting for solar street lights.
Certified Quality: CE RoHS FCC ISO90001 provides certified solar street light products that meet stringent standards.



FAQ

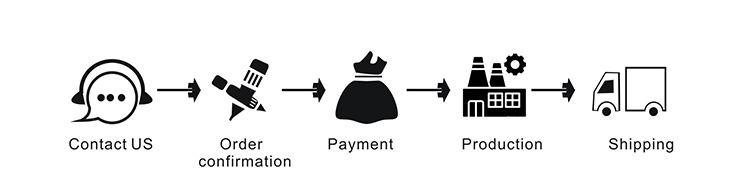

Q1. How to proceed an order for all in one LED solar street light?

A1: Firstly, Let us know the mode number and the quantity you want to order or tell us your requirements on the all in one LED solar street light. Secondly, We will quote accordingly.Thirdly, a proforma invoice(PI) will be sent to you after you confirm the item and quantity so you can arrange the payment. Fourthly, We arrange the production and make shipment.


Q2. Is it OK to print my logo on the all in one LED solar street light product?

A2: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q3: How to deal with the faulty?

A3: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send new lights or parts with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
