100W All In One Solar Street Lights of solar led parking lot lighting

100W All In One Solar Street Lights of solar led parking lot lighting

All In One Solar Street Light: Led Modular Thermal System Design/Battery Protection System Design/Typhoon Resistance Design

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
Available
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
36V 120W
LED Power :
100W
LED brand :
LEADRAY
Model No. :
LRC100W

Inquiry now

Product Details

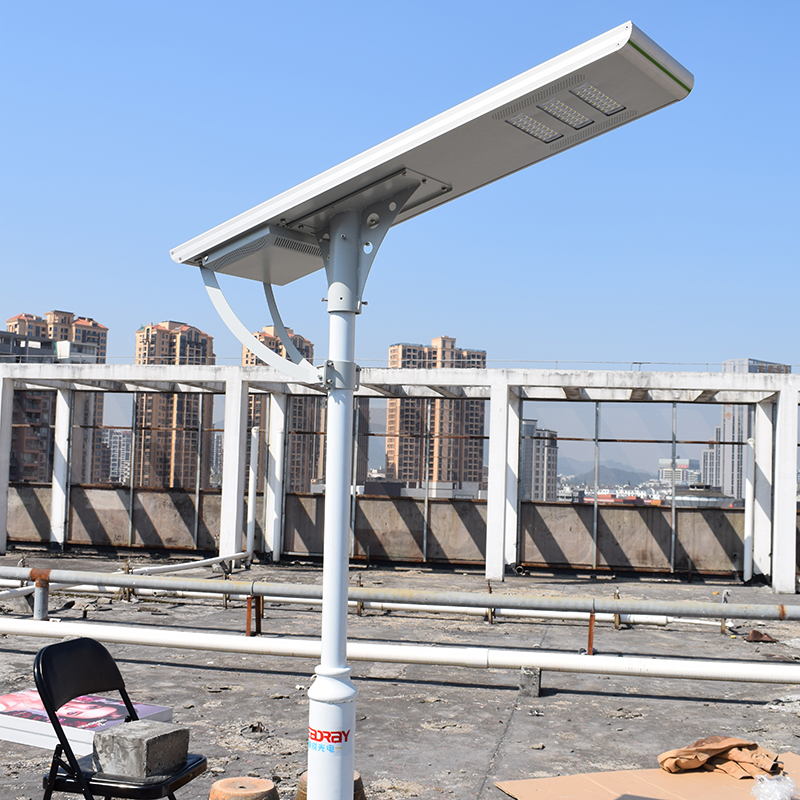

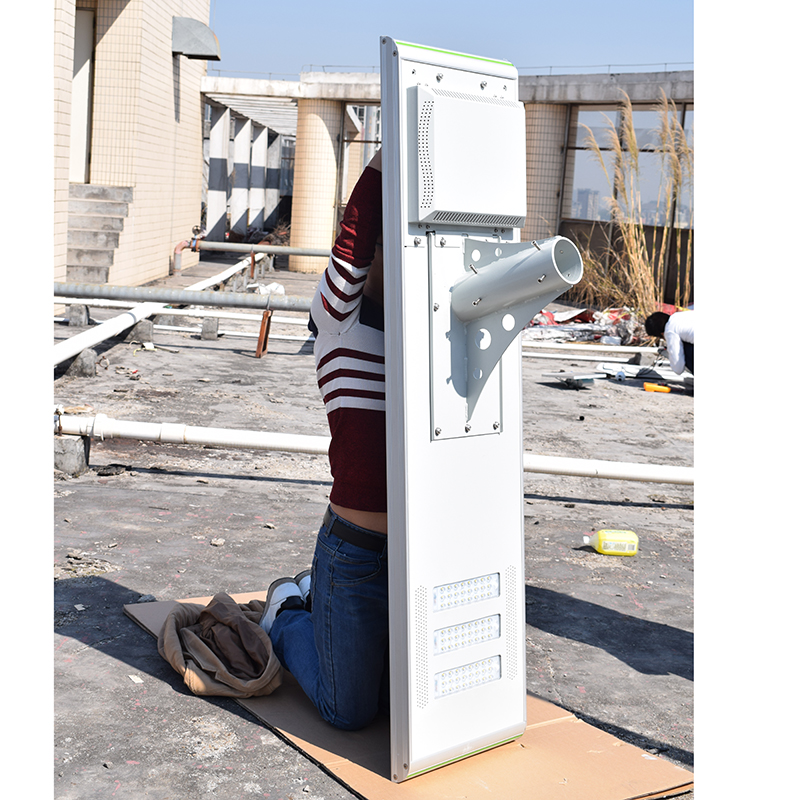

100W All In One Solar Street Light

All In One Solar Street Light : Integrated design/Free maintenance/Easy installation/Environmental Friendly

solar led parking lot lighting

Model No: LRC100W
Solar Panel Power: 36V 120W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 100W
Luminous Flux: 14000Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 10-20m
Suggested Distance Between Lights: 30-40m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

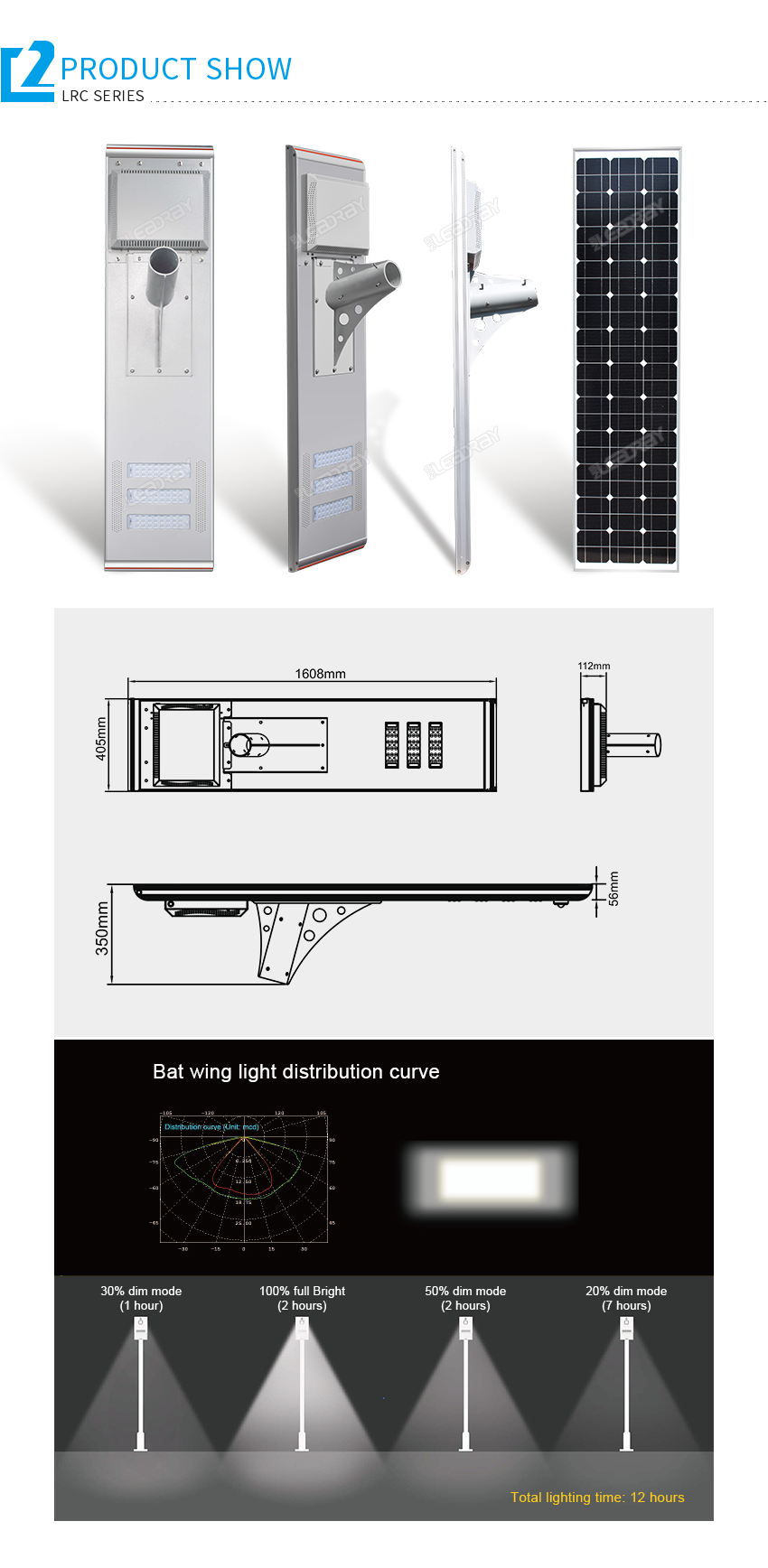

Model No.		LRC80S	LRC100S
Physical Parameters

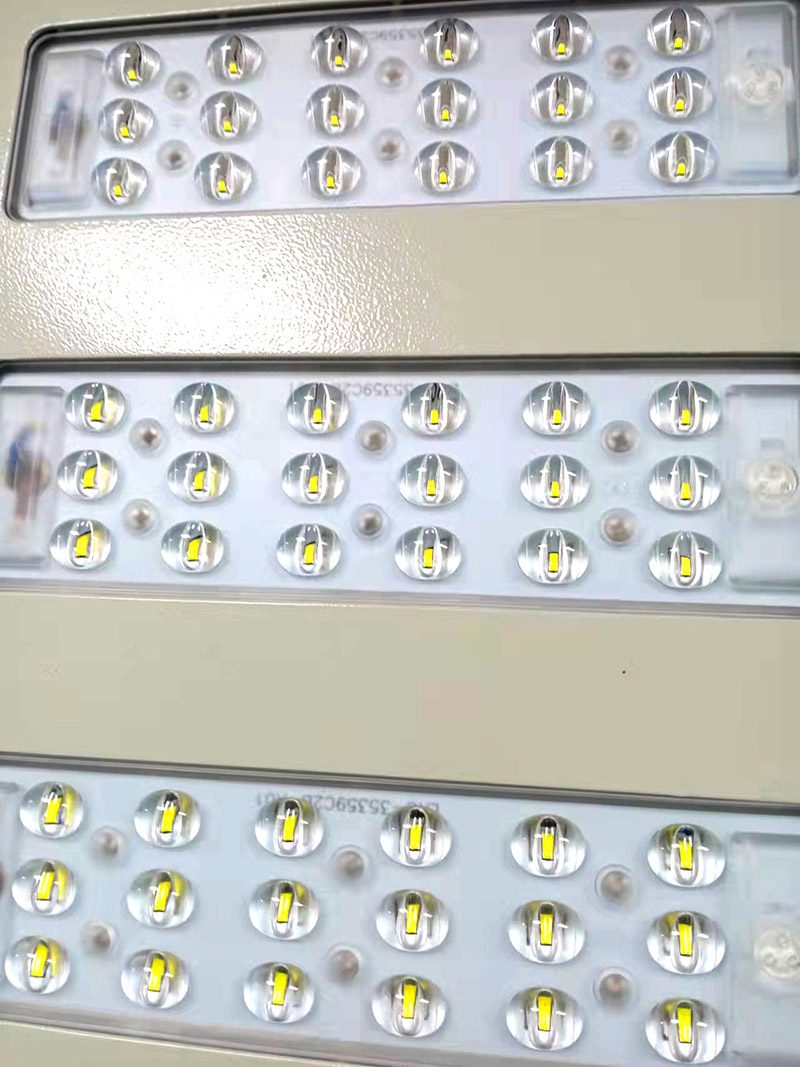

LED Brand		CREE	CREE
LED Qty		72	72
Power of PV Module (W)		36V 110W	36V 120W
LIFEPO4 Battery Capacity (Ah)		25.9V 25Ah	25.9V 30Ah
Lighting Mode		Time Control	Time Control
Dimension of Product (mm)		1608405112	1608405112
Net Weight (kg)		26.5	32
Dimension of Carton #1(mm)		1680480180	1680480180
Dimension of Carton #2(mm)		630300360	630300360
Gross Weight (kg)		34.5	40
Light Parameters
Light Output (W)		80W	100W
Typical Luminous Flux (Lm)		11200	14000
Color Temperature (K)		2700-6500	2700-6500
Beam Angle (°)		150°x70°	150°x70°
Min. Working Time (Hours)	Full Bright	13	13
	Dim Mode	39	39
Environment Parameters
Charging Temperature (°C)		0 °C to +60 °C
Discharing temperature (°C)		-20 °C to +60 °C
Storage temperature (°C)		-20 °C to +45 °C
Installation
Recommended Dia. of Top Pole (mm)		80 ~ 86	8 ~ 86
Recommended thickness of Pole (mm)		≥3.5	≥3.5
Recommended Installation Height (m)		8 ~ 10	8 ~ 10
Recommended Installation Distance (m)		30 ~ 35	30 ~ 35

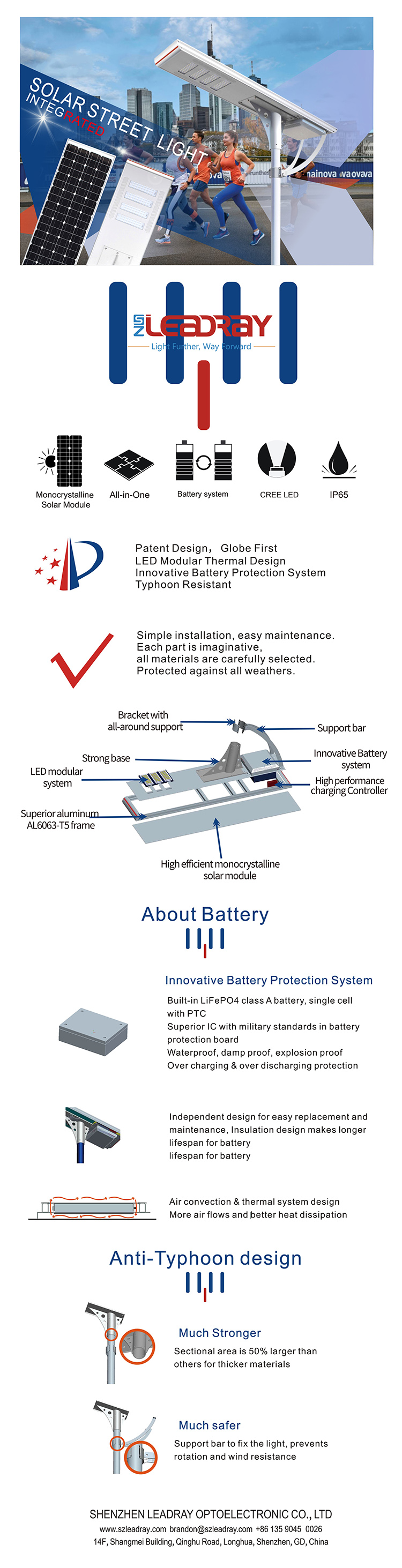

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Superior IC with military standards in batteryprotection board
Waterproof, damp proof, explosion proof, Over charging & over discharging protection

Independent design for easy replacement and maintenance,

Insulation design makes longer lifespan for battery

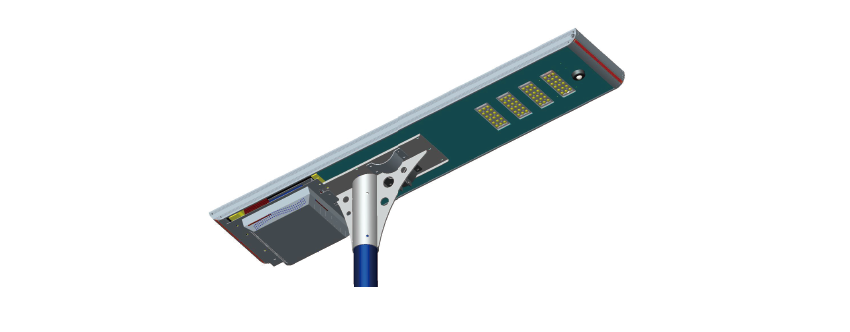

Air convection & thermal system design
More air flows and better heat dissipationAir convection & thermal system design
More air flows and better heat dissipation

Remote Control 100 120w Battery Power Panel Lights System Outdoor Dimmable Integrated All In One Led Solar Street Light

Lighting Mode	Timer Control: 12hours=1hrs 30% lighting + 2hrs 100% lighting + 2hrs 50% lighting + 7hrs 20% lighting
Material	Superior aviation aluminum AL6063-T5
Certification	CE RoHs SASO IEC
IP Rating	IP65
Warranty	3 years

OEM & ODM Service

Brand, Logo,Color, Product Manual, Packaging etc....

18+ Years experience of Solar LED Lighting

Brand, Logo, Lighting mode, Brightness, Product Manual, Packaging, etc.
