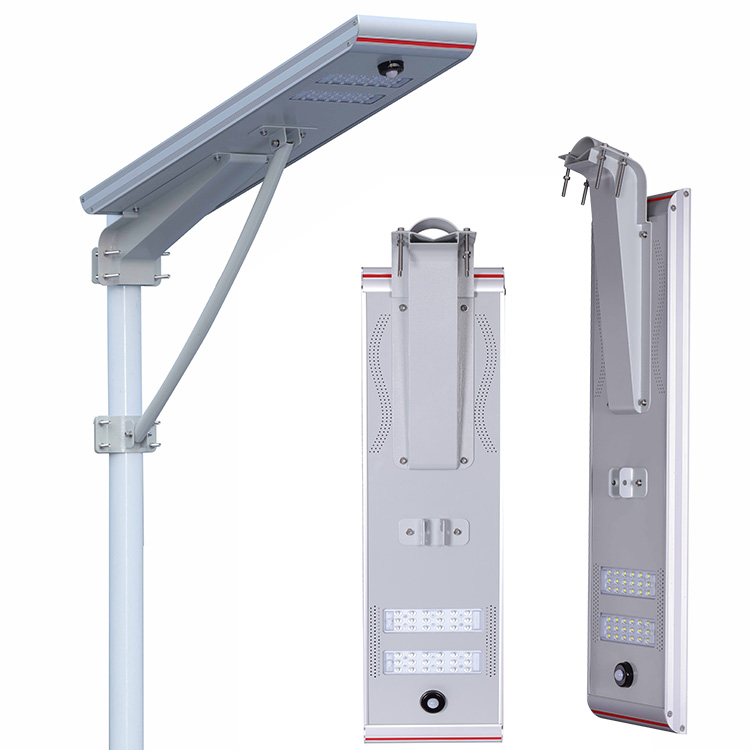

Solar Power Led Street Lighting Integrated: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
30W Battery Power Panel Lights System Outdoor Dimmable Integrated led all in one solar lamp projector with remote.
Payment :
T/T, Paypal, Western UnionColor :
SilverLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
QingdaoInfrared senor :
AvailableBattery Type :
Lithium LiFePO4 batterySolar Panel Power :
18V 60WLED Power :
30WLED brand :

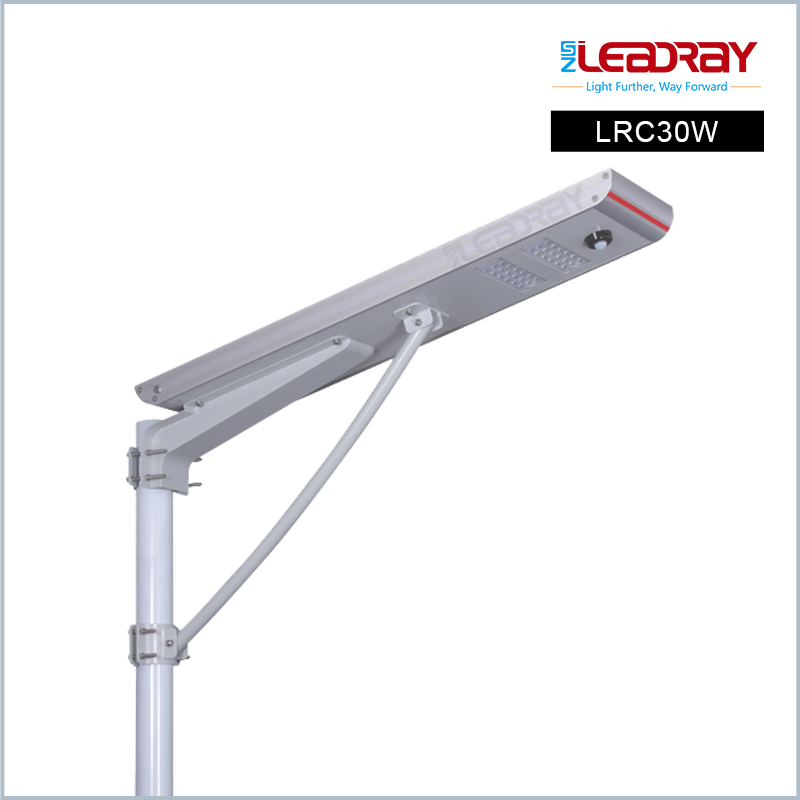

LEADRAYModel No. :
LRC30W
30W Solar Power Led Street Lighting Outdoor waterproof 20w 30w 40w 5 0w 60w 80w 10 0w all in one solar led street light integrated motion sensor lamp
Warranty: 3-5 years
Model No. | LRC30W | |
Physical Parameters | ||
LED Brand | CREE | |
LED Qty | 36 | |
Power of PV Module (W) | 60W | |
LIFEPO4 Battery Capacity (Ah) | 25 | |
PIR Sensor | YES | |

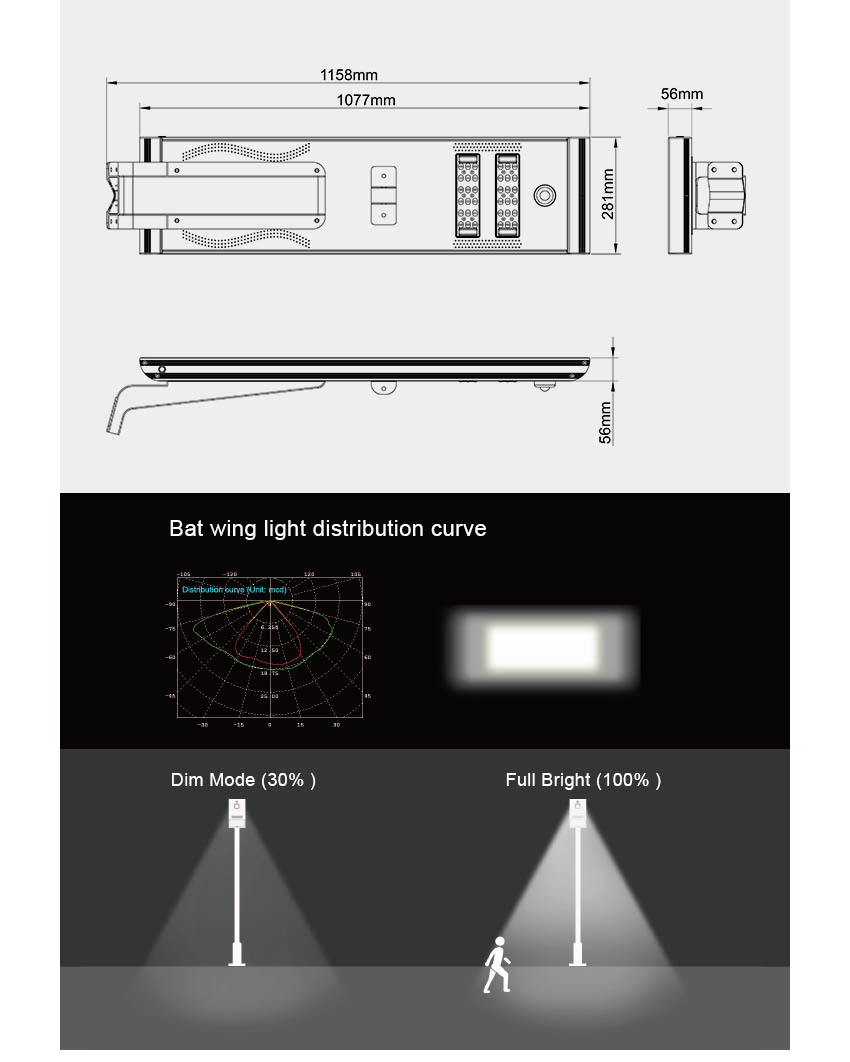

Dimension of Product (mm) | 1158*281*56 | |
Net Weight (kg) | 17 | |

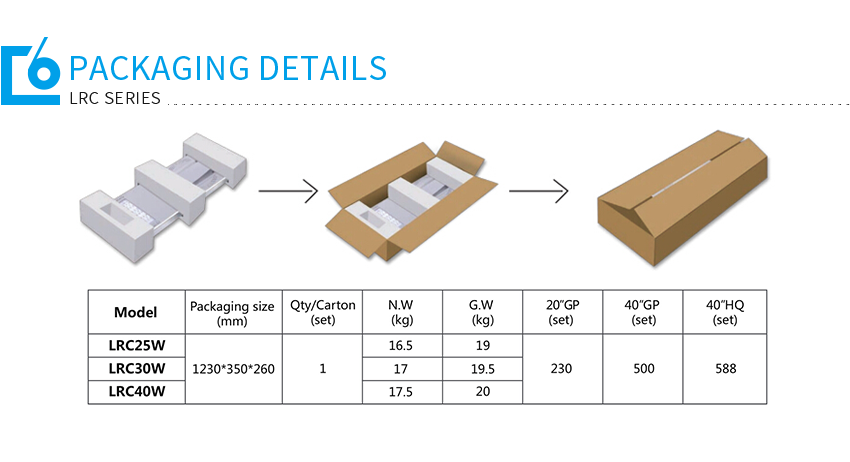

Dimension of Carton (mm) | 1230*350*260 | |
Gross Weight (kg) | 19.5 | |
Light Parameters | ||
Light Output (W) | 30W | |
Typical Luminous Flux (Lm) | 4200 | |
Color Temperature (K) | 2700-6500 | |
Beam Angle (°) | 150°x70° | |
Min. Working Time (Hours) | Full Bright | 13 |
Dim Mode | 39 | |
Environment Parameters | ||
Charging Temperature (°C) | 0 °C to +60 °C | |
Discharing temperature (°C) | -20 °C to +60 °C | |
Storage temperature (°C) | -20 °C to +45 °C | |
Installation | ||
Recommended Dia. of Top Pole (mm) | 75~105 | |
Recommended Installation Height (m) | 4 ~ 6 | |
Recommended Installation Distance (m) | 10 ~ 15 |
PIR Motion Sensor Led Solar Street Light 30w IP65 Waterproof Road Light Express Way Yard Stadium Light
outdoor waterproof integrated solar powered street lamp dusk to dawn with motion sensor

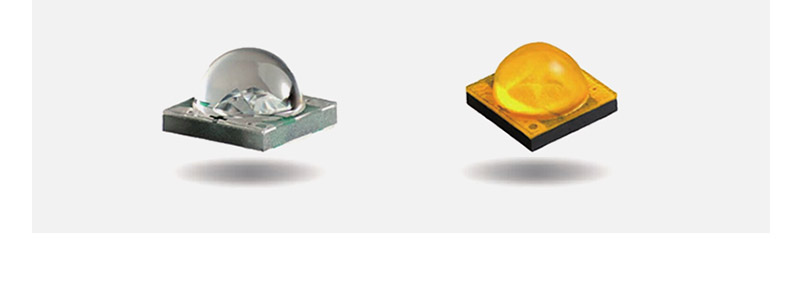

Cree® XLamp® XT-E LEDs
CREE LED without gold wire packaging, creates a first-class light source
140Lm/W, 30% brighter than other similar products
Longer working hours, 15% longer than other

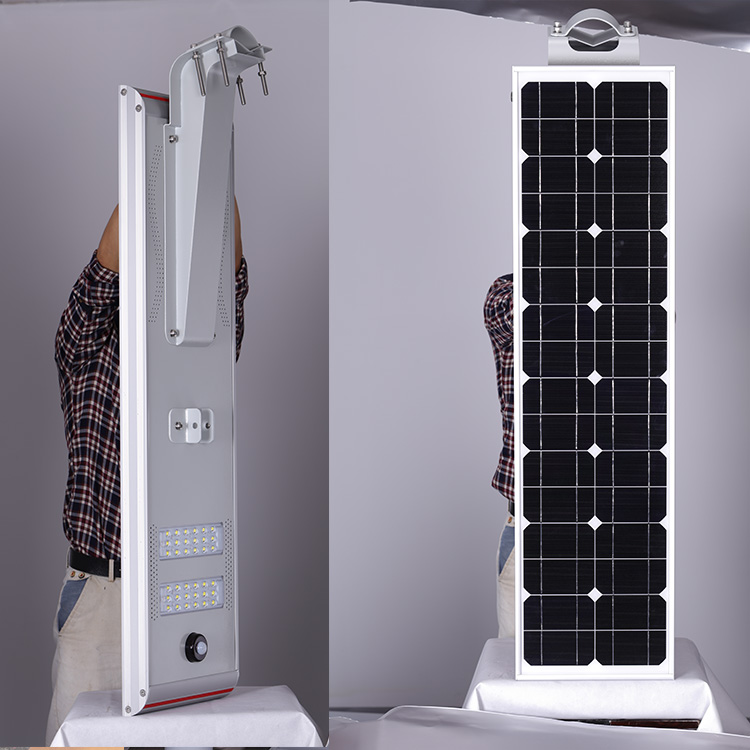

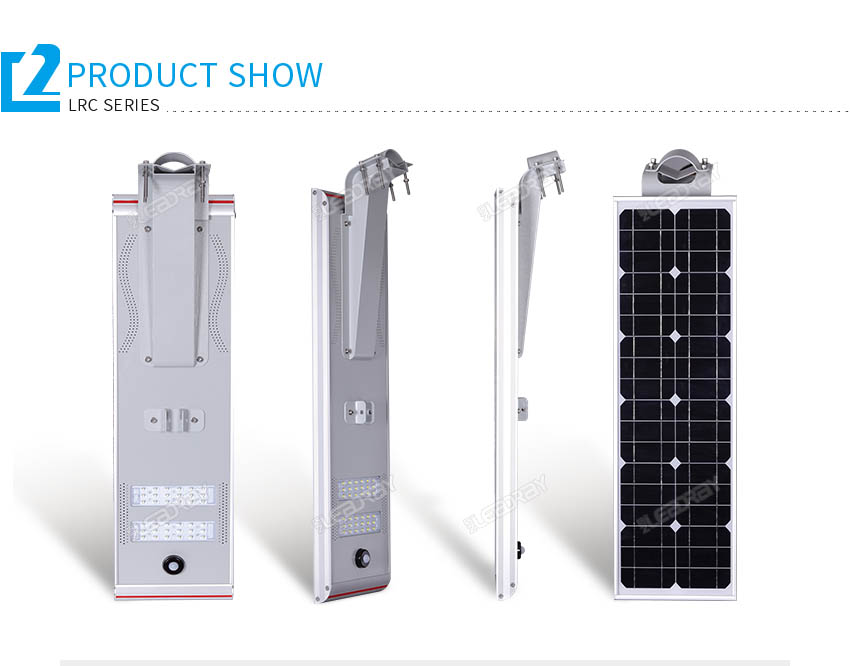

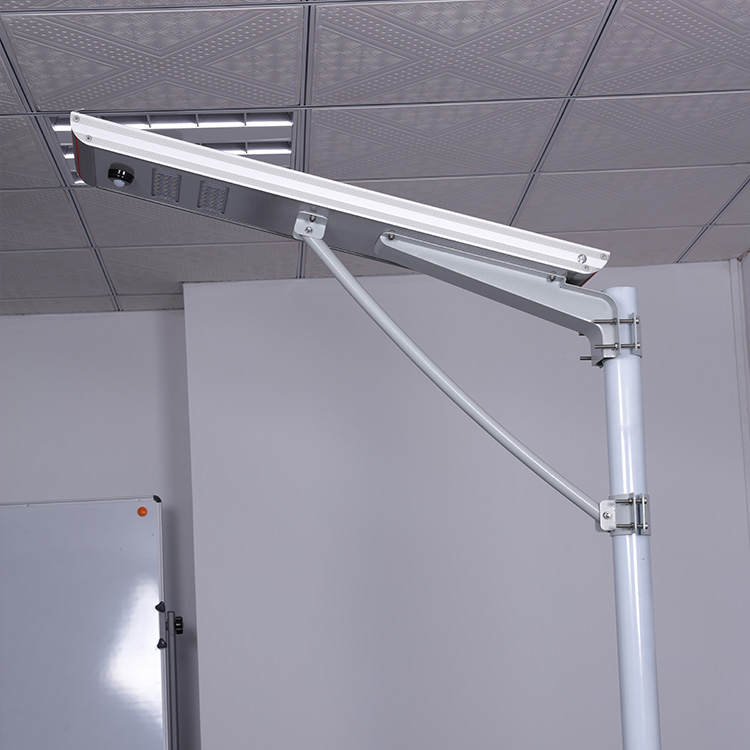

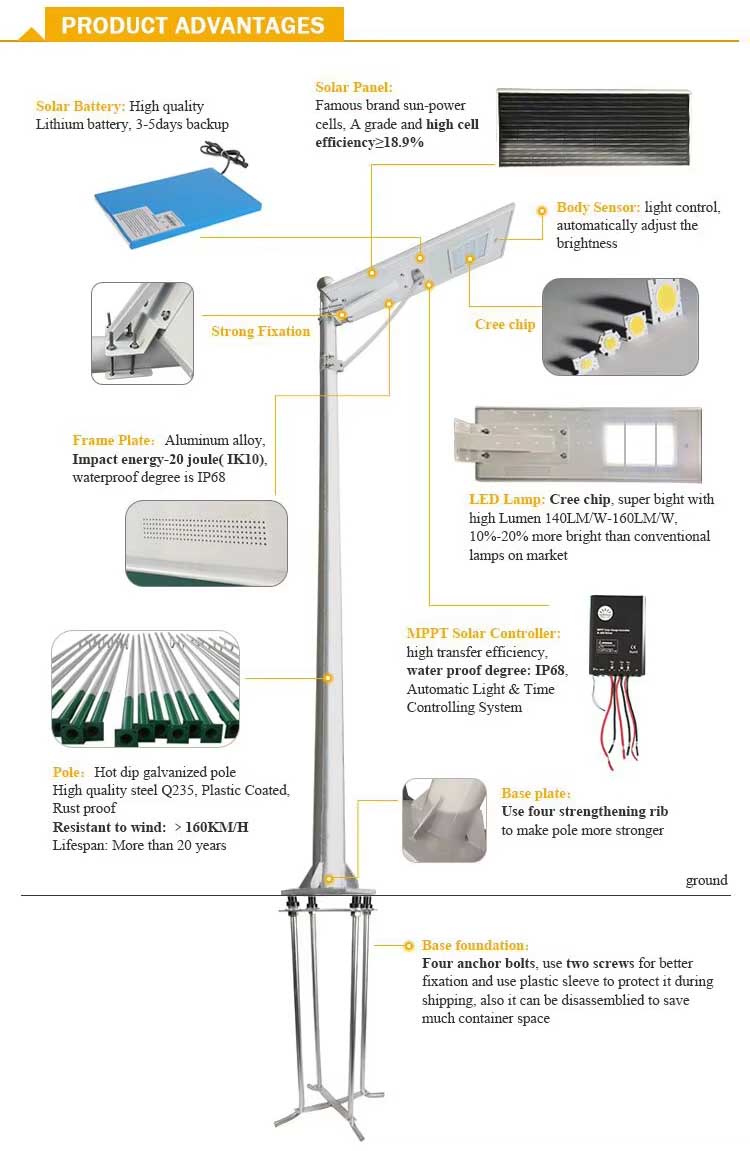

Integrated solar led street lamp is a new kind of solar led street lamp for the road lighting. Its solar panel,LED lamp, controller, battery are all integrated inside the lamp then it is very easy for the installation.
In addition, there is a brightness sensor on the lamp. If the brightness is enough, the solar panel can absorb the solar energy for battery charging, while if the brightness is not enough, the LED lamp will be on automatically and the battery will supply the energy to the lamp for area illumination. What’s more, the lamp can be customized with motion sensor or time control mode. Its brightness standard can be adjusted by movement or time schedule.

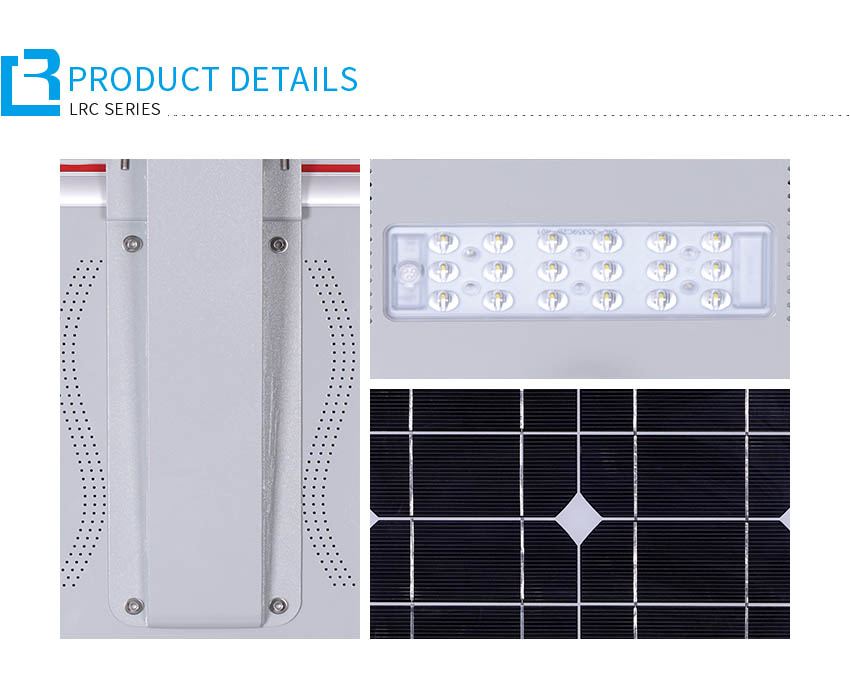

It has solved the problem of complex installation and expensive transportation compared with traditional solar LED street light.Waterproof and replaceable LED modular for easy maintenance.

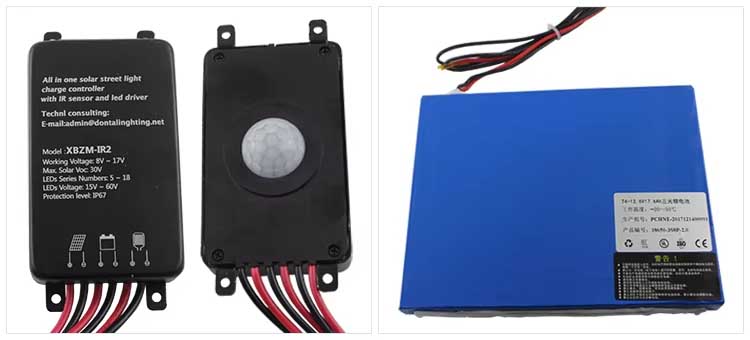

Innovative Battery Protection System
Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

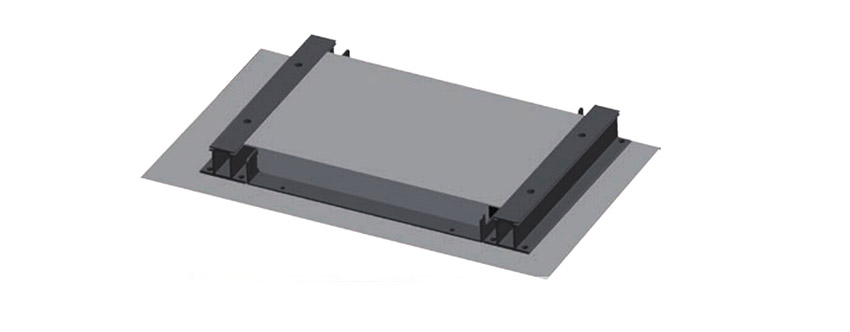

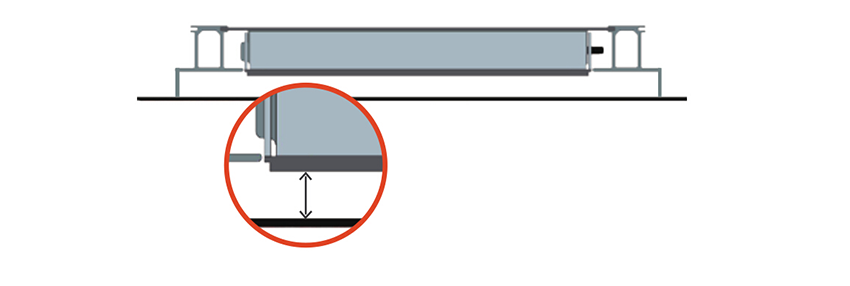

Original separate design with 5mm gap between battery and solar panel

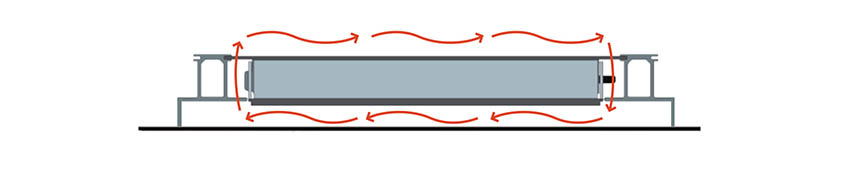

Air convection & thermal system design, More air flows and better heat dissipation
Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?
A1: Yes, our professional engineers will make the setting according to your requirements.
Q2. Can I have the all in one LED solar street light product without the sensor?
A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.
Q3. Can I use the all in one LED solar street light product on the islands?
A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.
Q4. Can I have a sample order for the all in one LED solar street light product?
A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. What about the lead time?
A5: We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.
Q7. How do you ship the goods and how long does it take to arrive?
A7: We usually ship by DHL, UPS, FedEx or TNT for sample orders. It usually takes 3-5 days to arrive. Airline and sea shipping is preferable for bulk order.

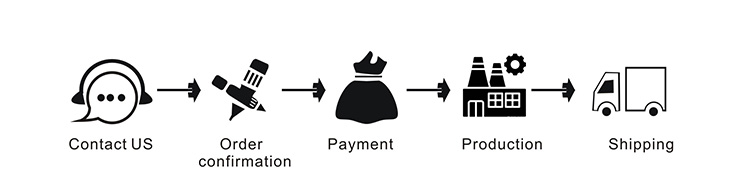

Q8. How to proceed an order for all in one LED solar street light?
A8: Firstly, Let us know the mode number and the quantity you want to order or tell us your requirements on the all in one LED solar street light. Secondly, We will quote accordingly.Thirdly, a proforma invoice(PI) will be sent to you after you confirm the item and quantity so you can arrange the payment. Fourthly, We arrange the production and make shipment.
