Lamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh
Angle of LED modules adjustable : (15°~ 45°)
Solar parking lot light, also known as solar-powered parking lot lighting, is a type of lighting fixture that uses solar energy to illuminate parking lots.
During the day, solar panels in the solar parking lot lights absorb sunlight and convert it into electrical energy, which is stored in the built-in battery. At night, when the ambient light is insufficient, the battery supplies power to the LED lights, enabling them to emit light and illuminate the parking lot. Some solar parking lot lights are also equipped with sensors, such as motion sensors or light sensors, which can automatically adjust the brightness or switch on/off the lights according to the actual situation, further improving energy efficiency.
1.Professional secondary light.
2.distribution, suitable for a variety of lighting scenes :(90° /75°x 150°).
3. Can add the LED module to the bottom side to achieve two-way lighting.

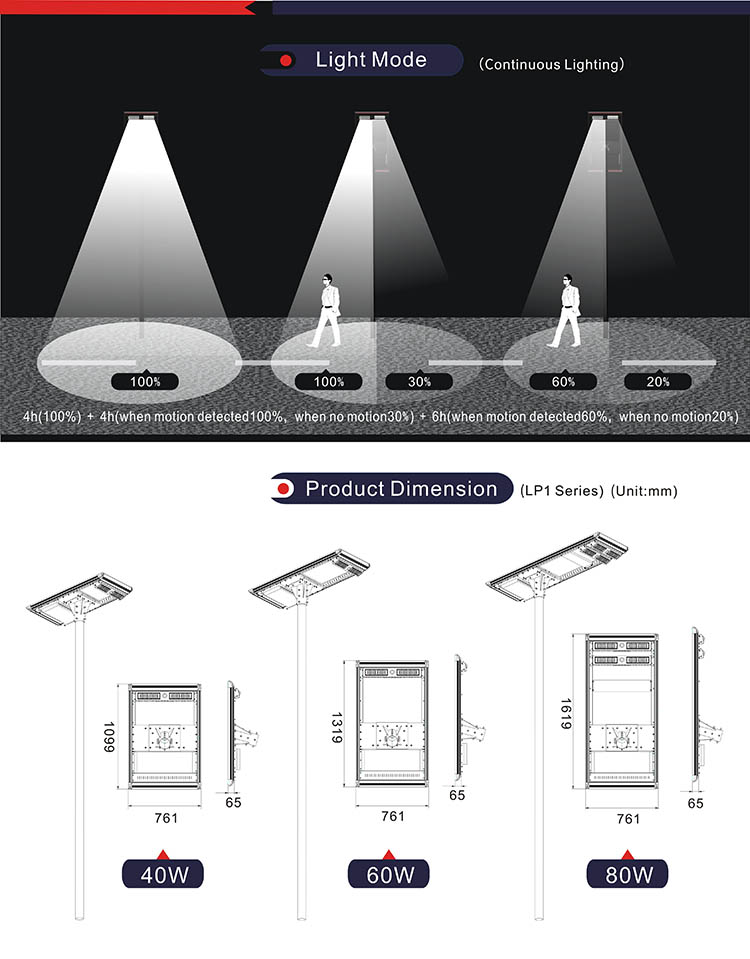

4. 4h(100%) + 4h(when motion detected100%,when no motion30%) + 6h(when motion detected60%,when no motion20%).



| Model | LP1-40W | LP1-60W | LP1-80W |
| Physical Parameters | |||
| LED Brand | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 128 | 128 | 256 |
| Power of PV Module(W) | 36V 160W | 36V 180W | 36V 230W |
| LIFEPO4 Battery Capacity(Ah) |
25.6V 922Wh | 25.6V 1229Wh | 25.6V 1536Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control |
| Product Dimension(mm) | 1099*761*65 | 1319*761*65 | 1619*761*65 |
| Package #1 Dimension(mm)& G.W. (1 Lamp/CTN) |
1160*825*22 5 (18KG) |
1380*825*225 (26KG) |
1680*825*225 (32KG) |
| Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
395*405*310 (15KG) |
||
| Light Parameters | |||
| Light Power(W) | 40W | 60W | 80W |
| Typical Liminous Flux(Lm) | 6400 | 9600 | 12800 |
| LED Light Effect(Lm/W) | 210Lm/W | ||
| Color Temperature(K) | 2700-6500 | ||
| Beam Angle(°) | 90° / 75°x 150° | ||
| Rainy Days(D) | 3~5 | 3~5 | 3~5 |
| Environment Parameters | |||
| Charging Temperature(℃) |
0 ℃ to +60 ℃ |
||
| Discharging Temperature(℃) |
-20 ℃ to +60 ℃ |
||
| Storage Temperature(℃) |
-20 ℃ to +45 ℃ | ||
| Installation | |||
| Dia. of Top Pole (mm) | 89~105 | 89~105 | 89~105 |
| Installation Height(m) | 6~8 | 7~10 | 10~812 |
| Installation Distance (m) | 35~40 | 35~40 | 40~405 |



Energy Saving and Environmental Protection: It uses solar energy, a clean and renewable energy source, without consuming traditional electrical energy, thus reducing carbon emissions and environmental pollution.
Low Cost of Use: There is no need to dig trenches for wiring or pay high electricity bills during installation. The subsequent operating costs are extremely low, only requiring occasional maintenance.
Easy Installation: It does not rely on the power grid and can be installed anywhere with sufficient sunlight, such as remote parking lots, island parking lots, etc. The installation process is simple, usually only requiring fixing the lights on poles or walls.
Intelligent Control: Many solar parking lot lights are equipped with intelligent control systems, such as motion sensors, PIR sensors, etc. They can automatically adjust the lighting brightness according to the presence of people and vehicles, saving energy and extending the working time of the lights.
Good Durability: The shell is usually made of aluminum alloy and other materials, which has the characteristics of rust resistance, impact resistance, and corrosion resistance. It also has a high waterproof rating, such as IP66, and can work normally in various harsh weather conditions.


Solar Panels: Usually made of monocrystalline silicon or polycrystalline silicon materials, their role is to convert solar energy into electrical energy. Monocrystalline silicon solar panels have higher conversion efficiency, while polycrystalline silicon solar panels are more cost-effective.
Batteries: Commonly used are lithium batteries, such as lithium iron phosphate batteries, which have the advantages of high energy density, long life, and good discharge performance. They are responsible for storing the electrical energy generated by the solar panels and supplying power to the LED lights at night.
LED Lights: As the light - emitting part of solar parking lot lights, LED lights have the characteristics of high brightness, low energy consumption, long life, and fast response speed. The power of LED lights in solar parking lot lights can range from tens of watts to hundreds of watts.
Controllers: Such as MPPT controllers, which can intelligently control the charging and discharging process of the battery, improve the utilization efficiency of solar energy, and protect the battery from overcharging and over - discharging.
