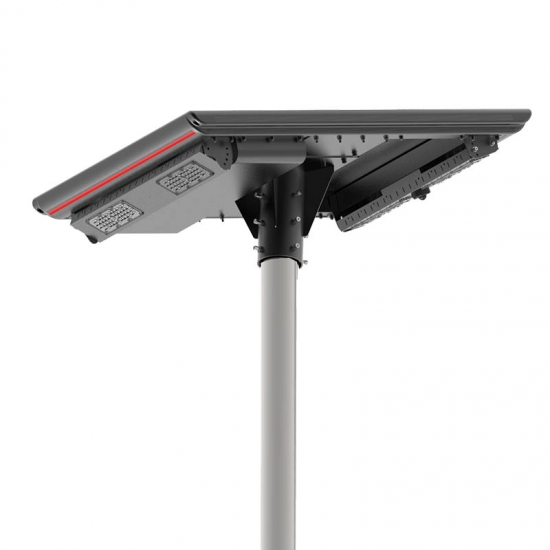

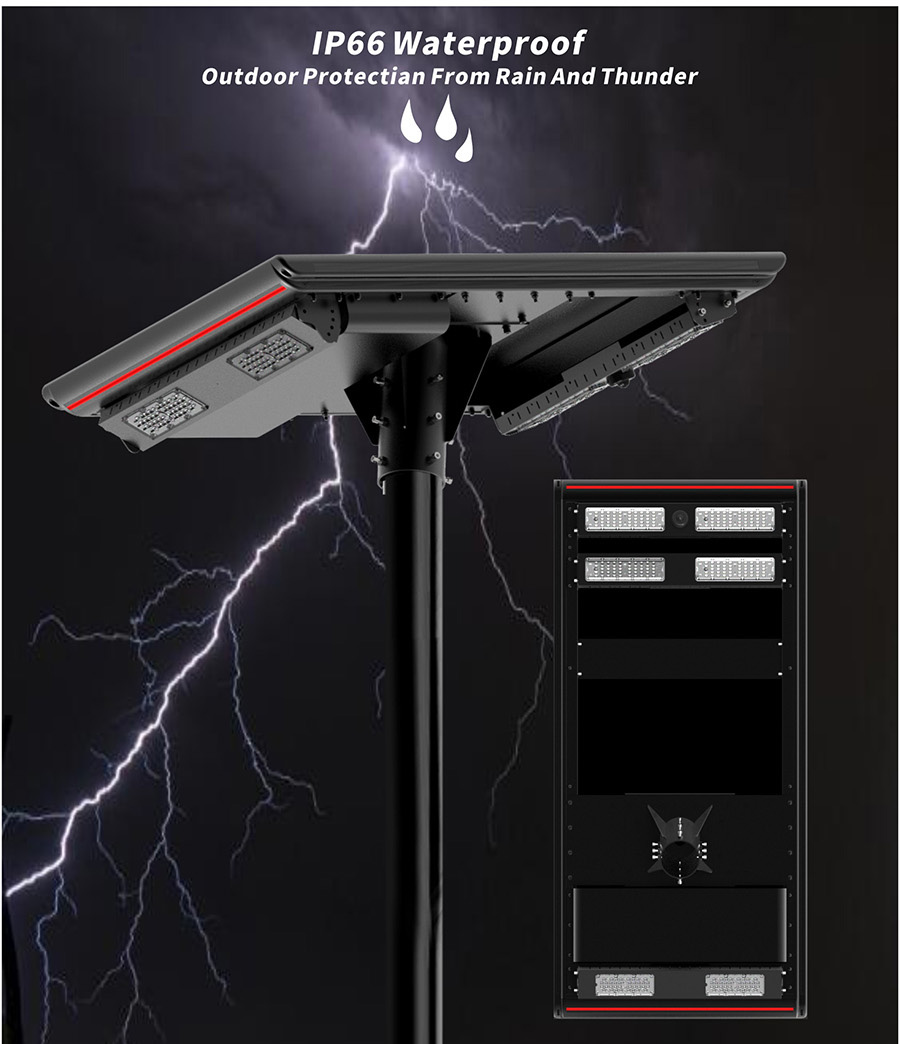

40W Solar Parking Lot Light Solar powered Direct Sale Battery Capacity 36V Solar Powered Garden Lights
Lamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh
Angle of LED modules adjustable : (15°～ 45°）
1.Professional secondary light
2.distribution, suitable for a variety of lighting scenes :（90° /75°x 150°）
3. Can add the LED module to the bottom side to achieve two-way lighting

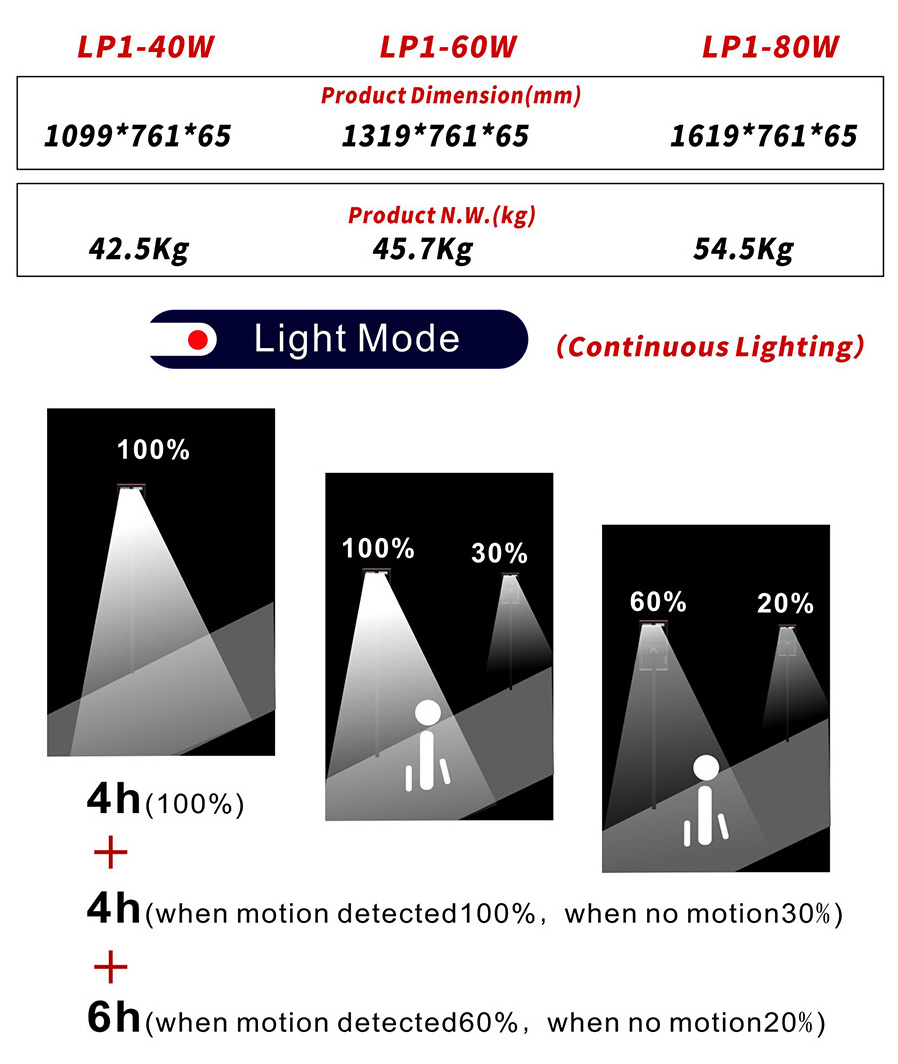

4. 4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)
Payment :
T/T, Paypal, Western UnionColor :
BlackLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
QingdaoInfrared senor :
not availableBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
36V 160WLED Power :
40WLED brand :
LEADRAYModel No. :
LP1-40WLamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh

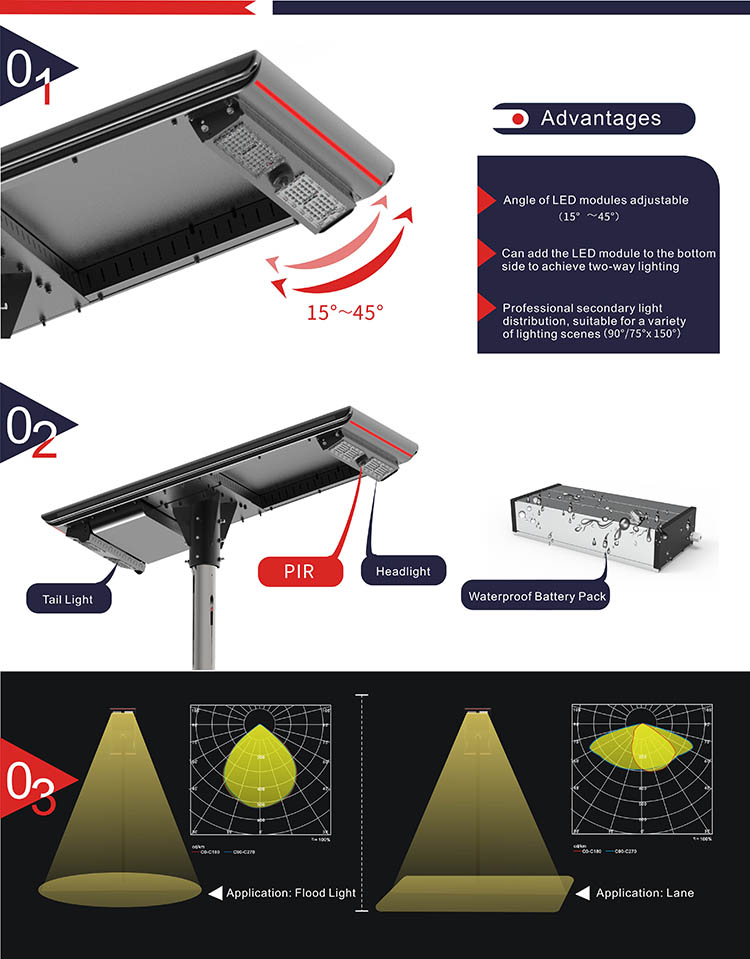

Angle of LED modules adjustable : (15°～ 45°）
1.Professional secondary light
2.distribution, suitable for a variety of lighting scenes :（90° /75°x 150°）
3. Can add the LED module to the bottom side to achieve two-way lighting
4. 4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)

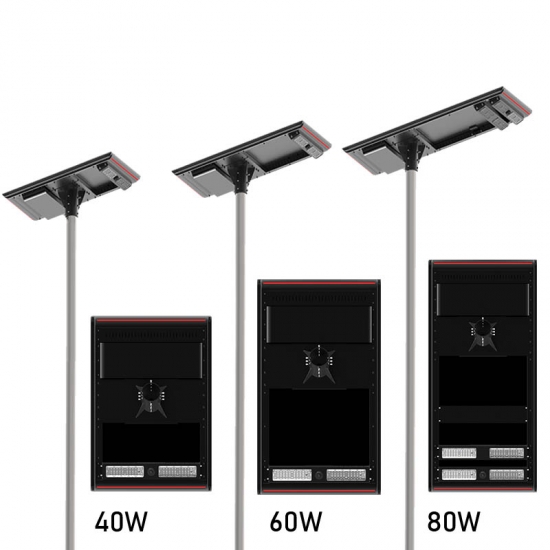

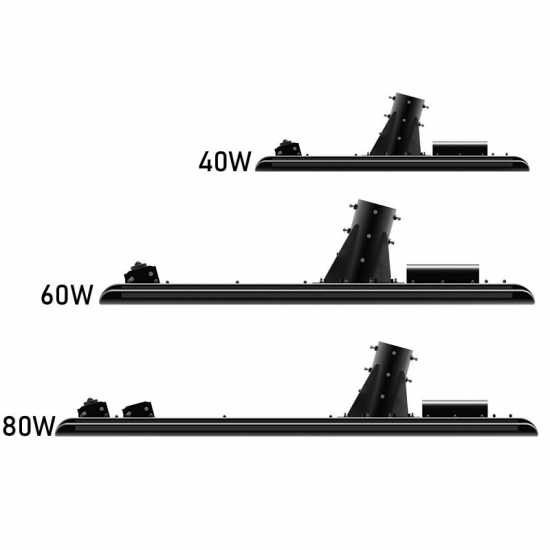

| Model | LP1-40W | LP1-60W | LP1-80W |
| Physical Parameters | |||
| LED Brand | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 128 | 128 | 256 |
| Power of PV Module(W) | 36V 160W | 36V 180W | 36V 230W |
| LIFEPO4 Battery Capacity(Ah) |
25.6V 922Wh | 25.6V 1229Wh | 25.6V 1536Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control |

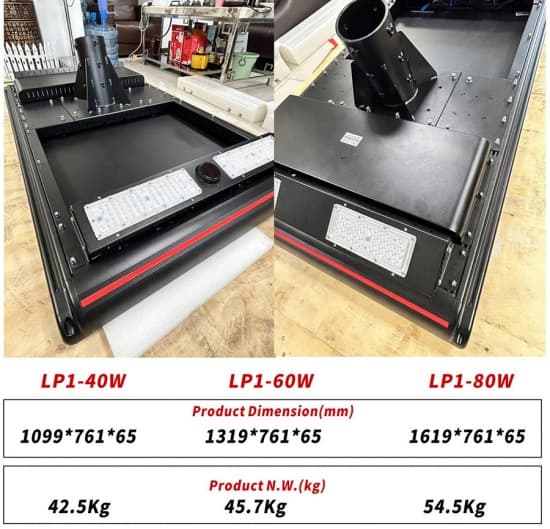

| Product Dimension(mm) | 1099*761*65 | 1319*761*65 | 1619*761*65 |
| Package #1 Dimension(mm)& G.W. (1 Lamp/CTN) |
1160*825*22 5 (18KG) |
1380*825*225 (26KG) |
1680*825*225 (32KG) |
| Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
395*405*310 (15KG) |
||
| Light Parameters | |||
| Light Power(W) | 40W | 60W | 80W |
| Typical Liminous Flux(Lm) | 6400 | 9600 | 12800 |
| LED Light Effect(Lm/W) | 210Lm/W | ||
| Color Temperature(K) | 2700-6500 | ||
| Beam Angle(°) | 90° / 75°x 150° | ||
| Rainy Days(D) | 3~5 | 3~5 | 3~5 |
| Environment Parameters | |||
| Charging Temperature(℃) |
0 ℃ to +60 ℃ |
||
| Discharging Temperature(℃) |
-20 ℃ to +60 ℃ |
||
| Storage Temperature(℃) |
-20 ℃ to +45 ℃ | ||
| Installation | |||
| Dia. of Top Pole (mm) | 89~105 | 89~105 | 89~105 |
| Installation Height(m) | 6~8 | 7~10 | 10~812 |
| Installation Distance (m) | 35~40 | 35~40 | 40~405 |
