60W Solar Parking Lot Light Aluminum Garden Park Landscape Lighting
Lamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh

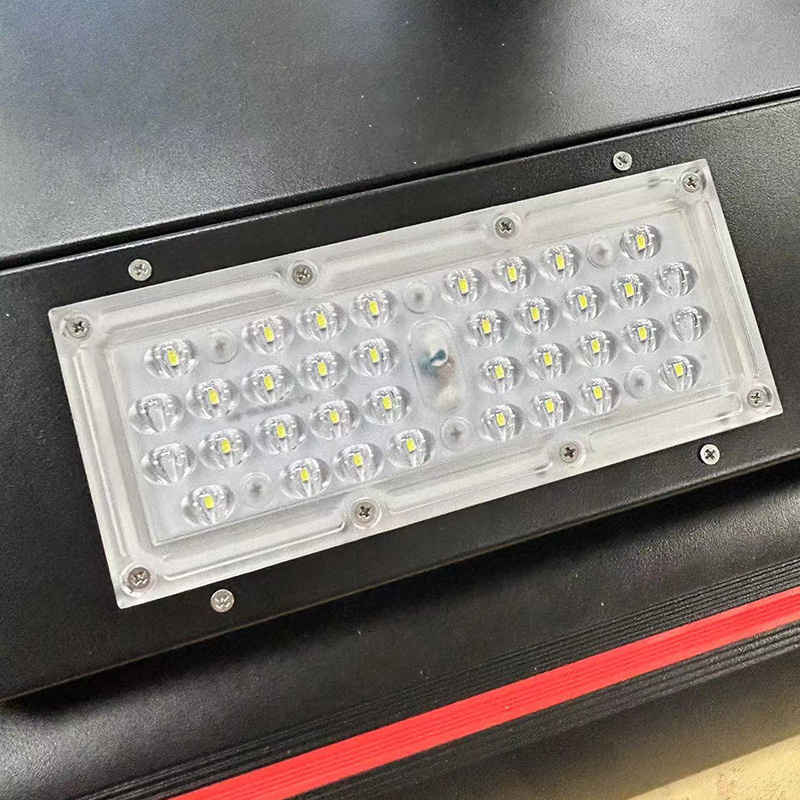

Angle of LED modules adjustable : (15°～ 45°）
1.Professional secondary light
2.distribution, suitable for a variety of lighting scenes :（90° /75°x 150°）
3. Can add the LED module to the bottom side to achieve two-way lighting
4. 4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)
Payment :
T/T, Paypal, Western UnionLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
QingdaoInfrared senor :
AvailableBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
36V 180WLED Power :
60WLED brand :
LEADRAYModel No. :
LP1-60WLamp Power:40-80W
Solar Panel Power:160-230W
Battery Capacity:922-1536Wh
Angle of LED modules adjustable : (15°～ 45°）
1.Professional secondary light
2.distribution, suitable for a variety of lighting scenes :（90° /75°x 150°）
3. Can add the LED module to the bottom side to achieve two-way lighting
4. 4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)

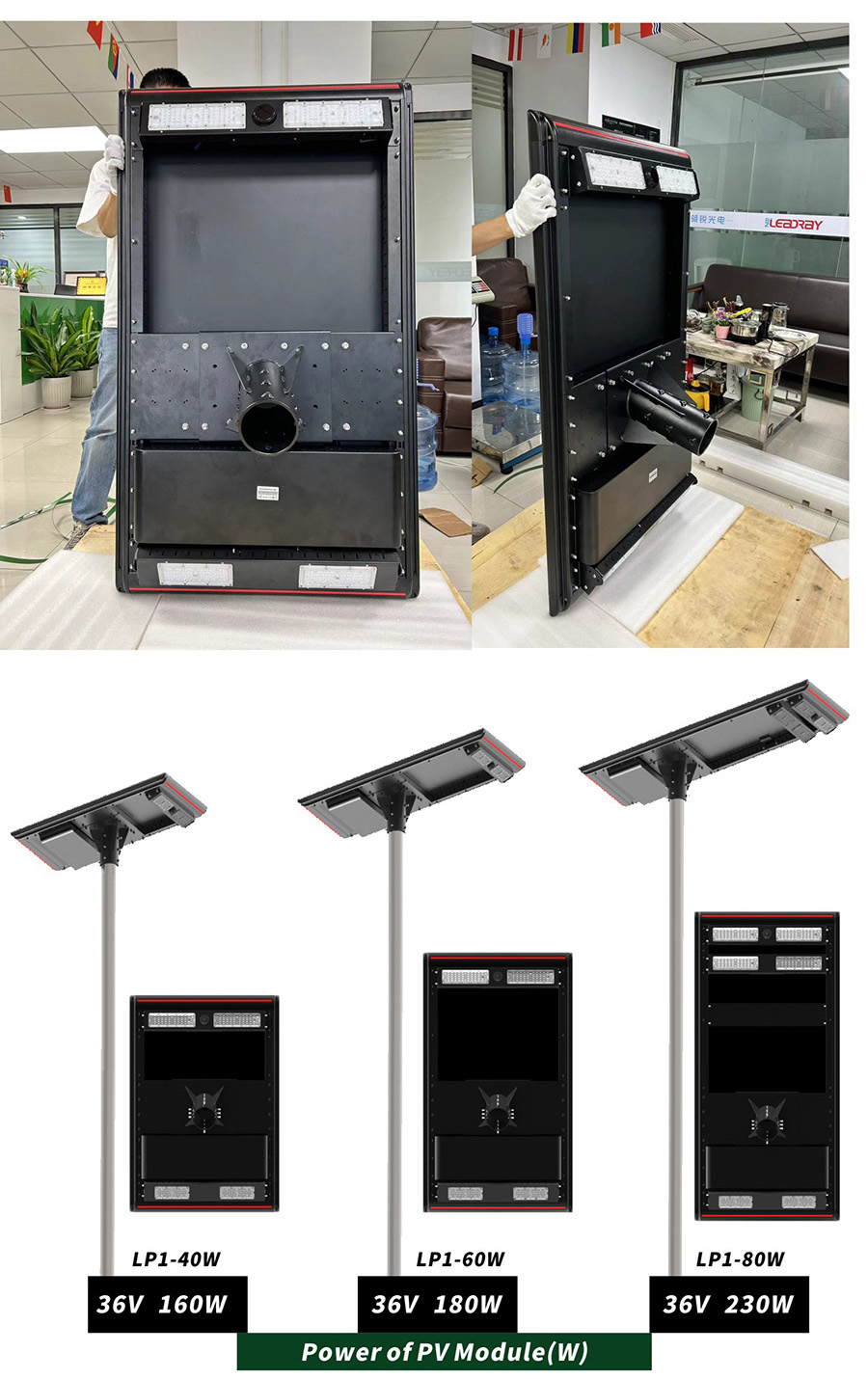

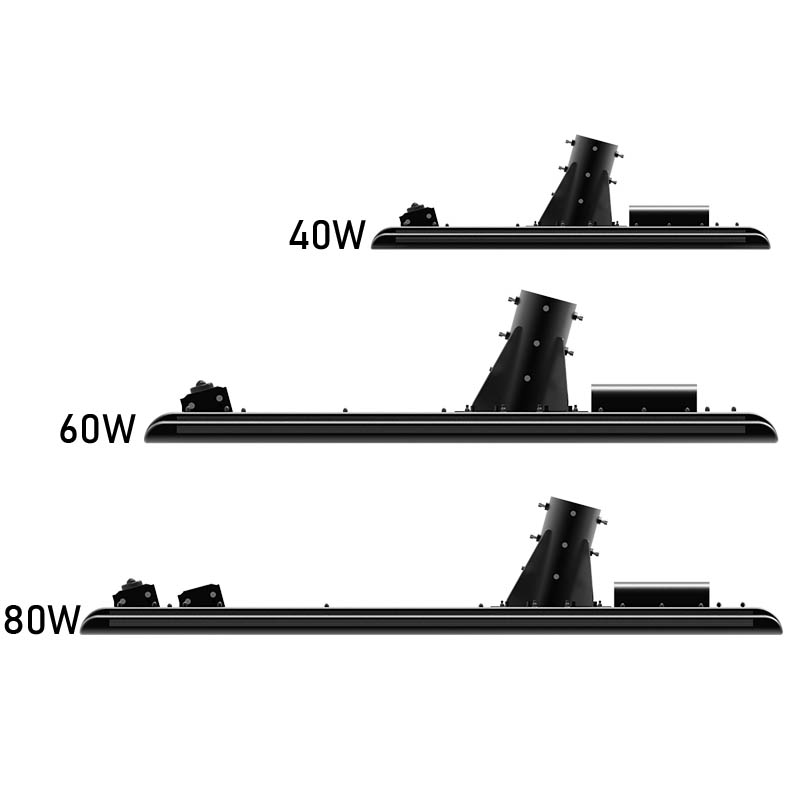

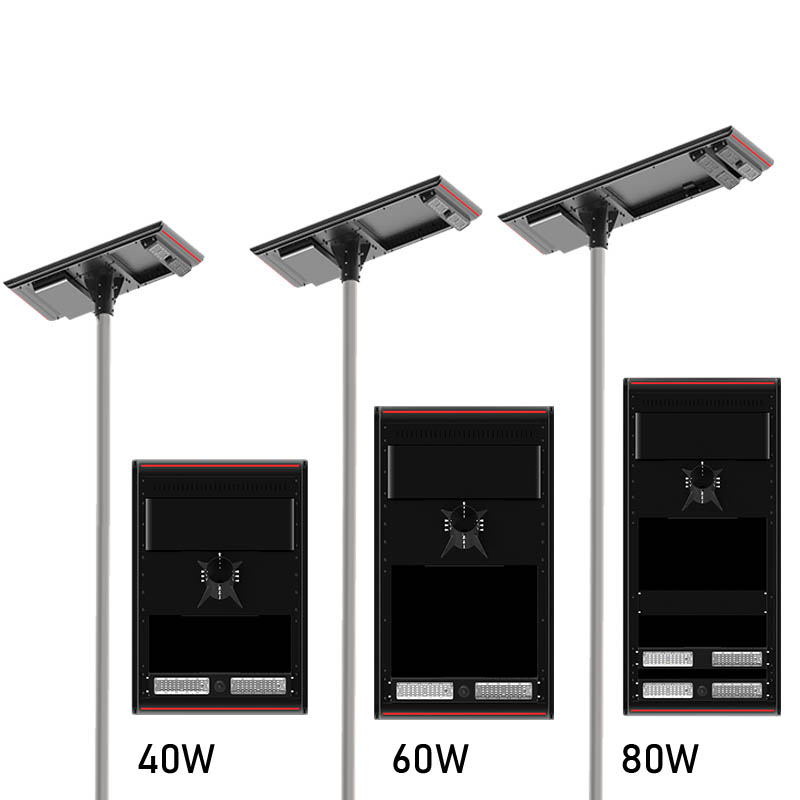

| Model | LP1-40W | LP1-60W | LP1-80W |
| Physical Parameters | |||
| LED Brand | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 128 | 128 | 256 |
| Power of PV Module(W) | 36V 160W | 36V 180W | 36V 230W |
| LIFEPO4 Battery Capacity(Ah) |
25.6V 922Wh | 25.6V 1229Wh | 25.6V 1536Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control |

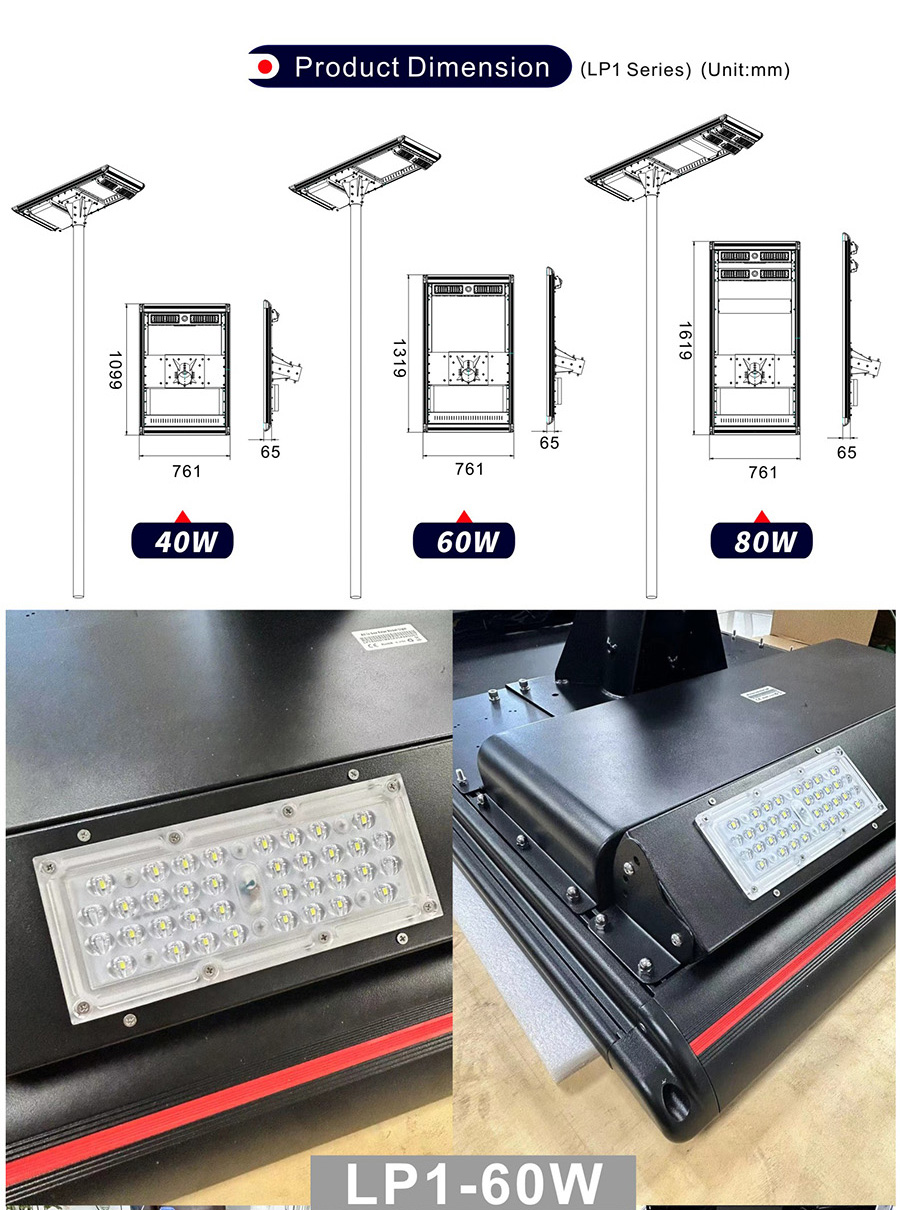

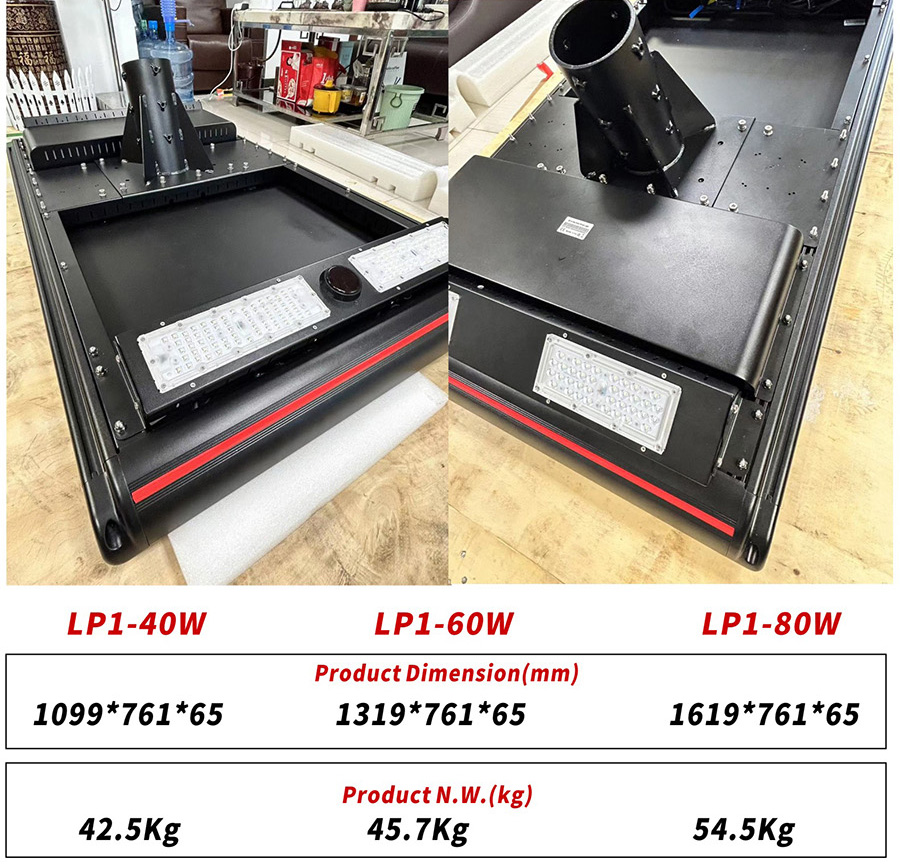

| Product Dimension(mm) | 1099*761*65 | 1319*761*65 | 1619*761*65 |
| Package #1 Dimension(mm)& G.W. (1 Lamp/CTN) |
1160*825*22 5 (18KG) |
1380*825*225 (26KG) |
1680*825*225 (32KG) |
| Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
395*405*310 (15KG) |
||
| Light Parameters | |||
| Light Power(W) | 40W | 60W | 80W |
| Typical Liminous Flux(Lm) | 6400 | 9600 | 12800 |
| LED Light Effect(Lm/W) | 210Lm/W | ||
| Color Temperature(K) | 2700-6500 | ||
| Beam Angle(°) | 90° / 75°x 150° | ||
| Rainy Days(D) | 3~5 | 3~5 | 3~5 |
| Environment Parameters | |||
| Charging Temperature(℃) |
0 ℃ to +60 ℃ |
||
| Discharging Temperature(℃) |
-20 ℃ to +60 ℃ |
||
| Storage Temperature(℃) |
-20 ℃ to +45 ℃ | ||
| Installation | |||
| Dia. of Top Pole (mm) | 89~105 | 89~105 | 89~105 |
| Installation Height(m) | 6~8 | 7~10 | 10~12 |
| Installation Distance (m) | 35~40 | 35~40 | 40~45 |

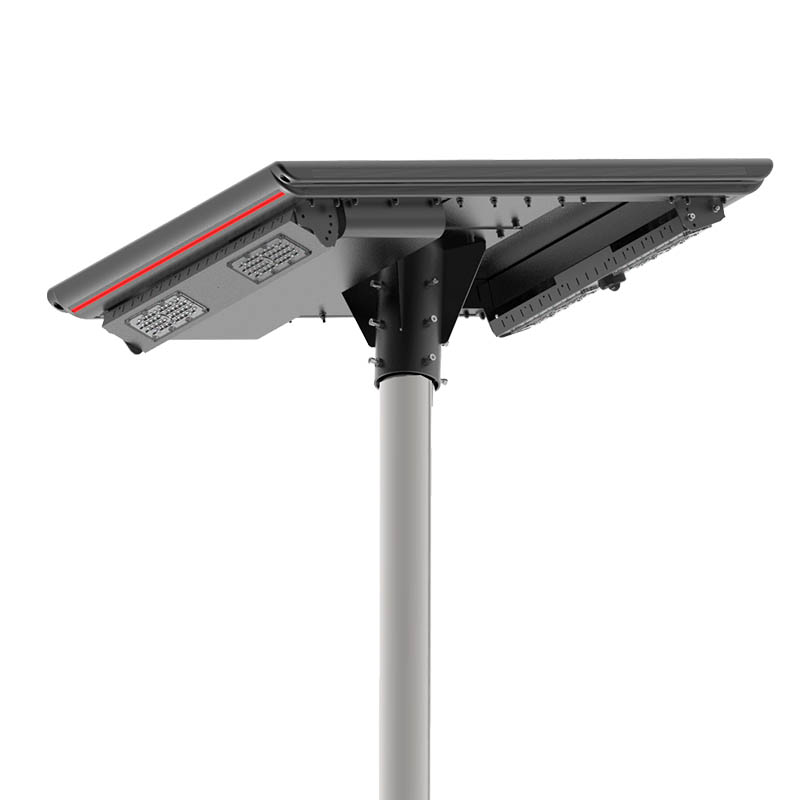

High-power integrated solar parking lot light adopts a higher conversion efficiency M6 MONO solar panels, high
brightness LED lights, long lifespan lithium battery pack, efficient intelligent controller and human induction technology.
It is a high performance lighting solution for multiple scenarios (square, park, parking lot, fish farms, farm, etc.),
to achieve the long last lighting and intelligent sensing.
1. Can add the LED module to the bottom side to achieve two-way lighting.
4h(100%) + 4h(when motion detected100%，when no motion30%) + 6h(when motion detected60%，when no motion20%)
