All In One Energy Saving 9W UFO Integrated Solar Street Garden Light

All In One Energy Saving 9W UFO Integrated Solar Street Garden Light

9W Integrated Solar Led Garden Light For Garden And Village: Led Modular Thermal System Design/Battery Protection System Design/Typhoon Resistance Design.

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
not available
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
18V/15W
LED Power :
9W
LED brand :
LEADRAY
Model No. :
LGA09W

Inquiry now

Product Details

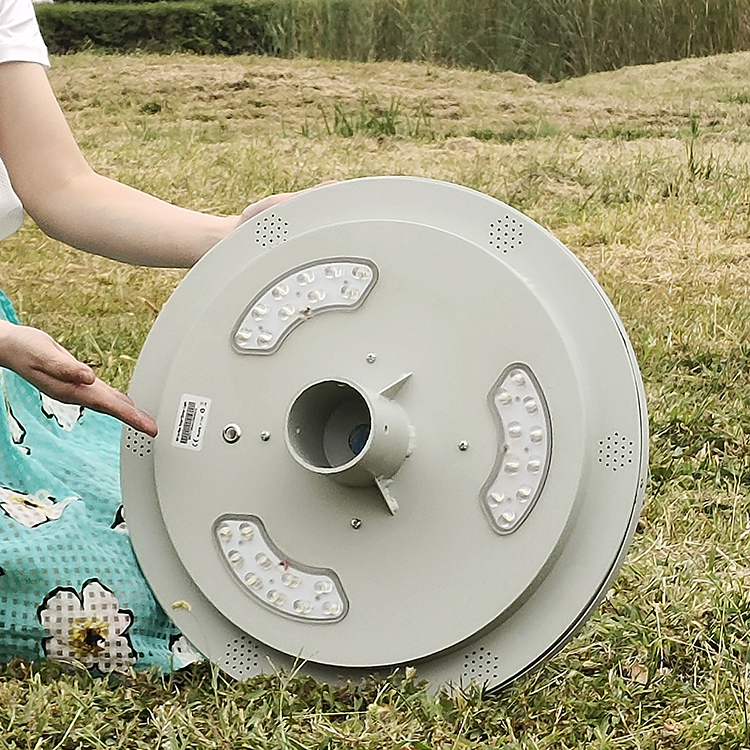

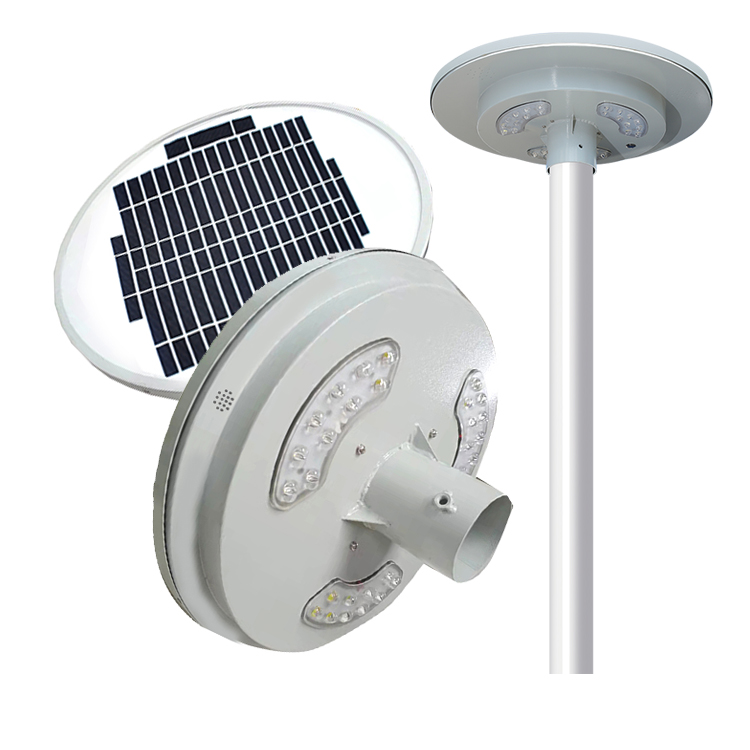

9W Integrated Solar Led Garden Light for Garden and Villa

Integrated Solar Led Garden Light for Garden and Villa

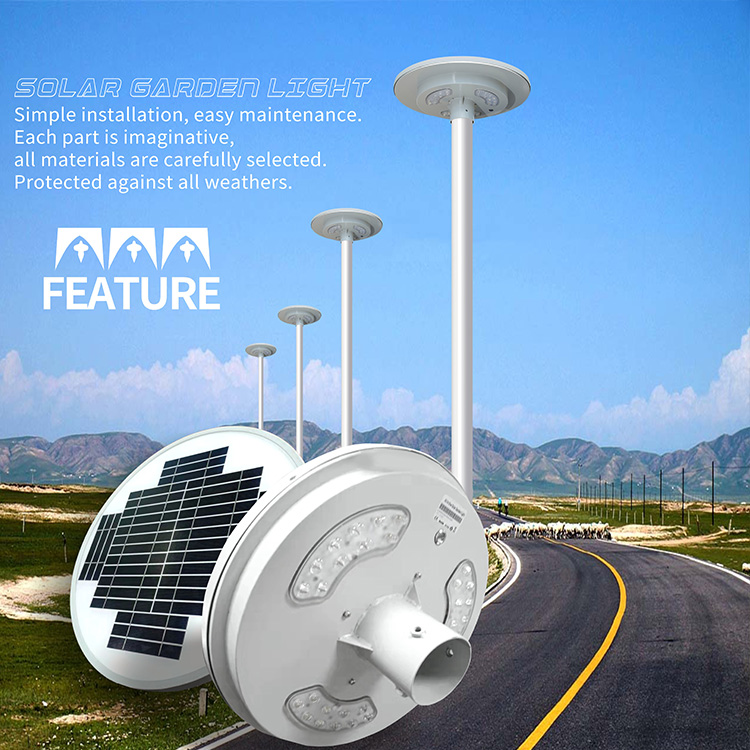

9W Integrated Solar Led Garden Light for Garden and Villa: Integrated design/Free maintenance/Easy installation/Environmental Friendly

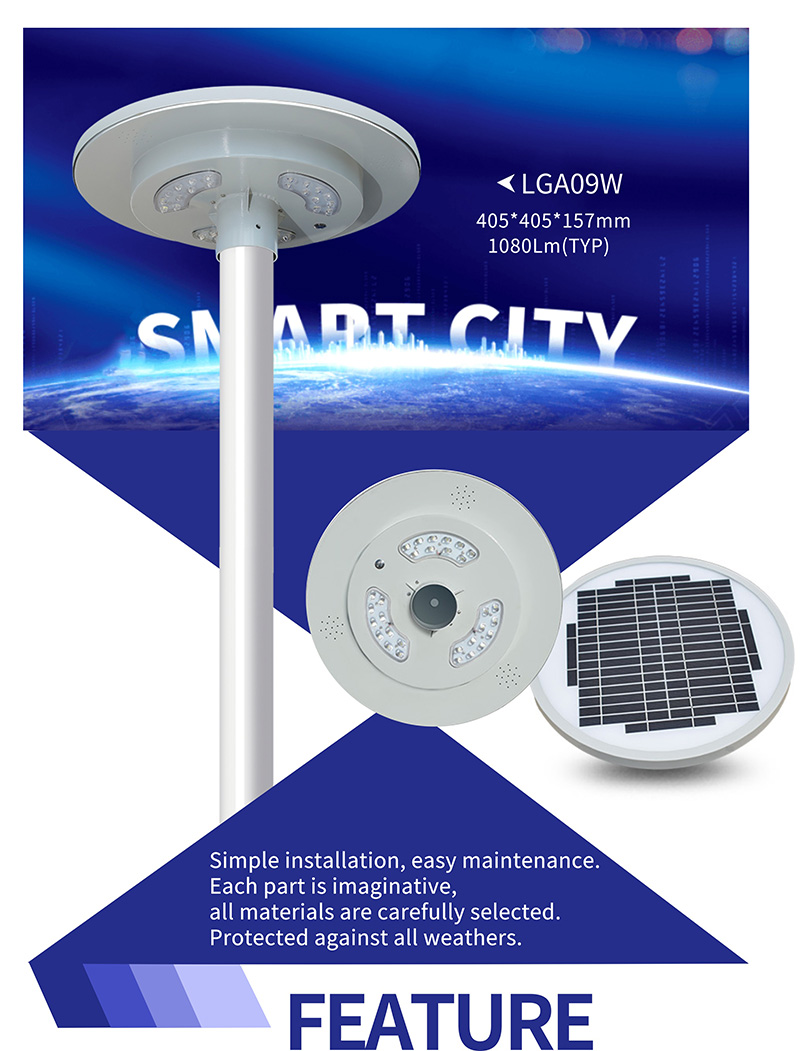

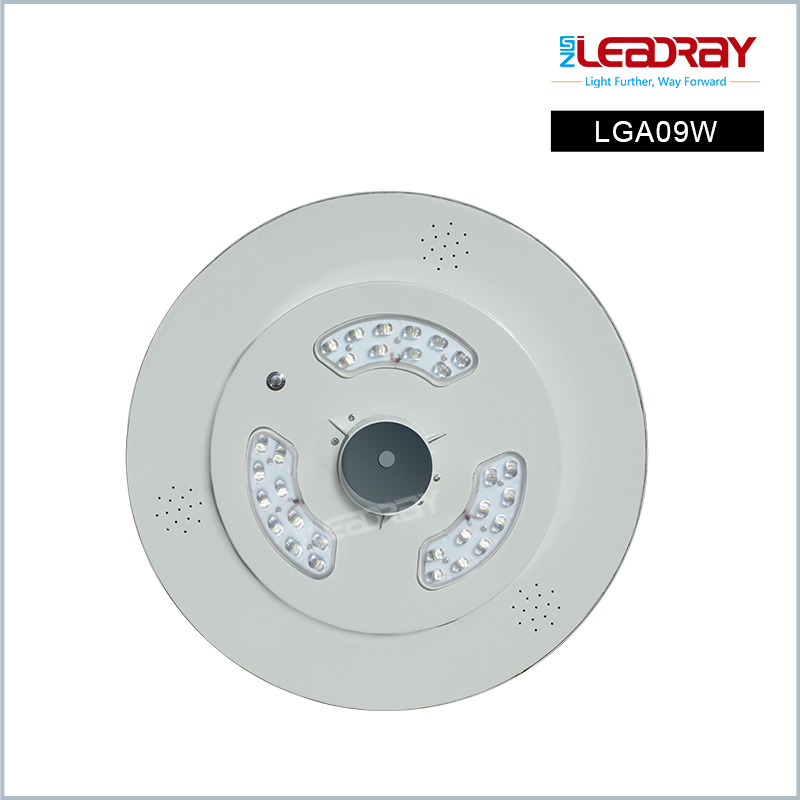

Model No: LGA09W

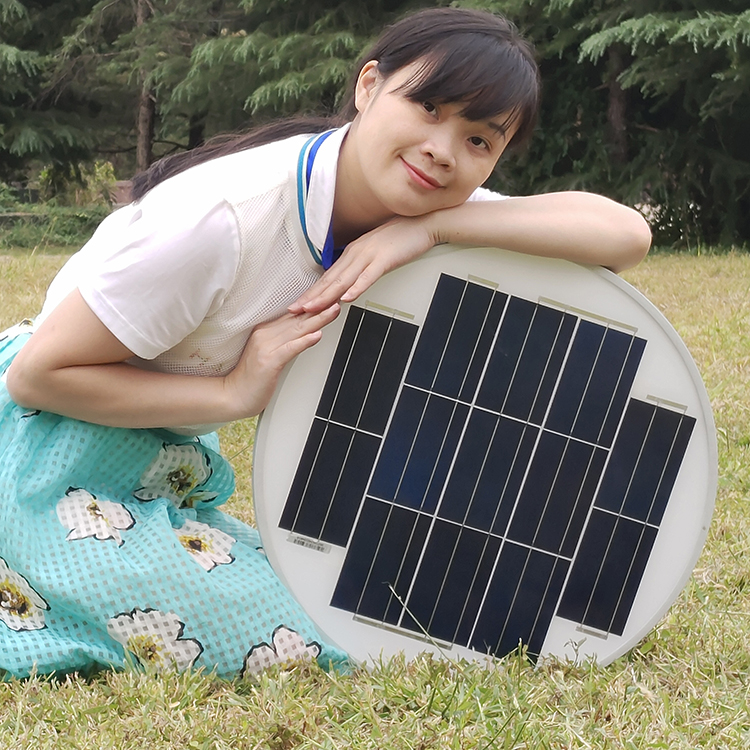

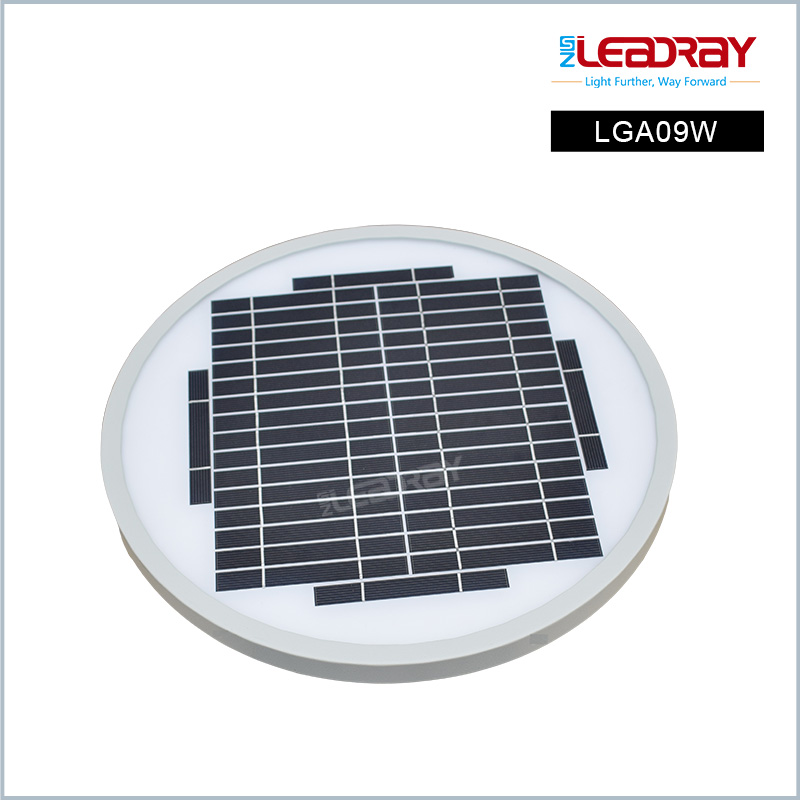

Solar Panel Power: 18V/15W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery

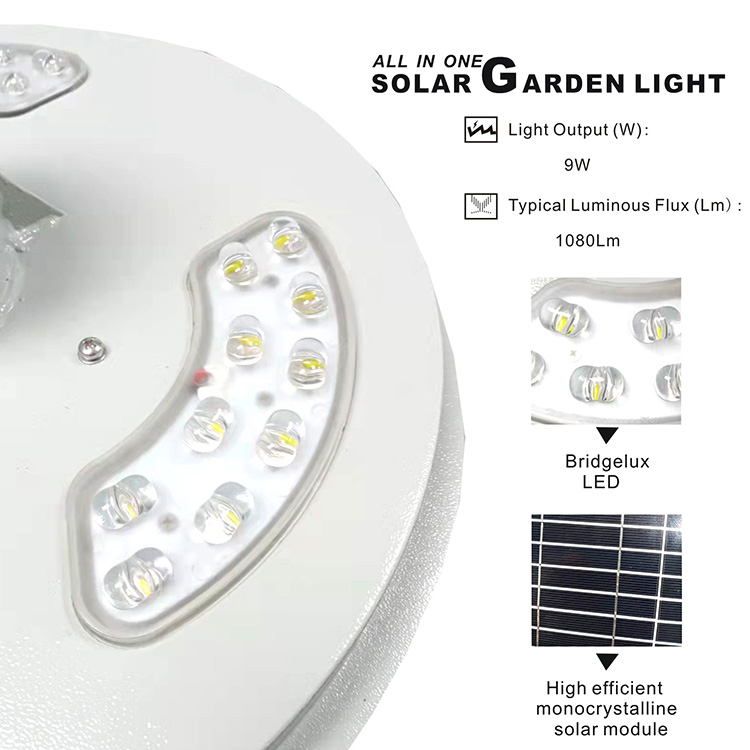

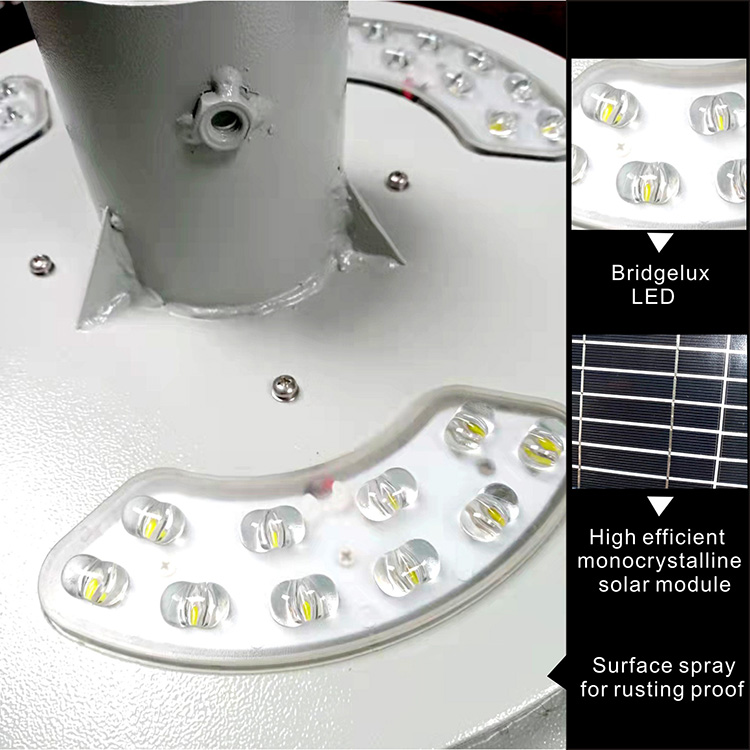

LED Brand: Bridgelux
LED Power: 9W
Luminous Flux: 1080Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 135x60°
Charging Time: 6-8 hours
Lighting Time(Full Power): 10-12hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 3-4m
Suggested Distance Between Lights: 8-10m

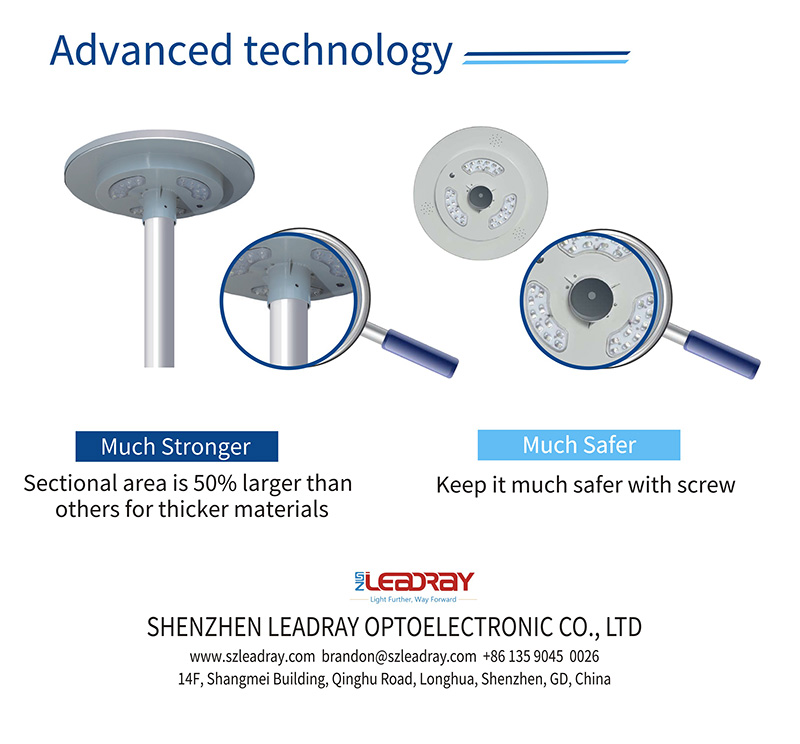

Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

Model No.		LGA09W
Physical Parameters
LED Brand		Bridgelux
Power of PV Module (W)		15W
LIFEPO4 Battery Capacity (Ah)		6
Dimension of Product (mm)		405405157
Net Weight (kg)		5
Dimension of Carton (mm)		475475212
Gross Weight (kg)		7
Light Parameters
Light Output (W)		9W
Typical Luminous Flux (Lm)		1080
Color Temperature (K)		2700-6500
Beam Angle (°)		135X60°
Min. Working Time (Hours)	Full Bright	13
	Dim Mode	39
Environment Parameters
Charging Temperature (℃)		0 ℃ to +60 ℃
Discharing temperature (℃)		-20 ℃ to +60 ℃
Storage temperature (℃)		-20 ℃ to +45 ℃
Installation
Recommended Dia. of Top Pole (mm)		70~80
Recommended Installation Height (m)		2~4
Recommended Installation Distance (m)		5~10
