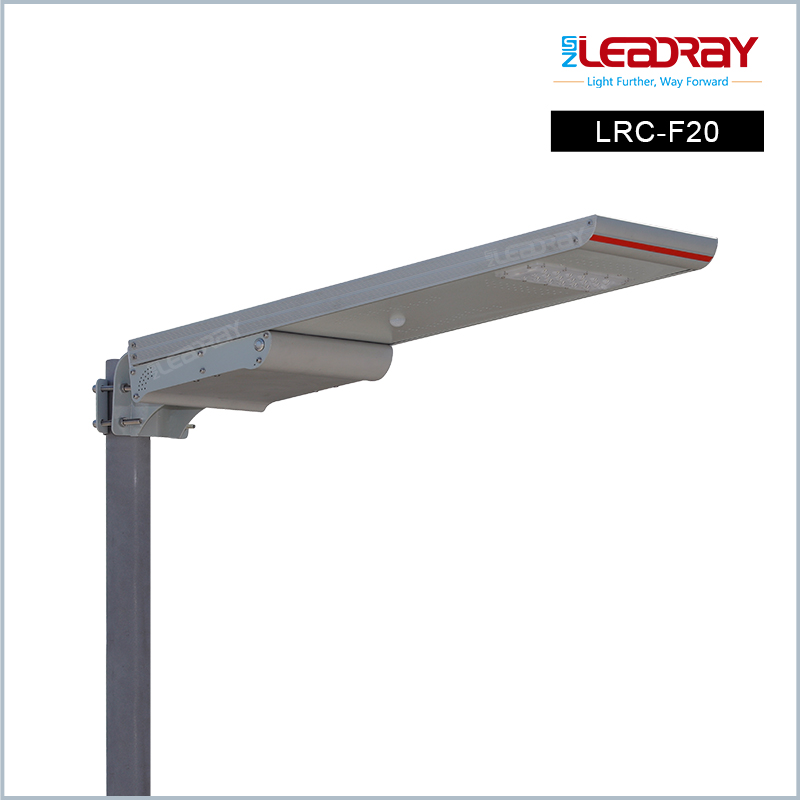

20W All In One Solar Street Lights Aluminum Housing Sensor Time Control Whole Night Light Smart

20W All In One Solar Street Lights Aluminum Housing Sensor Time Control Whole Night Light Smart

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 Days For Samples;15~20 Days For Bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
Available
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
18V 40W
LED Power :
20W
LED brand :
LEADRAY
Model No. :
LRF-20W

Inquiry now

Product Details

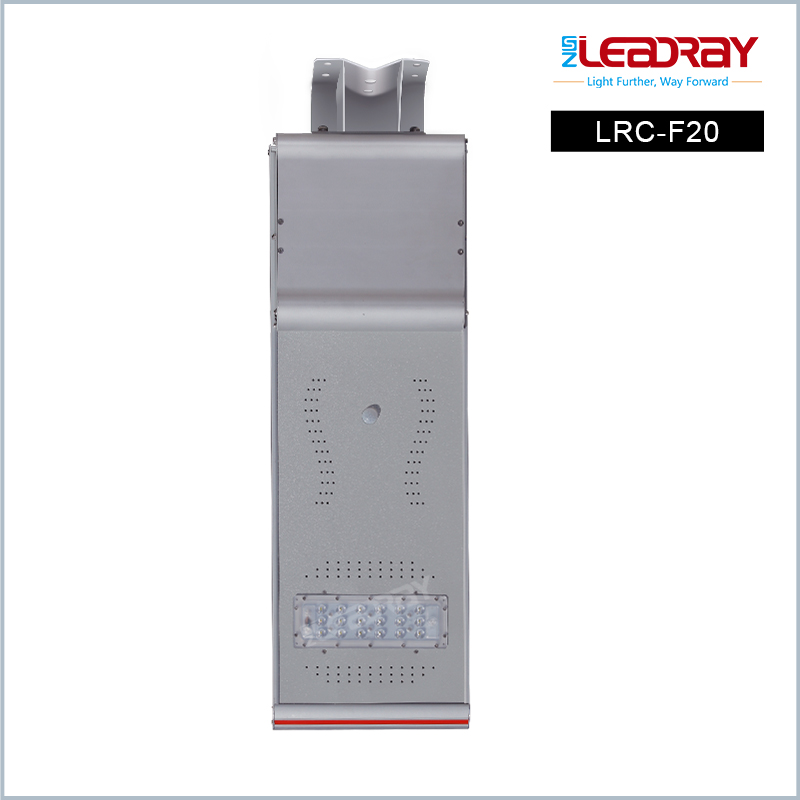

20W All In One Solar Street Lights Aluminum Housing Sensor Time Control Whole Night Light Smart

20W Solar All In One Street Light: Integrated Design/Free Maintenance/Easy Installation/Enviromental Friendly

Model No: LRC-F20W

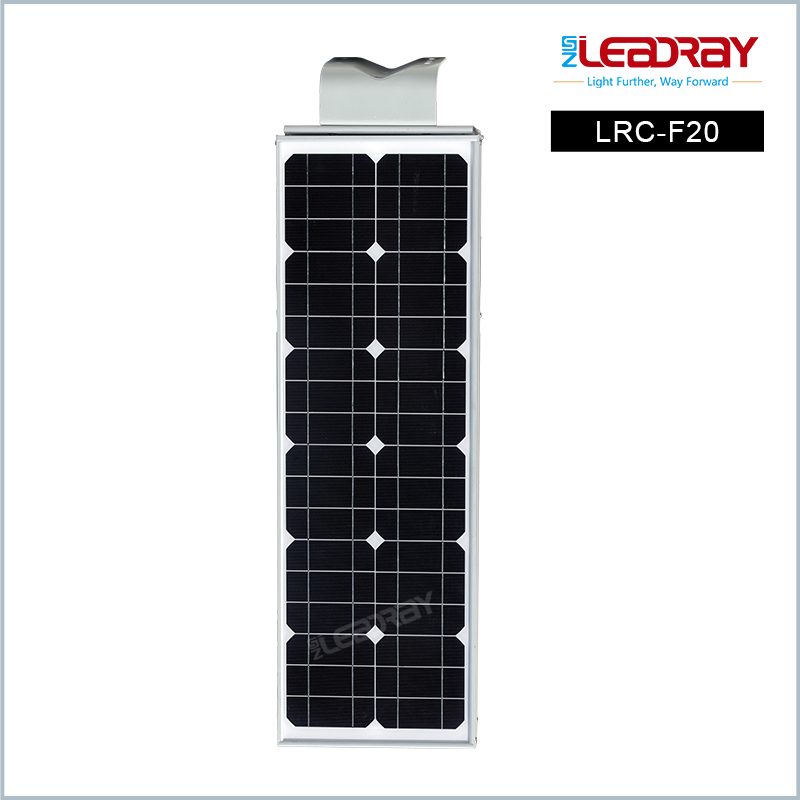

Solar Panel Power: 18V 40W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 20W
Luminous Flux: 2800Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 4-6m
Suggested Distance Between Lights: 18-20m
Material: Superior aviation aluminum AL6063-T5
Warranty: 3-5 years

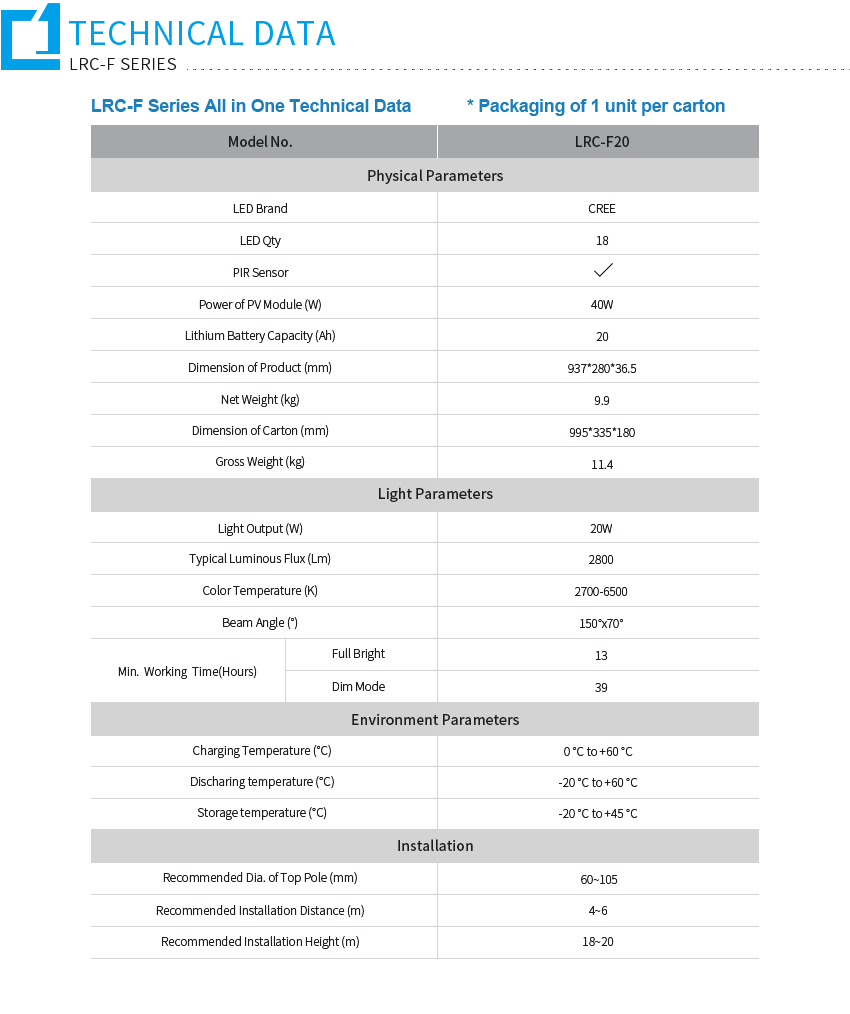

Model No.	LRC-F20
Physical Parameters
LED Brand	CREE
LED Qty	18
PIR Sensor	✓
Power of PV Module (W)	40W
Lithium Battery Capacity (Ah)	20

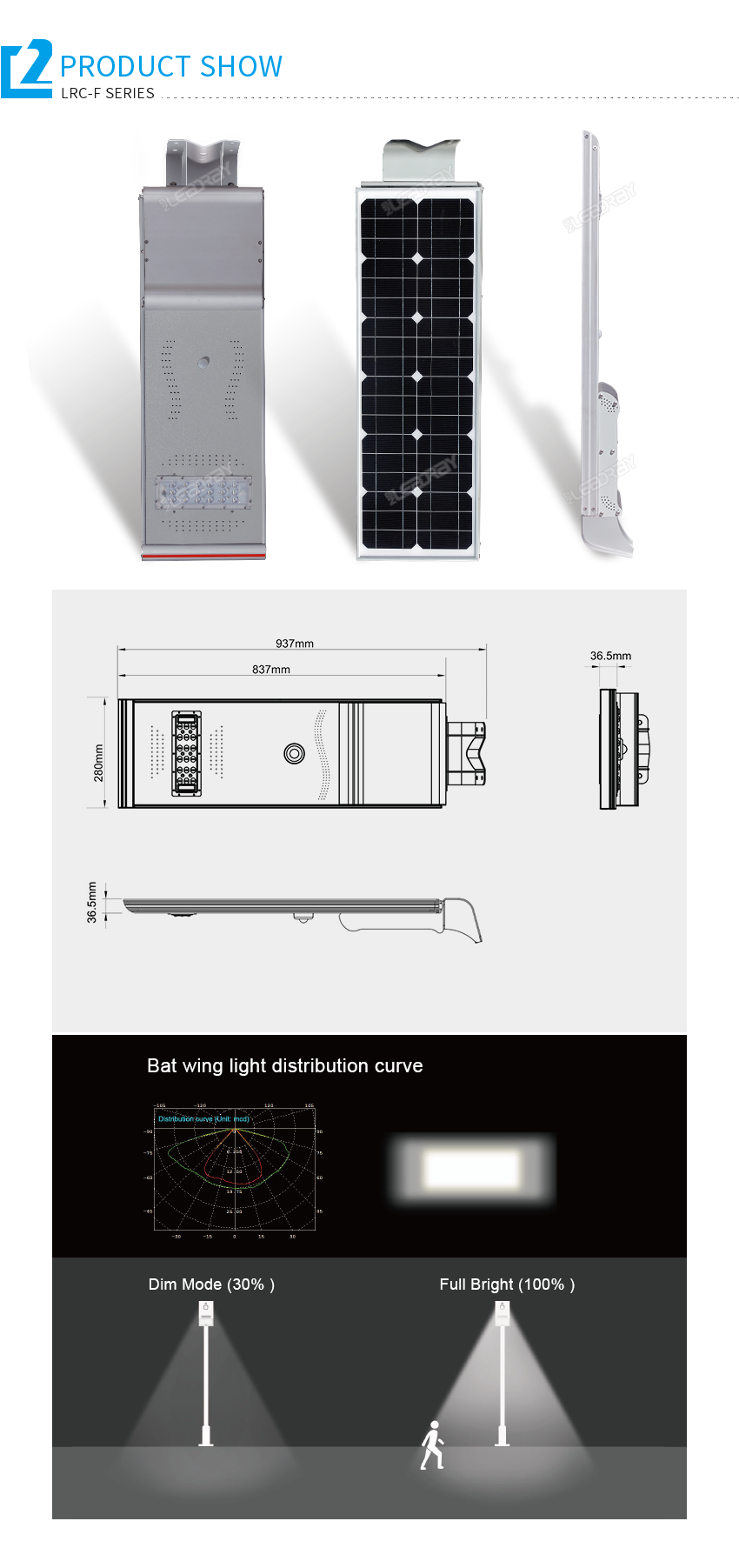

Dimension of Product (mm)	93728036.5
Net Weight (kg)	9.9

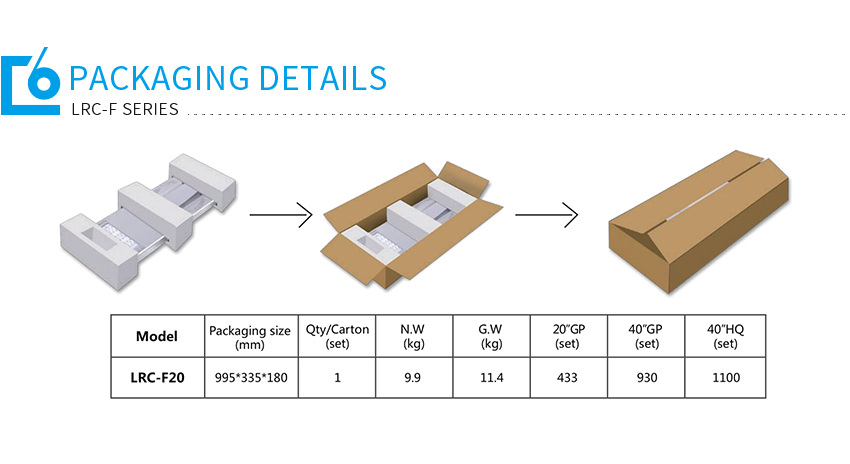

Dimension of Carton (mm)	995335180
Gross Weight (kg)	11.4

Light Parameters
Light Output (W)	20W
Typical Luminous Flux (Lm)	2800
Color Temperature (K)	2700–6500
Beam Angle (°)	150×70°
Min. Working Time (Hours)
- Full Bright	13
- Dim Mode	39

Environment Param eters
Charging Temperature (°C)	0 °C to +60 °C
Discharging Temperature (°C)	-20 °C to +60 °C
Storage Temperature (°C)	-20 °C to +45 °C

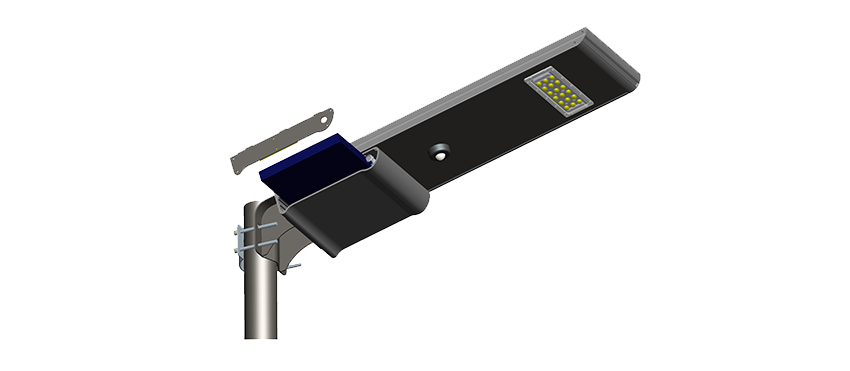

Installation
Recommended Dia. of Top Pole (mm)	60–105
Recommended Installation Distance (m)	4–6
Recommended Installation Height (m)	18–20

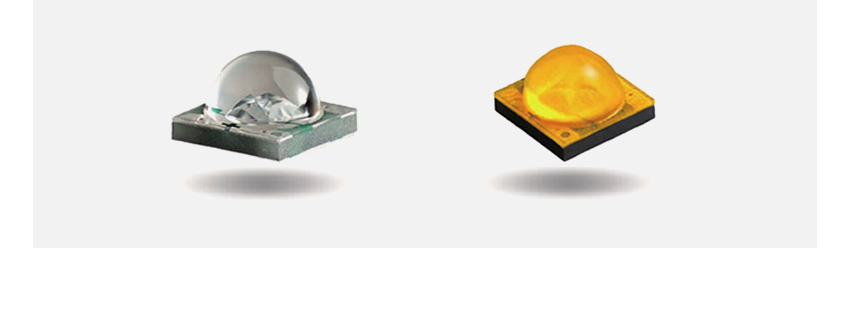

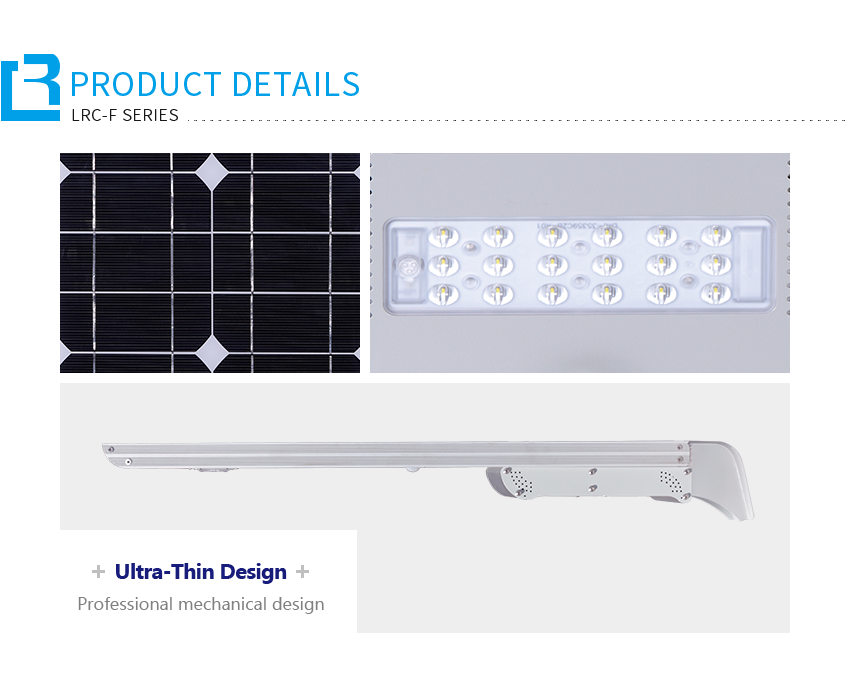

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other

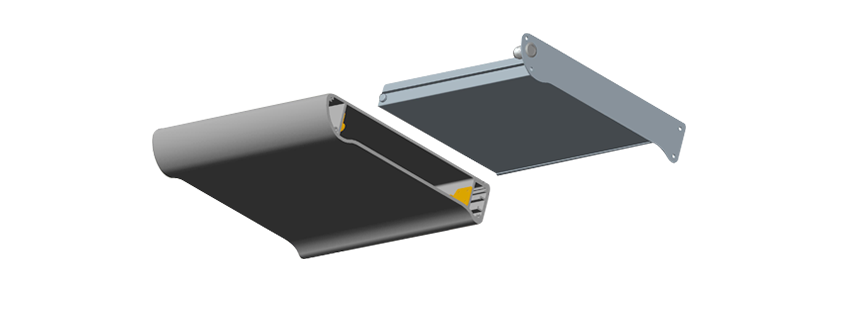

Innovative Battery Protection System

Built-in Lithium class A battery, single cell with PTC Superior IC with military standards in battery protection board
Waterproof, damp proof, explosion proof, Over charging & over discharging protection
