Infrared senor :
YESBattery Type :
LiFePO4 Battery Capacity 3.2V/20AhSolar Panel Power :
Monocrystalline Silicon 6VLED Power :
40WLED brand :
LEADRAYModel No. :
LR-003-Z-40W

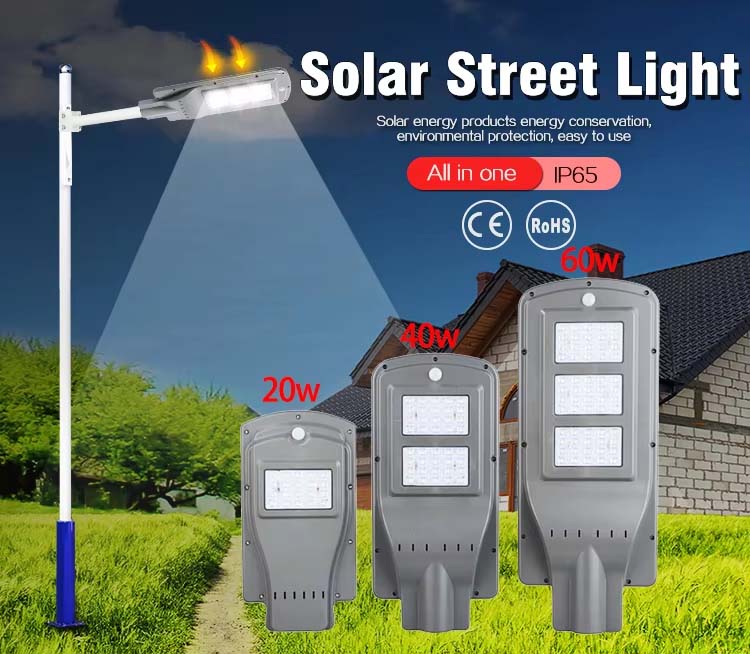

Power: |
20W |
40W |
60W |
Dimension (D*H) |
395*210*60 mm |
495**230*65mm |
630*250*65mm |
Solar panels: |
polycrystalline silicon 6V-7W |
polycrystalline silicon 6V-9W |
polycrystalline silicon 6V-13W |
LED Type & Brand : |
2 0pcs SMD2835 1W Epistar |
4 0pcs SMD2835 1W Epistar |
60 pcs SMD2835 1W Epistar |
Battery type: |
6000mah Lithiumiron phosphate 32650 |
12000mah Lithium iron phosphate 32650 |
18000mah Lithium iron phosphate 32650 |
Charge time: |
4-6H |
4-6H |
4-6H |
work time: |
8-12H |
8-12H |
8-12H |
PF: |
>0.9 |
>0.9 |
>0.9 |
Beam Angle : |
70*140° |
70*140° |
70*140° |
Color Temperature: |
3000-6500K |
3000-6500K |
3000-6500K |
IP Rating: |
IP66 |
IP66 |
IP66 |

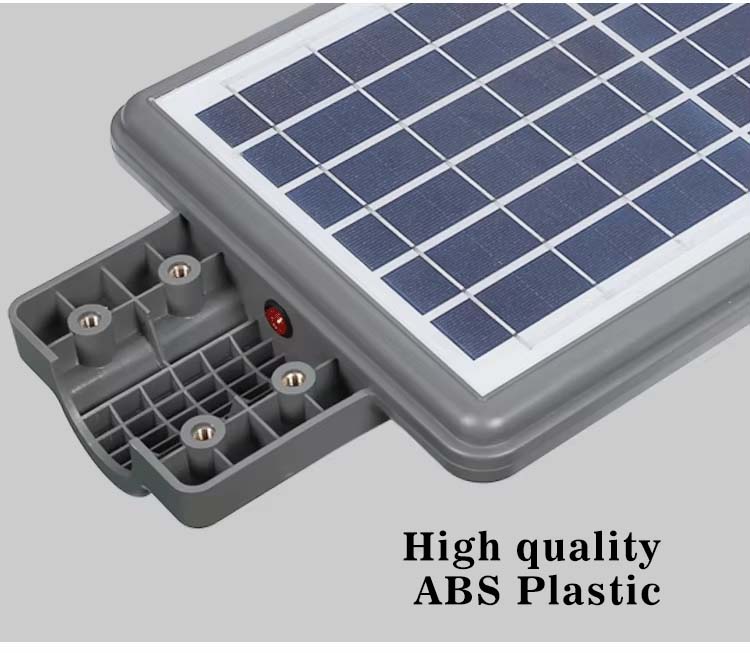

Material |
ABS+ PC lens |
||
Hole size of light pole : |
60mm |
||
Applications: |
Highway, courtyard, road, park, outdoor |

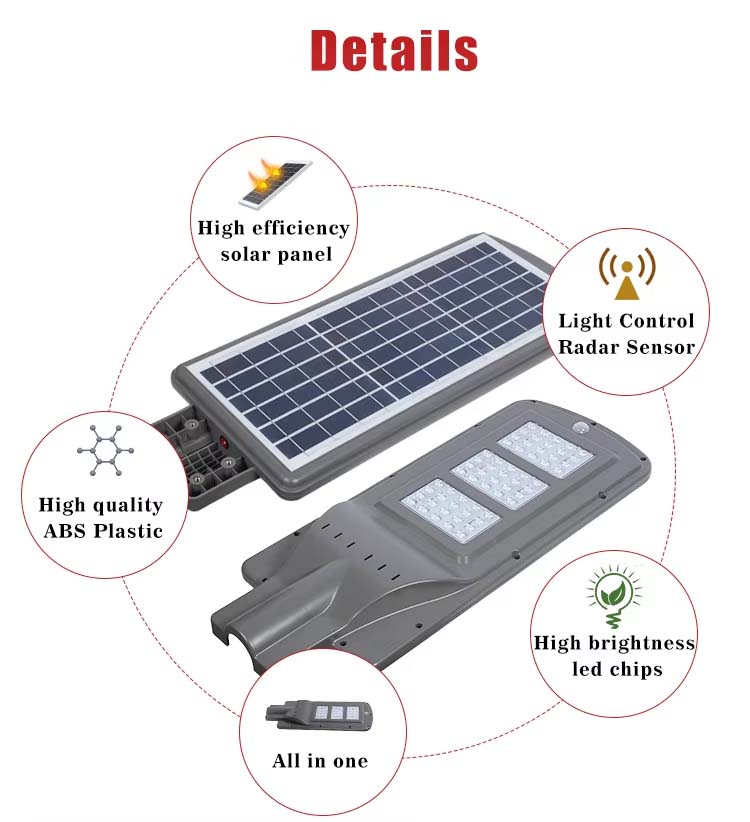

Solar street lights are integrated with solar panels, led lights, lithium iron phosphate batteries, controllers, constant current drivers and lamp housings. It combines photoelectric effect, constant current control, single chip microcomputer, human infrared sensing and other practical control technologies. It can be used in areas without electricity grid.

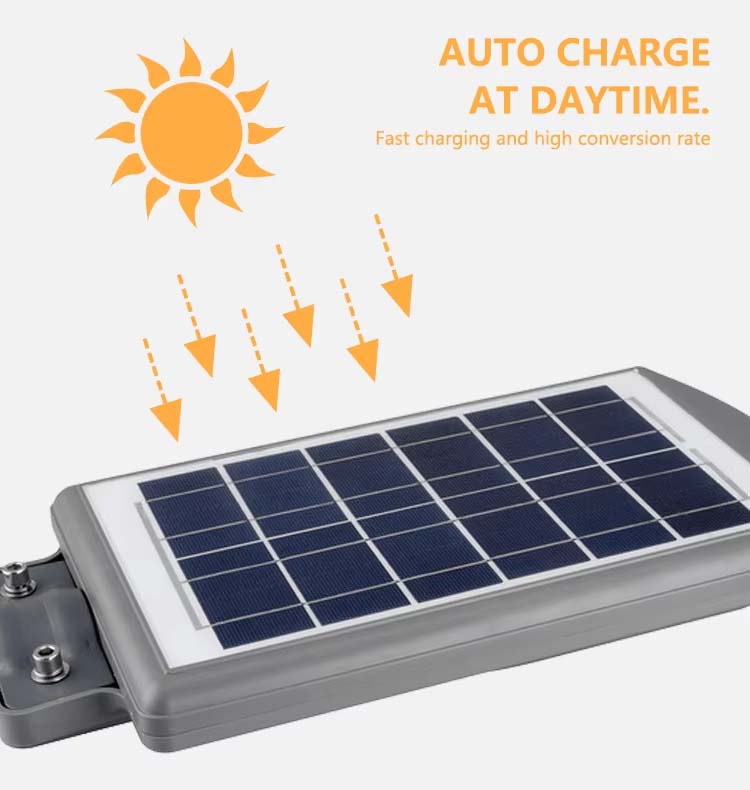

High conversion solar panels
High efficiency polycrystalline silicon solar energy
Light conversion panel,> 20%
4-6 hours fast charge

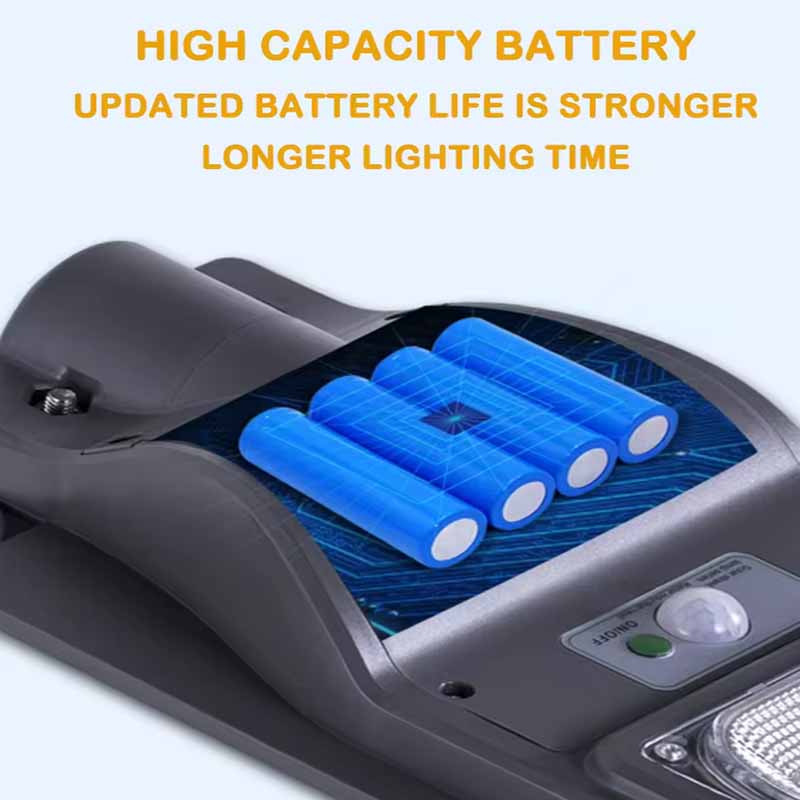

Lithium iron phosphate
Battery: Lithium iron phosphate battery improves the r eliability of lamps. Low temperature charging protection, effectively protect the battery
MPPT charging method is adopted to improve the utilization rate of solar panels.
Lithium battery low temperature charging protection, effectively protect the battery.
Three i nduction level design. Working time 0~ 15 hours, power range 0~100%.
Human body infrared or microwave sensing function.
The sensitive delay can be set from 0 to 250 seconds.
Record system status for 7 days and monitor the entire system.
The overheat protection function reduces or shuts down the load when the controller reaches a certain temperature.

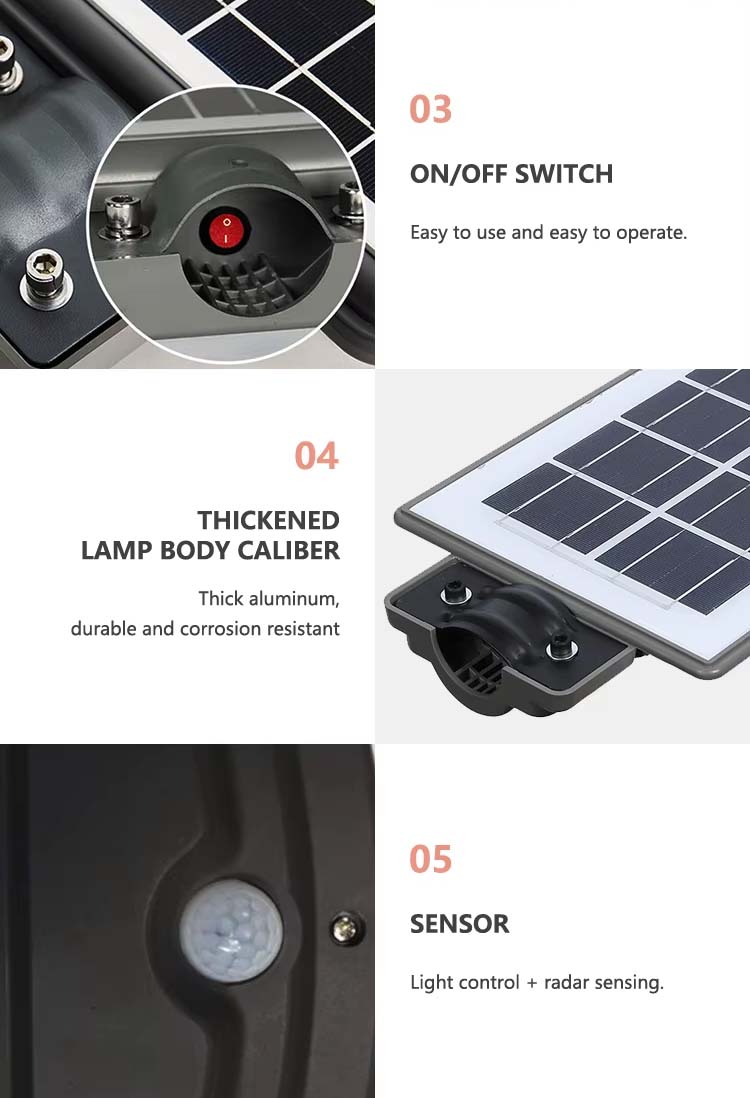

Working status indication, easy maintenance.
Motion sensor
The power saving mode is automatically switched to one minute after the user leaves
Full brightness mode Automatically switches to 100% brightness when the person enters the 120° sensor range

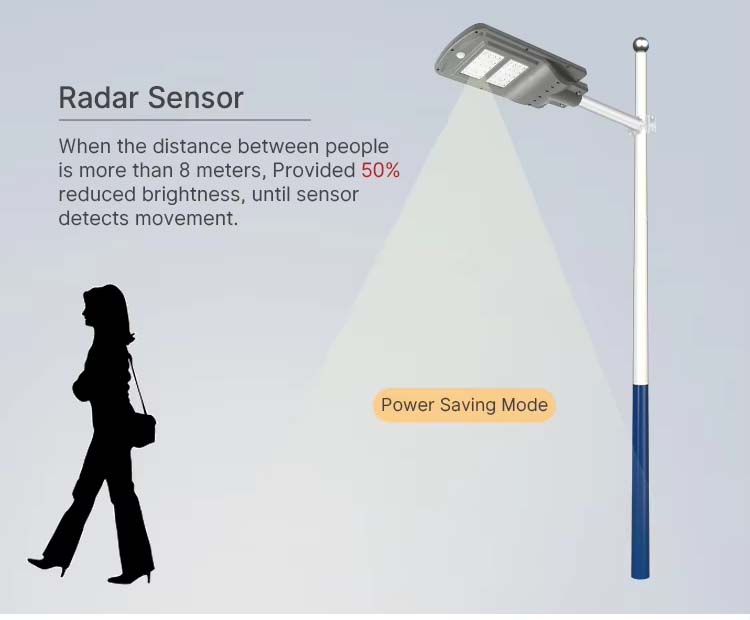

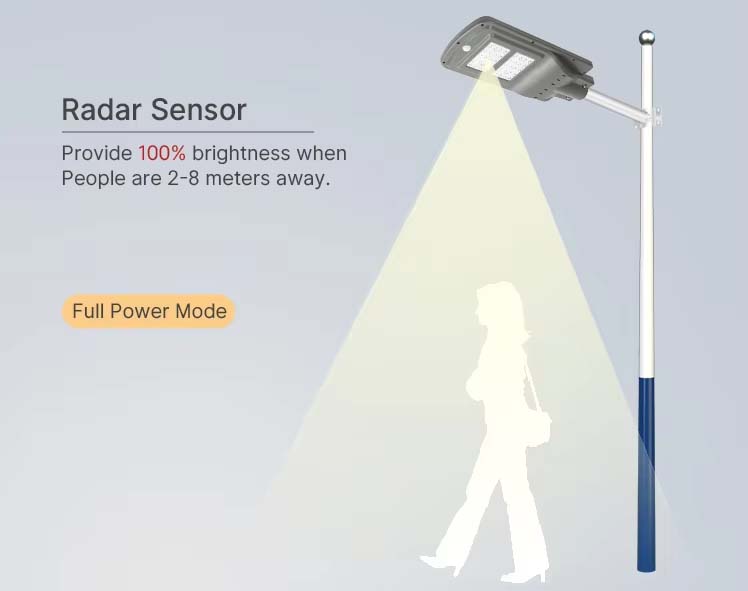

Radar sensor
Automatic adjustment of working mode, safety and energy saving
Body sensing
1. Dark days
2. The sky is lit up. Someone went through the light.

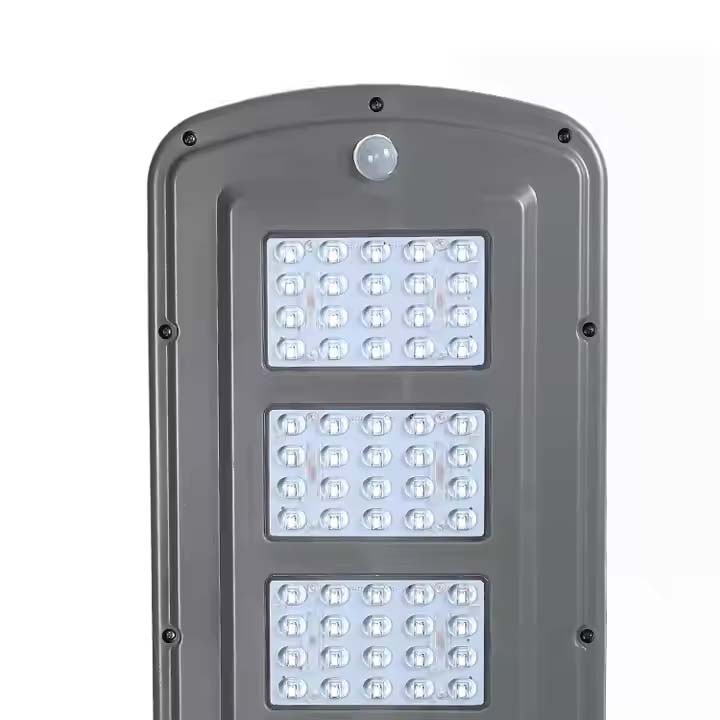

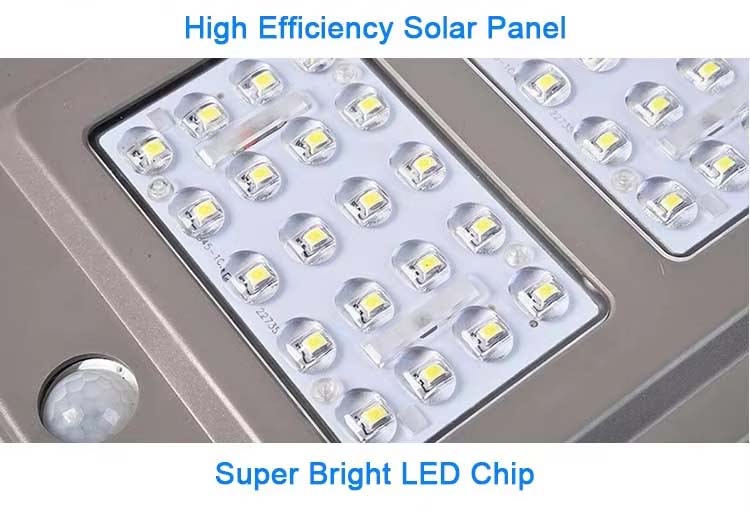

HIGH QUALITY LED WICK
High-power high-light beads, high brightness, low light decay, durable and stable use

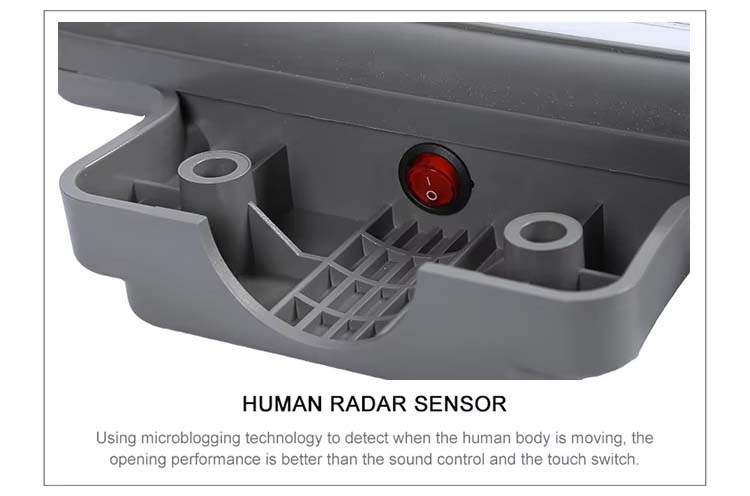

HUMAN RADAR SENSOR
Using microblogging technology to detect when the human body is moving, the opening performance is better than the sound control and the touch switch.
Solar street lights are independent of the utility grid. Hence, the operation costs are minimized.
Solar street lights require much less maintenance compared to conventional street lights.
Since external wires are eliminated, risk of accidents are minimized.
Electricity produced from solar panels is non-pollutive.
Separate parts of a solar panel system can easily be transported.
Energy costs can be saved.
