Aluminum alloy lamp body, disperseschip heat and provides good heatdissipation effect

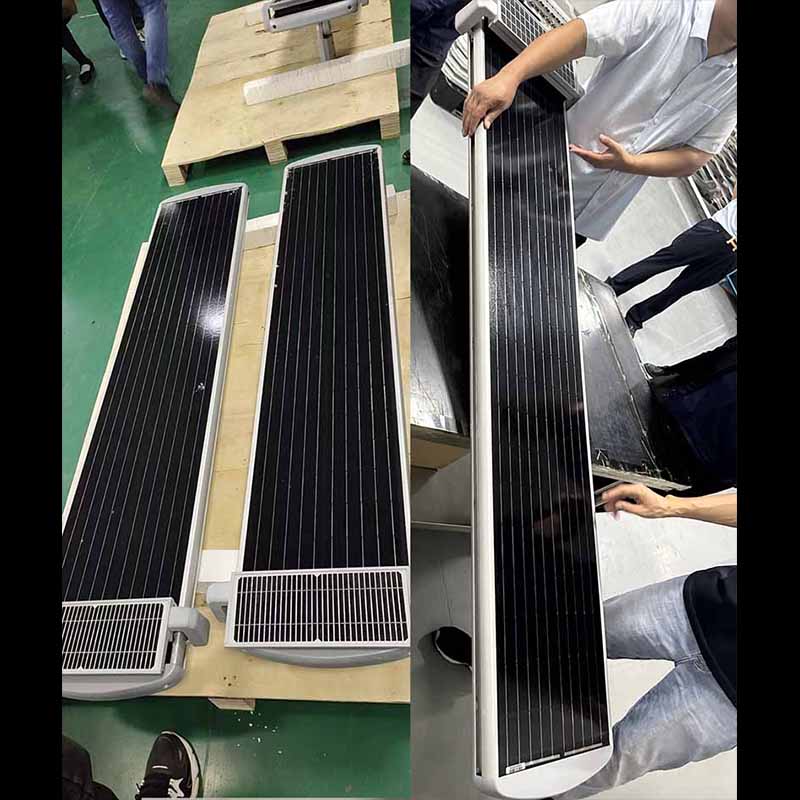

Solar Energy Auto Cleaning Street Light 60watt 80watt 100watt
Automatic cleaning style solar street light
Infrared senor :
YESBattery Type :
LiFePO4 Battery Capacity 12.8V 30AHSolar Panel Power :
60WLED Power :
18V 60WLED brand :
LEADRAYModel No. :
LRQX-60WNew Design Self-Cleaning Solar Waterproof IP65 Street Light 60W 80W 100W LED Constant MPPT Motion Mode Road Projector
Solar panel Efficiency:>21%
LED chip: 50000 hours lifespan
Battery: Deep Cycle>2000 times
Outer shell: Die-casting aluminum
Solar power High brightness Radar sensor Waterproof lP66
|
Product Module
|
LRQX-60W
|
LRQX-80W
|
||
|
Power
|
60W
|
80W
|
||
|
LED Quantity
|
180pcs 3030
|
240pcs 3030
|
||
|
System Luminous Flux
|
10800LM
|
14400 LM
|
||
|
System Effcacy
|
180±5 LM/W
|
|||
|
Color Temperature
|
3000K/4000K/5000K/5700K/6000K
|
|||
|
Color Rendering Index
|
Ra≥70
|
|||
|
Material
|
6063Aluminum
|
|||
|
Solar Pane
|
60W
|
80W
|
||
|
Battery
|
12.8V 25ah
|
12.8V 30ah
|
||
|
Controller
|
MPPT controller, up to 95% efficiency
|
|||
|
Way to control
|
Dusk to dawn + Time control + motion sensor, Auto on /off
|
|||
|
Product Dimension (mm)
|
L1233*W455*H235
|
L1543*W455*H235
|
||
|
Net Weight
|
15.5KG
|
19KG
|
||
|
Package
|
1
|
|||
|
Packing Size (mm)
|
L1300*W525*H305
|
L1610*W525*H305
|
||
|
Gross Weight(Kg)
|
17KG
|
20.5KG
|
||
|
IP Rating
|
IP66
|
|||
|
AmbientTemperature(℃)
|
-30℃~+55℃
|
|||
|
Lifetime
|
>50000H
|
|||
|
Installation Height
|
6m
|
8m
|
||

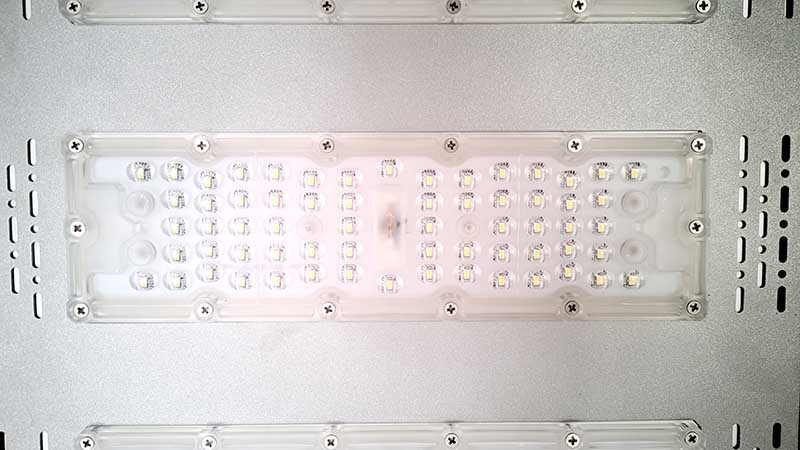

High brightness, high color rendering,low heat generation and light attenuation.Stable and durable, long-lasting use
High conversion efficiency up to 23%.
Regularly clean the dust on the solar cells to ensure the photoelectric conversion rate
Aluminum alloy material bracket, with anti-rust screws. The bracket can be adjusted 15-30 degree to suitable for the better sunshine direction.

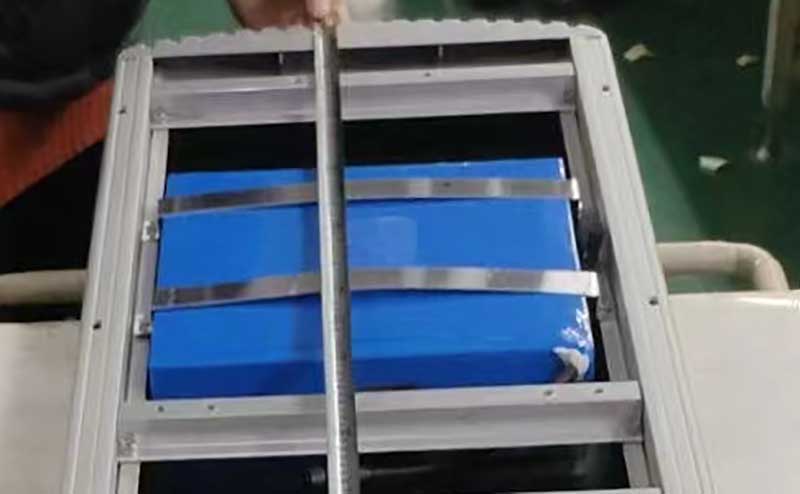

Grade A lithium iron phosphate battery lifespan is 5-8 years, high safety, stable performance
outdoor waterproof 60w 80w all in one street solar light with automatic dust sweeping and snow cleaning
Light control Turn on at night and turn off in the daytime for charging
80W IP65 Street solar light with Auto cleaning System all in one Aluminum Housing Shell
| Model | LRQX-60W | LRQX-80W | LRQX-100W |
| Physical Parameters | |||
| LED Brand | PHILIPS | PHILIPS | PHILIPS |
| LED Qty (pcs) | 144 | 256 | 256 |
| Power of PV Module (W) | 18V 60W | 18V 70W | 18V 100W |
| LiFePO4 Battery Capacity (Ah) | 12.8V 30AH | 12.8V 36AH | 12.8V 48AH |
| Light Mode | PIR/Time Control | Time Control | Time Control |
| Product Dimension (mm) | 1233 × 373 × 50 | 1543 × 373 × 50 | 1863 × 373 × 50 |
| Product N.W. (kg) | 18 | 20.6 | 22.8 |
| Package #1 Dimension (mm) | 1313 × 453 × 260 | 1623 × 453 × 260 | 1703 × 453 × 260 |
| G.W. (1 Lamp/CTN) (kg) | 21 | 24.3 | 26 |
| Light Parameters | |||
| Light Power (W) | 60W | 80W | 100W |
| Typical Luminous Flux (Lm) | 8400 | 11200 | 16000 |
| LED Light Effect (Lm/W) | 210Lm/W | 210Lm/W | 210Lm/W |
| Color Temperature (K) | 2700–6500 | 2700–6500 | 2700–6500 |
| Beam Angle (°) | 150° × 75° | 150° × 75° | 150° × 75° |
Package

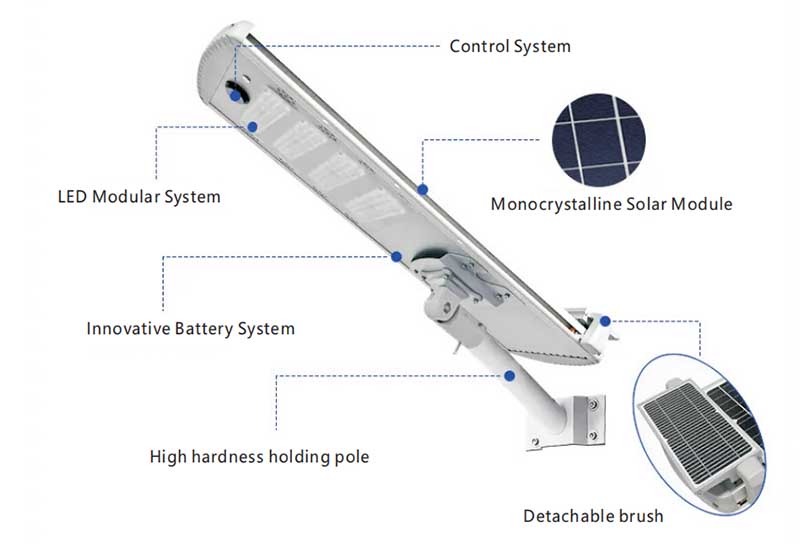

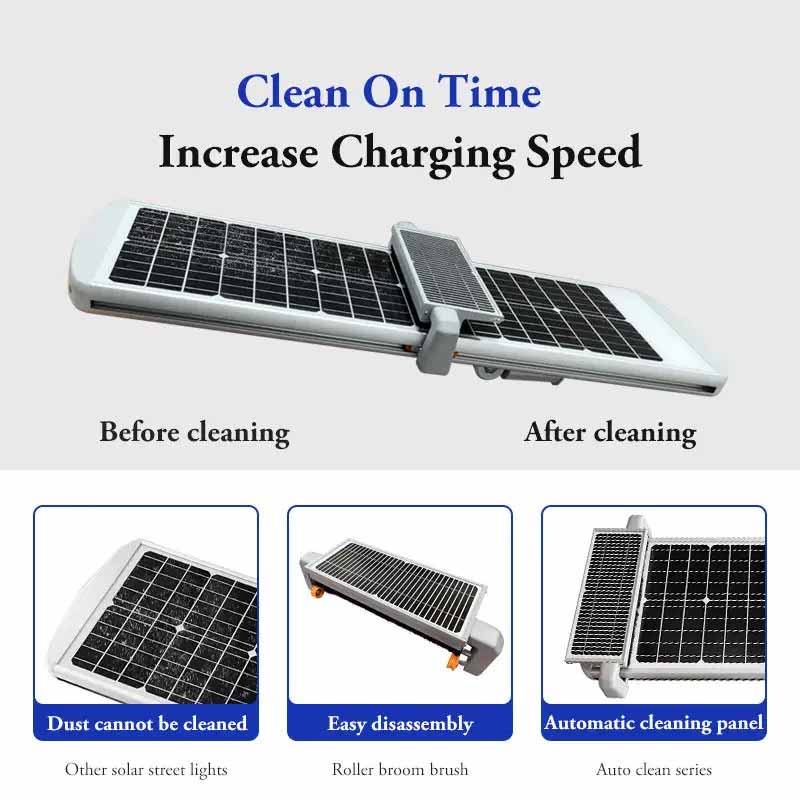

1) All in one street light system and self clean system dual system patented design.

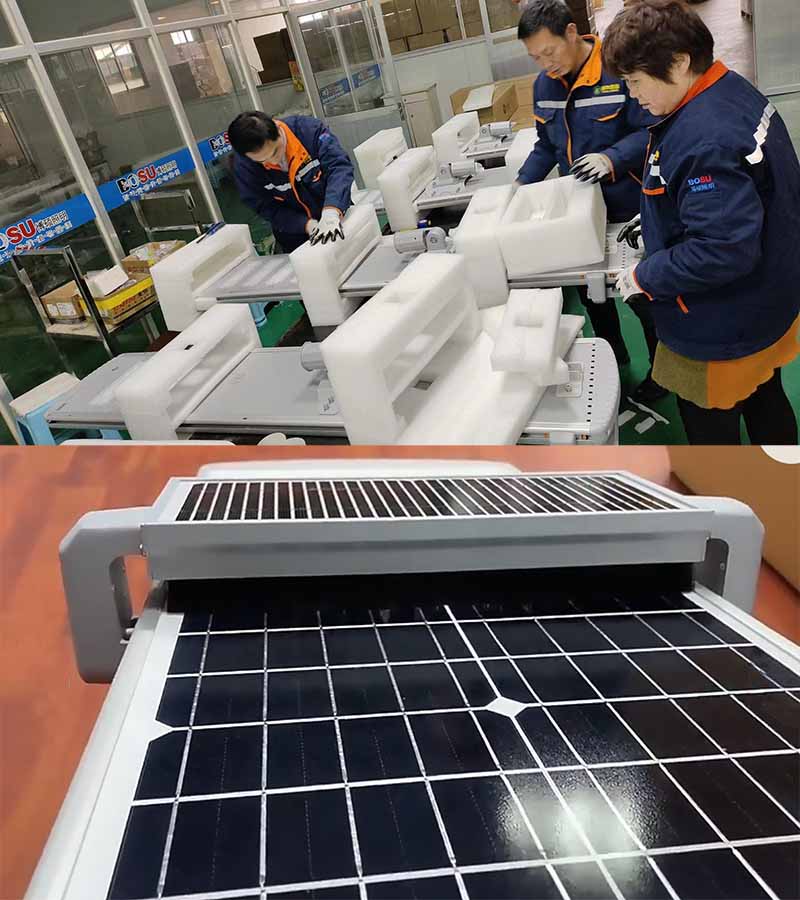

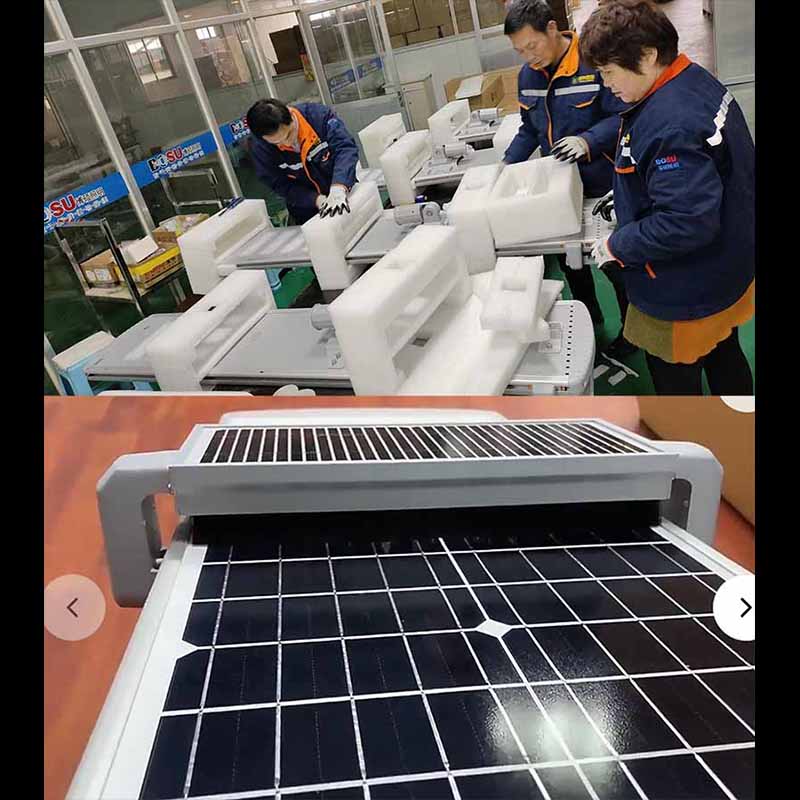

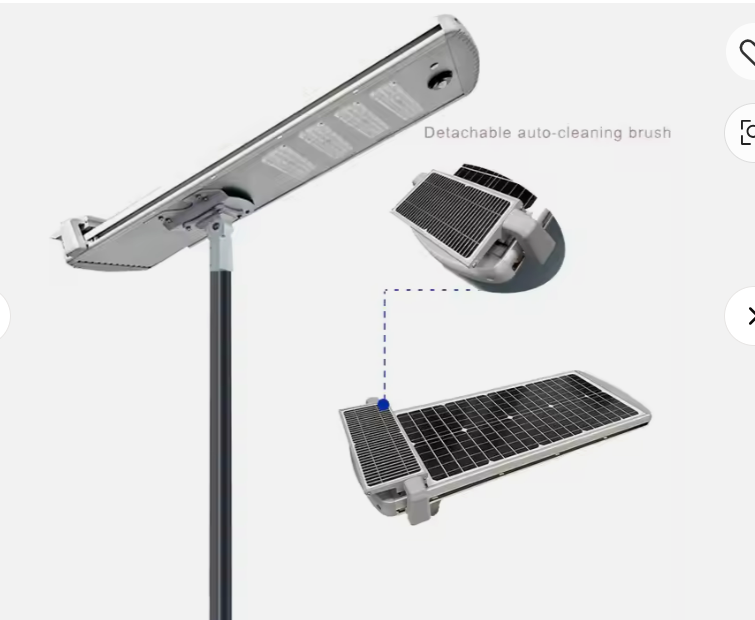

2) Automated self clean system to keep the solar panel clean which result in the maximum performance on solar charging.
3) Street light system can work without or with self clean system.
4) Built in routine to sweep the panel three times a day. 3 back and forth each time.
