Ideal for outdoor road lighting, LEADRAY’s high-performance LED solar street lamp combines robust design with cutting-edge energy efficiency, tailored to meet the demands of reliable, sustainable illumination.
- Power Options: 80W / 100W / 120W high-brightness LED chips (6000K cool white / 3000K warm white optional).

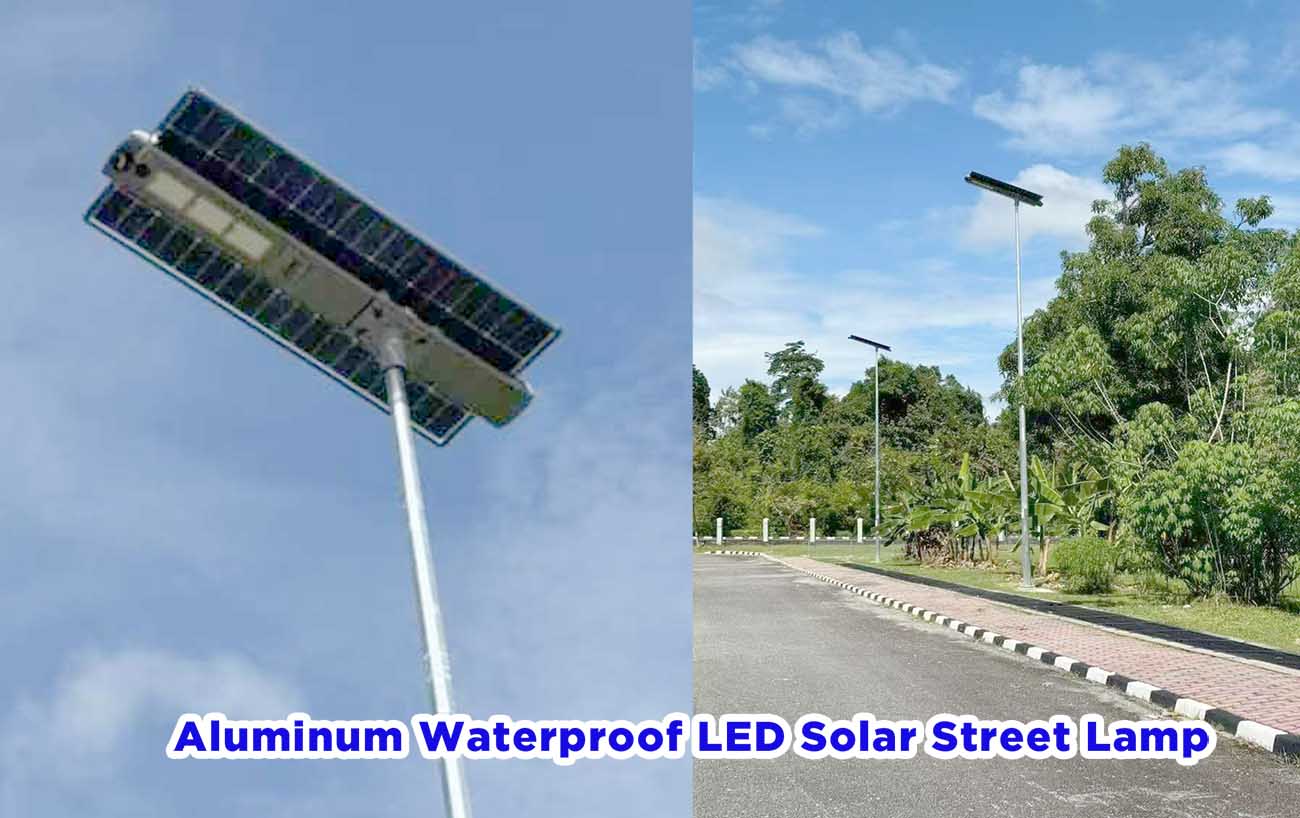

- Housing Material: Heavy-duty aluminum alloy – corrosion-resistant, heat-dissipating, and impact-proof.
- Waterproof Rating: IP65 certified – fully protected against dust, rain, and harsh weather conditions.
- Battery Type: LiFePO4 (Lithium Iron Phosphate) battery – 20000+ charge-discharge cycles, long lifespan (10-15 years), safe and stable performance.

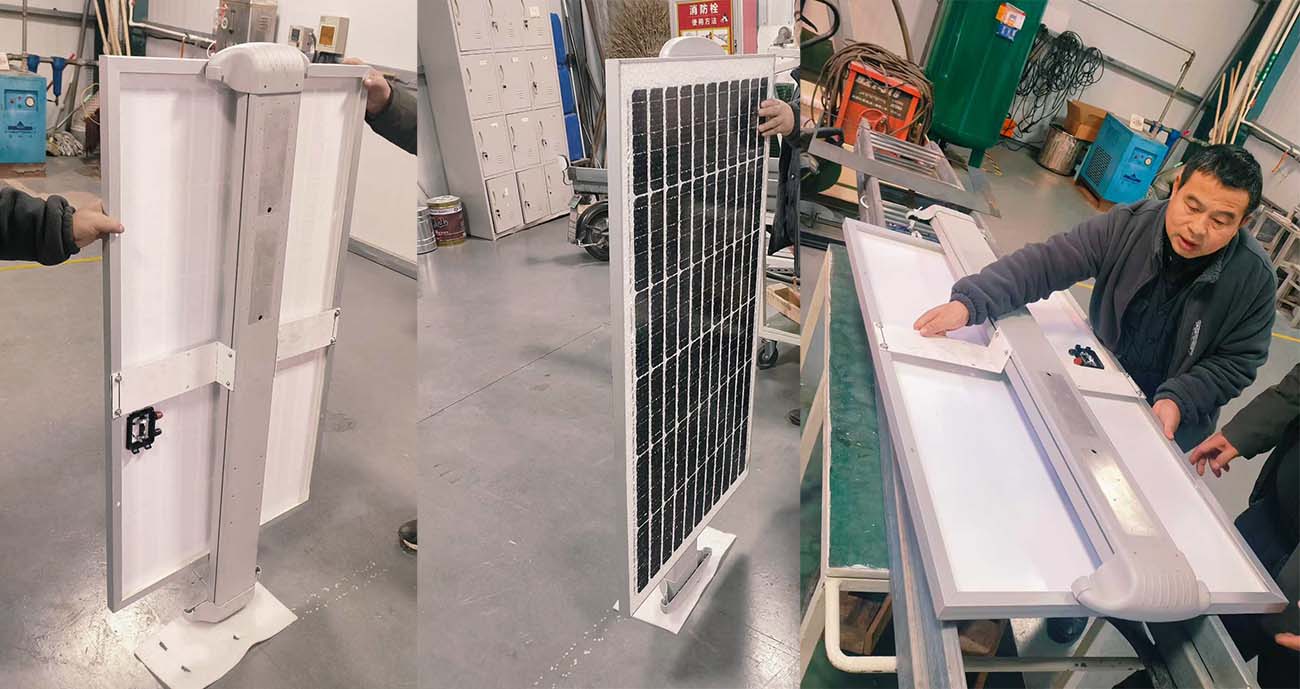

- Solar Panel: Enhanced monocrystalline silicon solar panel – higher conversion efficiency (≥23%), faster charging, and better low-light performance.
- Lighting Performance: 210lm/W luminous efficacy, wide beam angle (70 ° x 140 °), coverage area 80-180㎡ (varies by power).
- Control System: Intelligent light sensor + motion sensor (optional) – auto-on at dusk, auto-off at dawn; motion sensor mode saves energy by dimming when no movement is detected.
- Working Time: 8-12 hours of continuous lighting after full charge (supports 2-3 rainy days backup).

| Nodel |
LED solar street lamp 80W |
LED solar street lamp 100W |
LED solar street lamp 120W |
| LED Qty(pcs) |
100 |
100 |
150 |
| Power of PV Module(W) |
80W+80W (Extra) |
100W+100W (Extra) |
120W+120W (Extra) |
| Light Mode |
PIR/Time Control |
Time Control |
Time Control |
Product Dimension (mm) |
1258.5*429.5*113 |
1258.5*519.5*113 |
1258.5*599*.5*113 |
| Product N.W. (kg) |
23KG |
28G |
33KG |
| Light Power (W) |
80W |
100W |
120W |
| Tyical Liminous Flux (Lm) |
9600 |
12000 |
14400 |
| LED Light Effect (Lm/W) |
210Lm/W |
| Color Temperature (K) |
2700-6500K |
| Beam Angle (°) |
70 ° x 140 ° |
| Rainy Days (D) |
7~10 |
| Installation |
| Effective Projected Area(ft²) |
6.9 |
8.5 |
9.8 |
| Wind Strength (mph) |
110 |
110 |
110 |
| Recommended Diameter of Top pole (mm) |
76 or 89(def) |
76 or 89(def) |
76 or 89(def) |
| Recommended Installation Height (M) |
6~8 |
8~10 |
10~12 |
Recommended Installation Distance (M) |
20~30 |
25~35 |
30~40 |
Key Selling Points
✅ Enhanced Solar Efficiency: Upgraded solar panels maximize energy absorption, ensuring reliable power supply even in areas with insufficient sunlight.
✅ Durable & Weatherproof: Aluminum alloy housing and IP65 rating guarantee long-term operation in extreme temperatures (-20℃ to 60℃), humid or dusty environments.
✅ Long-Lasting LiFePO4 Battery: Superior to traditional lead-acid batteries, offering longer service life, faster charging, and higher safety (no risk of explosion or leakage).
✅ Energy-Saving & Cost-Effective: 100% solar-powered – zero electricity bills, low maintenance costs, and eco-friendly (reduces carbon footprint).
✅ Easy Installation & Wide Application: No wiring required, suitable for roads, streets, parks, parking lots, rural areas, construction sites, and other outdoor spaces.
Application Scenarios
Perfect for municipal road lighting, residential community streets, rural village roads, industrial parks, parking lots, garden paths, and remote areas without grid access. LEADRAY’s solar street lamp delivers consistent, bright illumination while minimizing environmental impact and operational costs.
Choose LEADRAY for reliable, efficient, and sustainable outdoor lighting solutions – powering your roads with clean energy, day and night.
