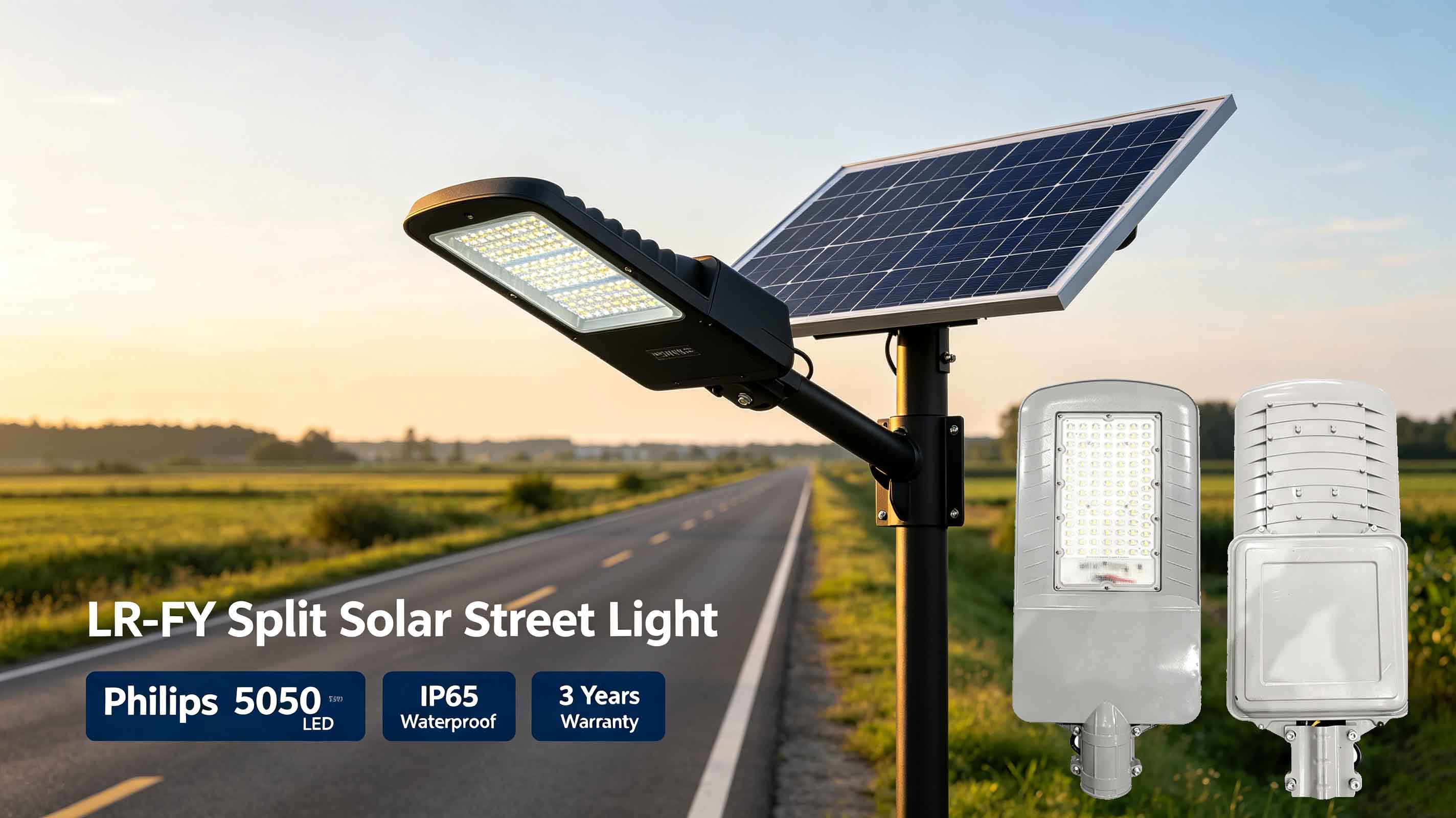

30W-40W split solar street light Philips 5050 LED IP65 die cast aluminum casing 2700-6500K adjustable CCT
High-end split-type solar streetlights feature an independent solar panel and lamp body design for flexible installation.
Equipped with original Philips 5050 LED beads, long-lasting lithium battery cells, and a robust aluminum housing, they offer IP65 waterproof performance.
Suitable for rural roads, residential streets, parks, and highway lighting projects.
Item No :
Split Solar LED Street Light LR-FYBattery Type :
3.2V 50AH / 60AHSolar Panel Power :
60W / 70WLED Power :
30W / 40WLED brand :
120pcs 5050Philips LEDs
1. The angle of the solar panel can be independently adjusted without being constrained by the orientation of the lamp head. The charging effect in areas with skewed sunlight, high latitudes, and low winter sunshine is much better than that of integrated lights.

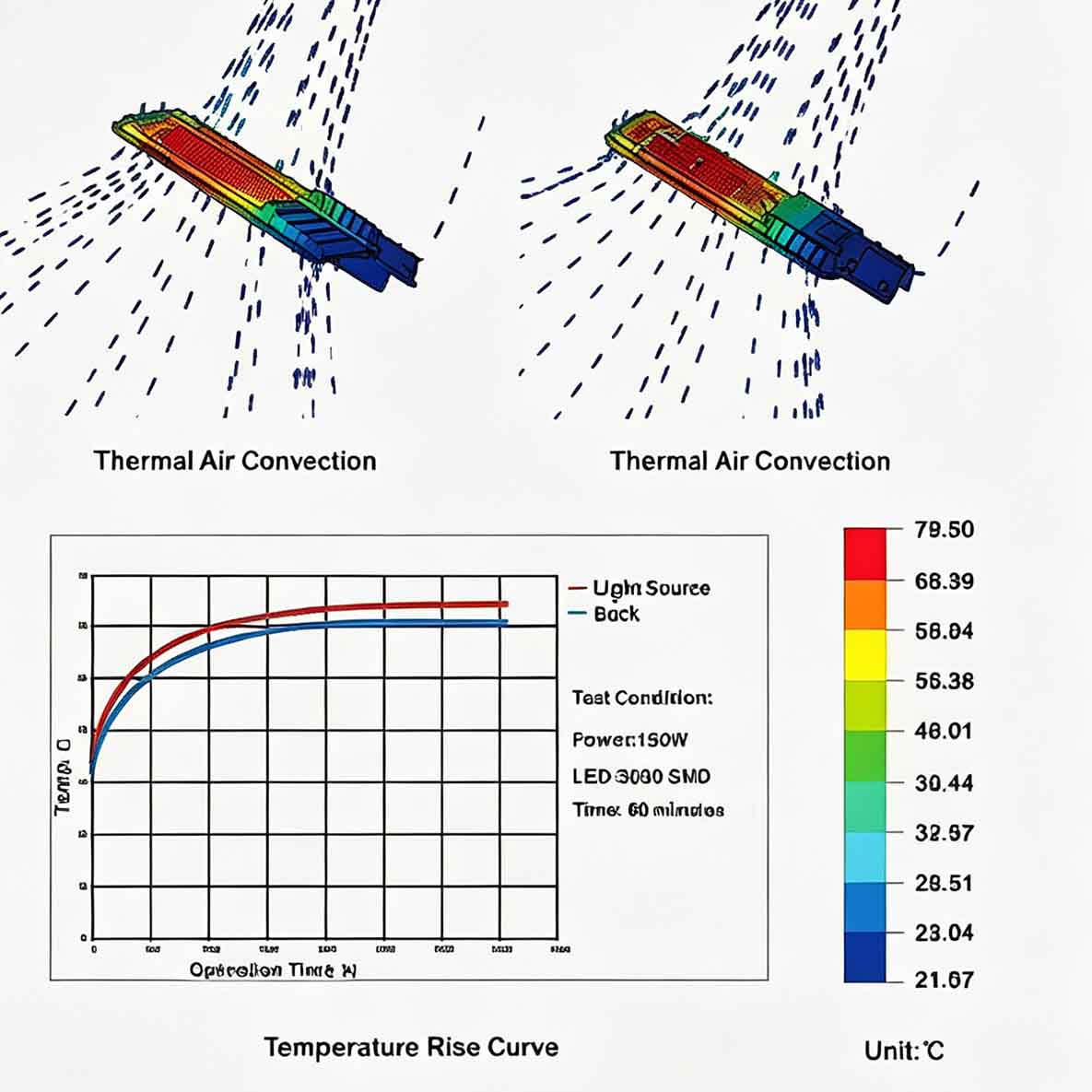

2. Die cast aluminum shell has excellent heat dissipation, low temperature rise of LED lamp head, slow light decay, and longer lifespan.
3. The battery is hidden in the lamp head cavity, making installation simple; No additional holes need to be made in the lamp post to accommodate batteries.
4. IP65 waterproof rating, suitable for rainy, humid, coastal high salt spray areas.
5. Wide power coverage: 20W-120W can be used, which is very suitable for government road projects, rural lighting, and main road projects.
6. Convenient maintenance in the later stage: If the lamp head fails, simply remove the lamp head and replace the photovoltaic panel separately.
| Model | LR‑FY‑30W | LR‑FY‑40W |
|---|---|---|
| LED Power | 30W | 40W |
| Solar Panel Power | 60W | 70W |
| Battery | 3.2V 50AH Lithium‑ion | 3.2V 60AH Lithium‑ion |
| LED Chip | 120pcs Philips 5050 LEDs | 120pcs Philips 5050 LEDs |
| Color Temperature | 2700‑6500K | 2700‑6500K |
| CRI | ＞75Ra | ＞75Ra |
| Recommended Height | 5‑6m | 6‑7m |
| Installation Spacing | 18‑19m | 18‑19m |
| Material | Die‑cast Aluminum Alloy | Die‑cast Aluminum Alloy |
| Waterproof Grade | IP65 | IP65 |
| Warranty | 3 Years | 3 Years |
The solar panels and lighting fixtures are separate. The solar module can be independently adjusted towards the sun to maximize the absorption of solar energy, without being limited by the angle of the lamp arm. Very suitable for places with poor sunlight angles.
High quality 5050 LED beads provide stable and bright lighting with a wide color temperature range (2700-6500K). CRI>75Ra ensures comfortable and natural nighttime lighting with low light attenuation.

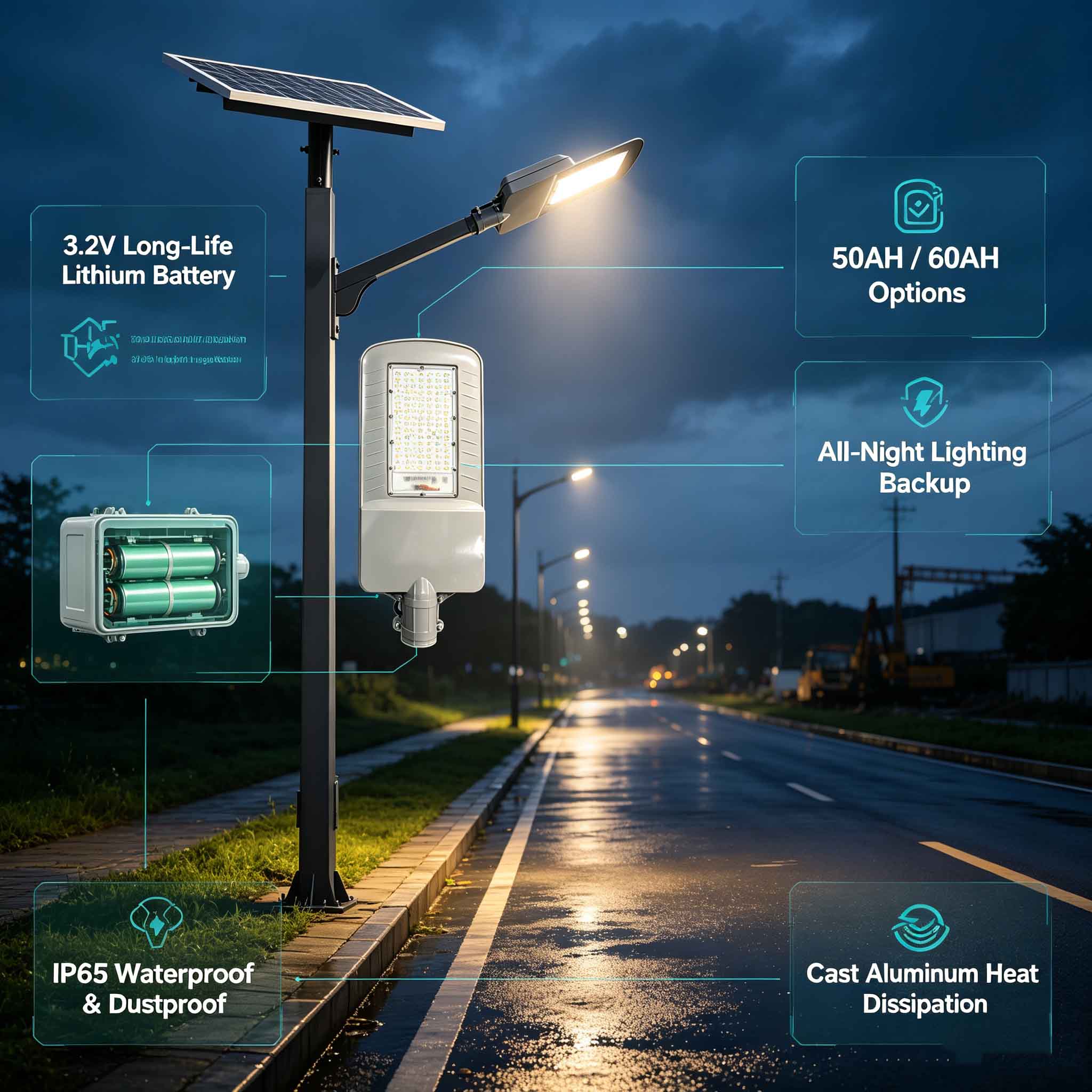

Split solar street light with 3.2V long-life lithium battery options: 50AH (suitable for 30W lamps)/60AH (suitable for 40W lamps). Store enough electricity to support overnight lighting even on cloudy or rainy days.
High quality cast aluminum lampshades have excellent heat dissipation performance. IP65 full waterproof and dustproof rating, reliable operation in heavy rain, high humidity, and extreme outdoor temperatures.
30W split solar street light: installation height of 5-6m, lamp spacing of 18-19m
40W split solar street light: installation height of 6-7m, lamp spacing of 18-19m

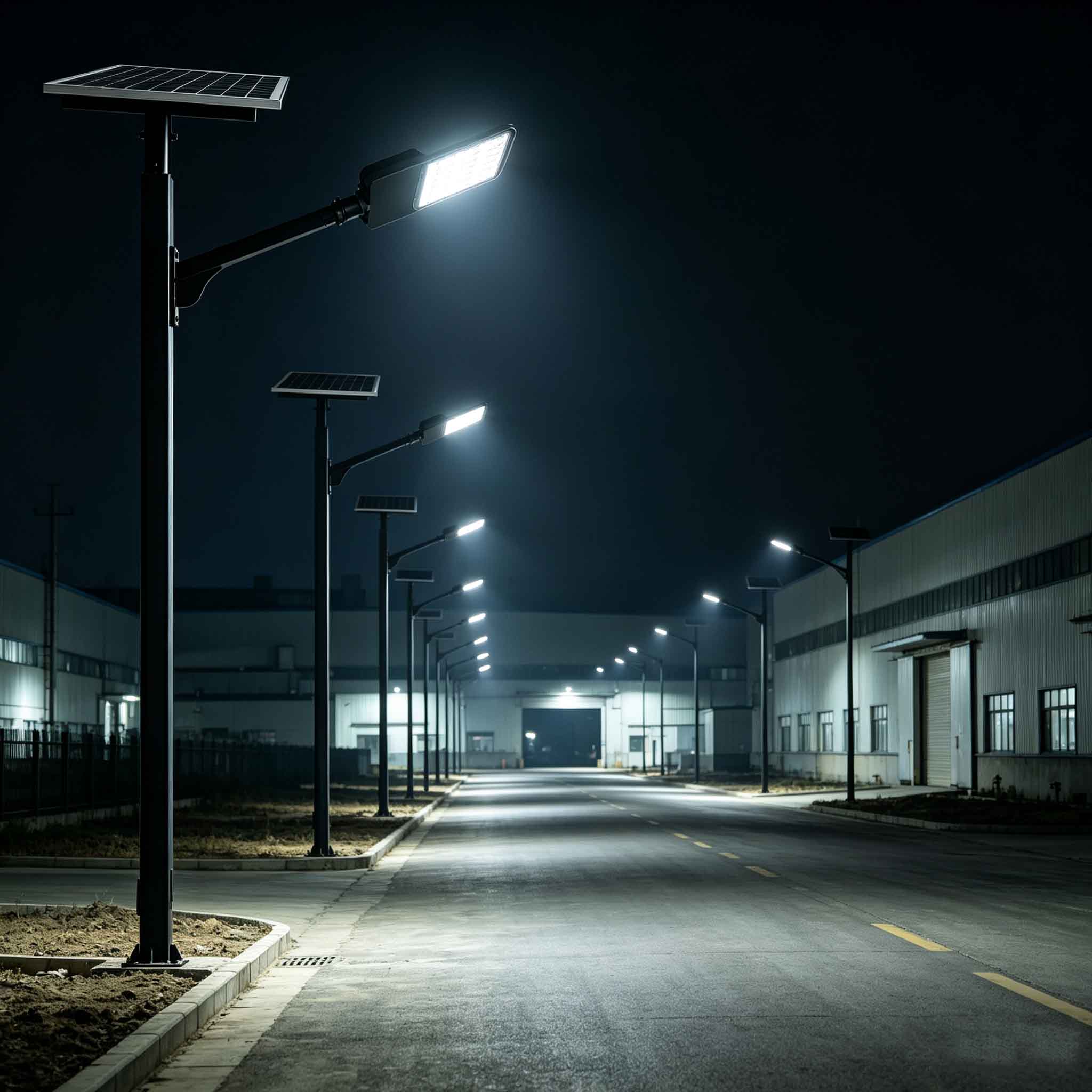

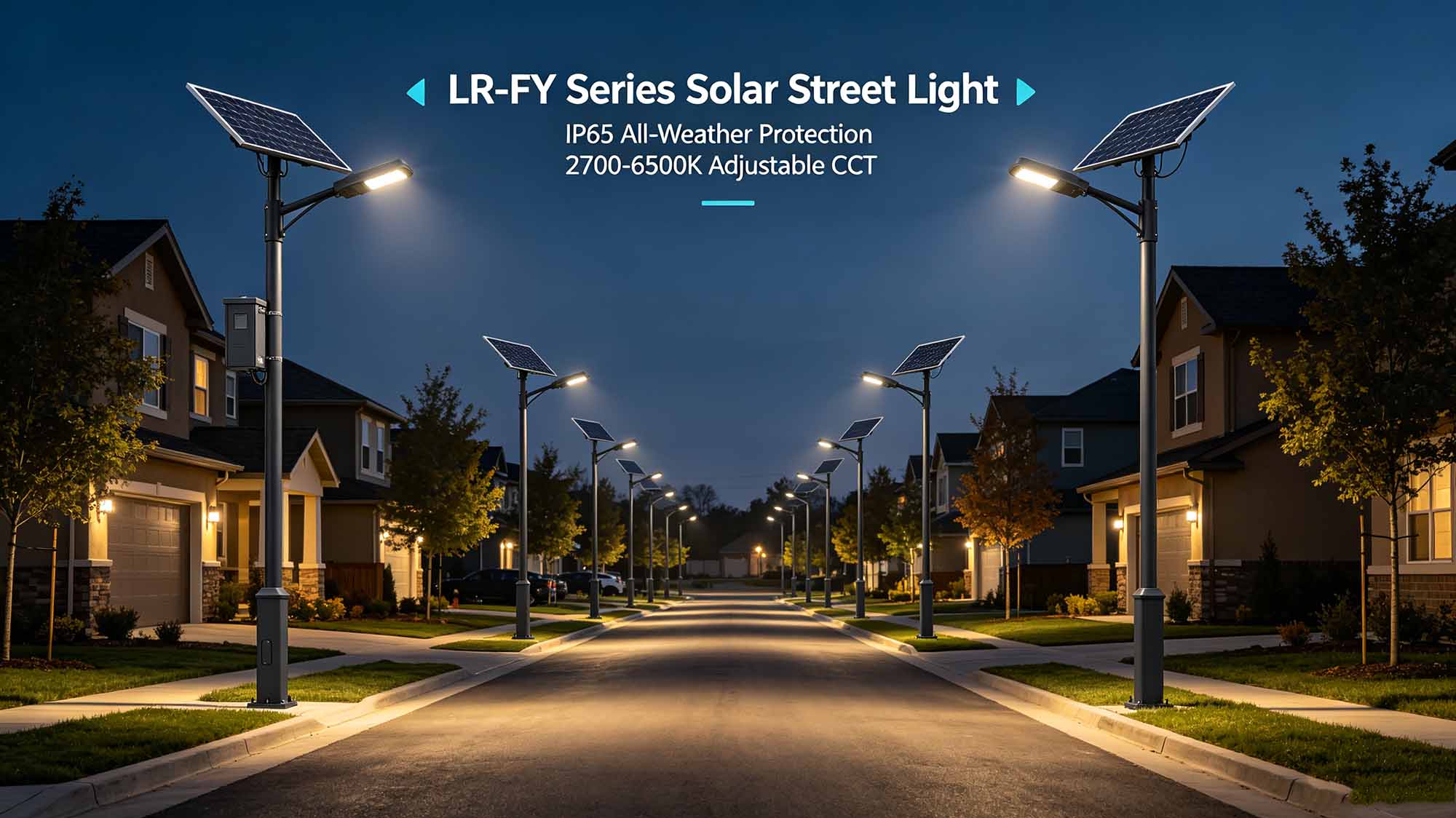

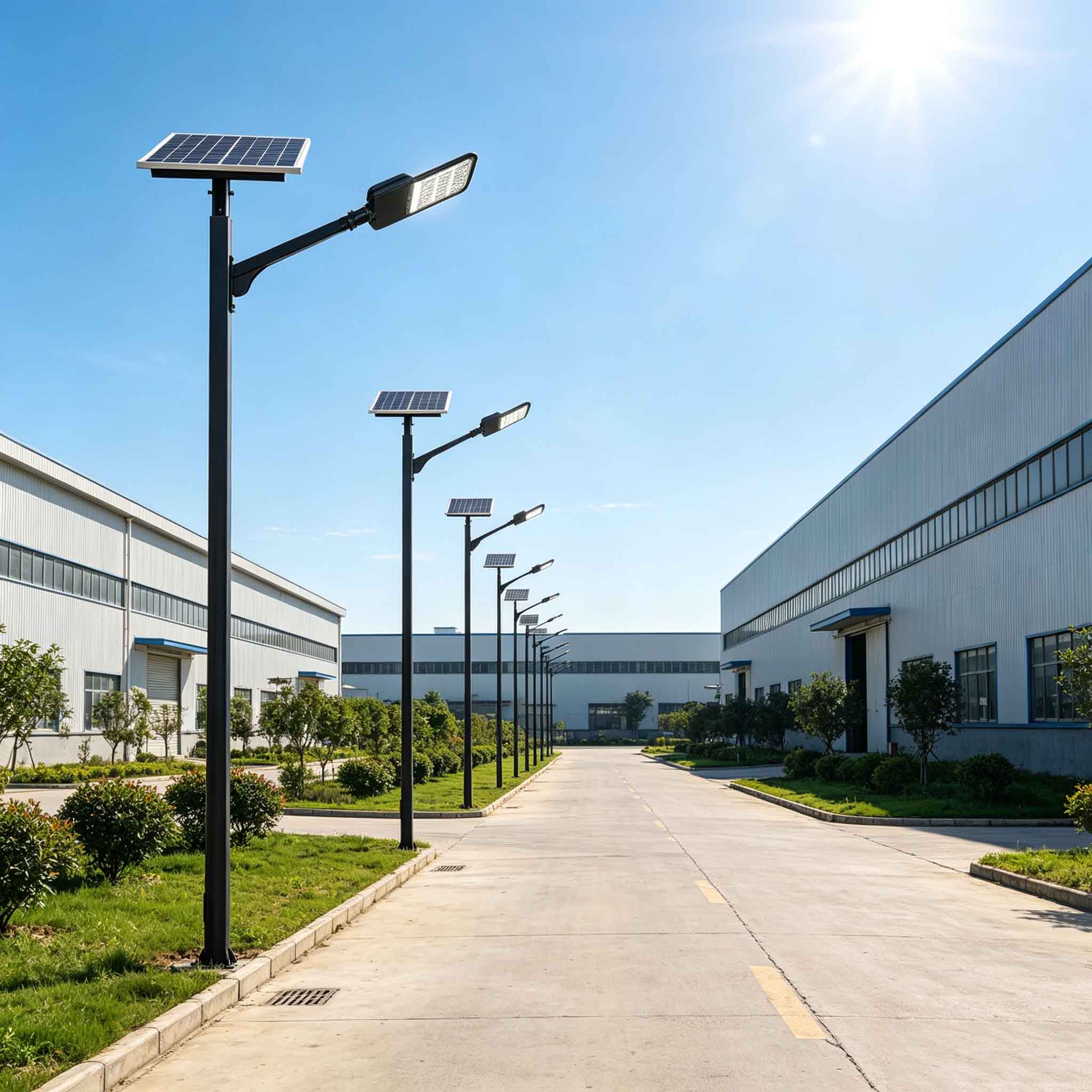

Split solar street lights are very suitable for large-scale road lighting projects, villages, residential communities, parks, and suburban highways.
The entire lamp comes with a 3-year official warranty, stable supply of spare parts, and installation technical guidance.

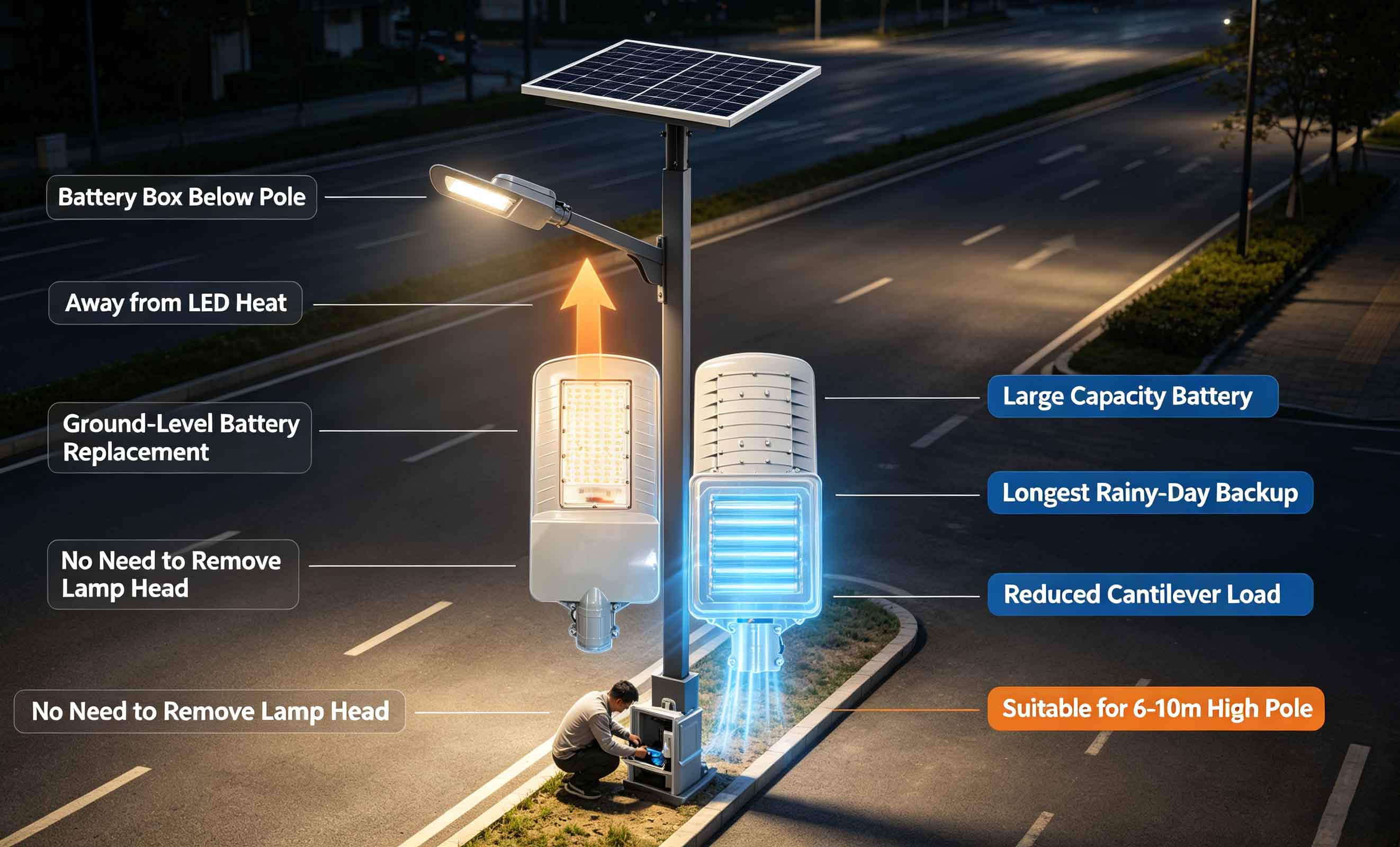

1. The best solution for heat dissipation is to place the battery in the box below the lamp post, away from the heat of the LED lamp head. The battery temperature is low, and the life of the lithium battery is greatly extended.
2. Split solar street light is super convenient to replace the battery in the later stage, without the need to climb high and remove the entire lamp head. The battery box under the pole can be opened on the ground for maintenance.
3. Can be equipped with a large capacity battery, with the strongest endurance, suitable for areas with frequent rainy days all year round.
4. The weight of the lamp head is reduced, the cantilever load is reduced, and the risk of bending of the lamp post is reduced, making it suitable for 6-10 meter high pole street lamps.
1. Optical lens secondary light distribution, directing light to project onto the road surface, with long illumination distance and high road uniformity; The same wattage road surface effect is much brighter than ordinary flat lamp heads.
2. Low glare and will not directly hit pedestrians' eyes.
3. Suitable for wide roads and main thoroughfares, the distance between lights can be widened, saving the total number of projects and reducing customer engineering costs.
This split solar street light adopts separated design: independent solar panel, separate LED lamp head and ground lithium battery, matched with 6- 8m galvanized light pole. It is widely used in residential community roads, rural township roads, park walkways, industrial park passages, villa district lighting projects. The system works fully off-grid without city power wiring. Solar panel absorbs sunlight during daytime to charge lithium iron phosphate battery; built-in intelligent light sensor automatically turns on the lamp at dusk and turns off at dawn, realizing automatic all-night lighting without manual operation. Two power options (70W / 80W solar panel) are available to meet different road brightness and all-night lighting duration demands.
Read More
Separated photovoltaic modules, flexible angle adjustment, and higher light energy utilization efficiency. High power LED light source, high lumen output, meets the lighting needs of main road motor vehicle lanes. Lithium iron phosphate energy storage battery, safe and stable, with ultra long rainy and cloudy battery life. Die cast aluminum lamp body+structured heat dissipation, extending the overall service life of the lamp. IP65 fully sealed protection, working normally in harsh outdoor environments around the clock. Pure solar off grid power supply, zero electricity bills, minimal construction, easy to implement in bulk. Intelligent light sensing automatic switch, no need for manual control, can be equipped with time controlled dimming as needed.
Read More
Split adjustable solar panel with high daylight utilization and faster charging speed. Wireless off grid solar design, zero electricity expenses, and minimalist maintenance in the later stage. Die cast aluminum heat dissipation lamp body, fast heat dissipation, low working temperature rise, and longer service life. Multiple power and battery specifications are available, suitable for different road widths and lighting duration requirements. Constant current power supply stabilizes power supply, LED light source is not easily damaged, brightness is stable without flicker. Standard adaptation for 6-8 meter lamp posts, strong universality, compatible with conventional street lamp posts on the market.
Read More
Separated solar panel & lamp head, adjustable panel angle for maximum solar charging. Philips 5050 LED chips, high luminous efficiency 160lm/W, CRI＞75Ra. LiFePO4 lithium battery, long cycle life, stable power supply. IP65 waterproof & dustproof, die-cast aluminum housing for outdoor use. 3 years global warranty, customized installation height & lighting distance. Wide color temperature 2700K~6500K to meet different lighting demands.
Read More
Separated solar panel & lamp head design, adjustable panel angle for optimal sunlight absorption. Die-cast aluminum housing with IP65 waterproof & dustproof rating, 3 years warranty. Equipped with Philips 5050 LED chips, luminous efficiency up to 160lm/W, CCT 2700-6500K adjustable. 60W solar panel + 3.2V 50Ah LiFePO4 battery, mounting height 5-6m, spacing 17-18m. Perfect for narrow lanes, garden paths and simple pole retrofitting with ultra-low cost. 70W solar panel + 3.2V 60Ah battery, install height 6-7m, spacing 18-19m. Best-selling cost-effective model for village internal road projects & wholesale distribution. 80W high-power solar panel + 3.2V 70Ah large capacity battery, install height 7-8m, spacing 19-20m. Strong rainy-day endurance, ideal for main village roads and government bidding projects.
Read More
High efficiency Philips LED chips, 160lm/W high brightness. LiFePO4 lithium battery, longer service life. IP65 waterproof aluminum housing for outdoor use. Separated design, adjustable solar panel angle. No wiring required, save construction & electricity cost. 3 years factory warranty, reliable after-sales support.
Read More
Philips 5050 LED chips, high luminous efficiency. Two power options for different road requirements . LiFePO4 lithium‑iron‑phosphate battery. IP65 waterproof & aluminum housing. 3‑year warranty support.
Read More
LEADRAY LR-MH3 split solar street light equipped with Philips 5050 LED chips, LiFePO4 lithium battery, IP65 waterproof aluminum housing. Available in 60W & 70W solar panel versions, ideal for rural roads, parks, residential areas and municipal lighting projects, 3-year warranty.
Read More
